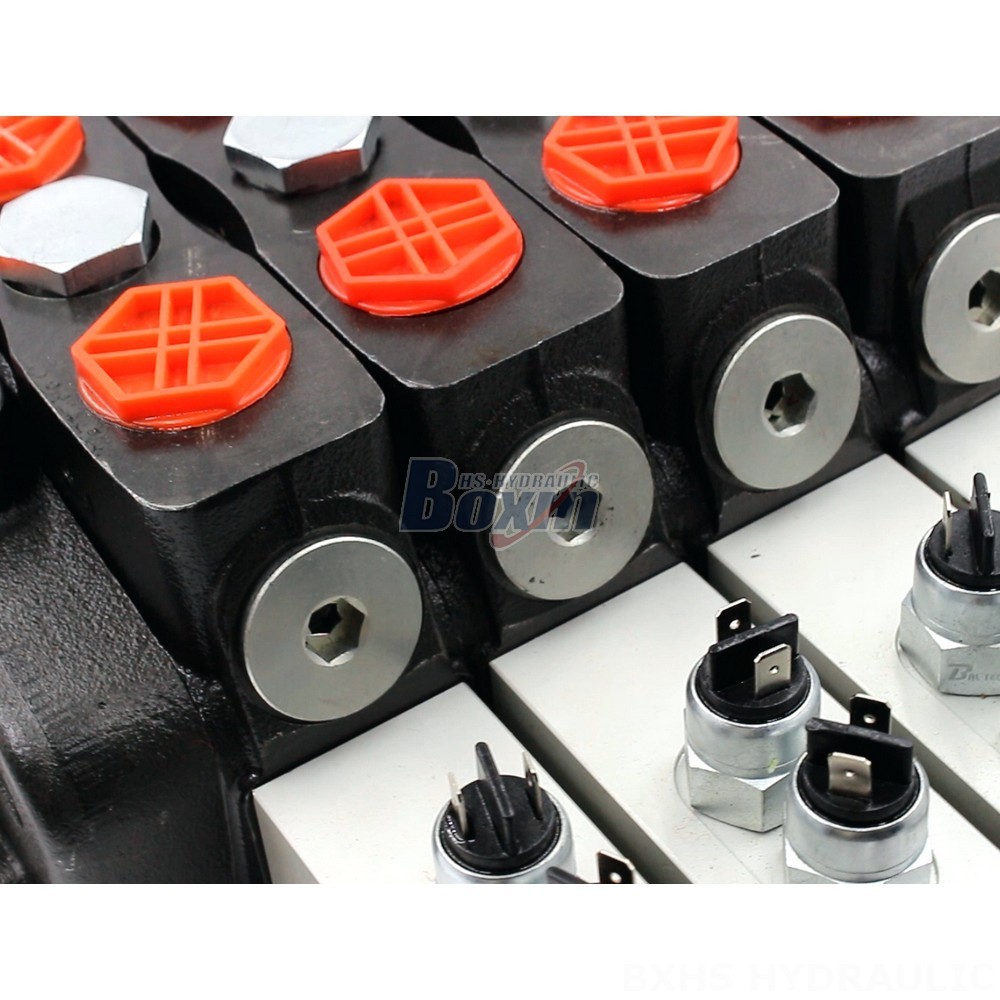

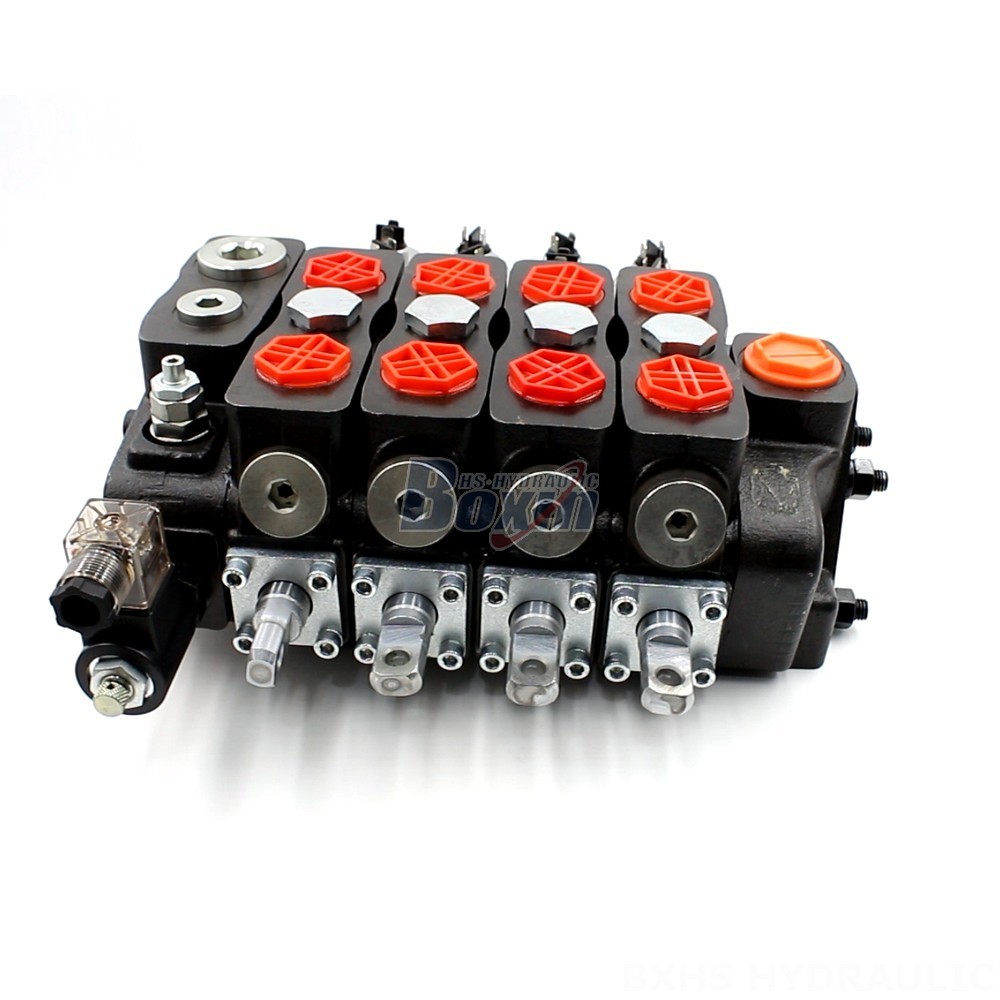

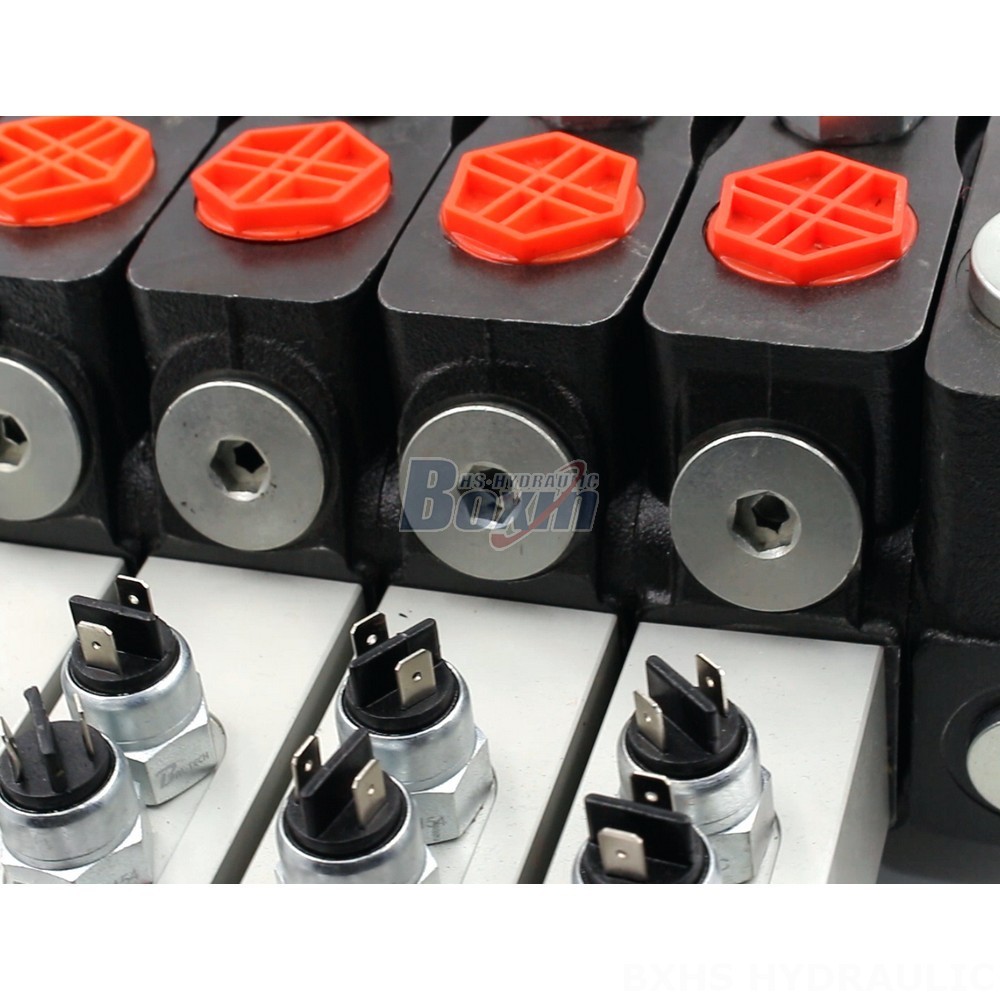

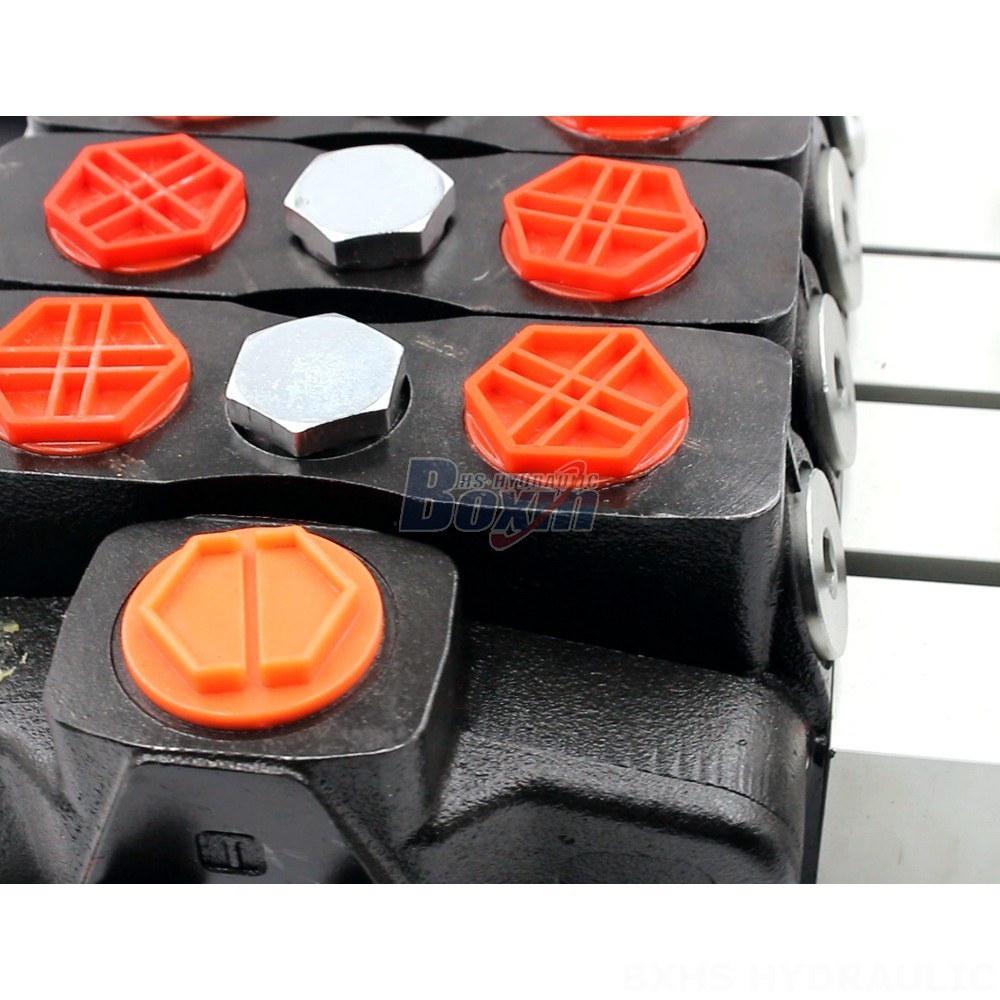

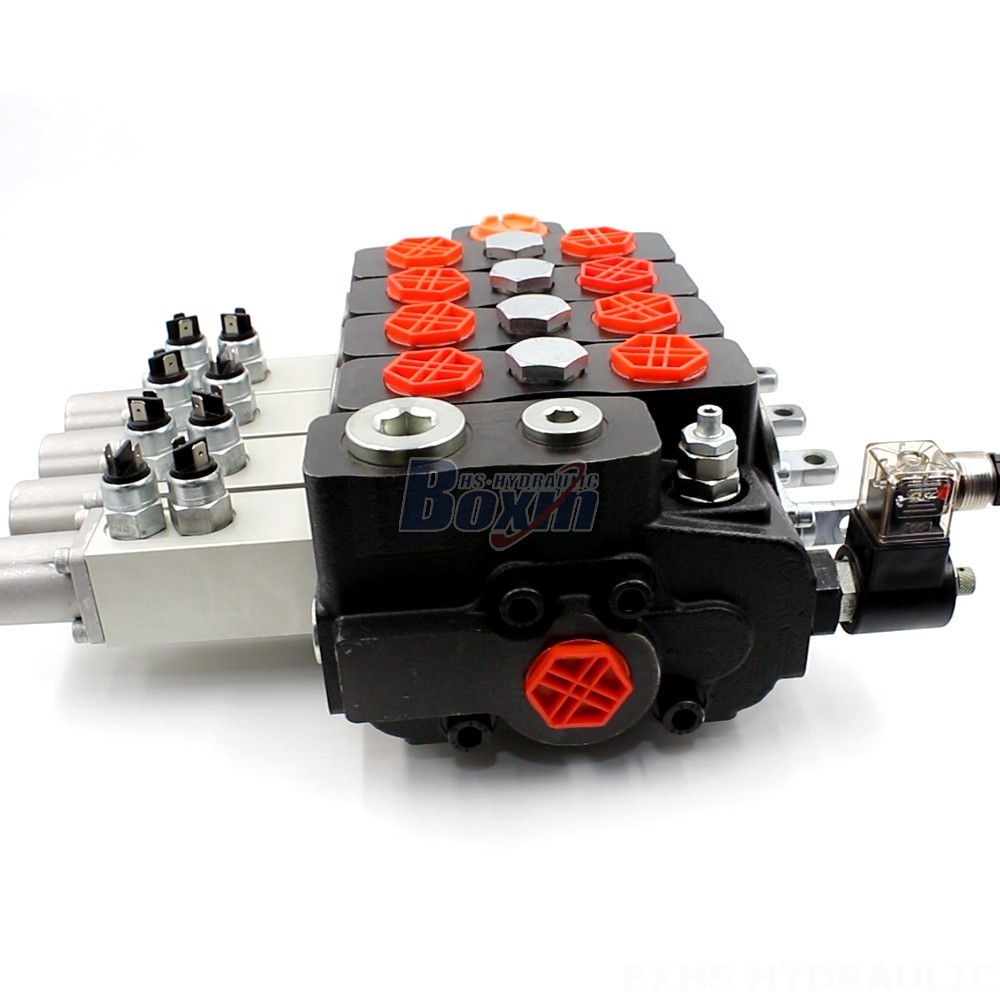

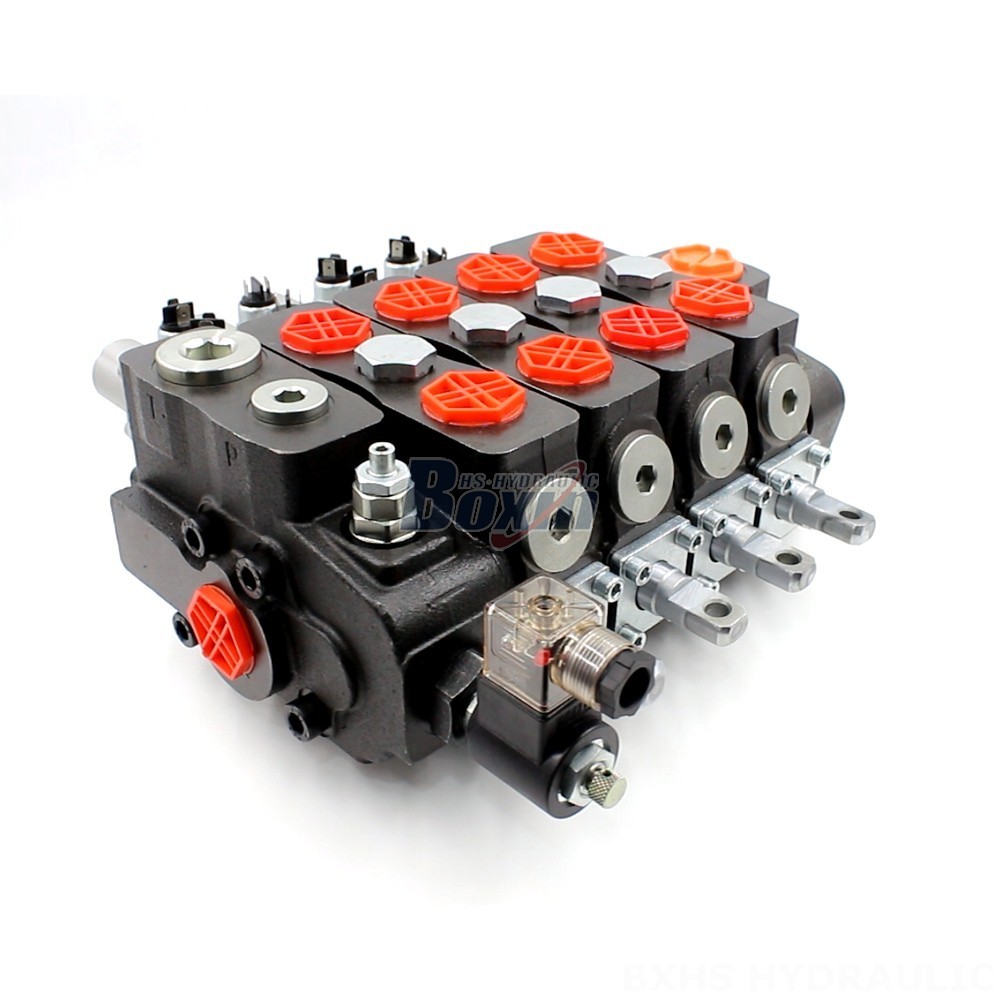

The Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 160 L/min and a maximum pressure of 350 bar, this valve is capable of handling even the most demanding applications. The manual control and 4 spool design provide precise and reliable control over the flow of hydraulic fluid.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |
**Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 160 L/min (42.2 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Series:** SDS180 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
The Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and lightweight construction make it easy to install and maintain, while its durable construction ensures long-lasting performance.
