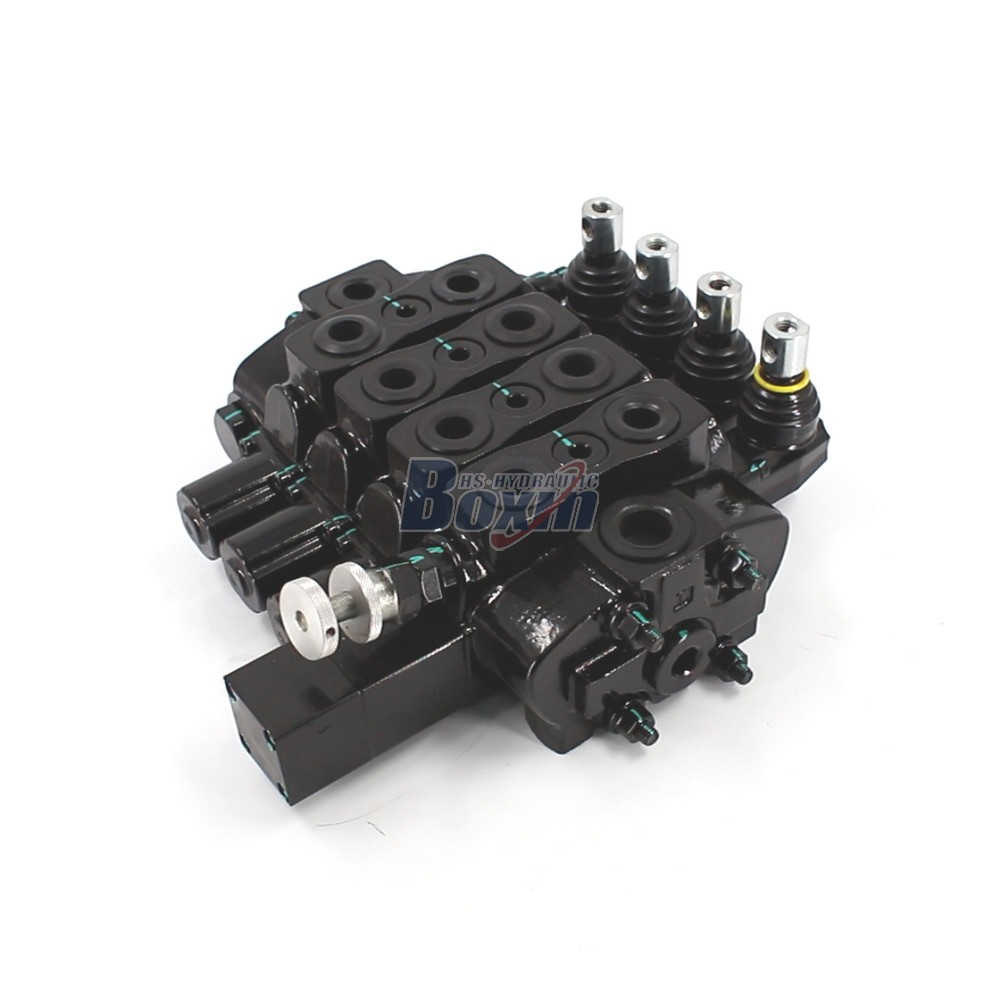

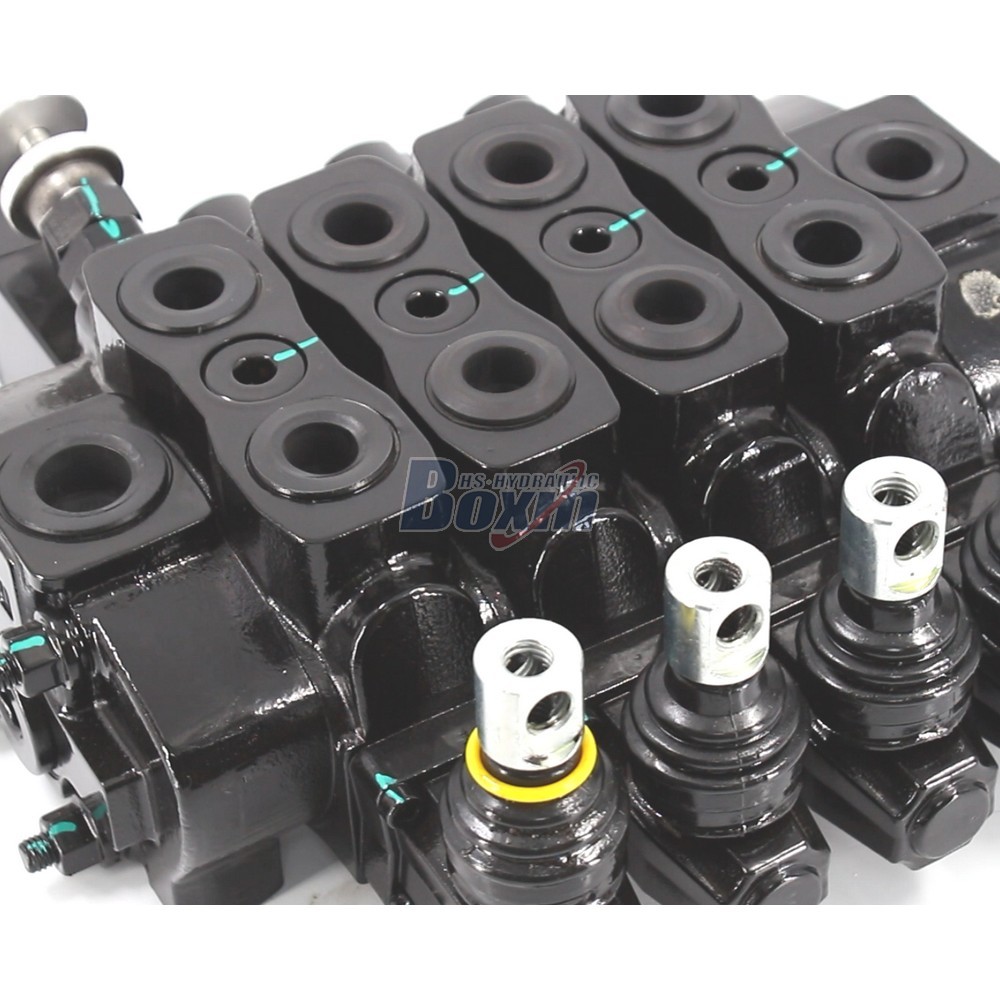

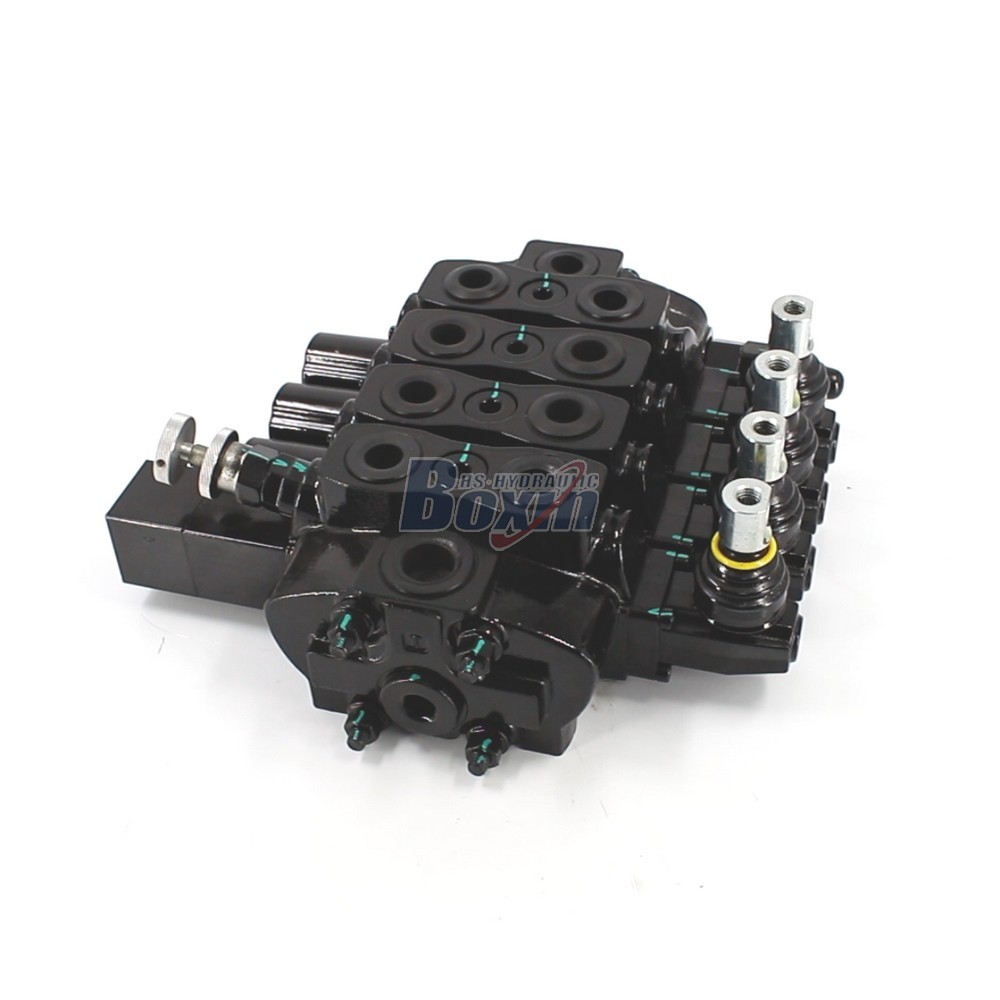

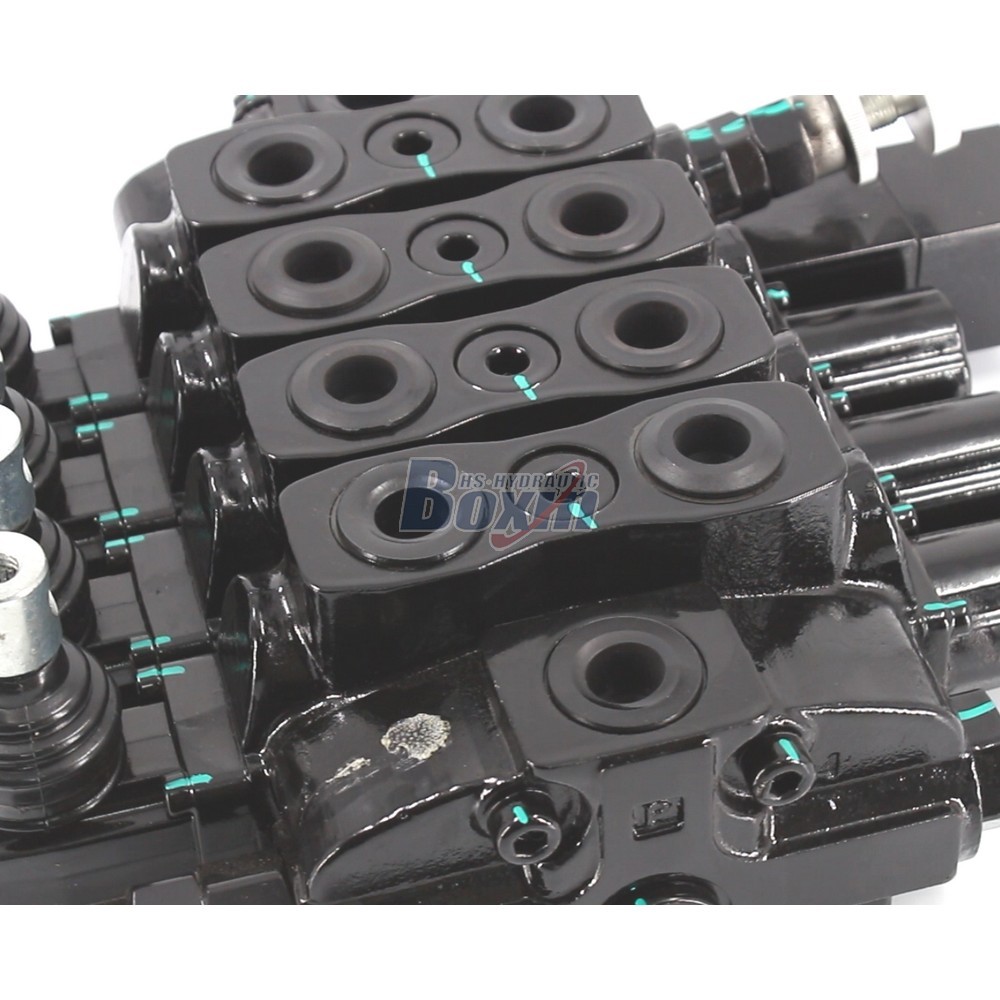

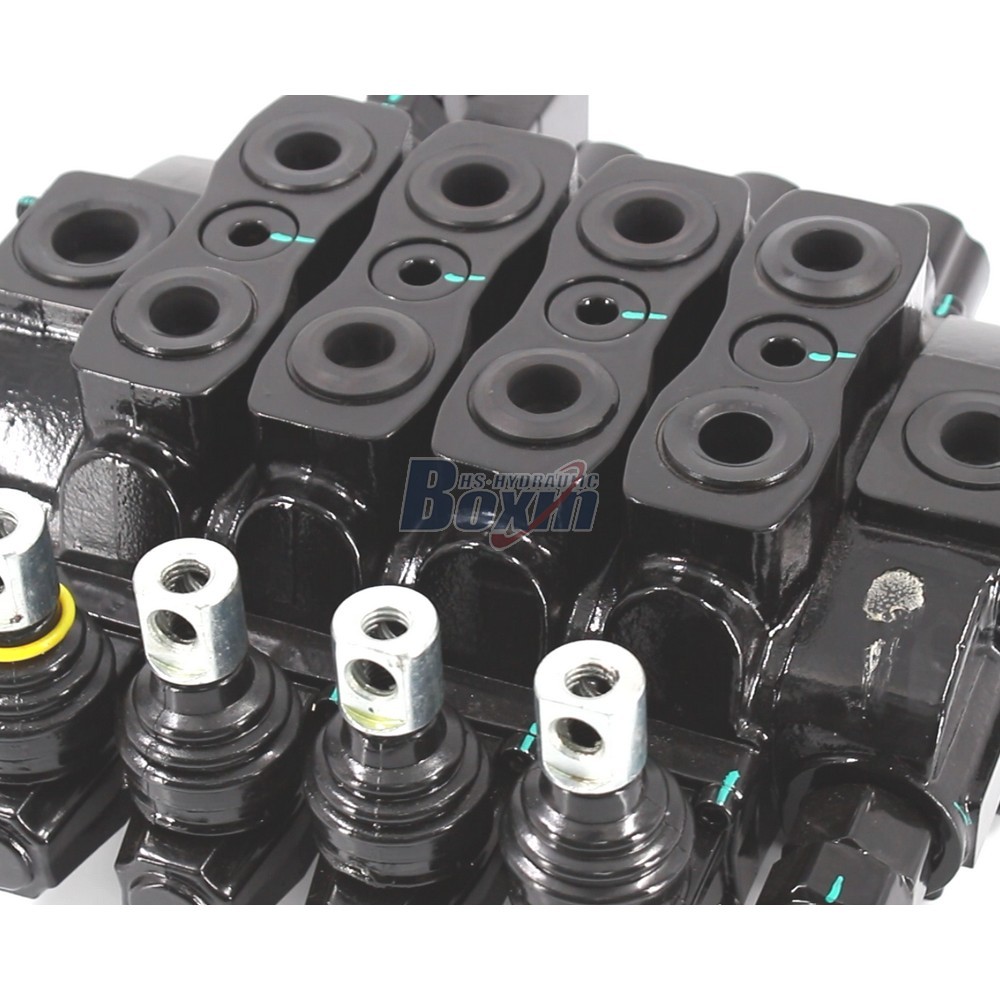

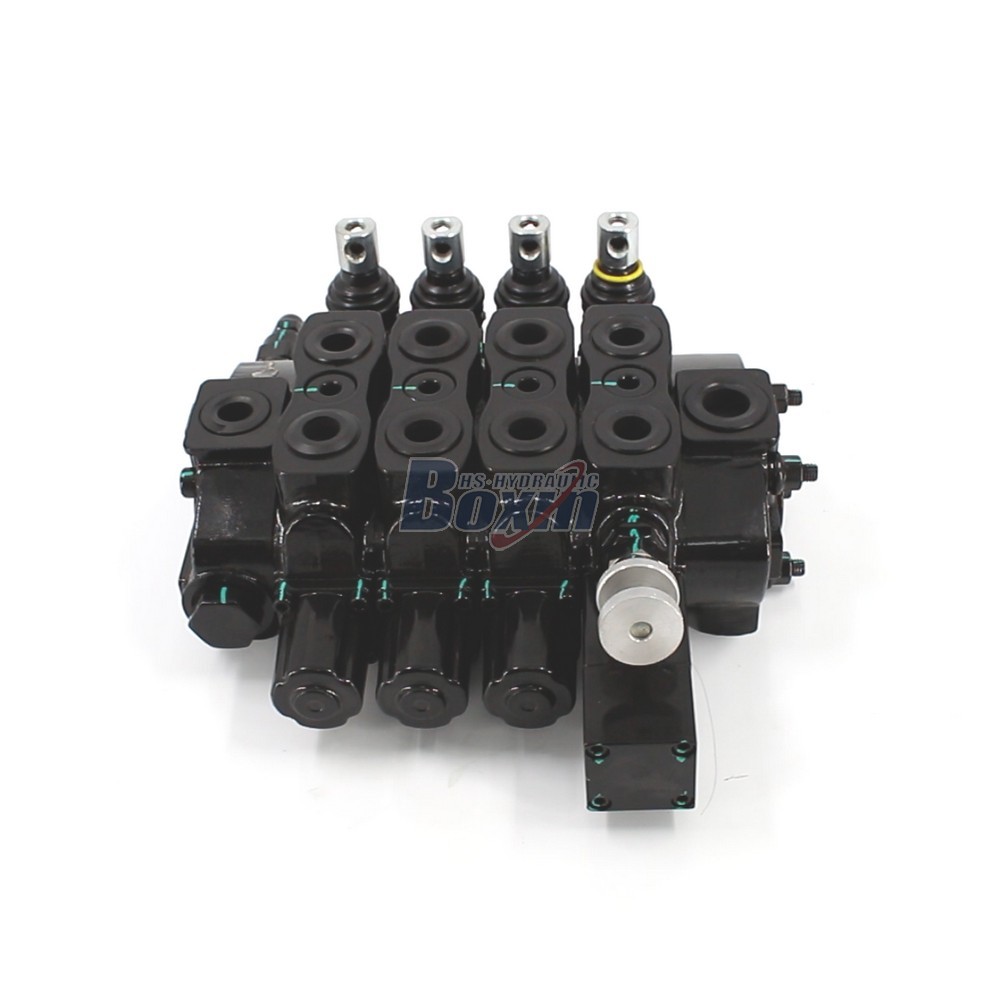

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

控制方式:手控

路数:4 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD8系列 分块式方向阀

Packagingsize:34*34*15.5

Grossweight:18.50 kg

库存: 有货

17 次查看了此产品

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

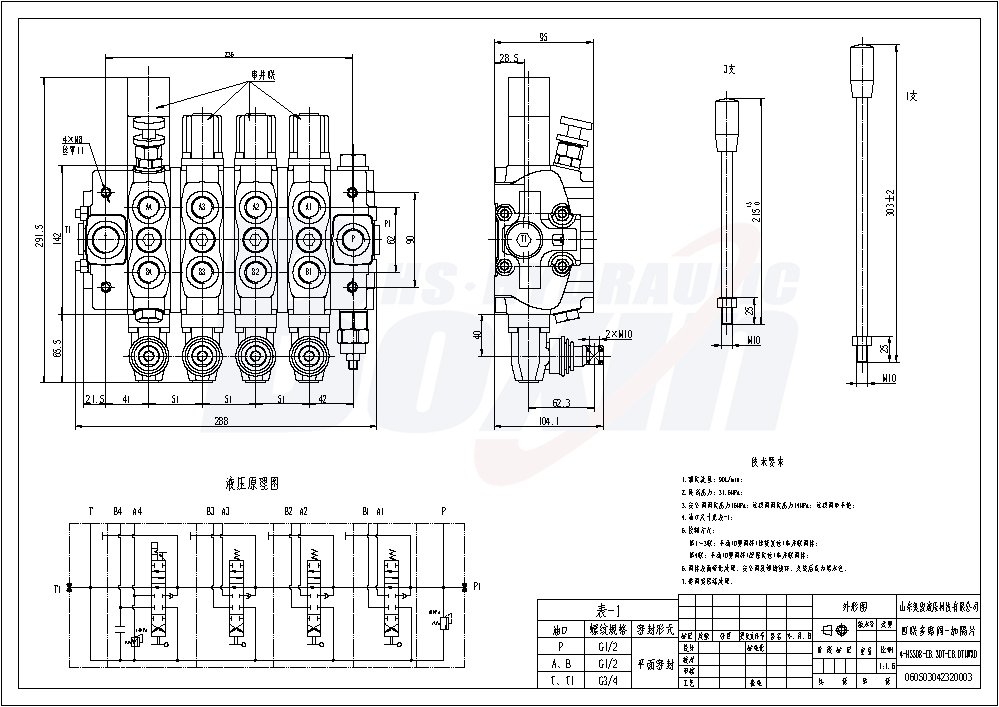

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation drawing image

The SD8-OTAMW is a high-performance 4-spool manual sectional directional control valve designed for demanding mobile applications. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve offers precise manual control for various machinery including excavators, loaders, and agricultural equipment.

SD8系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 90 L/min (23.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, SAE 10接头
出油口 G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹
接口尺寸 G1/2接口, SAE 10接头

As a leading manufacturer of hydraulic components, we provide the SD8-OTAMW 4-spool sectional directional control valve for the global market. This manual valve is engineered for heavy-duty performance in material handling, construction, and agriculture, supporting machinery like skid steer loaders, telehandlers, and forklifts. With a flow rate of 80 L/min (21.2 US gpm) and G1/2 inlet/outlet ports, it ensures reliability under high-pressure conditions up to 315 bar. We specialize in factory supply, wholesale, and professional OEM/ODM services, offering customized solutions and private labeling to meet specific technical requirements. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and traders. Our factory provides competitive wholesale pricing and consistent quality for international trade, ensuring your fleet or retail business benefits from robust hydraulic power and precise spool operation.
