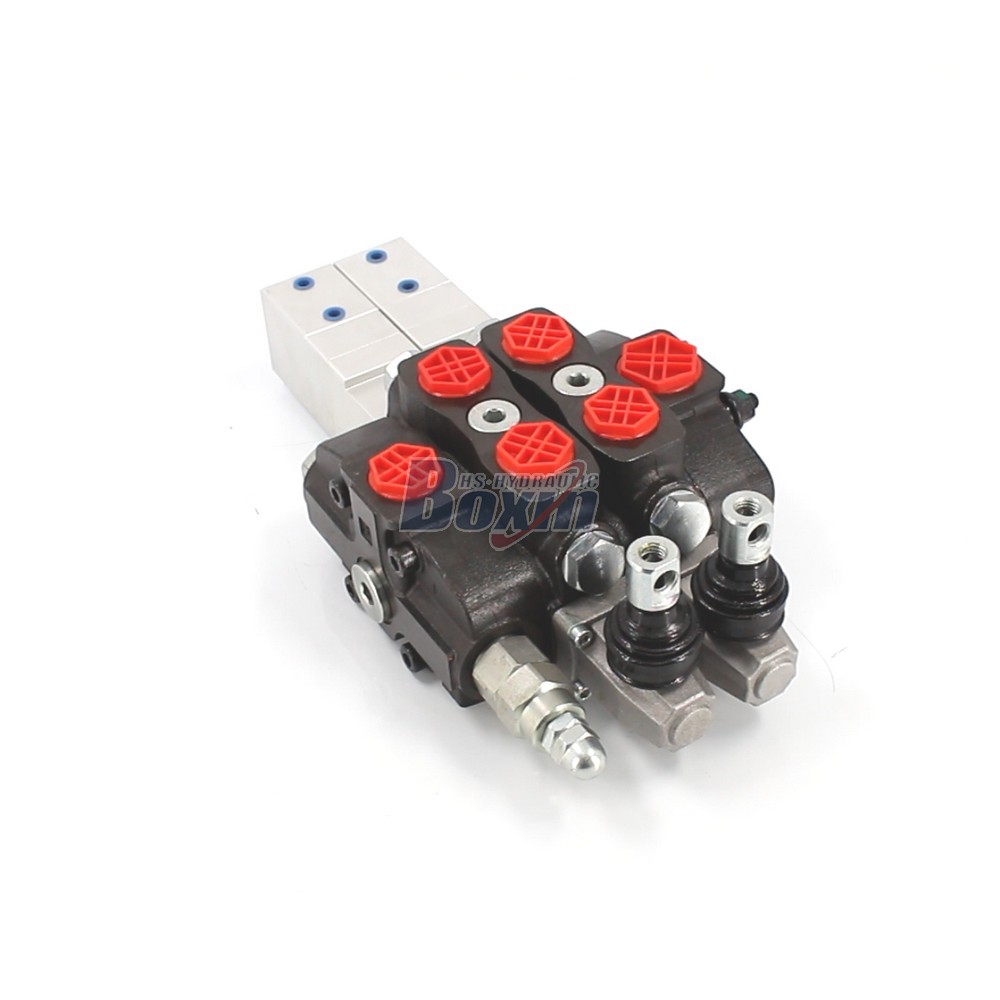

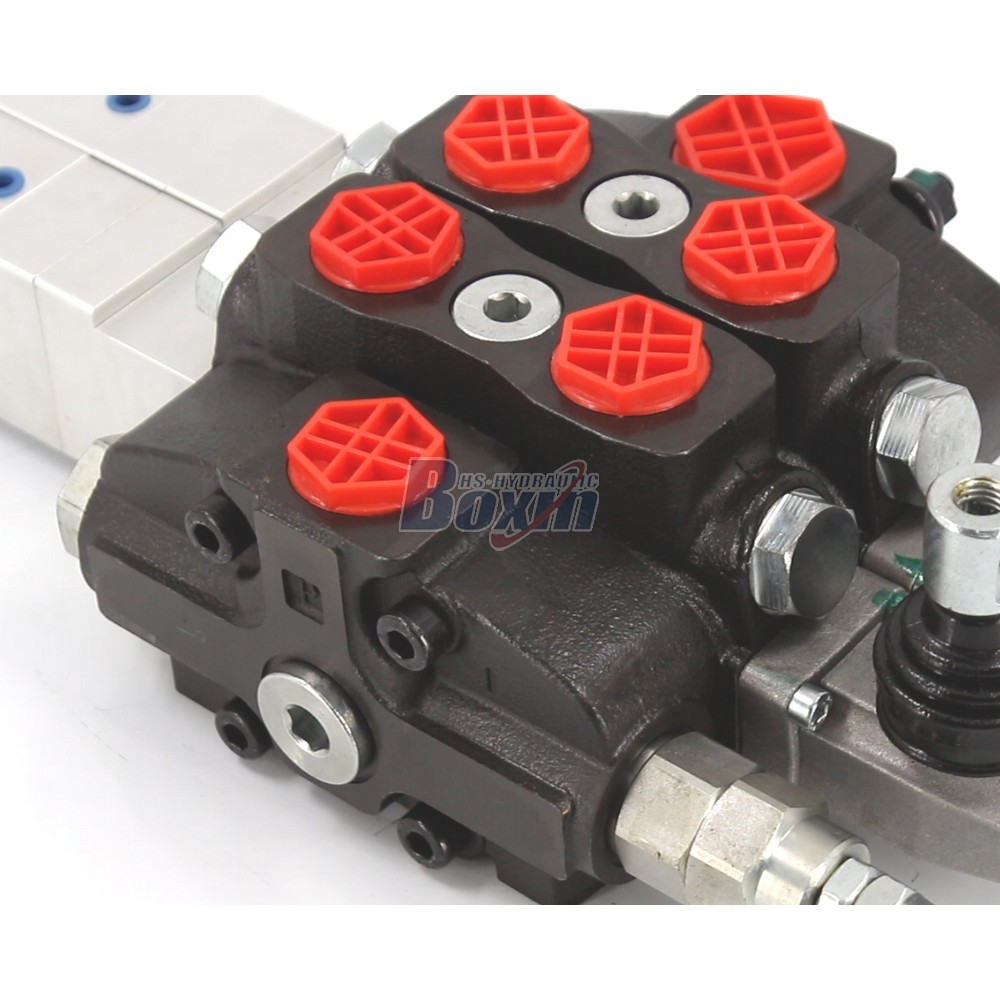

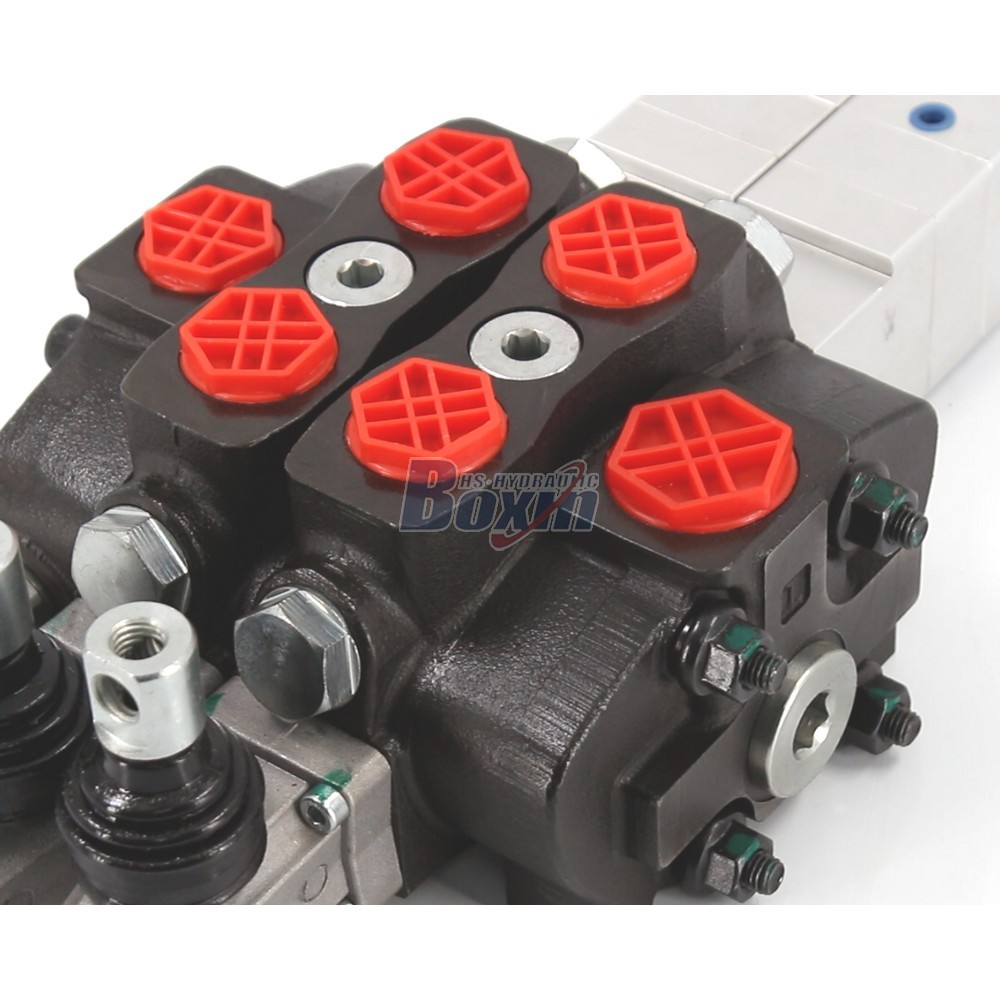

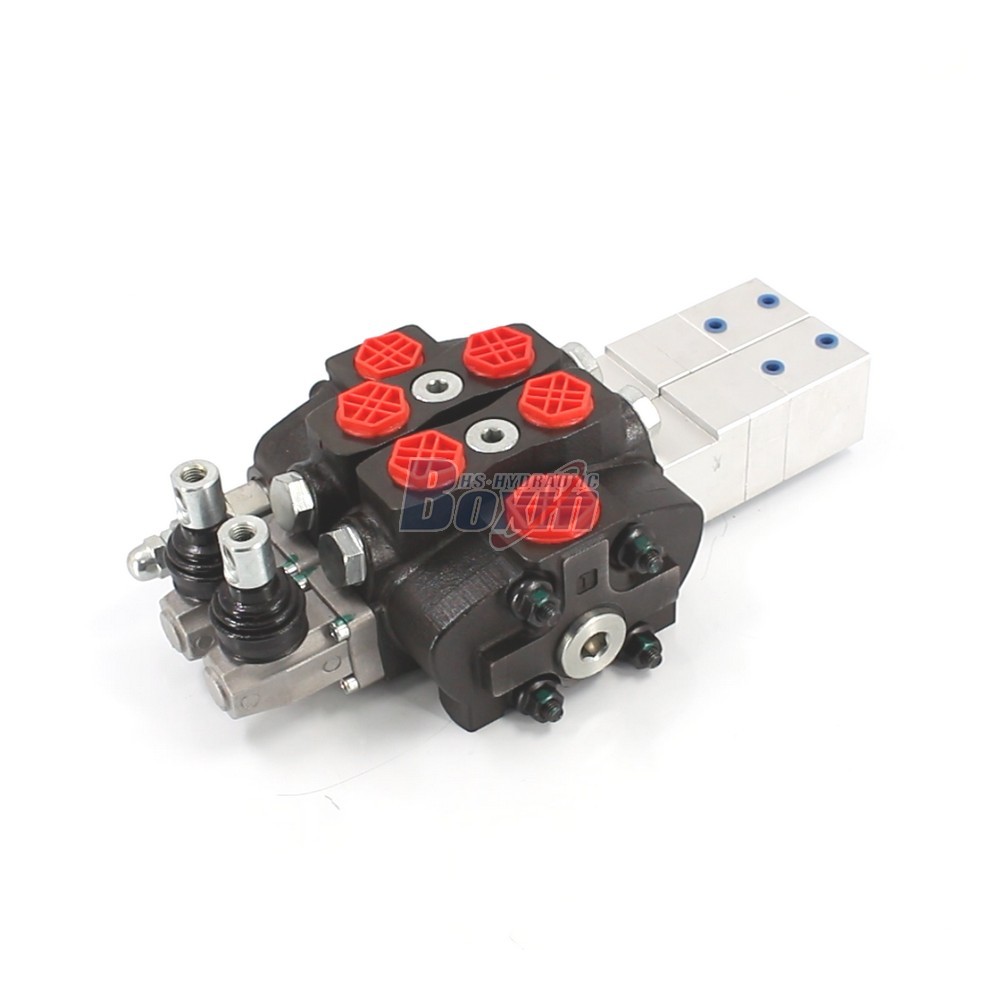

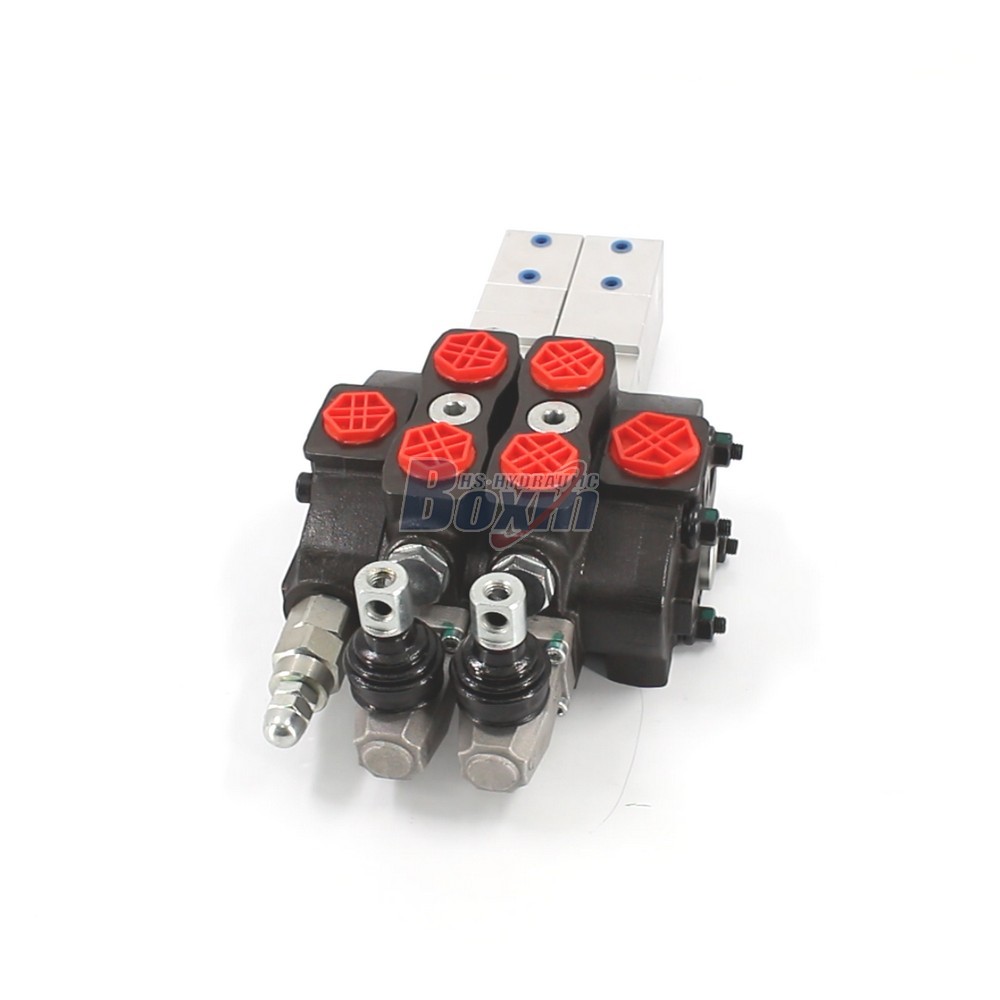

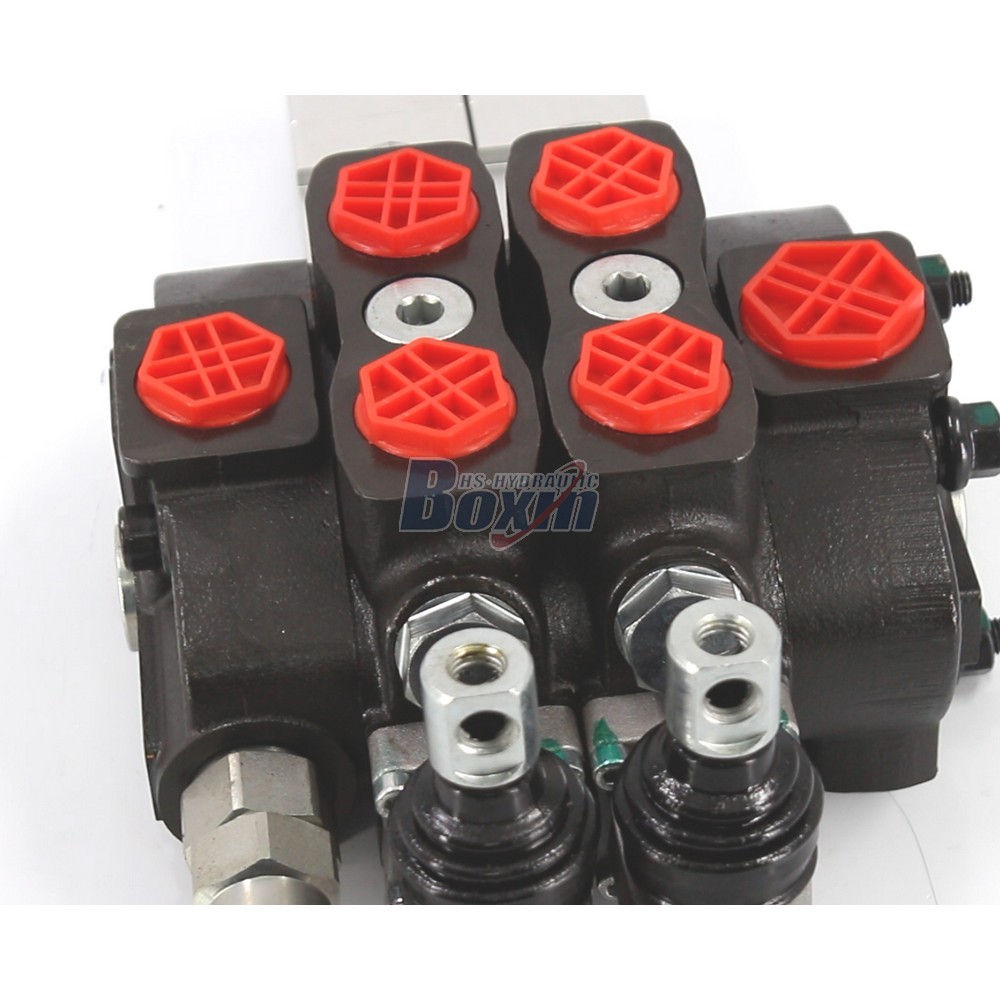

The SD8 Series Pneumatic Control Valve is a high-performance 2-spool sectional valve designed for heavy-duty machinery. With a rated flow of 80 L/min and a maximum pressure of 350 bar, it provides precise pneumatic control for applications in construction, agriculture, and material handling.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
As a leading large-scale manufacturer of hydraulic products, we offer the SD8 Series Pneumatic Control Valve, a robust 2-spool sectional type solution engineered for global markets. This valve features a rated flow of 80 L/min (21.2 US gpm) and can withstand pressures up to 350 bar (5100 psi), ensuring reliable performance in demanding environments like construction sites and agricultural fields. It is widely compatible with forklifts, mini-excavators, skid steer loaders, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding to meet specific technical requirements. Our factory offers direct wholesale supply with competitive pricing for bulk orders. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Contact us for factory-direct sourcing and professional hydraulic solutions tailored to your machinery needs.
