SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve | Private Label

控制方式:手控

路数:4 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD8系列 分块式方向阀

Packagingsize:35*35*17

Grossweight:20.00 kg

库存: 有货

840 次查看了此产品

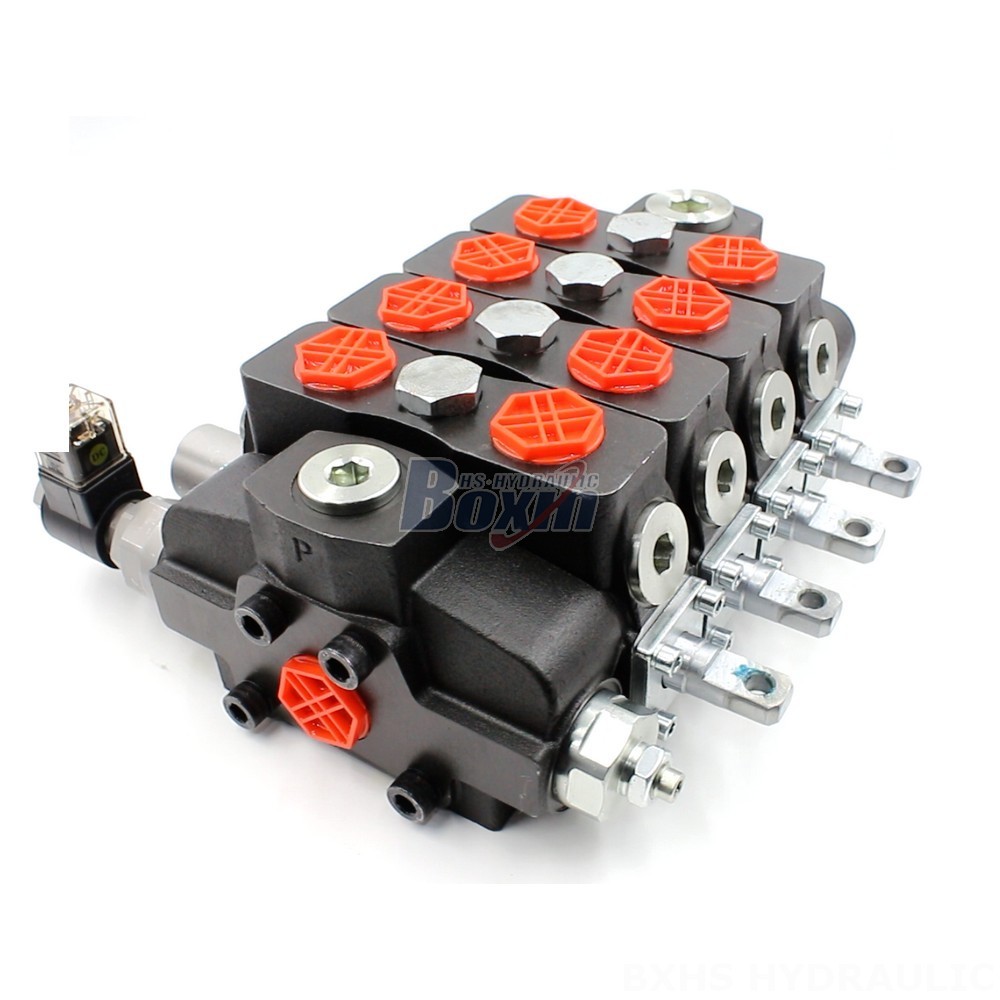

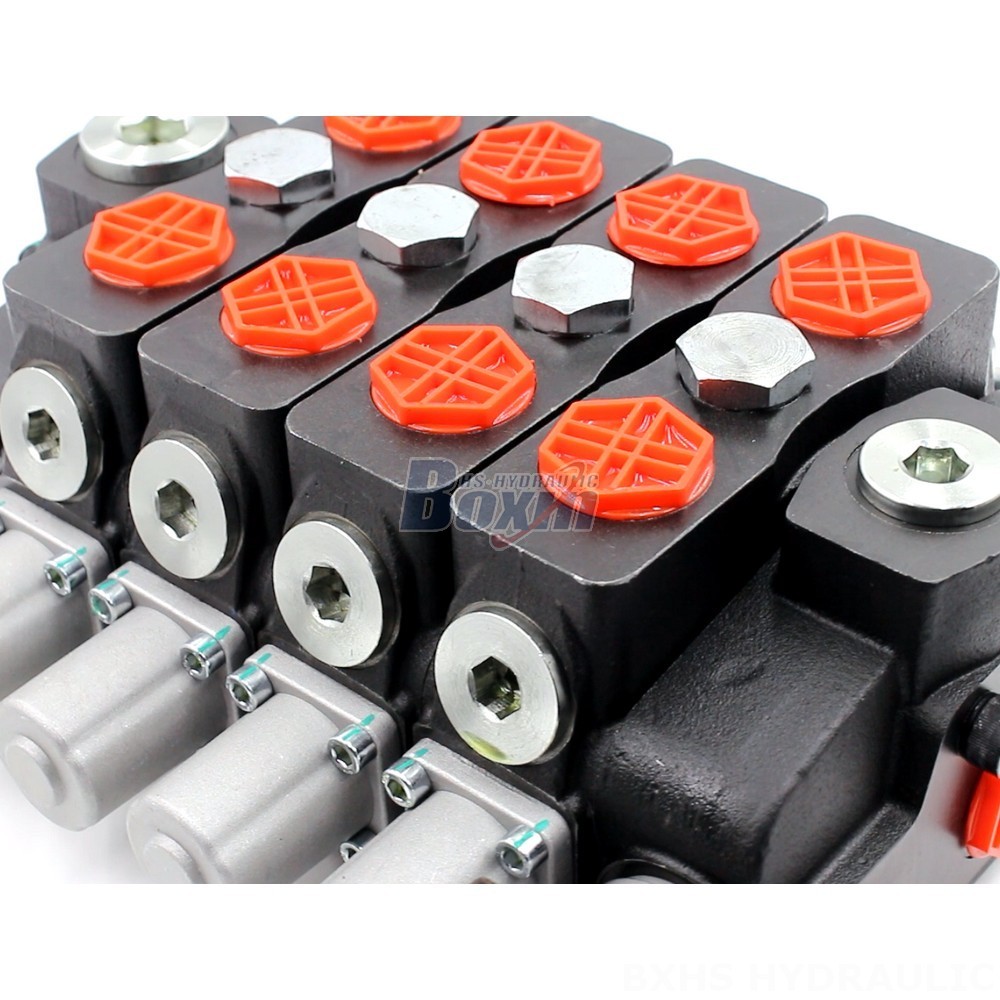

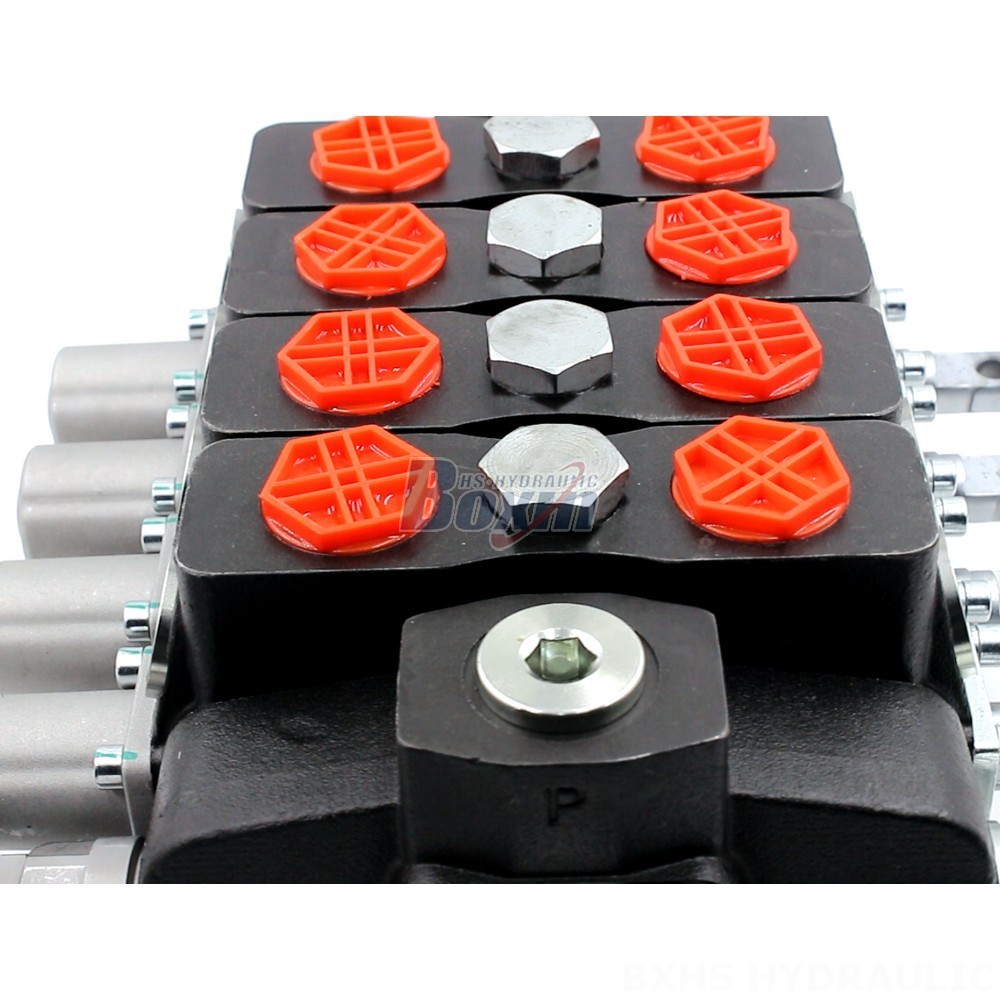

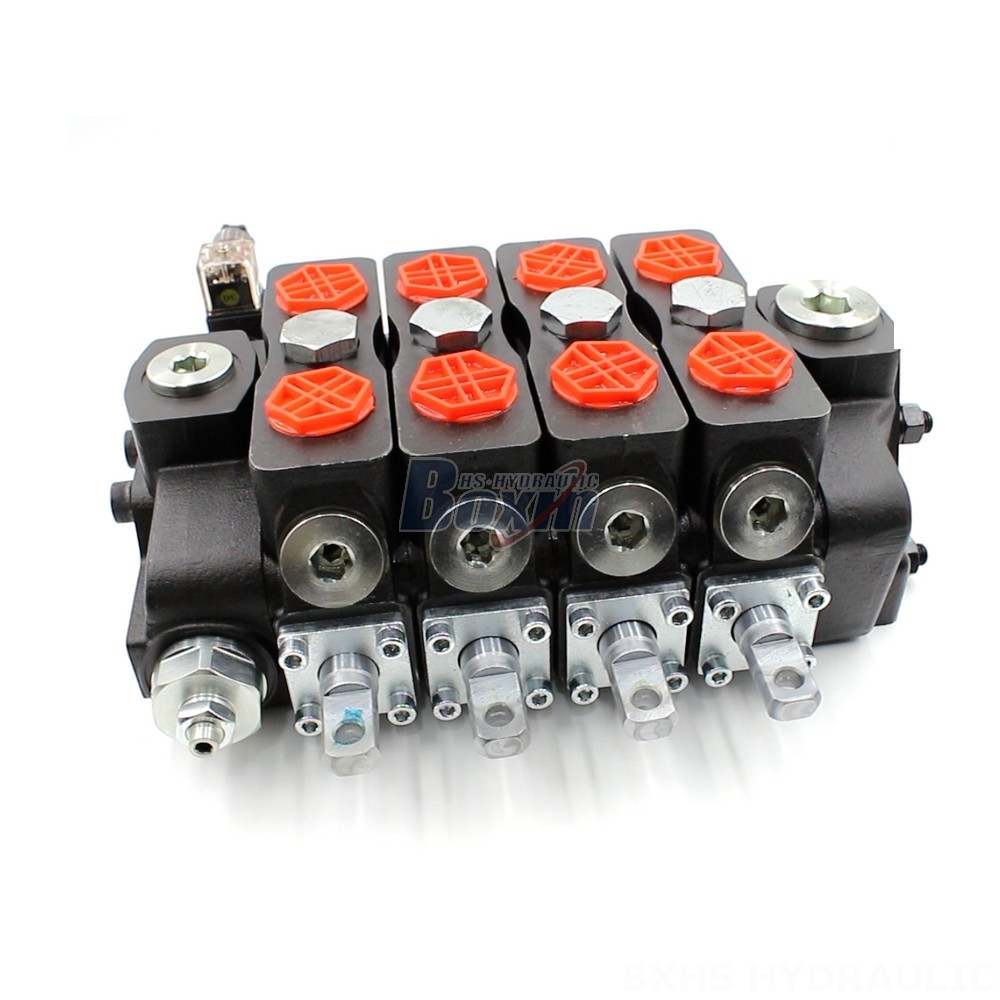

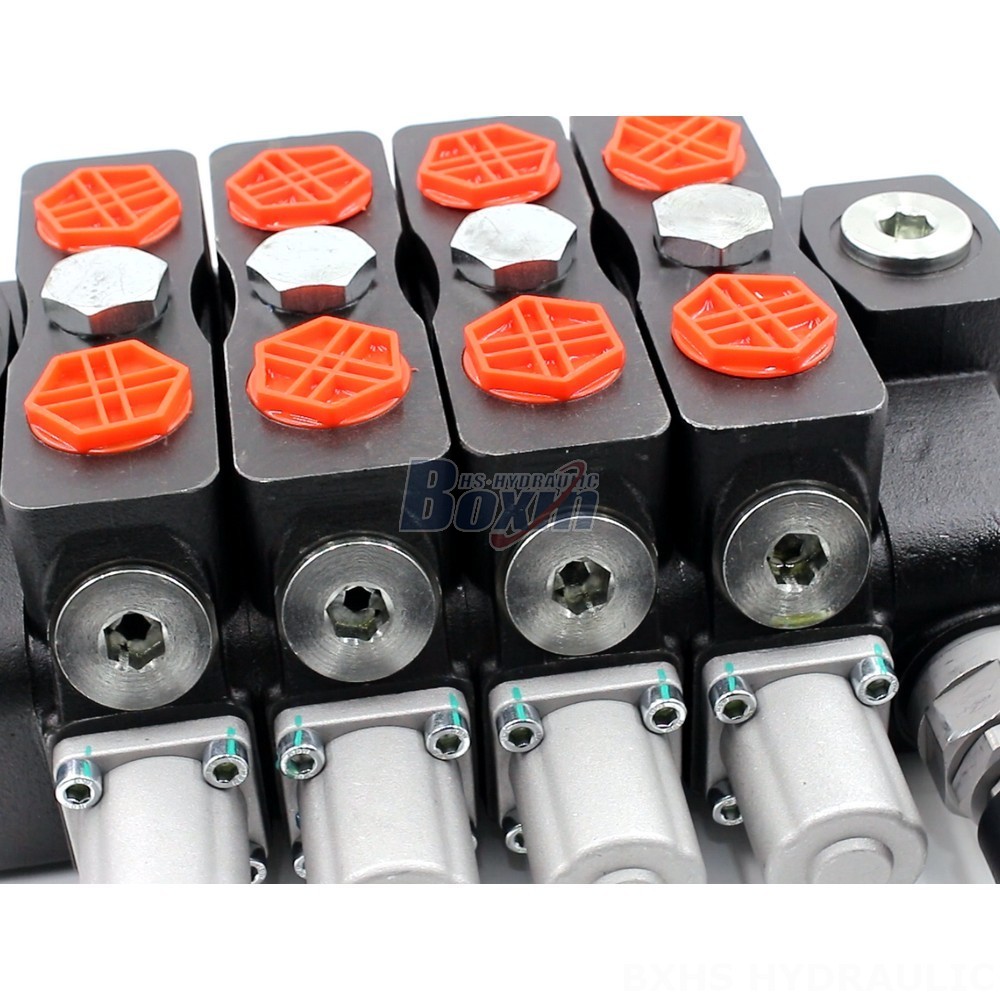

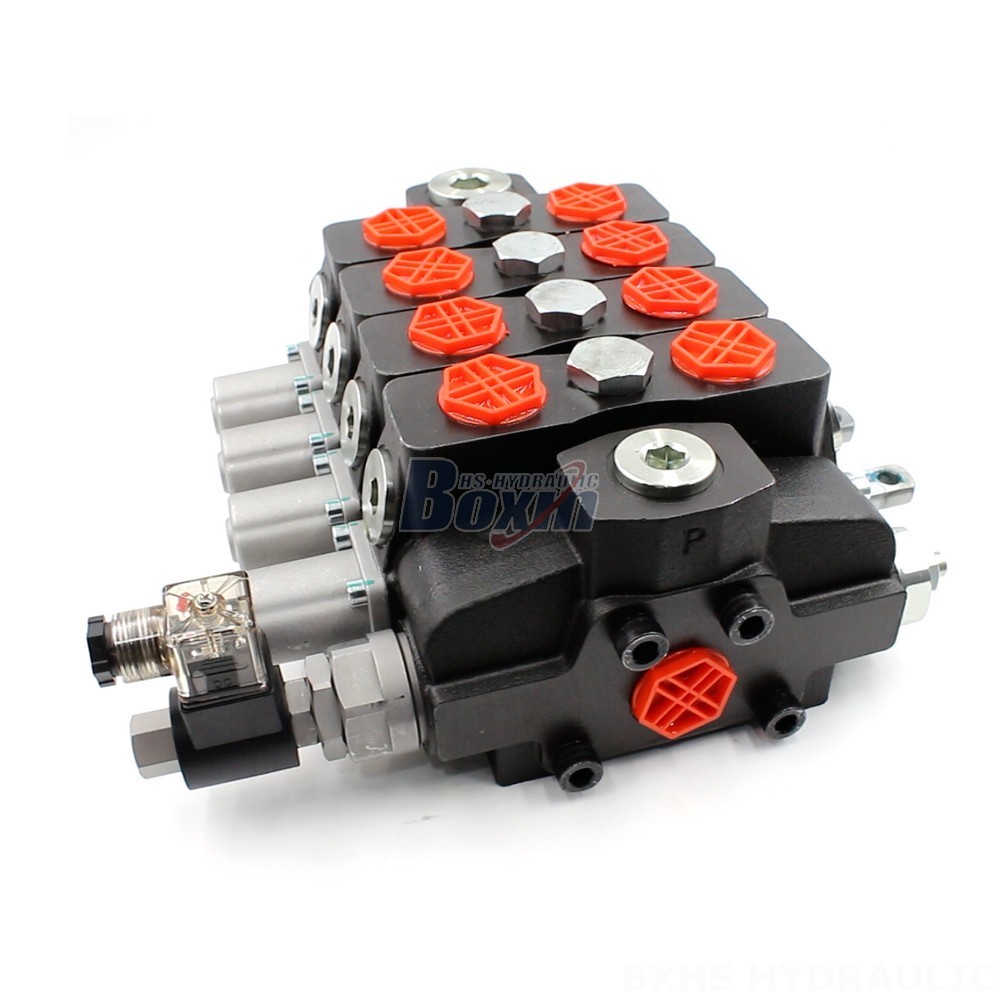

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve | Private Label

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve | Private Label

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve | Private Label drawing image

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for a wide range of industrial applications. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is suitable for demanding hydraulic systems in various industries, including material handling, construction, agriculture, and industrial vehicles.

SD8系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 90 L/min (23.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, SAE 10接头
出油口 G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹
接口尺寸 G1/2接口, SAE 10接头

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve features a sectional design that allows for easy customization and maintenance. It is equipped with four spools, providing precise control over the flow of hydraulic fluid. The valve has an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt), making it compatible with a wide range of hydraulic fluids. Its compact design and modular construction ensure easy installation and integration into existing hydraulic systems. Applications for the SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
