1107 次查看了此产品
The SDS180 Series Hydraulic Solenoid Directional Valve is a 4-spool manual valve designed for heavy-duty applications in construction, material handling, and agriculture. With a rated flow of 160 L/min and a max pressure of 350 bar, this valve is suitable for use in a wide range of equipment.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |

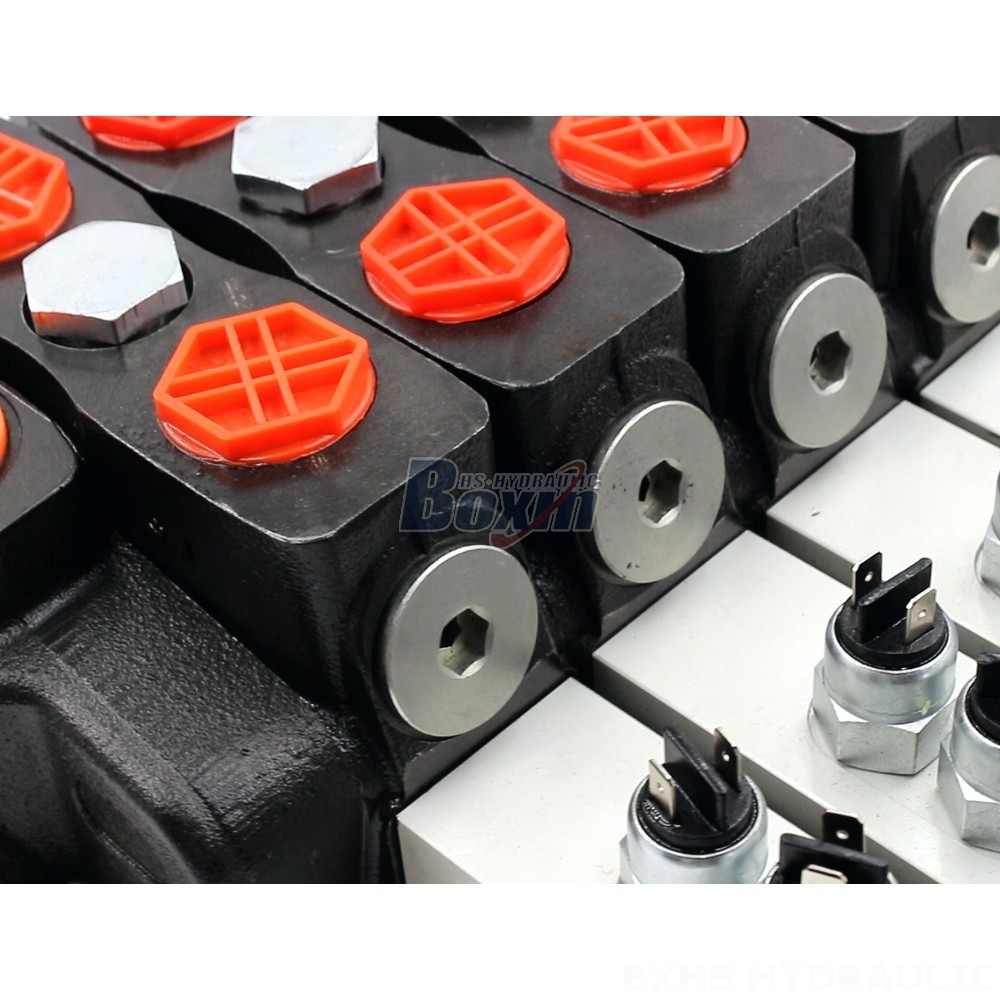

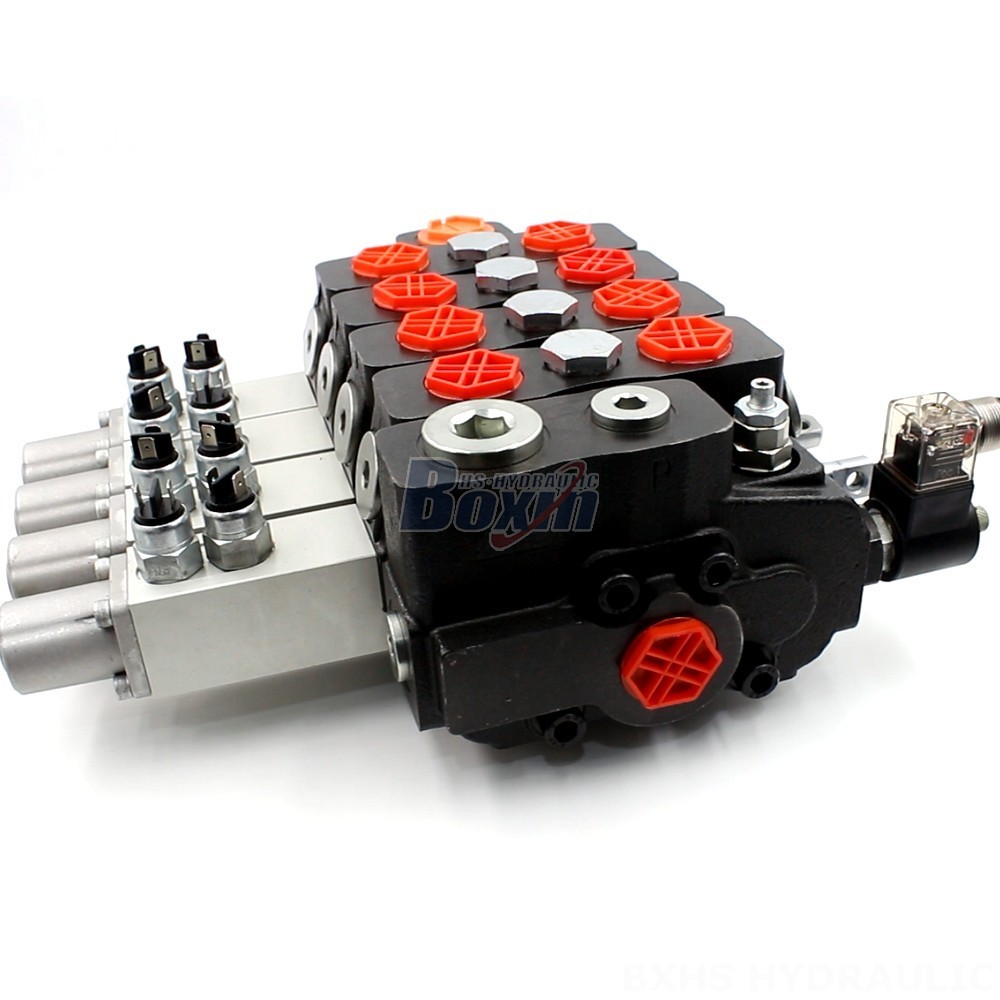

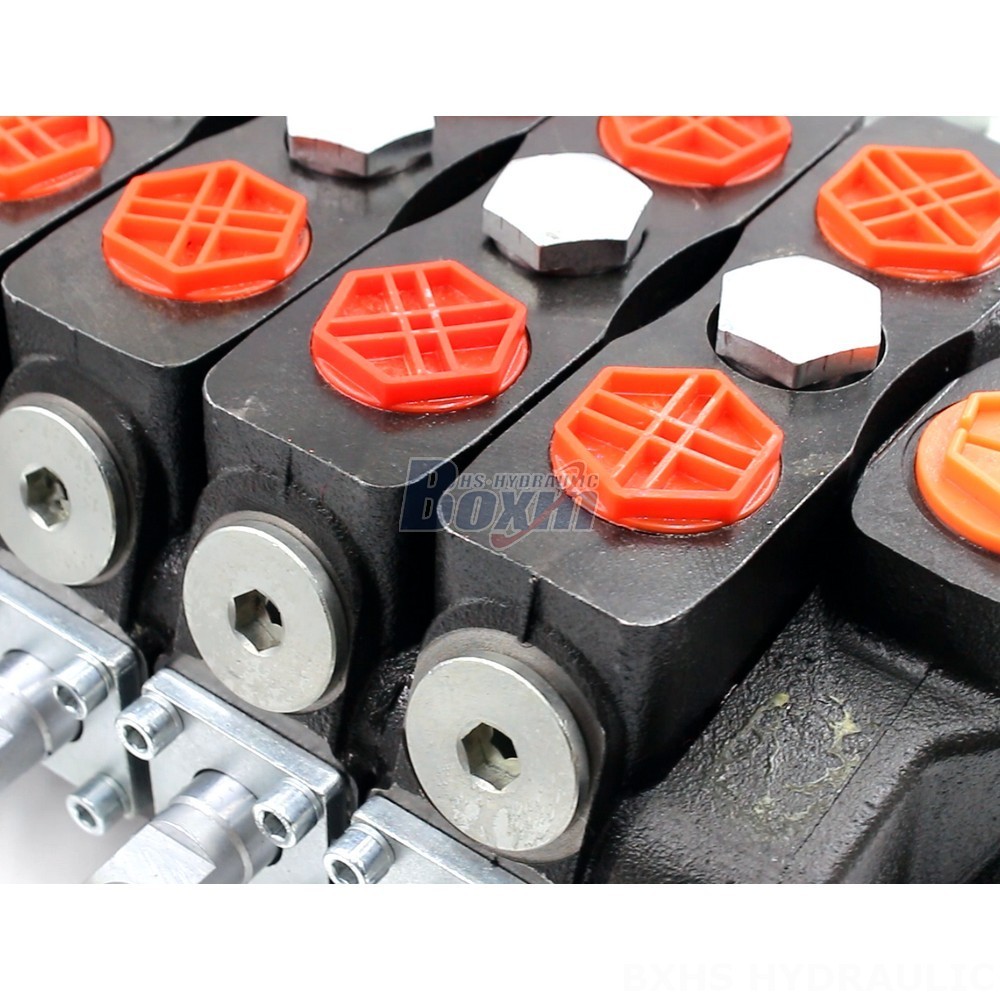

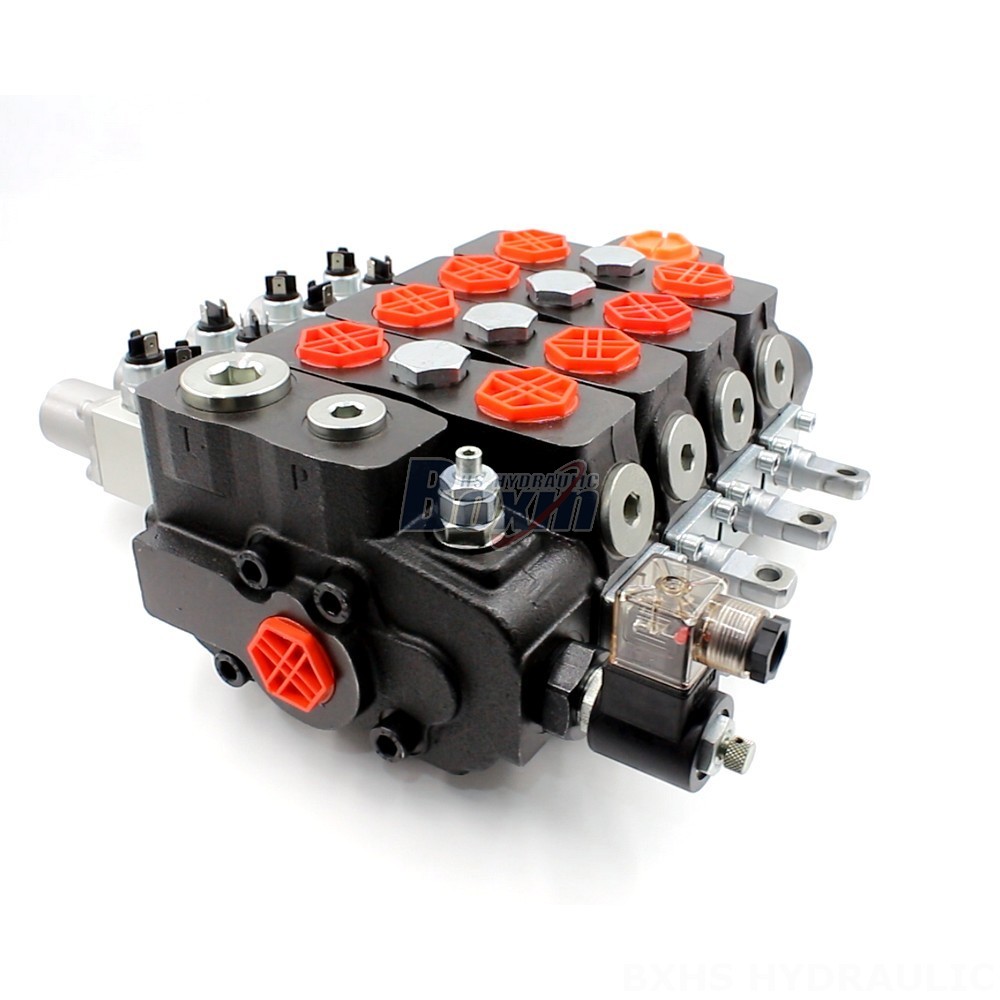

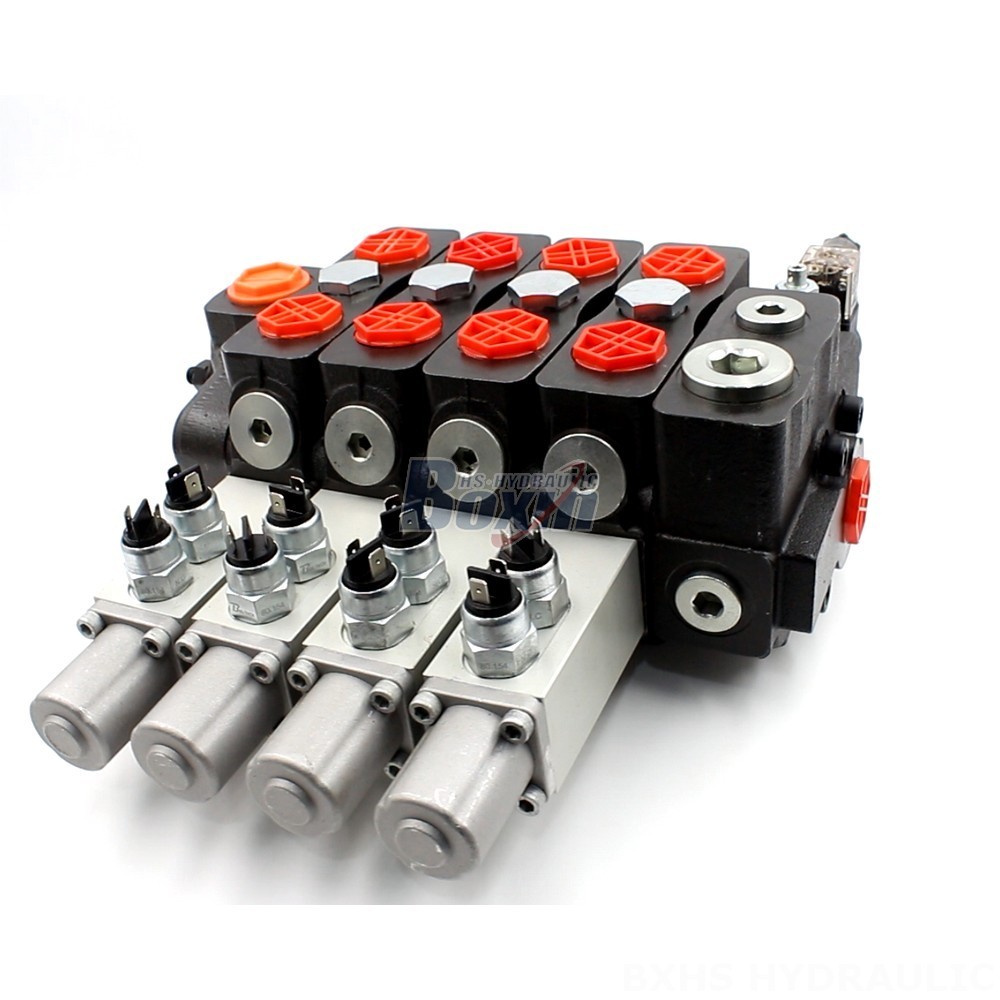

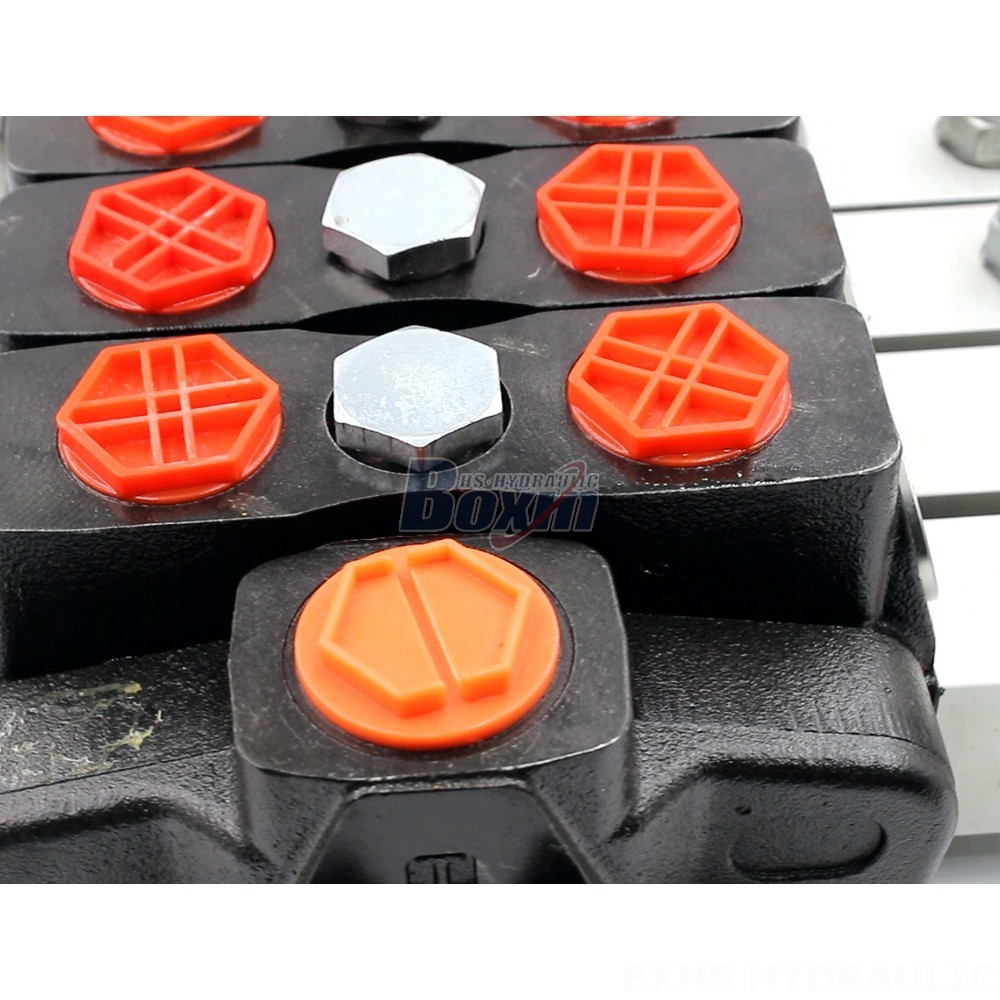

The DLS180 Manual 4 Spool Hydraulic Solenoid Directional Valve is a robust and reliable valve designed for demanding applications. It features a manual control method, a 4-section design, and a sectional valve structure. This valve has a rated flow of 160 L/min (42.2 US gpm) and a max pressure of 350 bar (5100 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). The DLS180 is suitable for a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. It is ideal for use in applications requiring precise and efficient hydraulic control.
