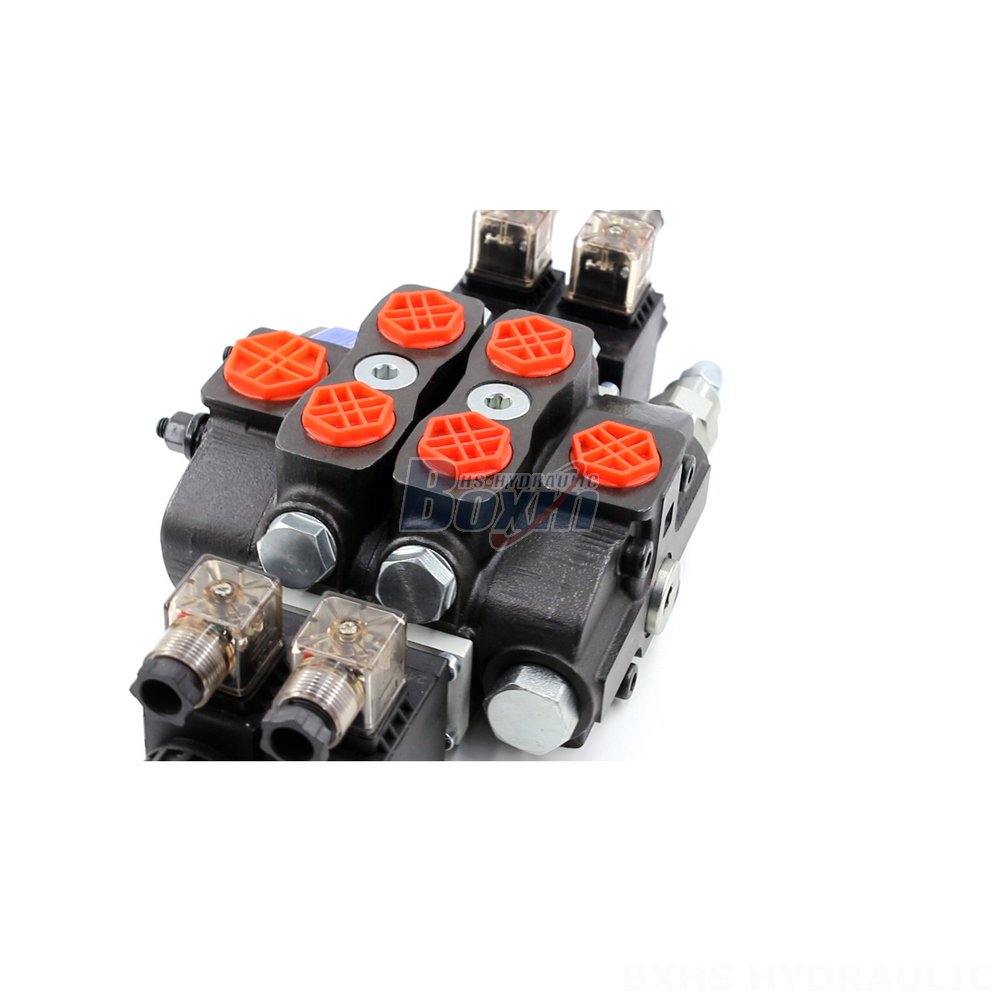

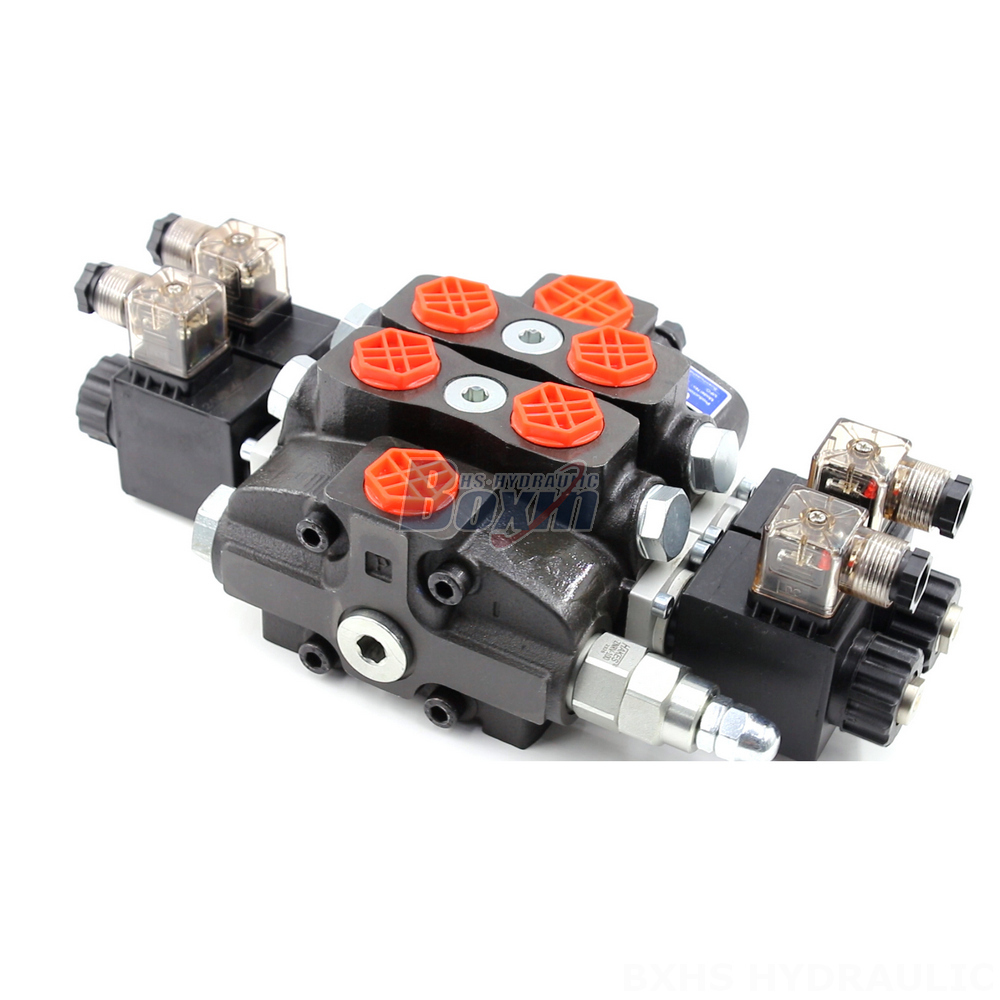

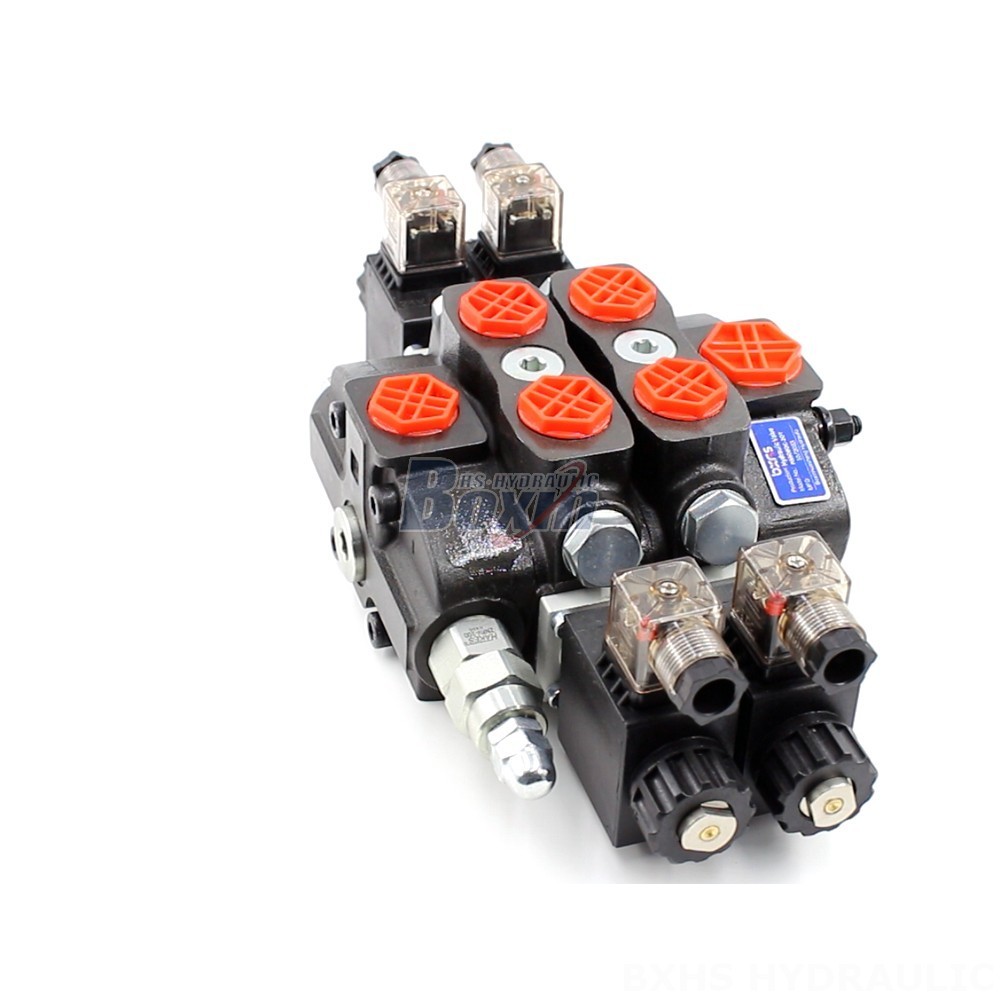

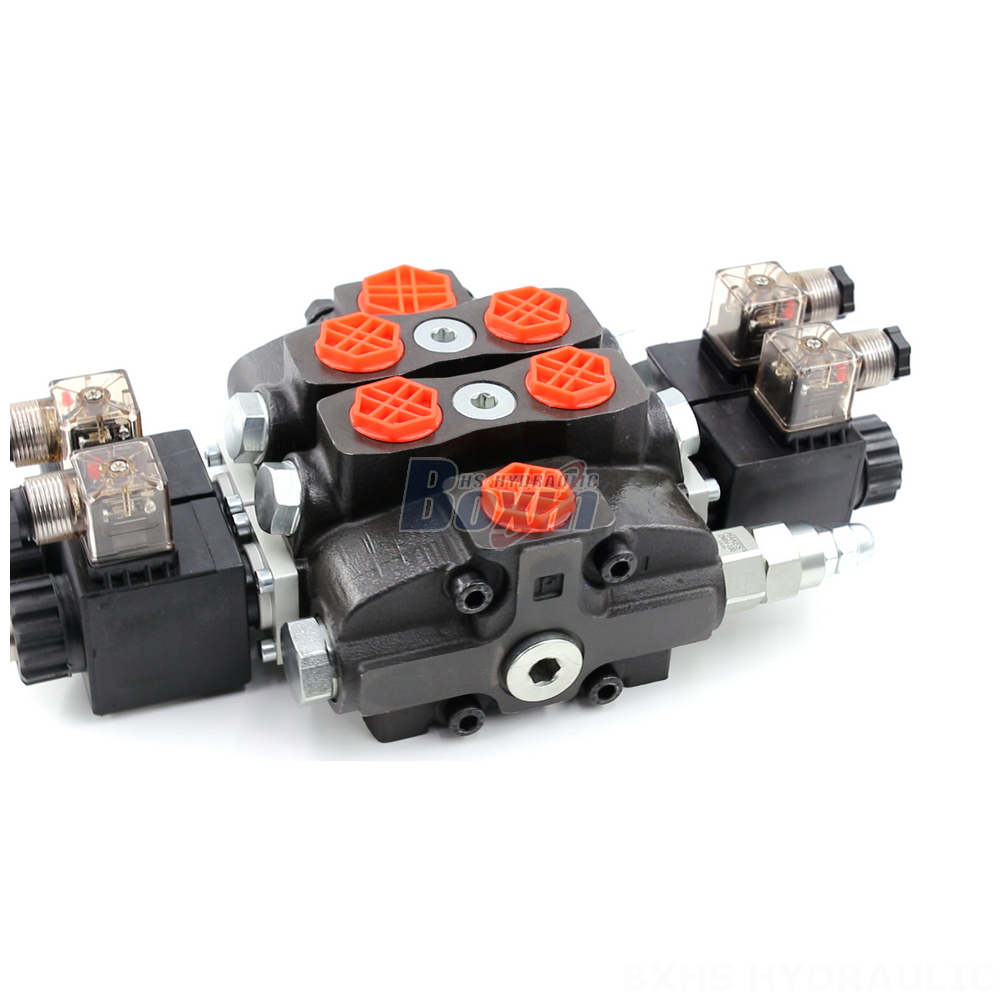

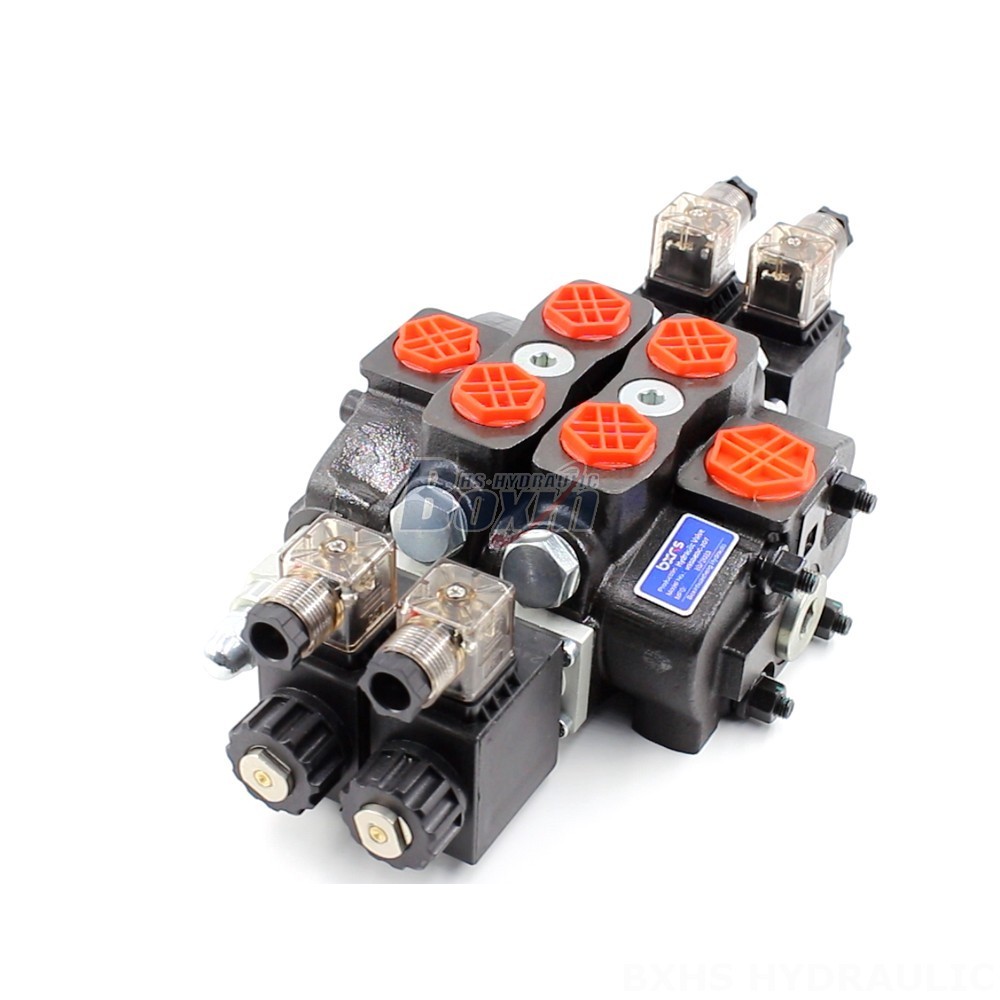

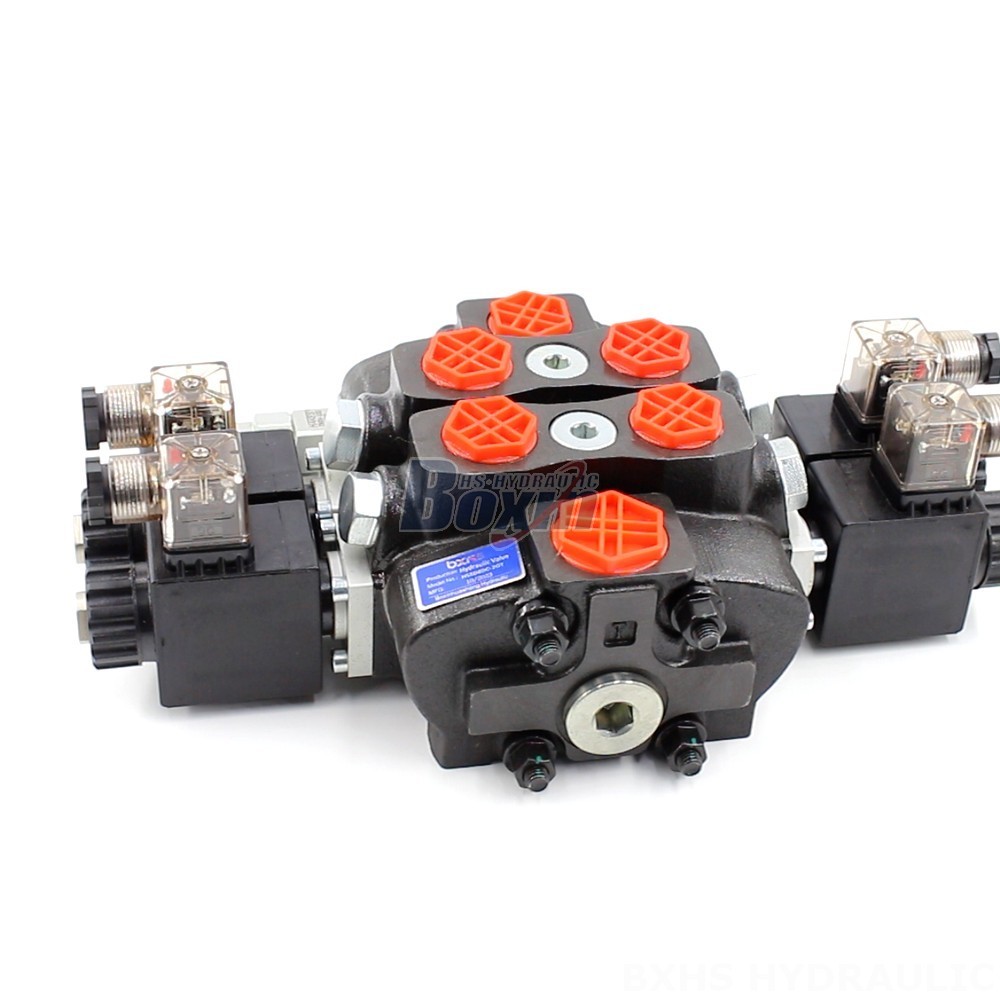

The SD8 Series is a robust and reliable sectional solenoid valve designed for demanding industrial applications. Featuring a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve is ideal for a wide range of equipment, including telehandlers, forklifts, and construction machinery.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
The SD8 Series Pneumatic Valve Hydraulic Solenoid Valve is a high-performance, 2-section valve designed for industrial applications. It boasts a rated flow of 90 L/min and can handle pressures up to 350 bar. Its versatile design and durable construction make it suitable for various industries and equipment, including material handling, construction and earthmoving, agriculture, and industrial vehicles. Its compatibility with telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders makes it a versatile choice for various applications.
