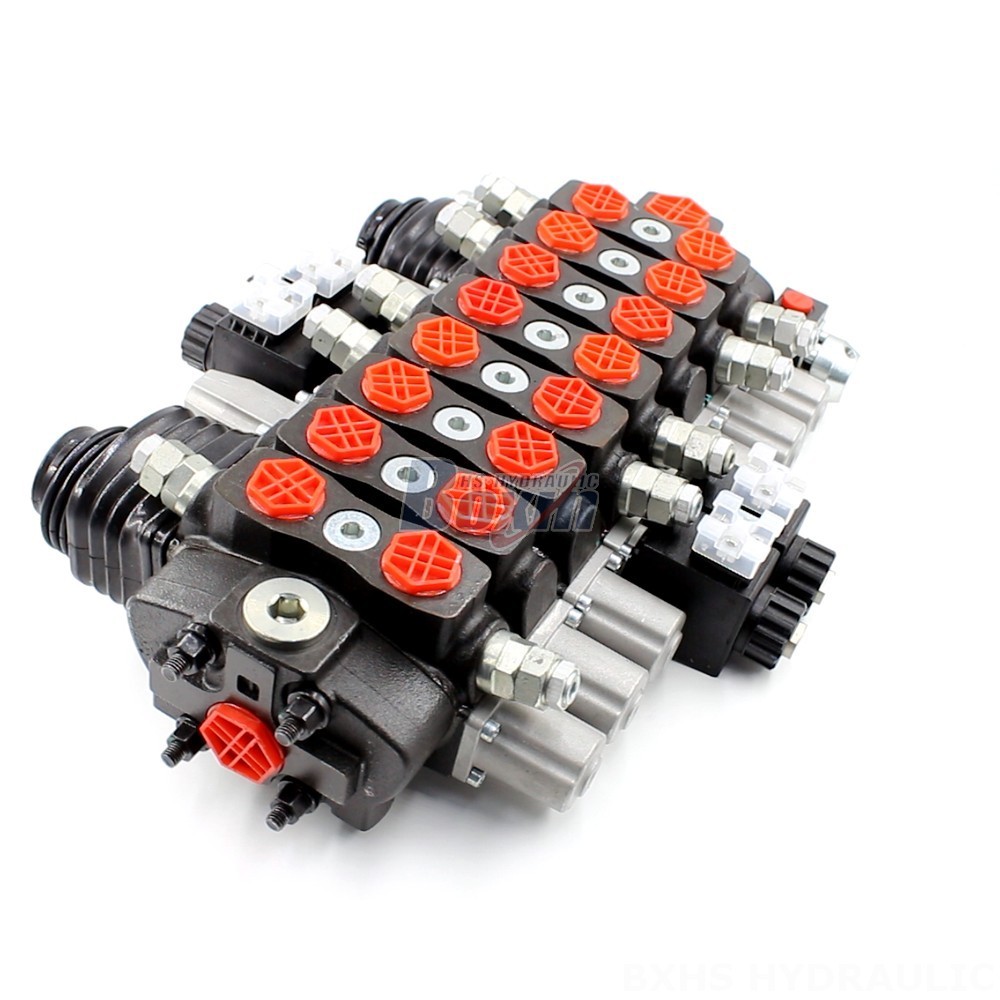

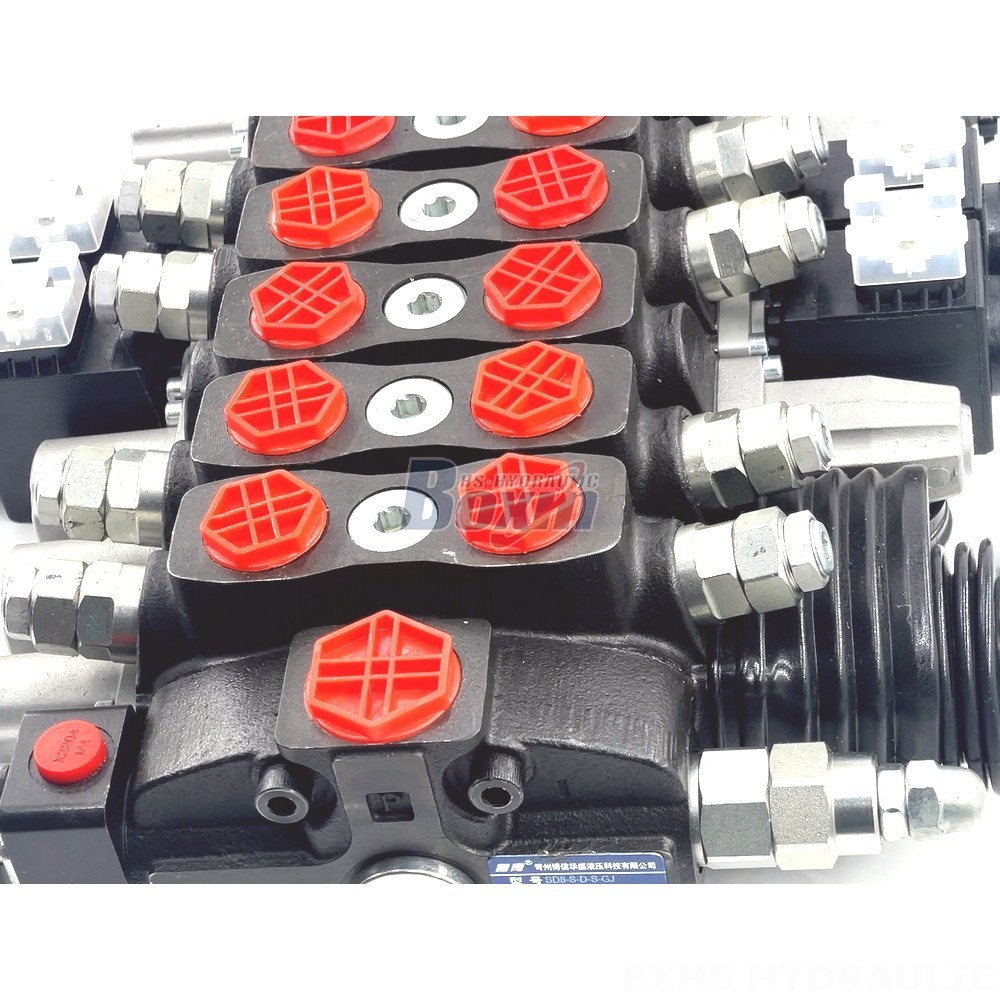

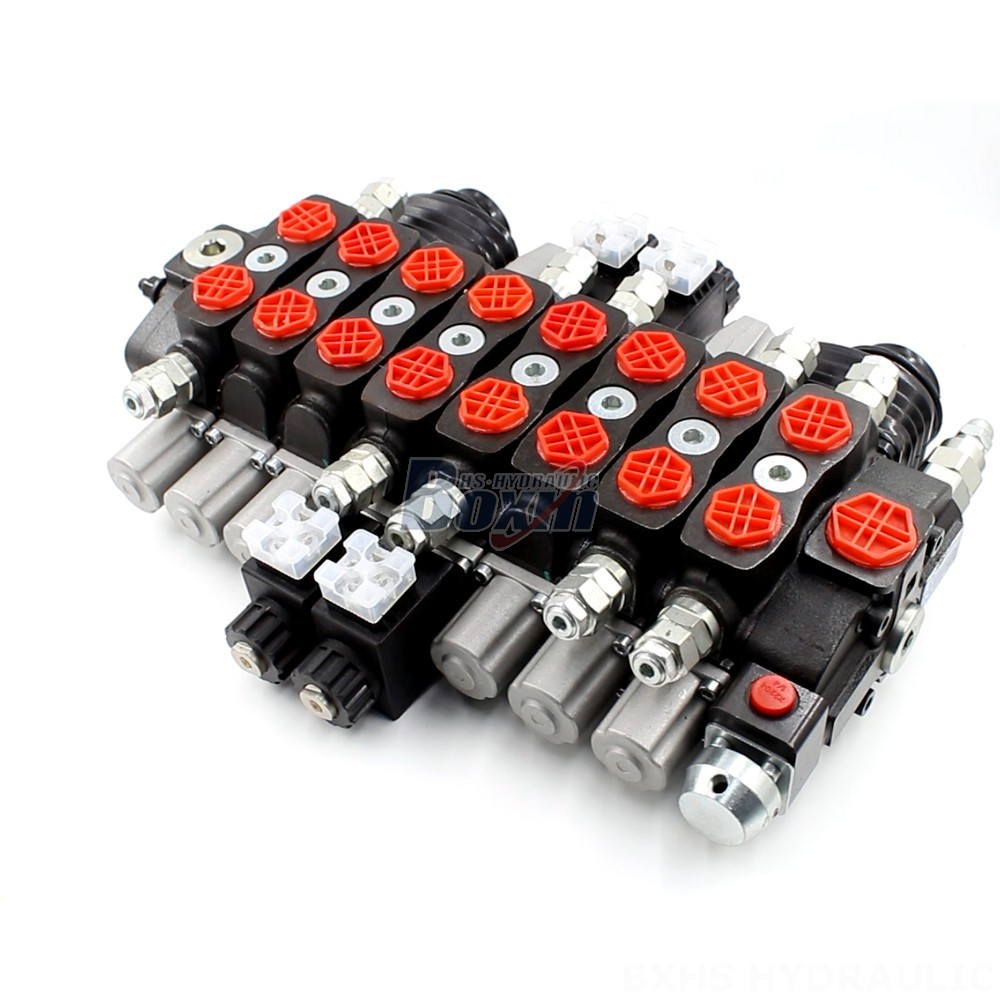

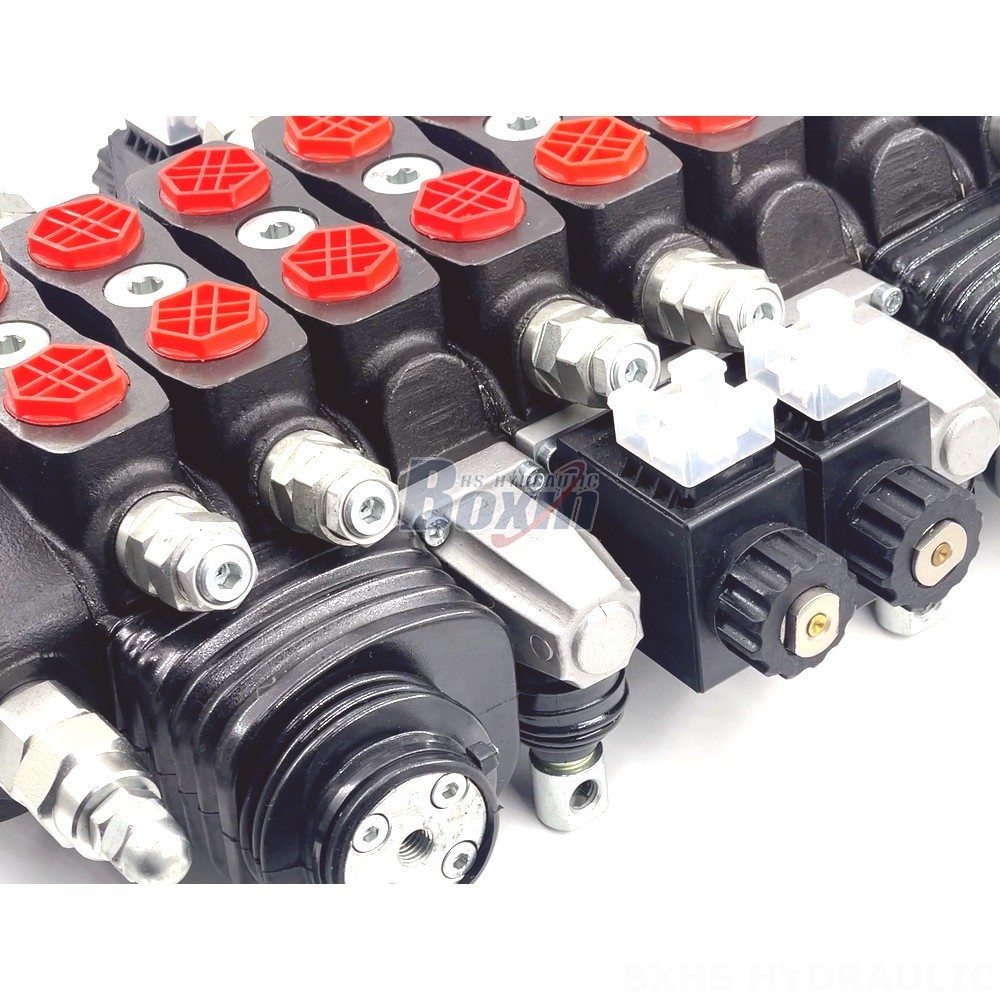

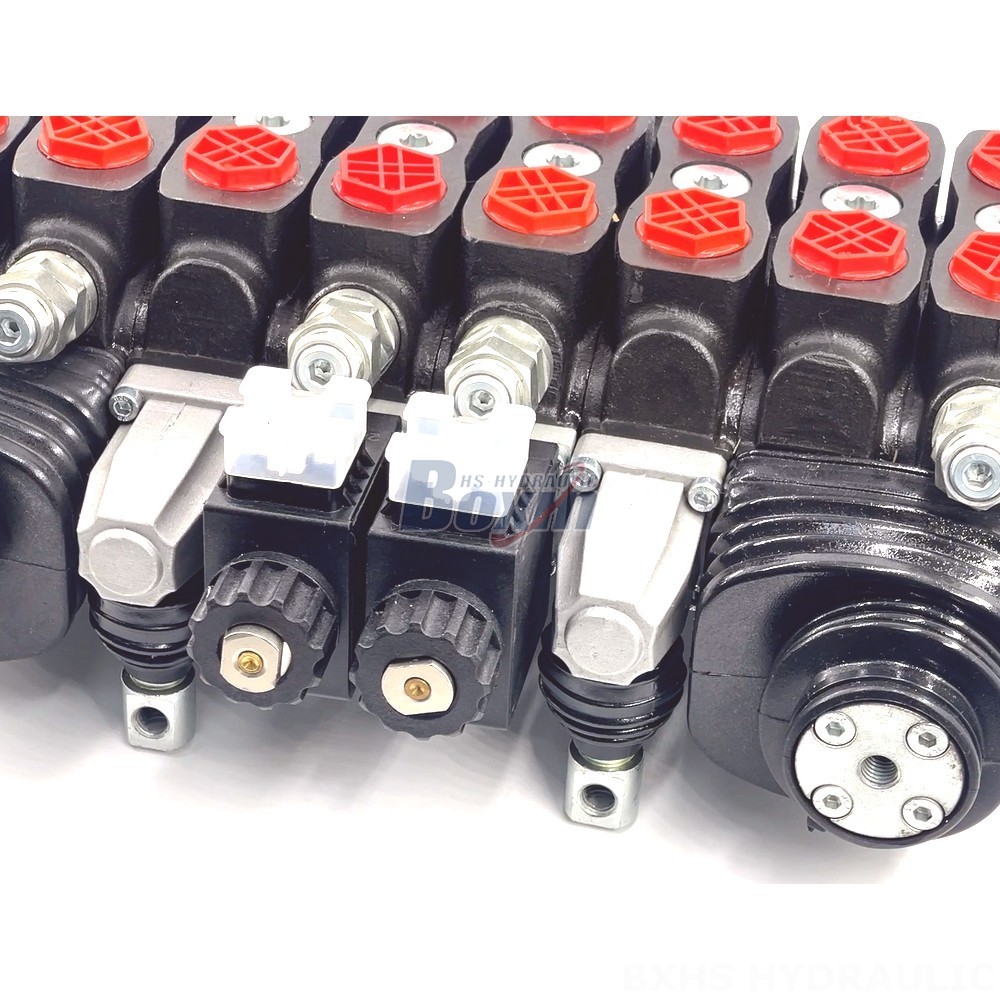

This 6 Way Hydraulic Selector Valve is a high-performance, manually operated sectional directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features 8 sections, a rated flow of 90 L/min, and a maximum pressure of 350 bar. This valve is available for wholesale and OEM orders.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
This 6 Way Hydraulic Selector Valve is a manually operated, 8 section sectional directional valve. It is designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve features a rated flow of 90 L/min and a maximum pressure of 350 bar. It is also compatible with a wide range of operating viscosities. This valve is available for wholesale and OEM orders. Common applications include telehandlers, forklifts, mini excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, balers, and sprayers. This valve is part of the SD8 series.
