SD8 Series 6 Spool Hydraulic Sectional Control Valve

控制方式:手控

路数:6 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD8系列 分块式方向阀

Packagingsize:40*36*16

Grossweight:24.50 kg

库存: 有货

20 次查看了此产品

SD8 Series 6 Spool Hydraulic Sectional Control Valve

SD8 Series 6 Spool Hydraulic Sectional Control Valve

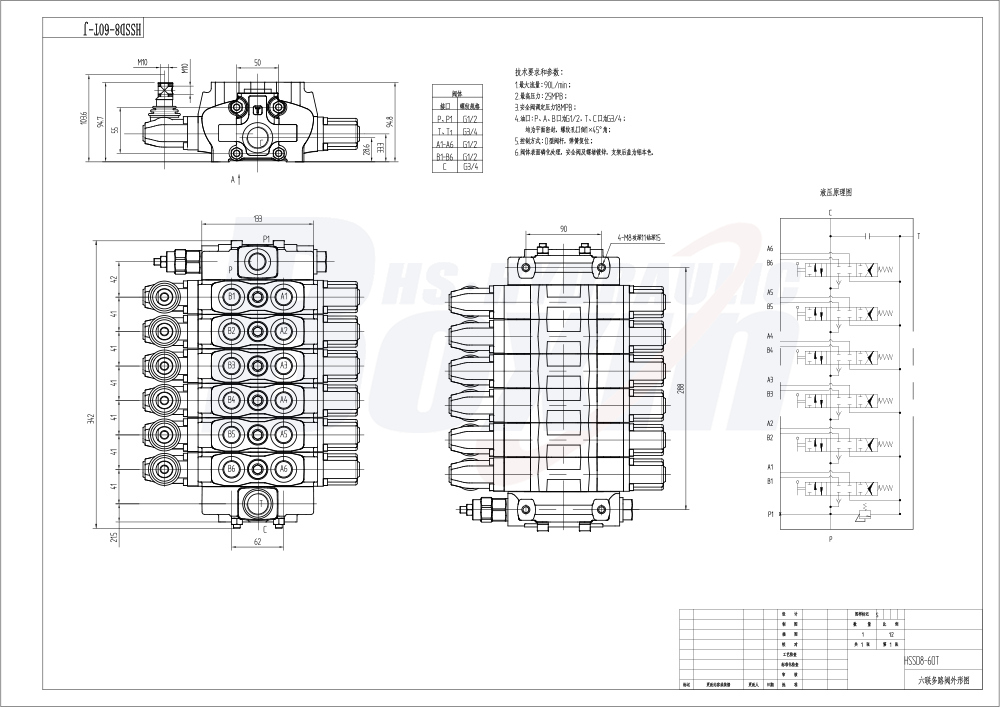

SD8 Series 6 Spool Hydraulic Sectional Control Valve drawing image

The SD8 Series 6 Spool Hydraulic Sectional Control Valve is a high-performance manual control solution designed for versatile applications. With a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, it provides reliable fluid power management for construction, agriculture, and material handling equipment including excavators and tractors.

SD8系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 90 L/min (23.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, SAE 10接头
出油口 G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹
接口尺寸 G1/2接口, SAE 10接头

As a leading manufacturer of hydraulic products, we offer the SD8 Series 6 Spool Hydraulic Sectional Control Valve, engineered for precision and durability in demanding environments. This manual valve features a robust sectional design, supporting a rated flow of 80 L/min (21.2 US gpm) and operating pressures up to 315 bar (4600 psi). It is an ideal component for mini-excavators, skid steer loaders, backhoe loaders, wood splitters, and forklifts. Our factory provides comprehensive solutions for global markets, including direct wholesale, OEM manufacturing, and private label (ODM) services. We specialize in customized hydraulic configurations tailored to specific industrial vehicle needs. We are actively seeking long-term partnerships with distributors, wholesalers, regional agents, and international traders. By choosing our factory-direct supply, partners benefit from professional manufacturing standards and consistent product quality across construction and agricultural applications.
