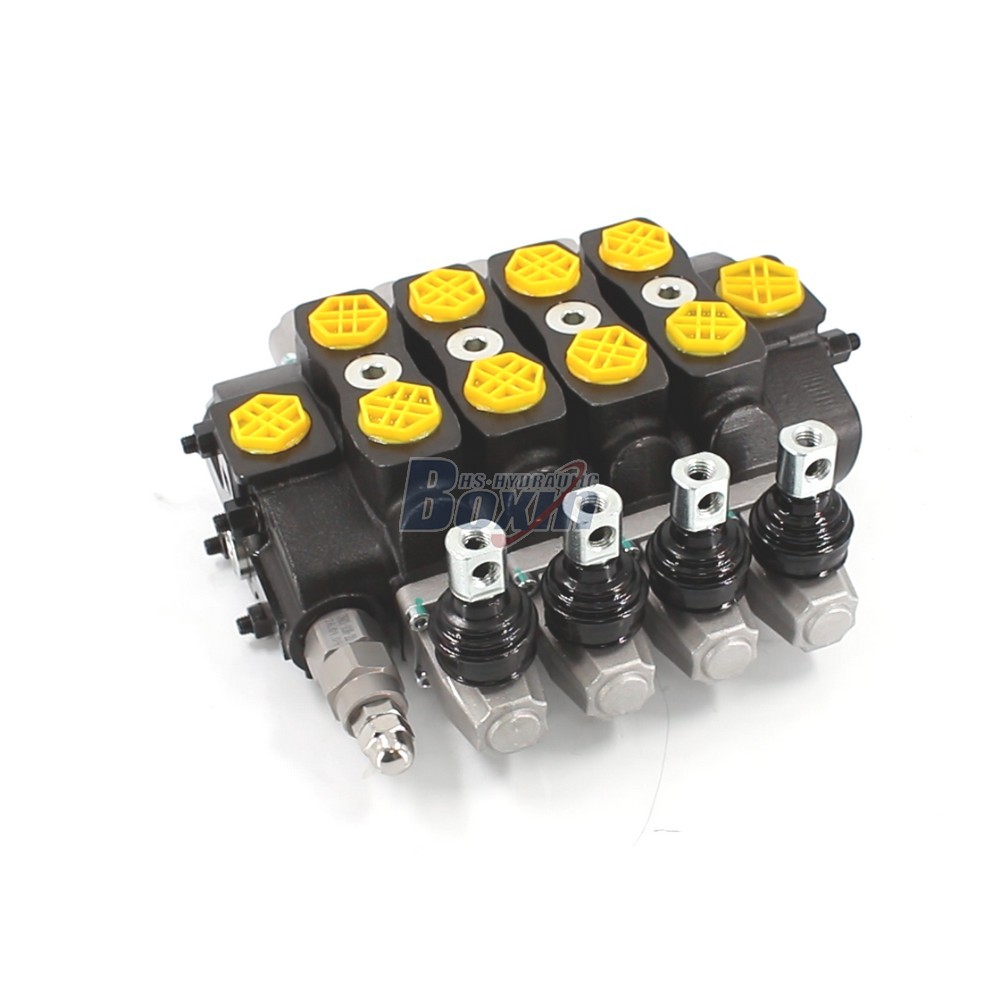

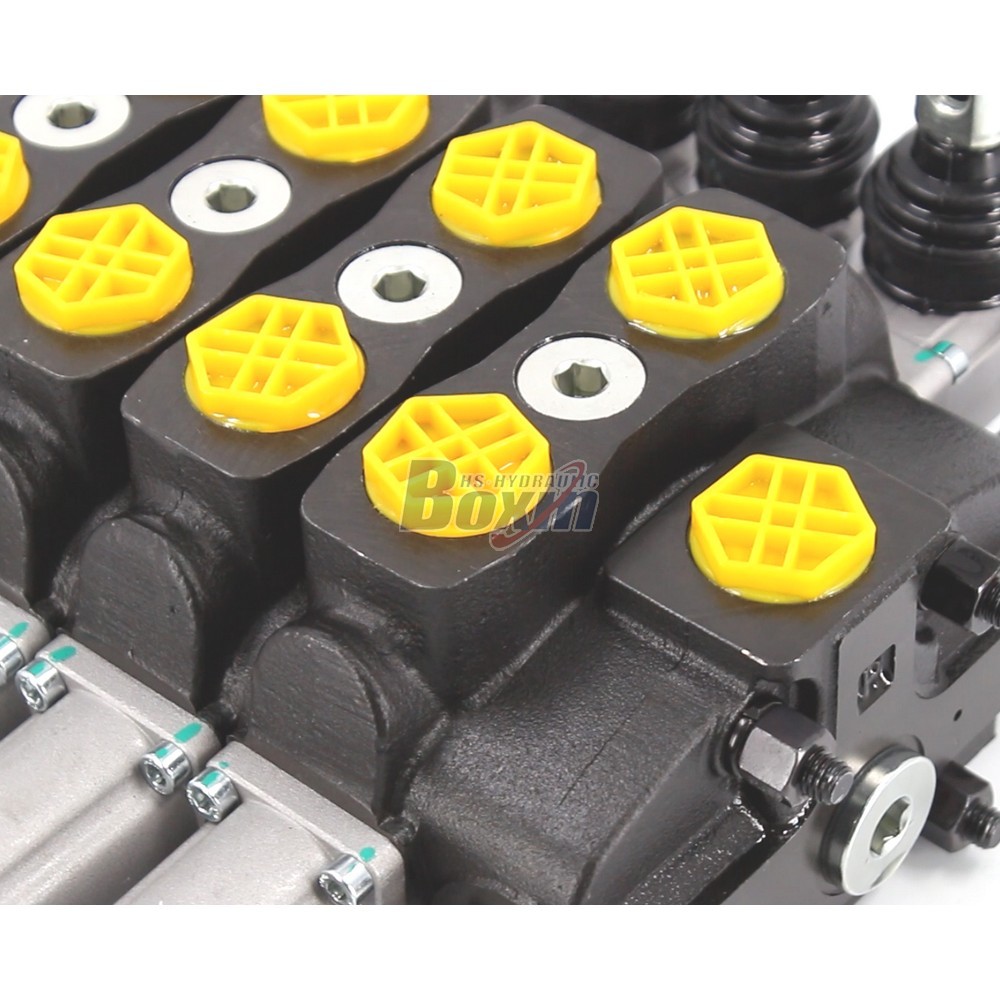

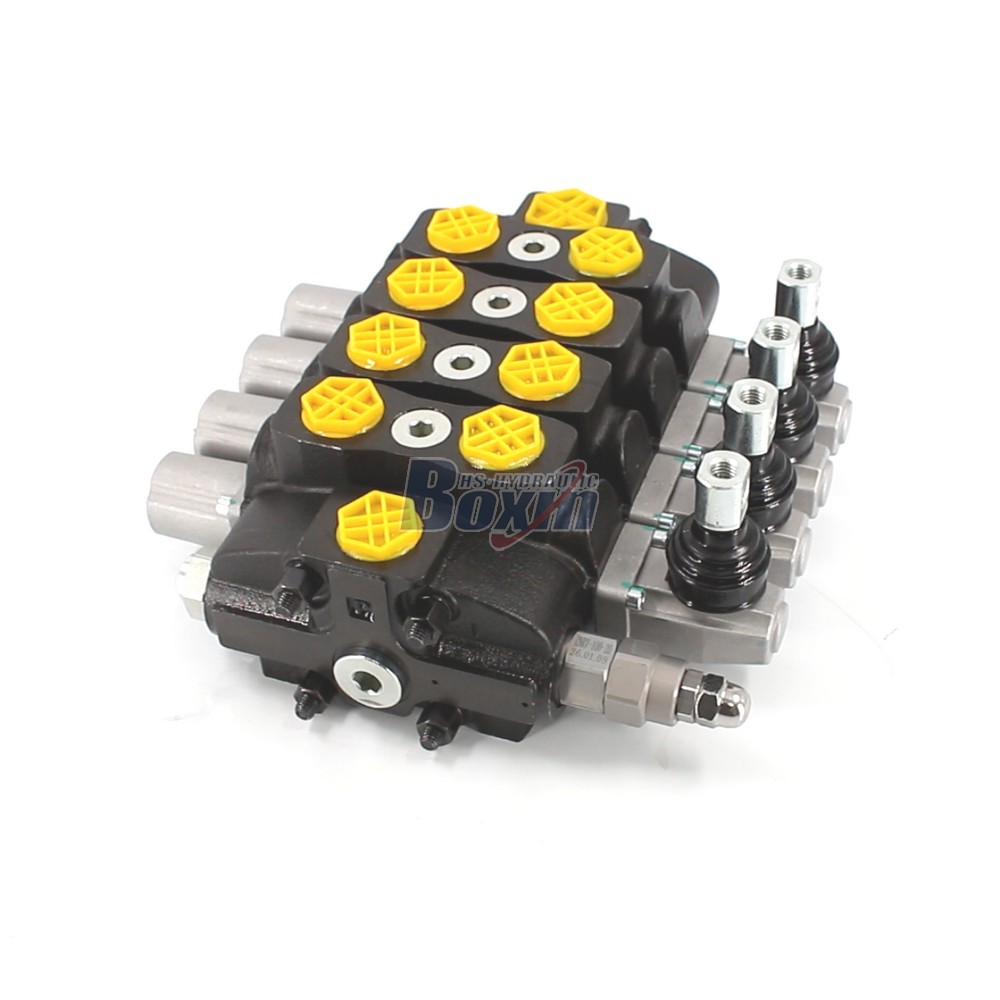

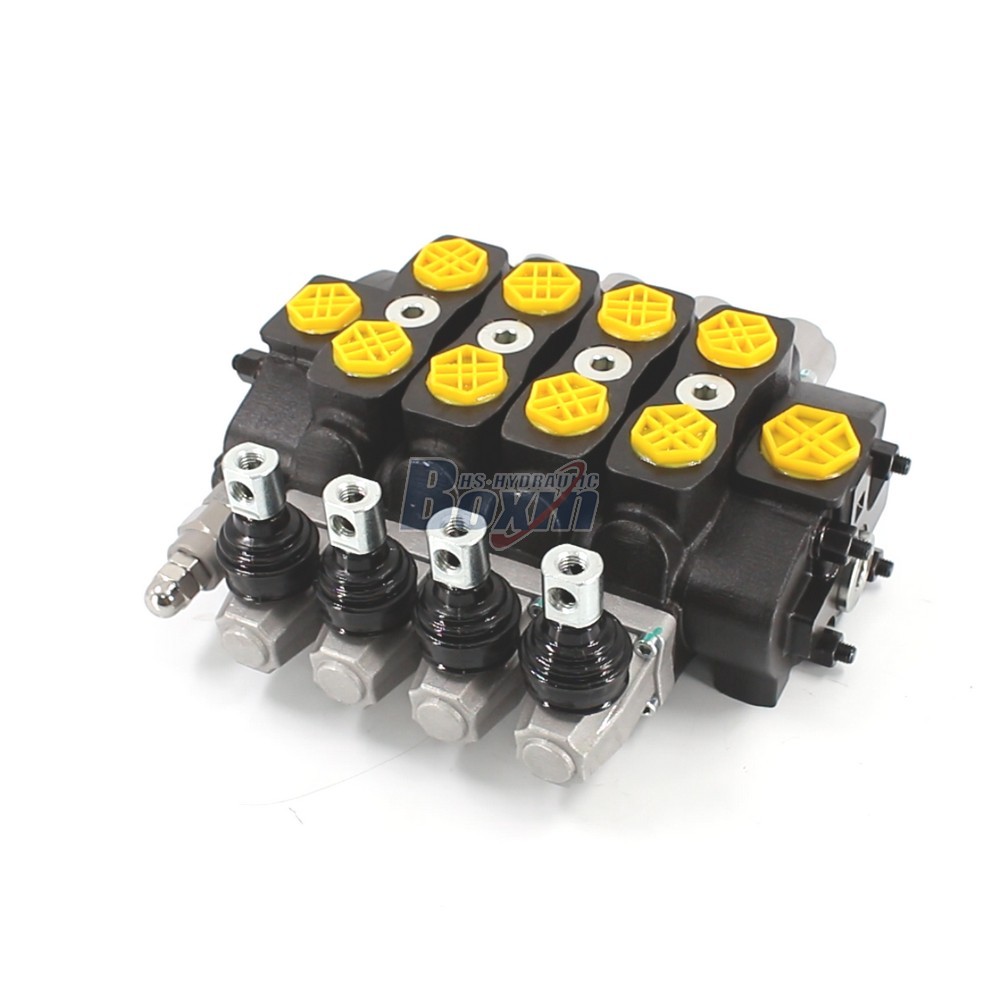

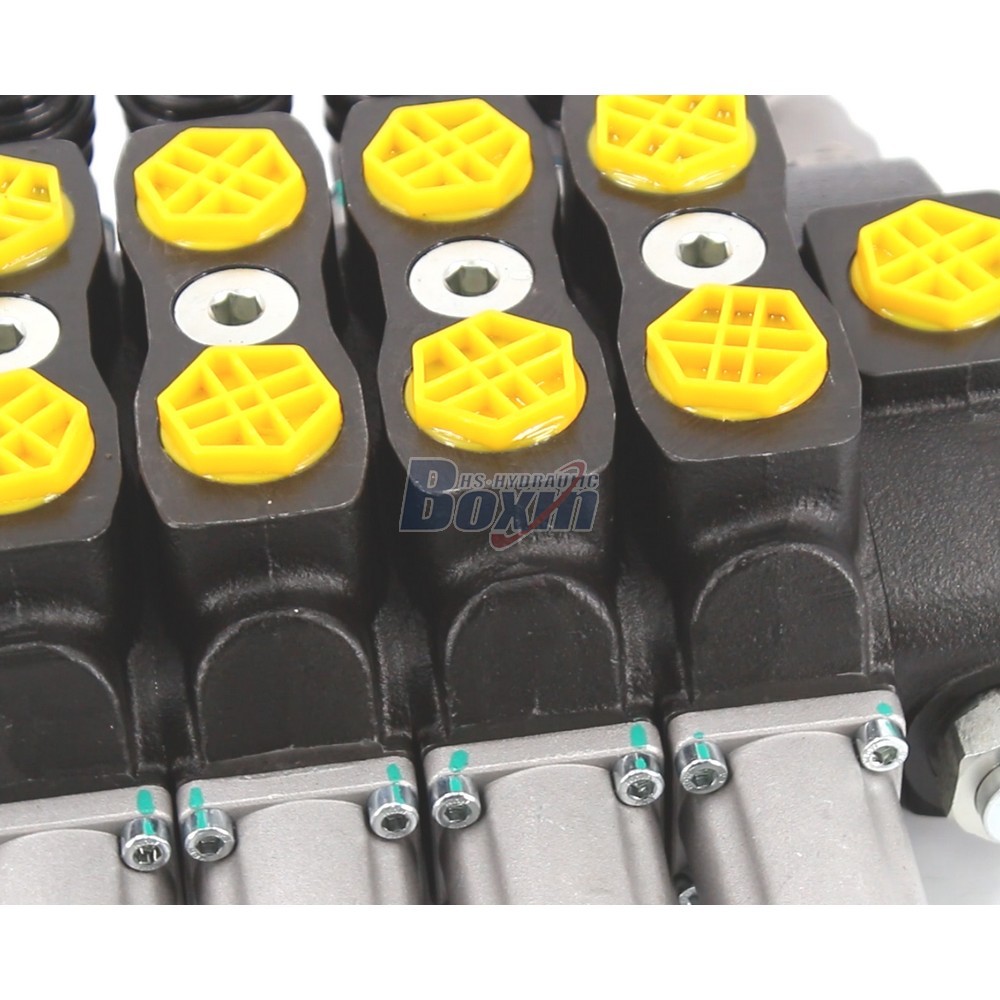

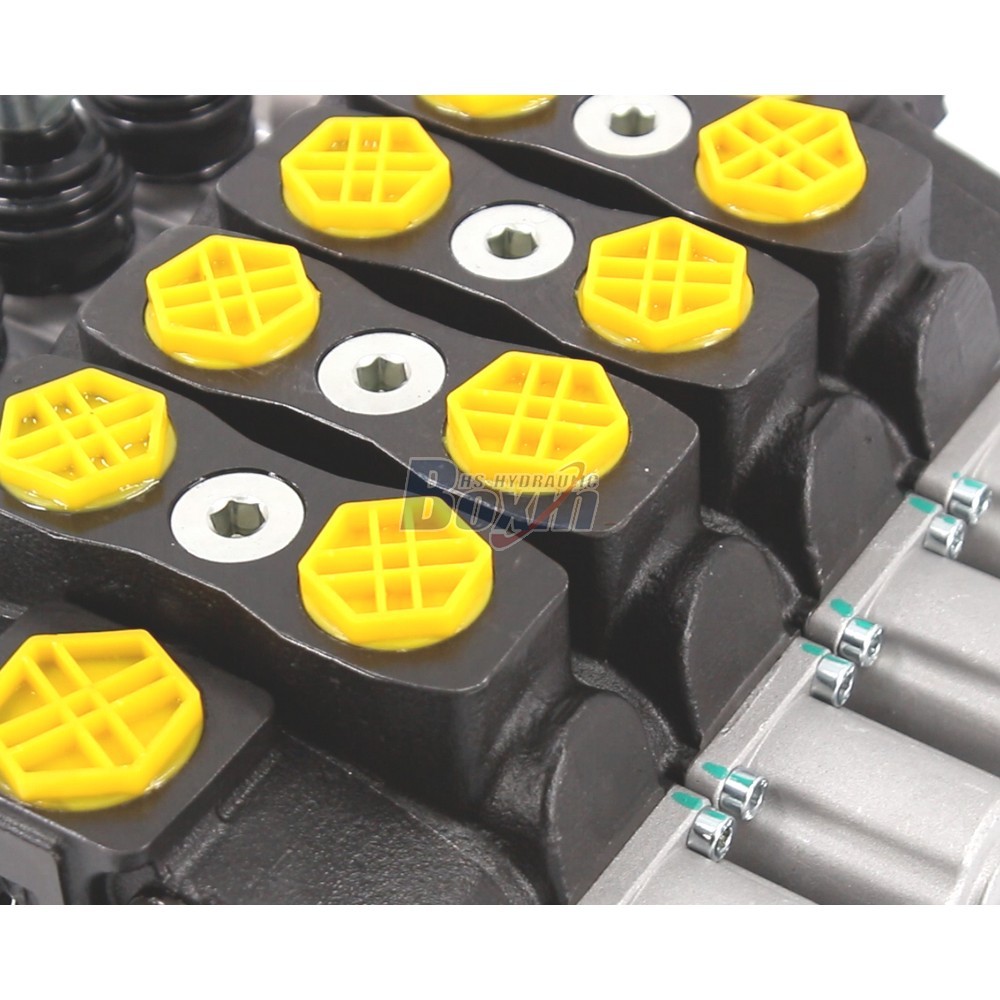

SD8 Manual 4 Spool Sectional Directional Valve Factory Direct Supply

控制方式:手控

路数:4 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD8系列 分块式方向阀

Packagingsize:32*36*16

Grossweight:18.00 kg

库存: 有货

15 次查看了此产品

SD8 Manual 4 Spool Sectional Directional Valve Factory Direct Supply

SD8 Manual 4 Spool Sectional Directional Valve Factory Direct Supply

SD8 Manual 4 Spool Sectional Directional Valve Factory Direct Supply drawing image

High-performance SD8 series manual 4-spool sectional directional control valve, featuring a rated flow of 80 L/min and maximum pressure of 315 bar, designed for versatile material handling and agricultural machinery applications.

SD8系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 90 L/min (23.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, SAE 10接头
出油口 G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹
接口尺寸 G1/2接口, SAE 10接头

As a leading hydraulic product manufacturer, we offer the SD8 Series Manual 4 Spool Sectional Directional Valve directly from our factory. This robust valve is engineered for demanding environments, providing a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 315 bar (4600 psi). It is an ideal solution for material handling, construction, and agricultural equipment, including forklifts, skid steer loaders, mini-excavators, and tractors.

We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom design to meet specific technical requirements. Our factory supply model ensures competitive wholesale pricing for bulk orders. We are actively seeking long-term partnerships and are looking for global distributors, wholesalers, agents, and traders to expand our international market presence. By choosing our factory-direct supply, you benefit from reliable quality control, professional technical support, and scalable production capabilities tailored for industrial vehicles and mobile machinery.
