The SD8-Electric Unloading Valve is a 5-position, 4-solenoid, 12v/24v hydraulic directional control valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |

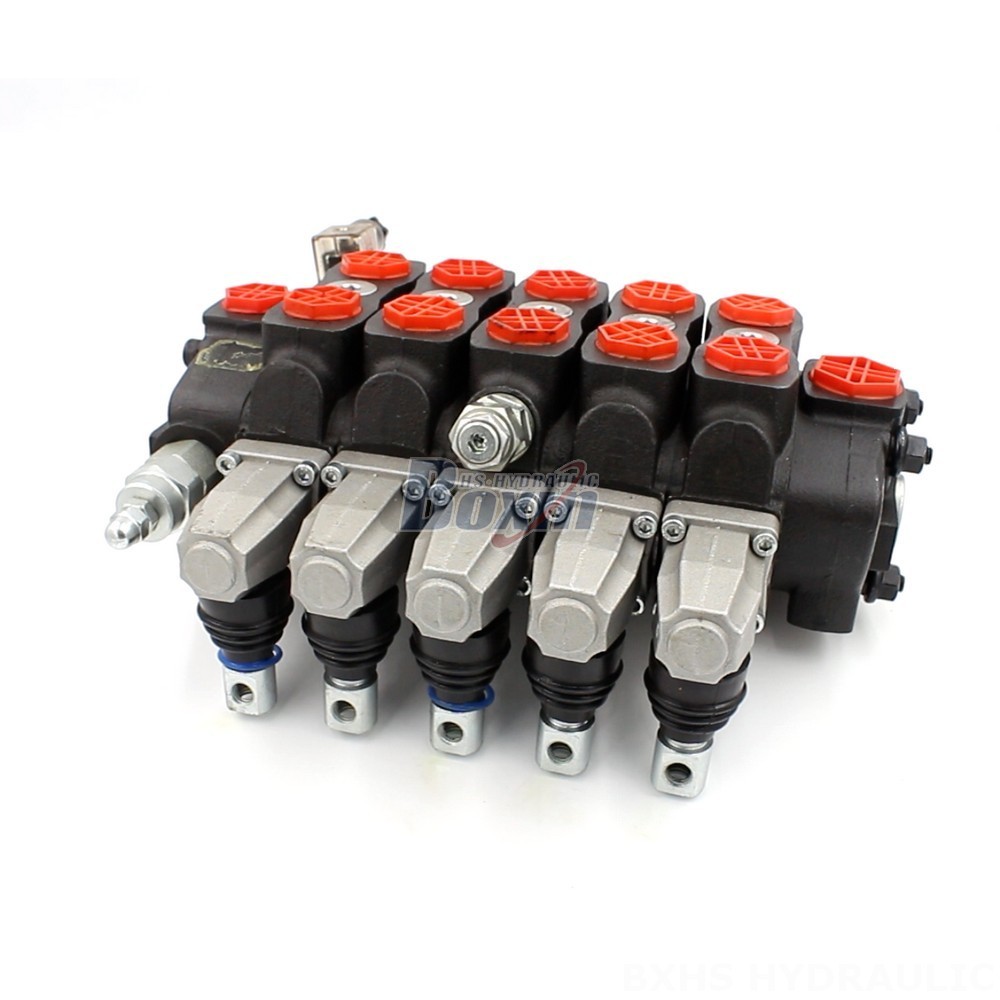

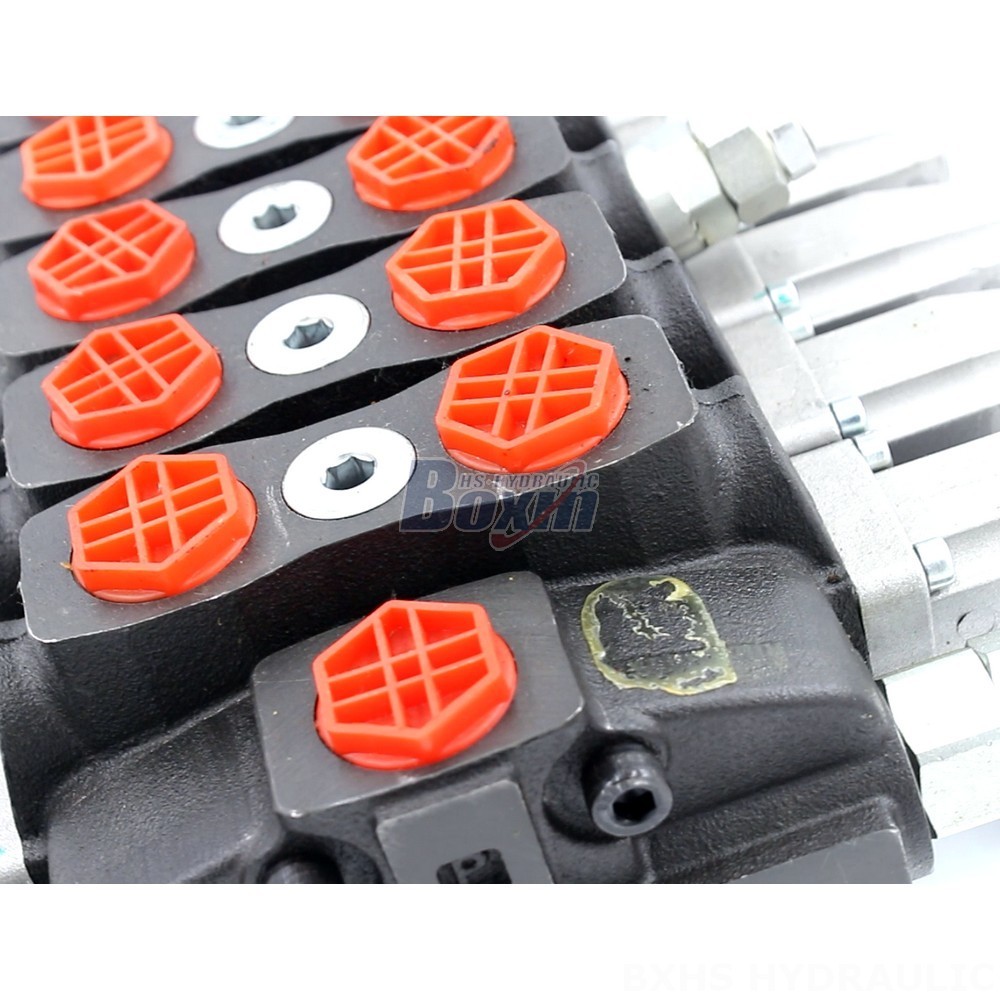

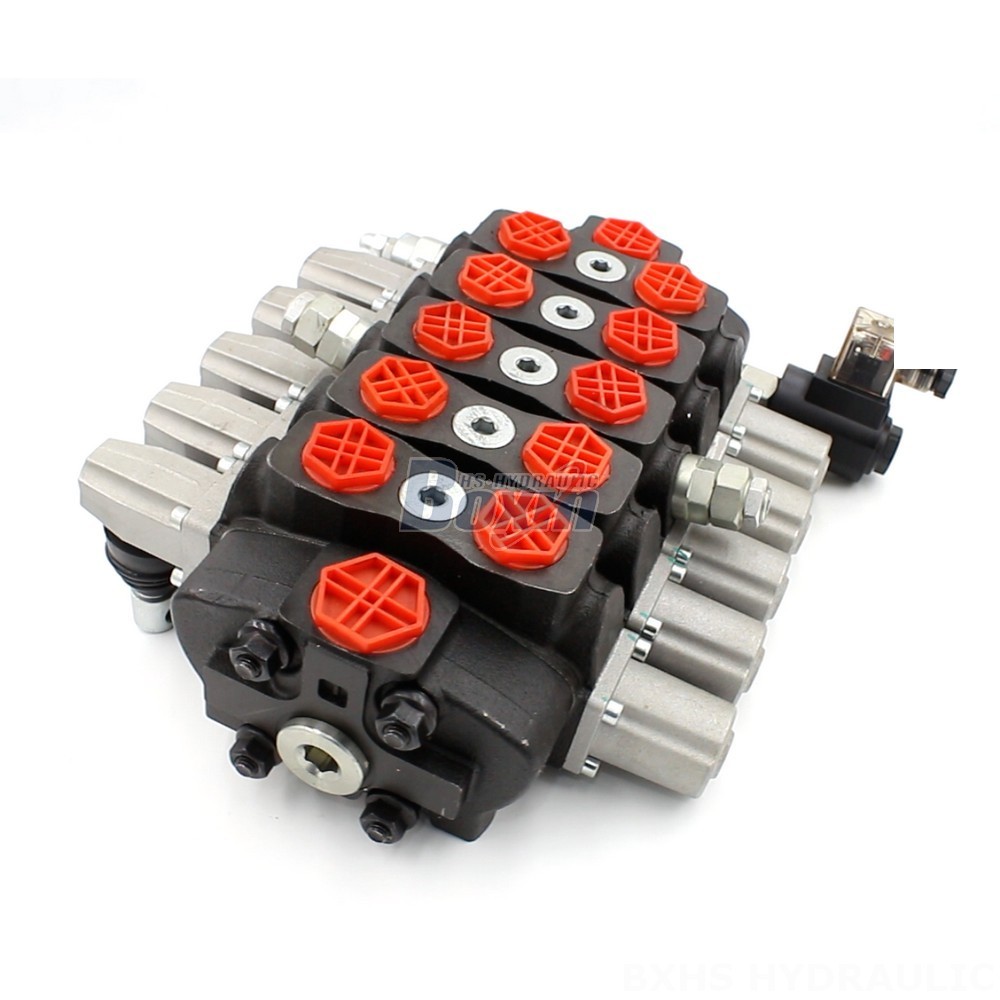

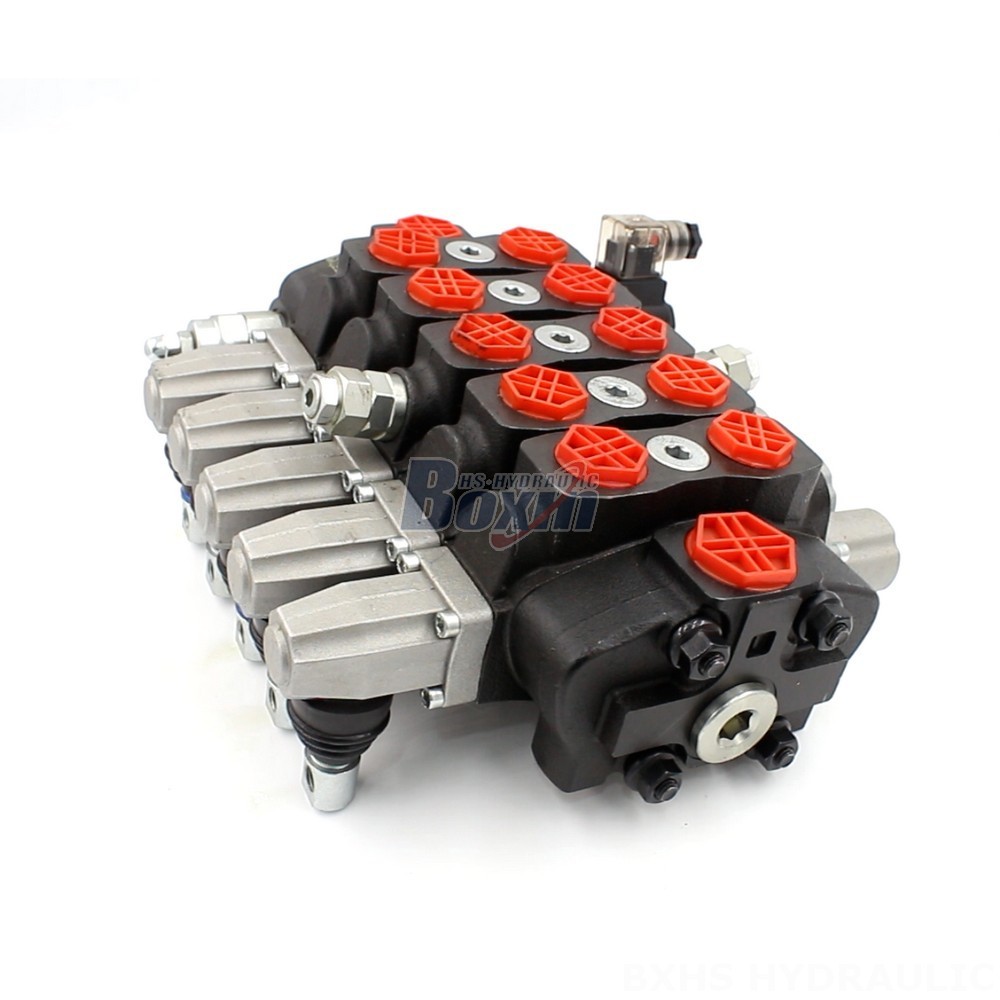

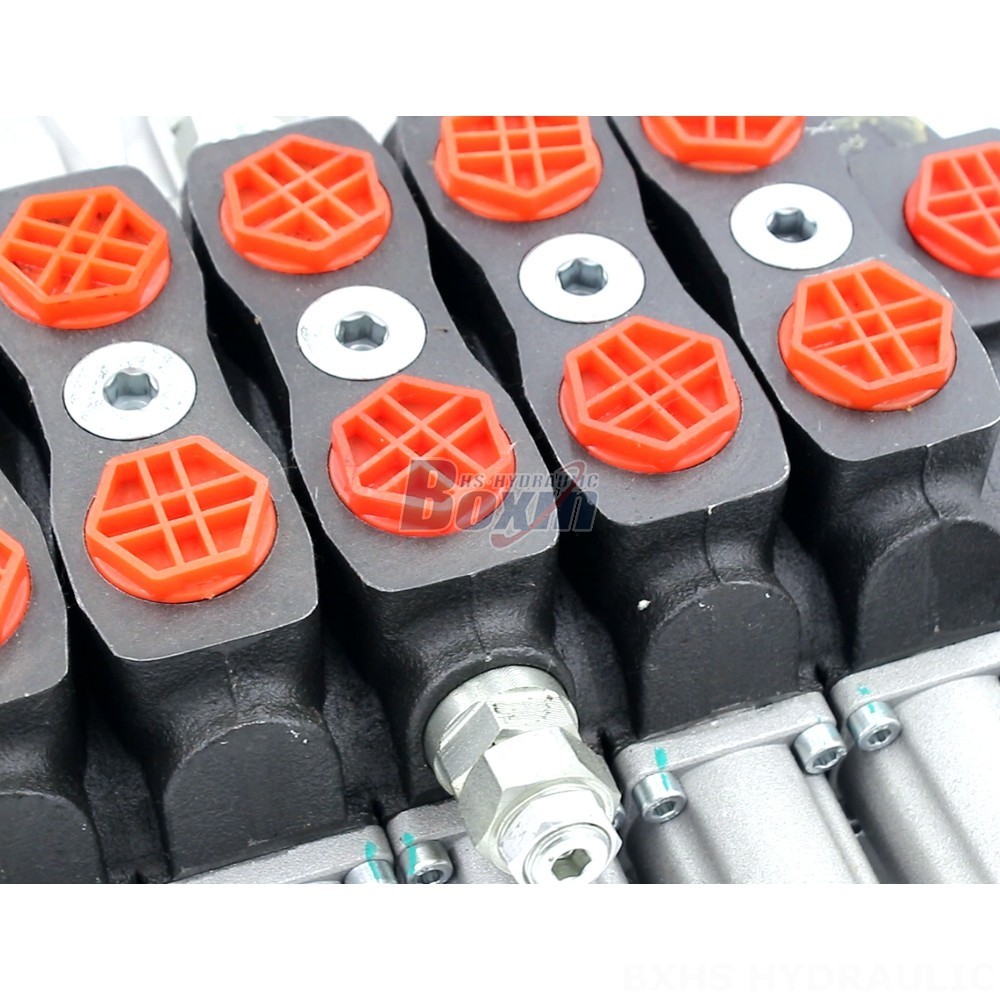

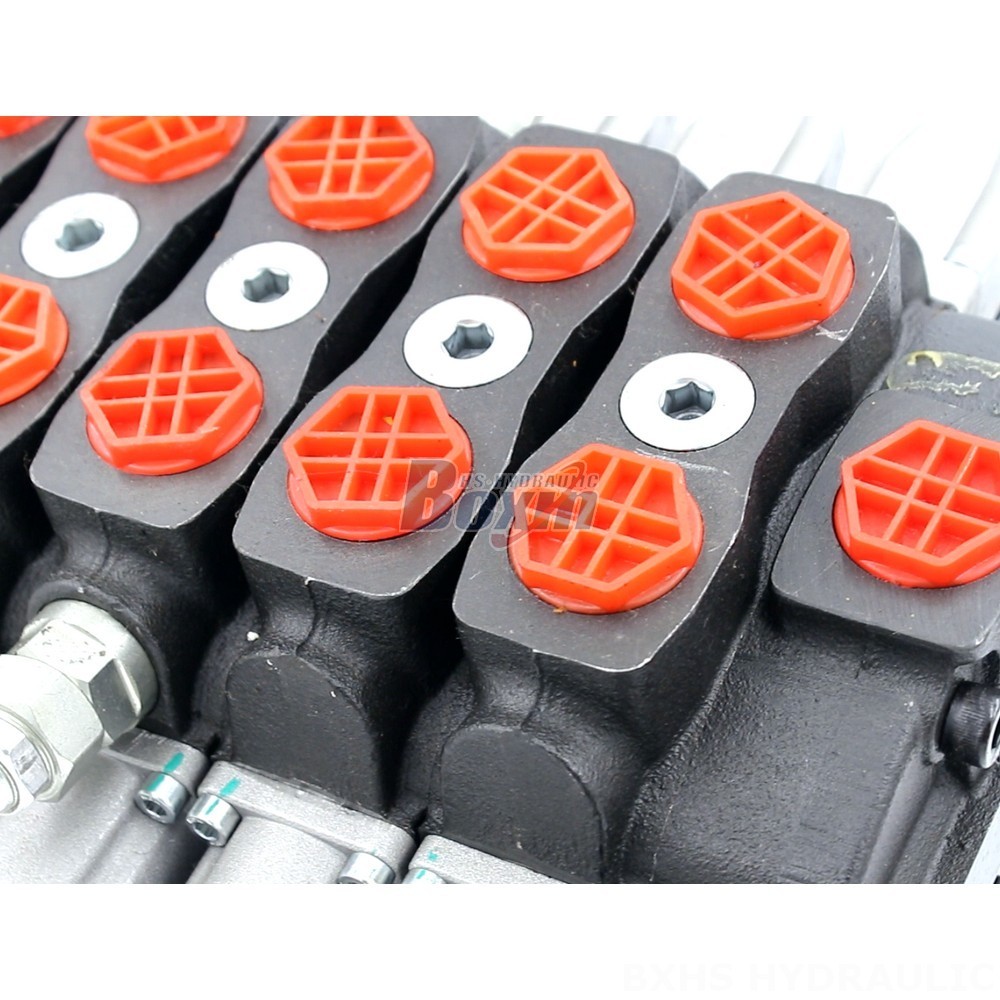

**SD8-Electric Unloading Valve**
The SD8-Electric Unloading Valve is a high-performance hydraulic directional control valve designed for a wide range of applications. With its 5-position, 4-solenoid configuration, it offers precise and reliable control of hydraulic systems. The valve is available in 12v and 24v options, making it suitable for use in various electrical systems.
**Key Features:**
* 5-position, 4-solenoid configuration
* Rated flow of 90 L/min
* Maximum pressure of 350 bar
* Manual control
* Compact and durable design
* Suitable for various applications, including material handling, construction, agriculture, and industrial vehicles
The SD8-Electric Unloading Valve is an excellent choice for applications requiring high flow capacity, precise control, and reliable performance. Its robust construction and high-quality components ensure long-lasting operation even in demanding conditions.
