The SD8-Electric Unloading Valve is a hydraulic directional control valve with 5 positions and 3 solenoids. It has a manual control method, 5 sections, and a sectional valve structure. The rated flow is 90 L/min, the maximum pressure is 350 bar, and the operating viscosity range is 12 - 400 mm²/s. It has 5 spools and belongs to the SD8 series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, specifically in applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |

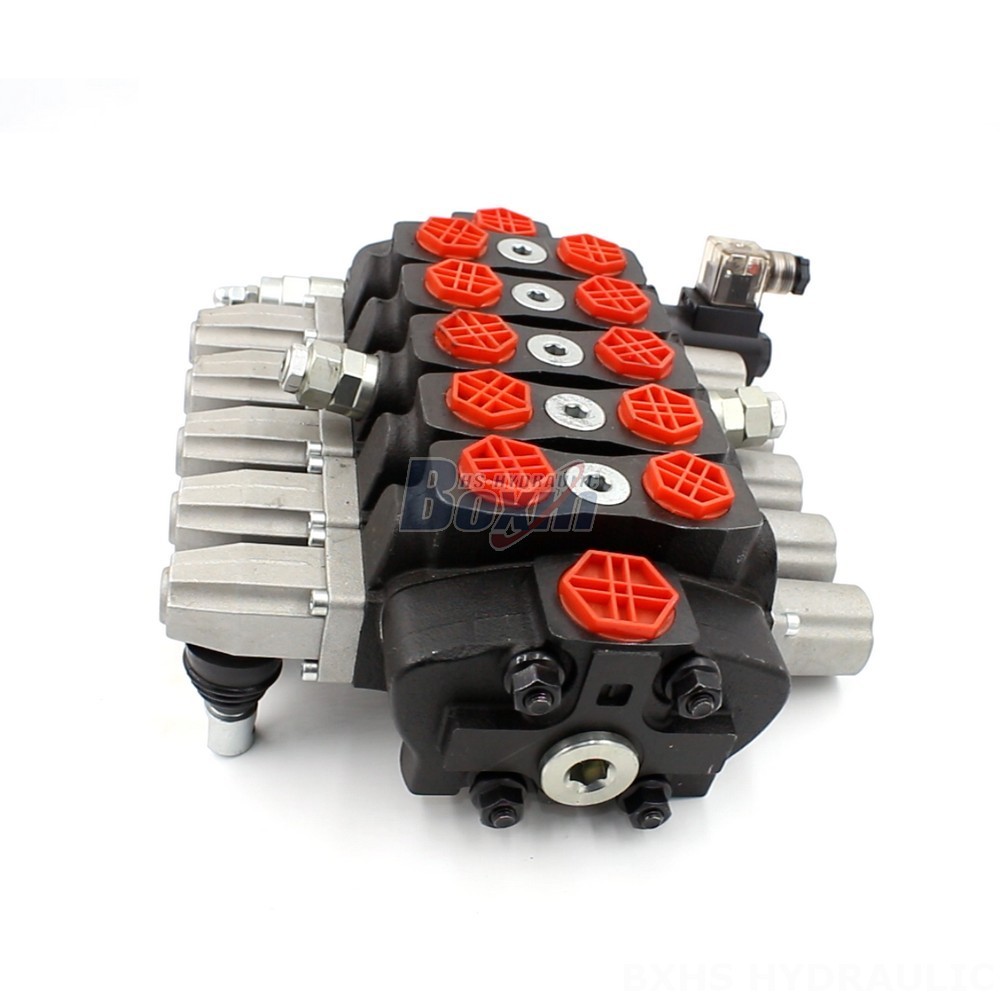

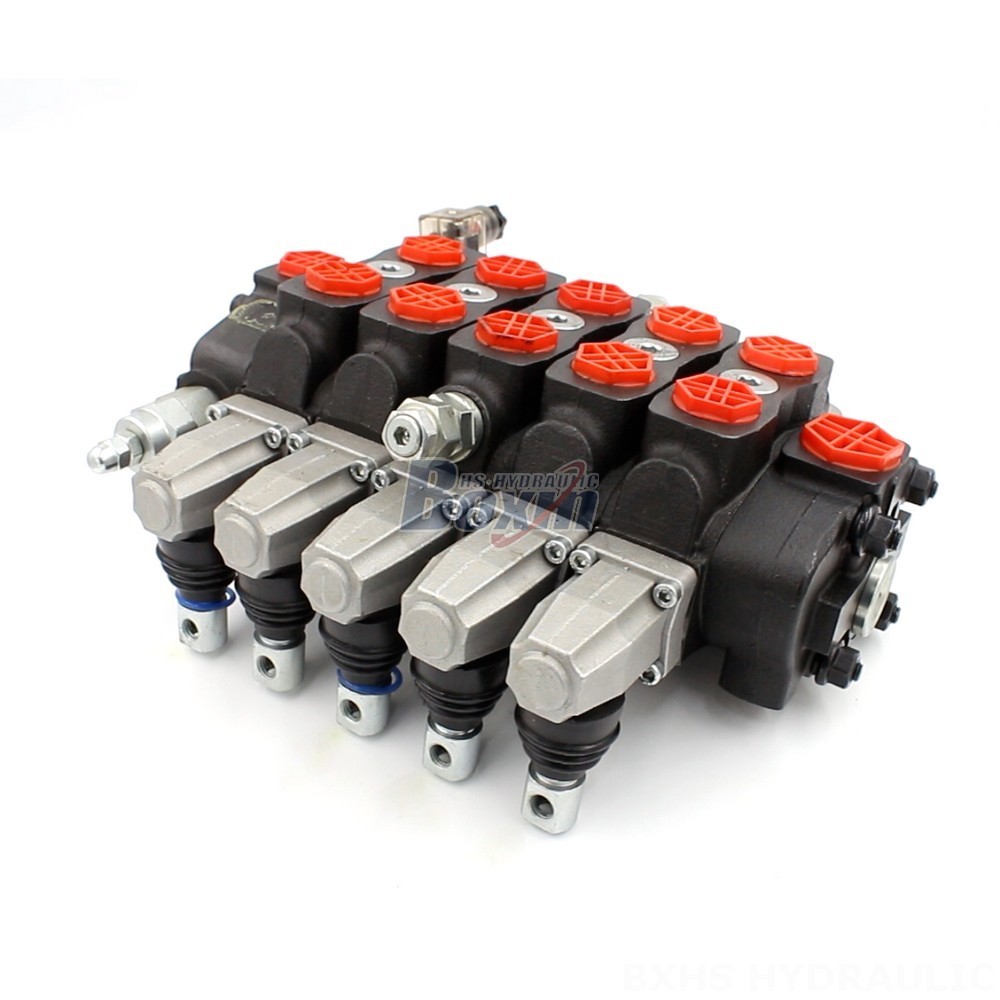

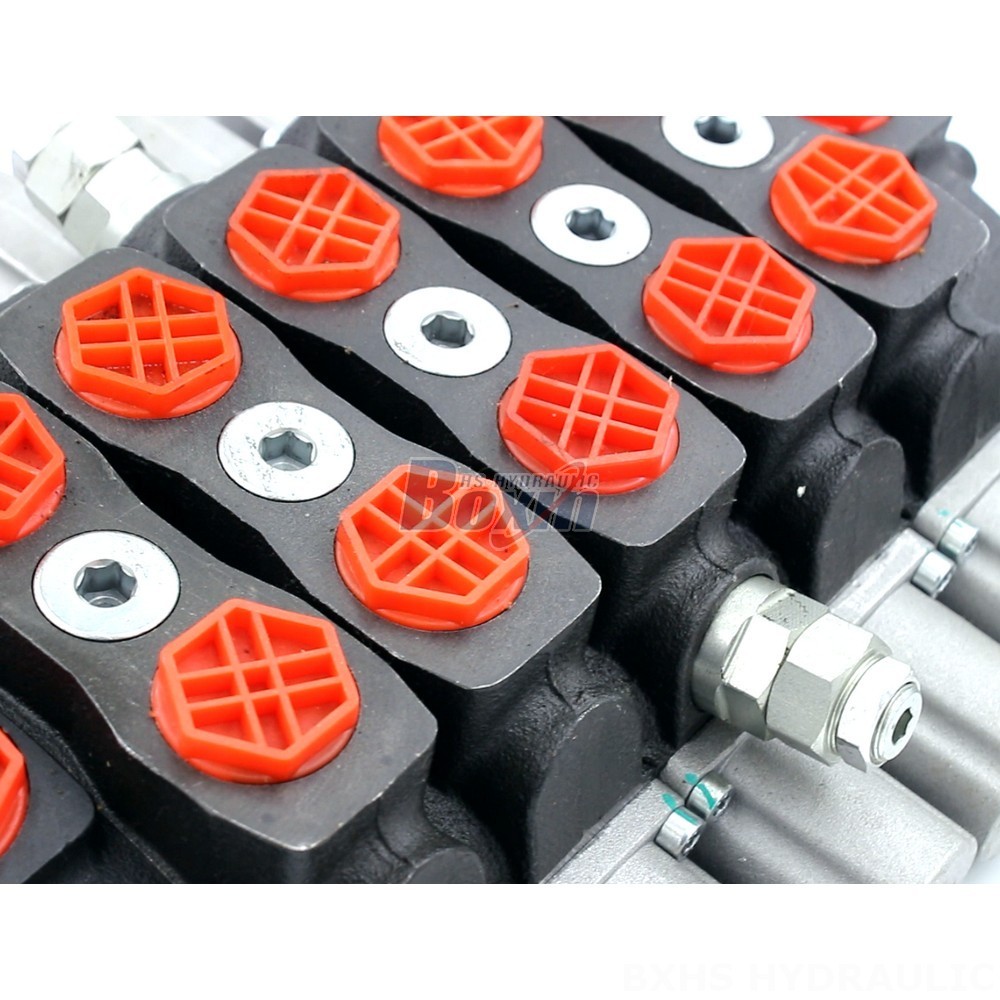

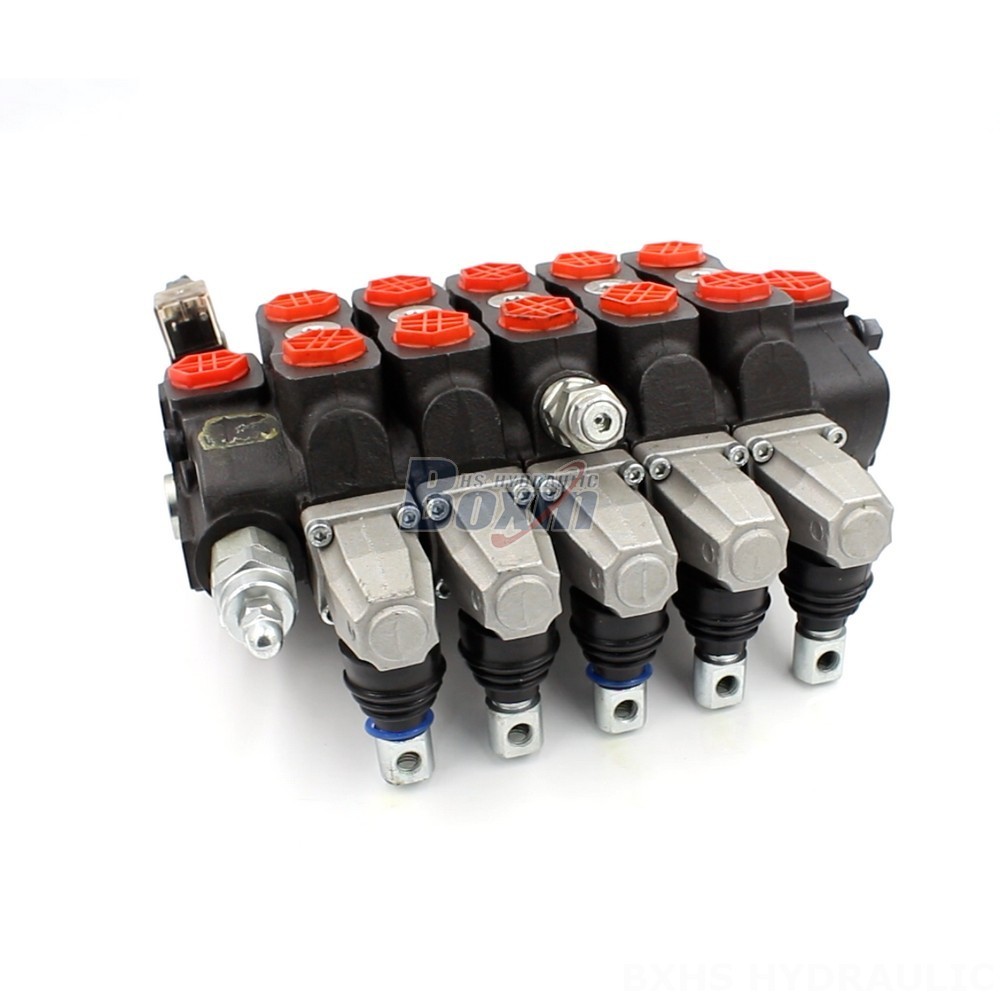

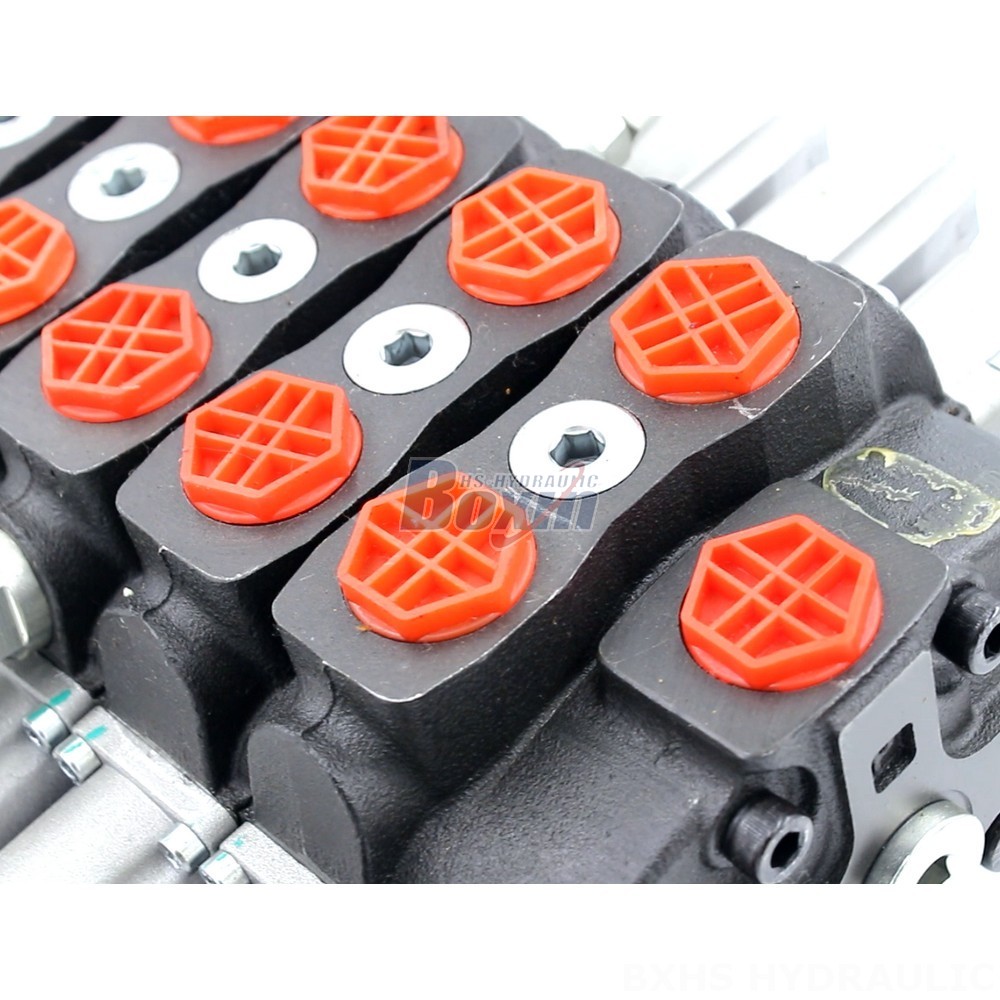

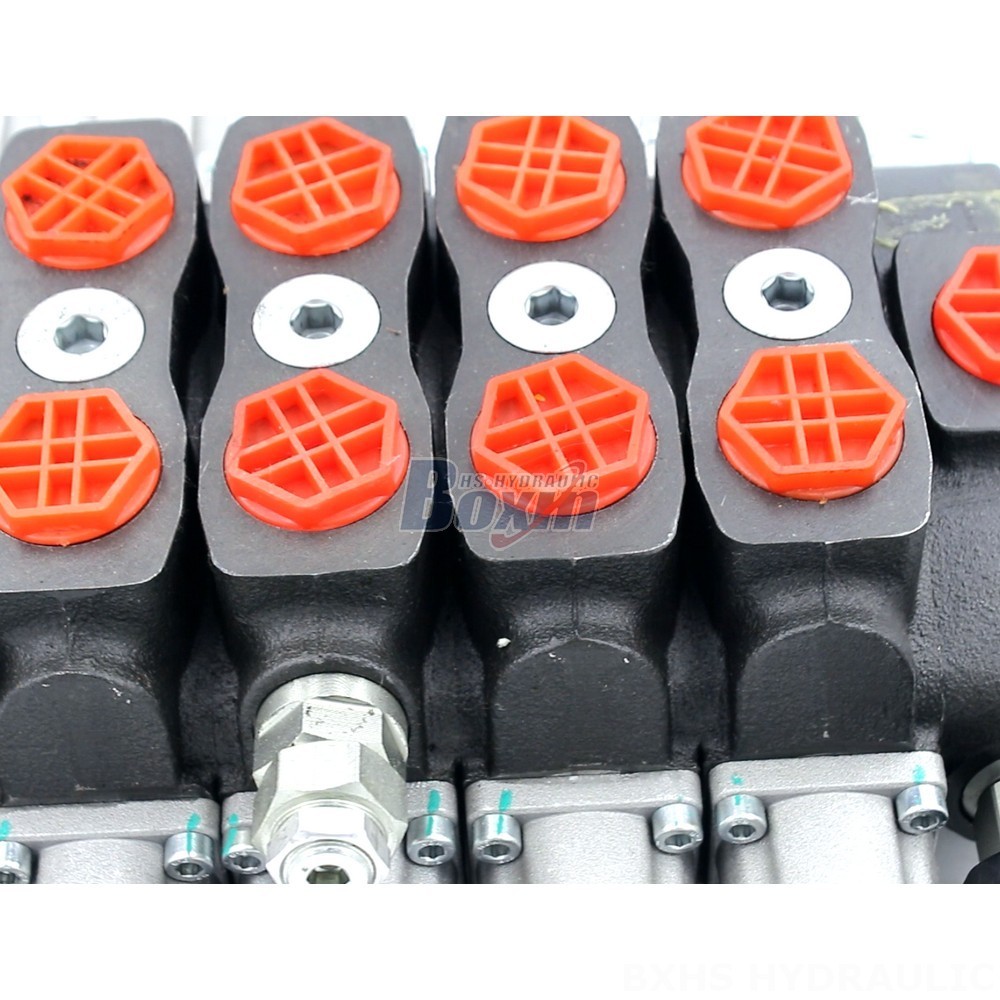

**SD8-Electric Unloading Valve: 5 Position, 3 Solenoid, 12v 24v Hydraulic Directional Control Valve**
**Product Specifications:**
* Control Method: Manual
* Section: 5 Section
* Structure Type: Sectional valve
* Rated Flow: 90 L/min (23.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* Spool: 5 Spool
* Series: SD8 Series
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
