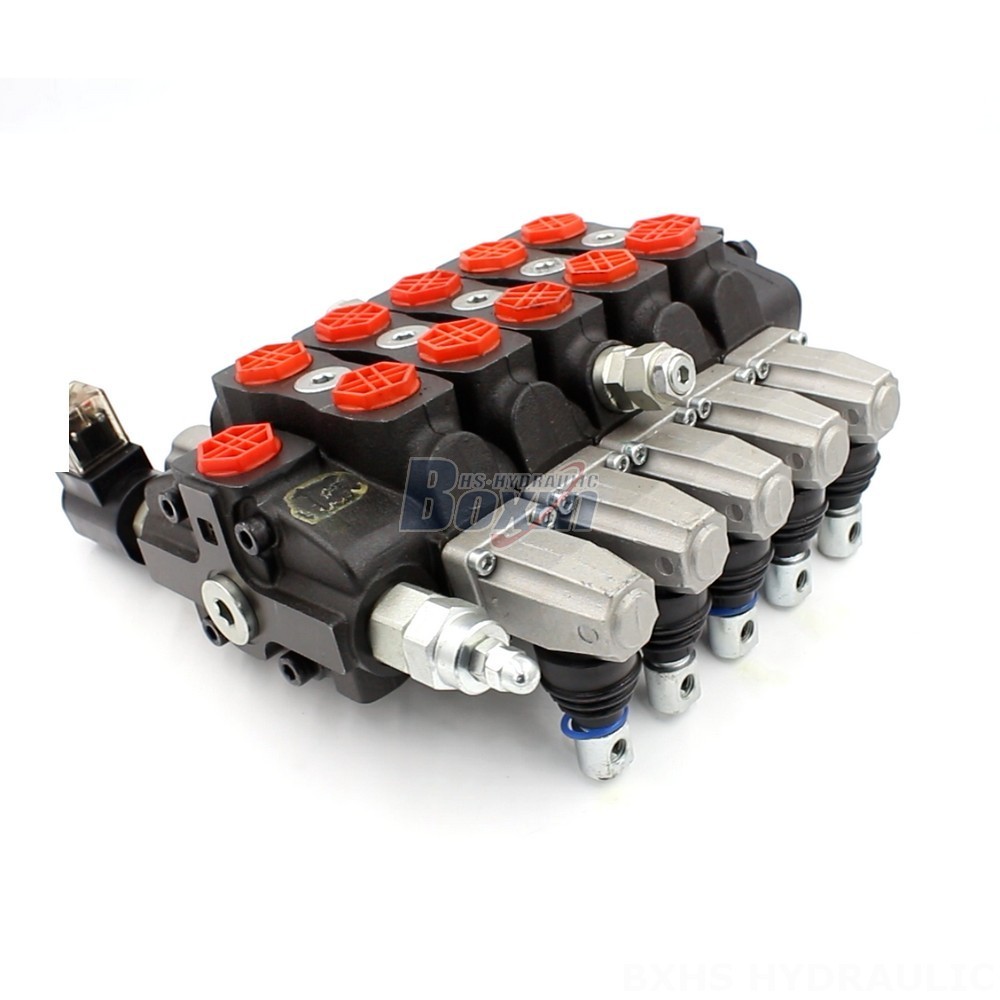

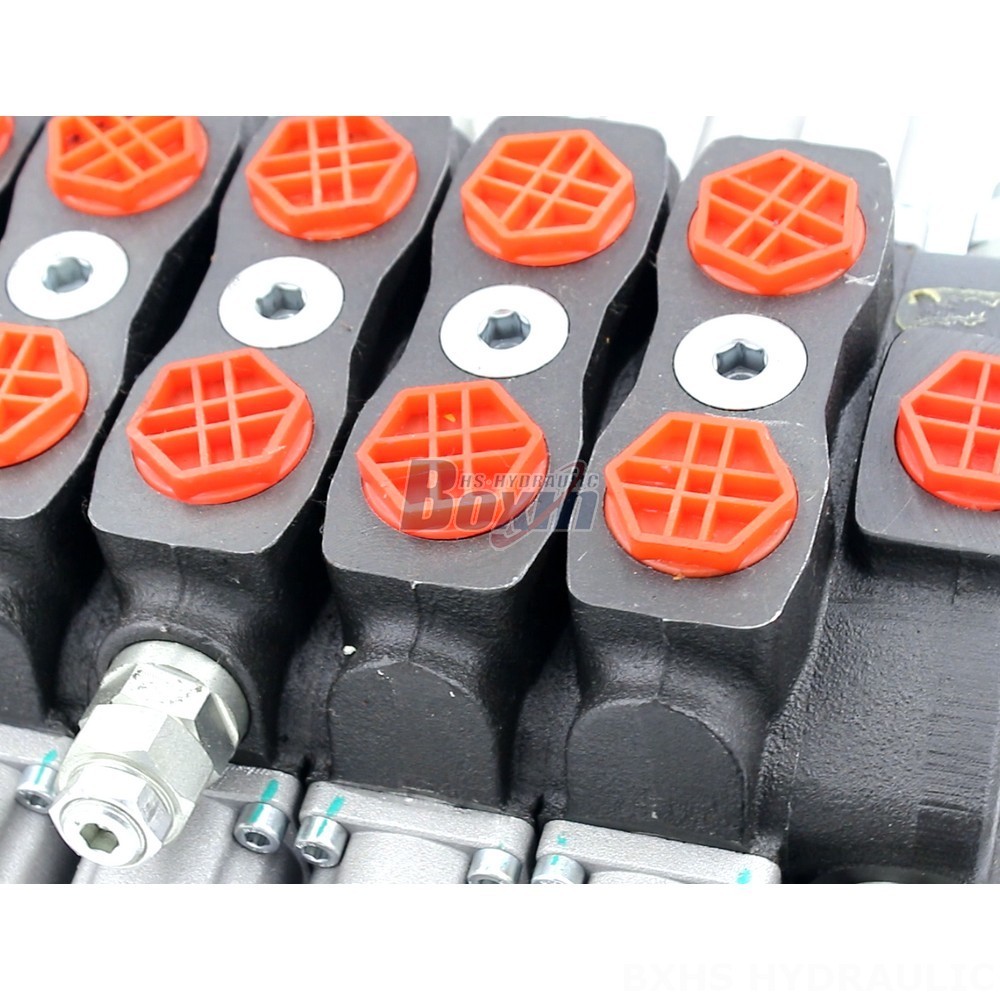

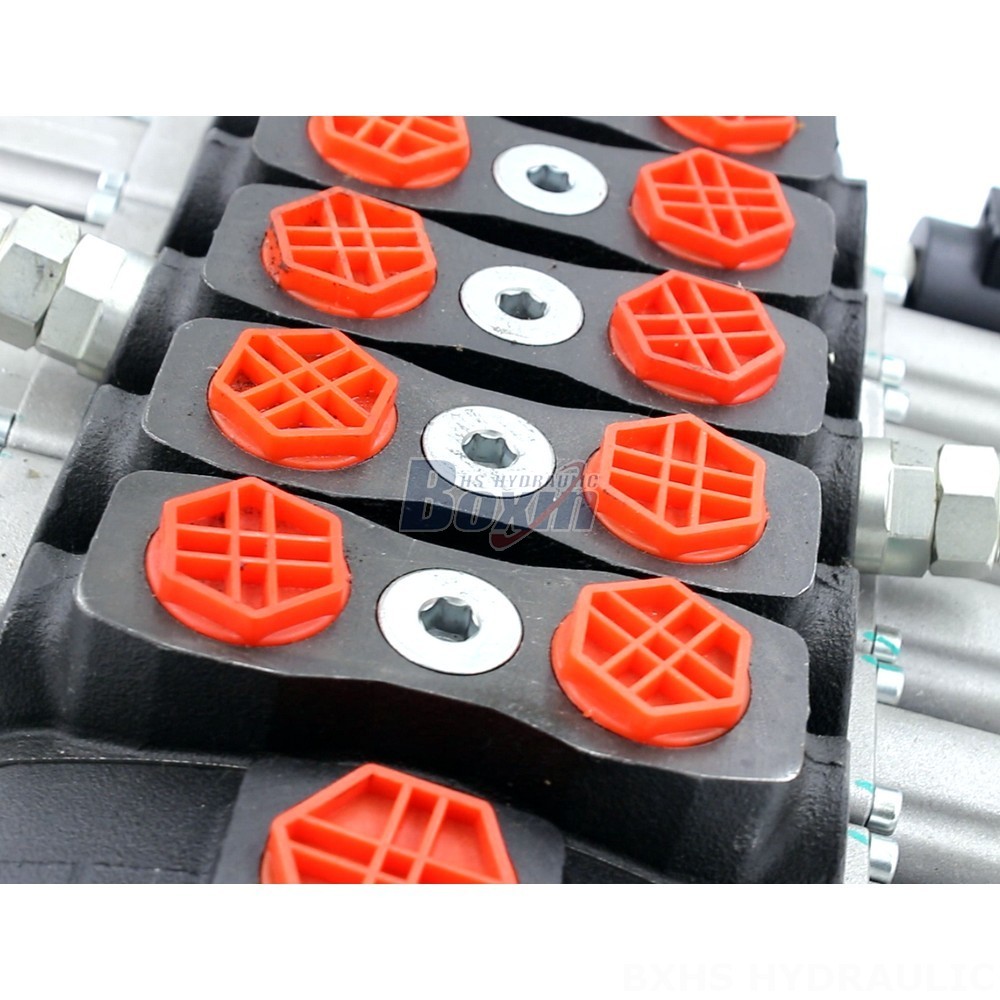

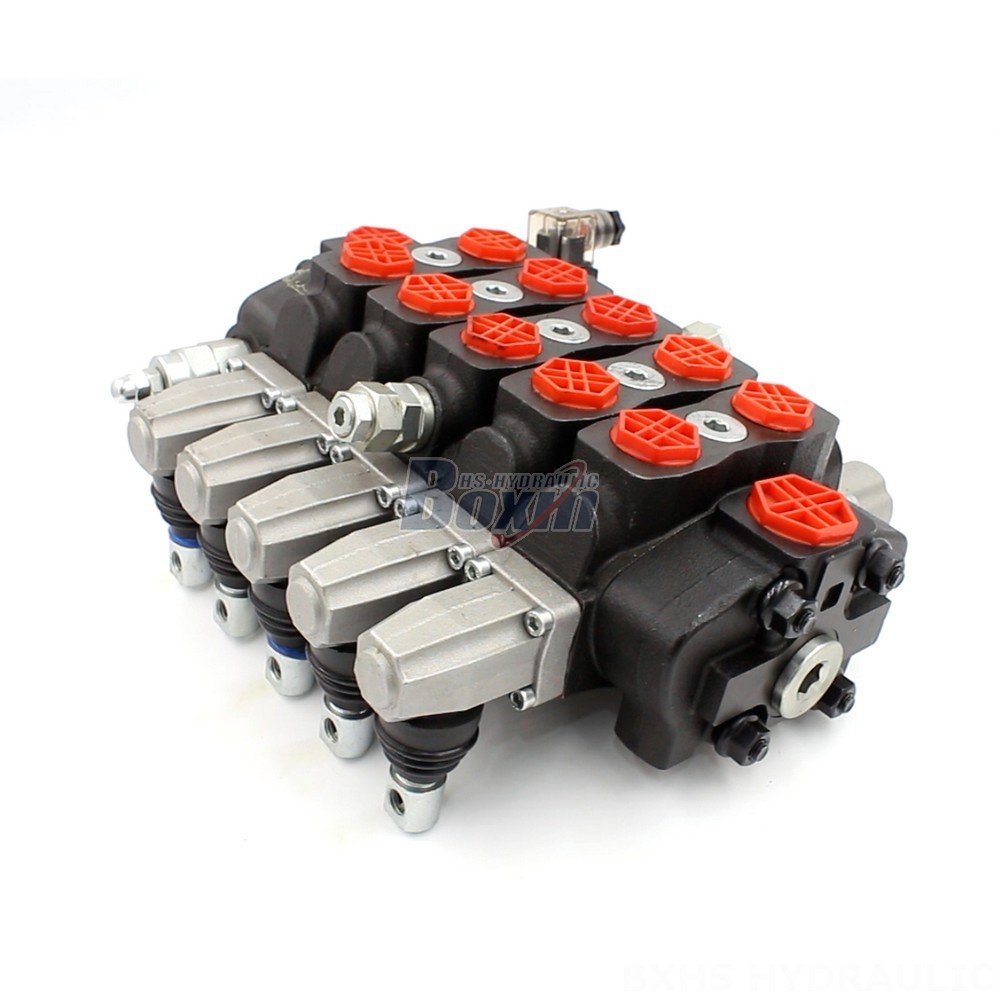

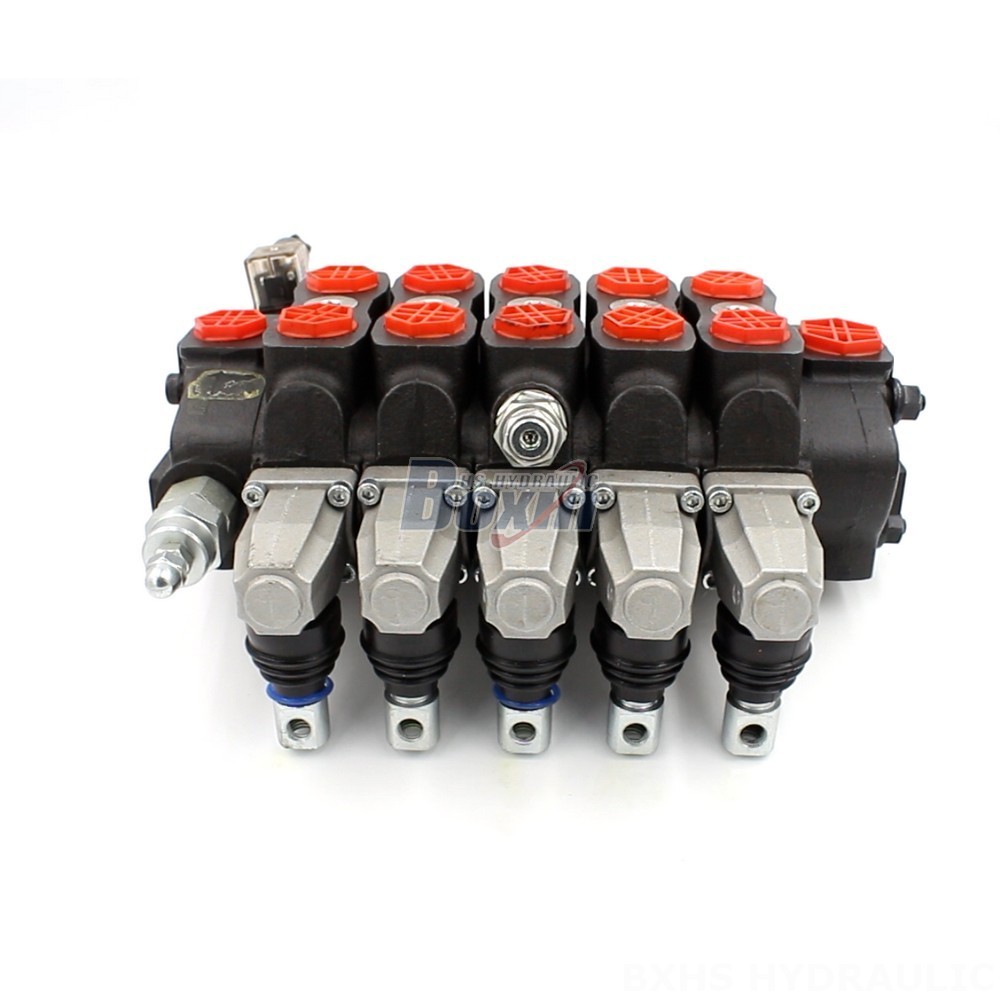

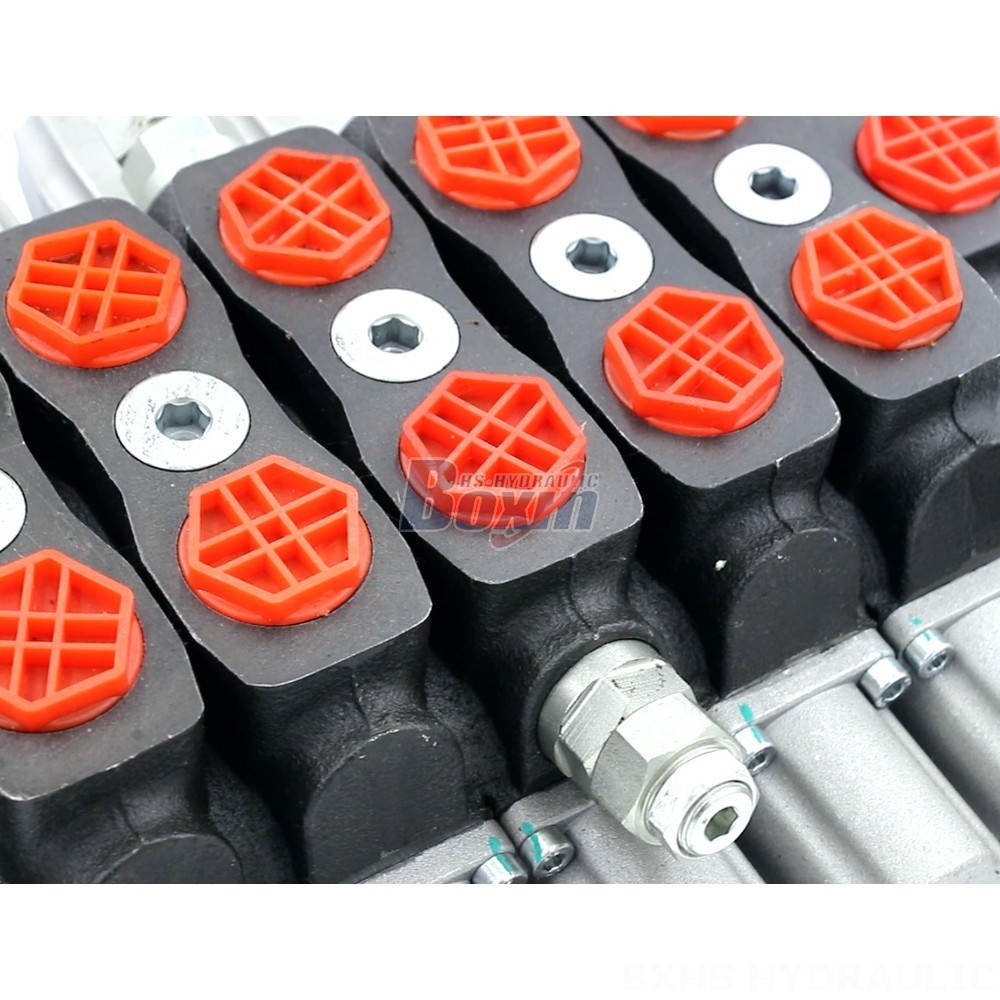

SD8-Electric Unloading Valve 5 Position 2 Solenoid 12v 24v Hydraulic Directional Control Valve

控制方式:手控

路数:5 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD8系列分块式方向阀

Packagingsize:35*35*17

Grossweight:23.20 kg

库存: 有货

描述

SD8-Electric Unloading Valve 5 Position 2 Solenoid 12v 24v Hydraulic Directional Control Valve

SD8-Electric Unloading Valve 5 Position 2 Solenoid 12v 24v Hydraulic Directional Control Valve drawing image

The SD8-Electric Unloading Valve is a 5-position, 2-solenoid, 12v/24v hydraulic directional control valve designed for use in various industrial applications. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve offers reliable and precise control of hydraulic systems.

SD8系列分块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	分片阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围	12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量	90 L/min (23.8 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, SAE 10接头
出油口	G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹
接口尺寸	G1/2接口, SAE 10接头

**Product Name:** SD8-Electric Unloading Valve 5 Position 2 Solenoid 12v 24v Hydraulic Directional Control Valve

**Control Method:** Manual
**Section:** 5 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 5 Spool
**Series:** SD8 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER

SD8-Electric Unloading Valve 5 Position 2 Solenoid 12v 24v Hydraulic Directional Control Valve
