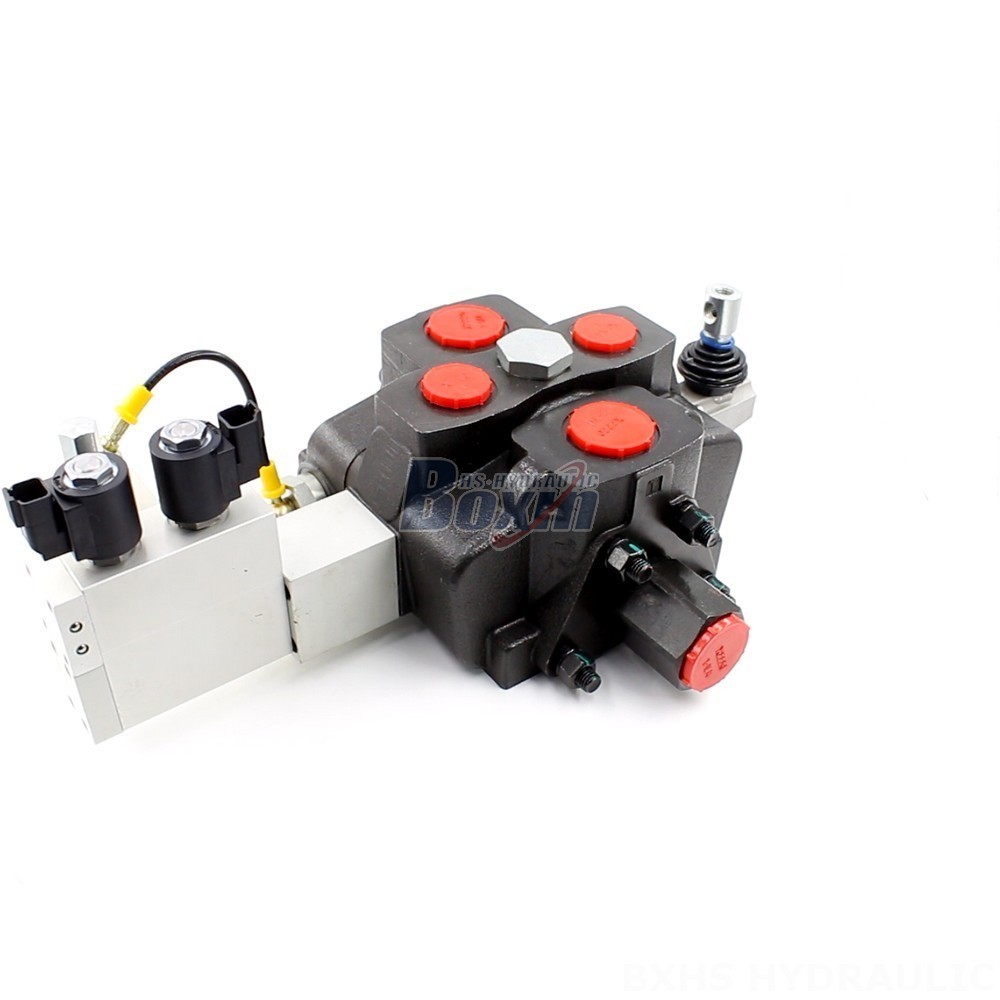

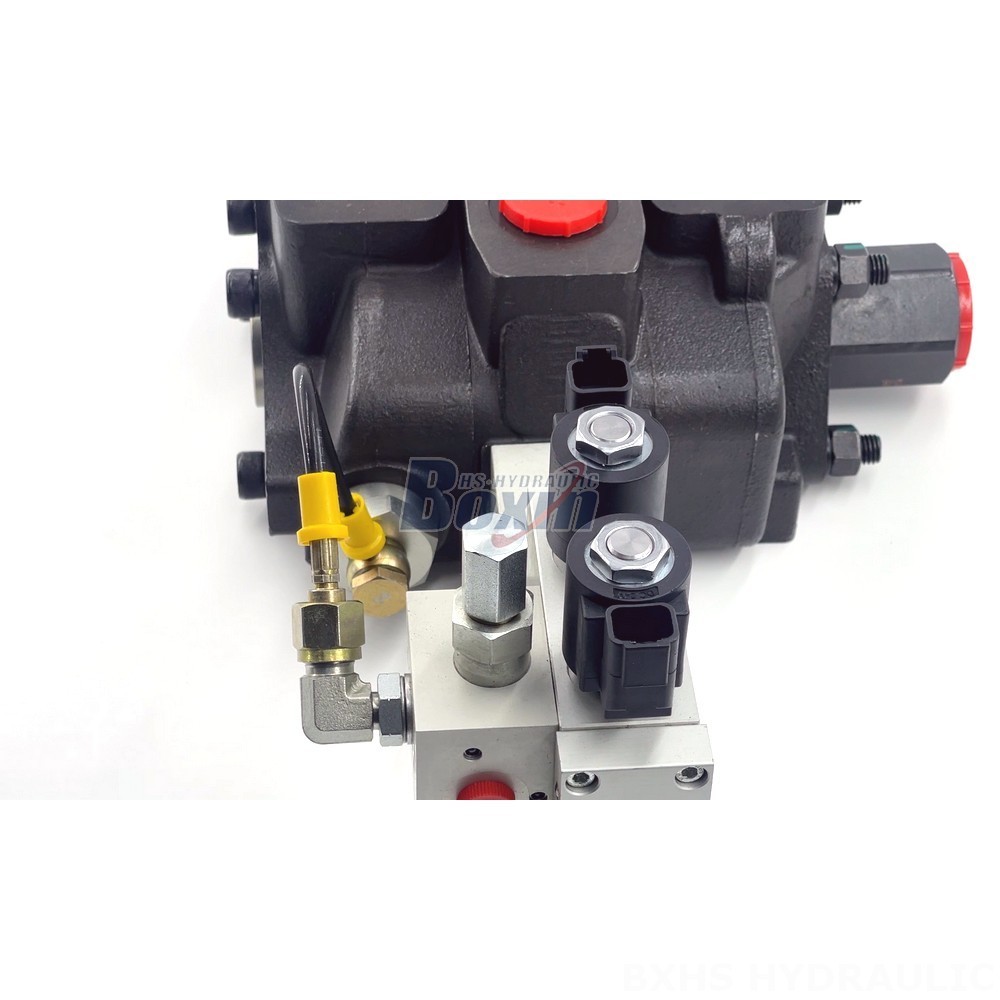

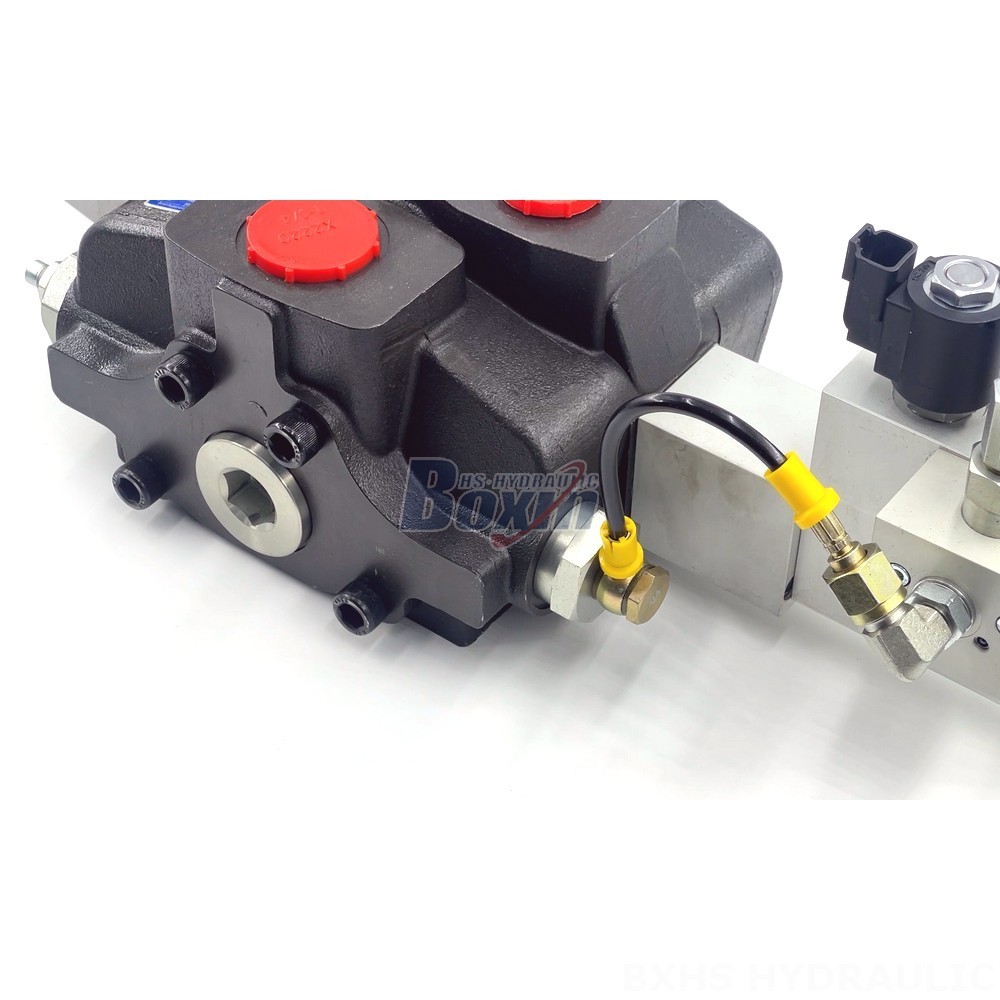

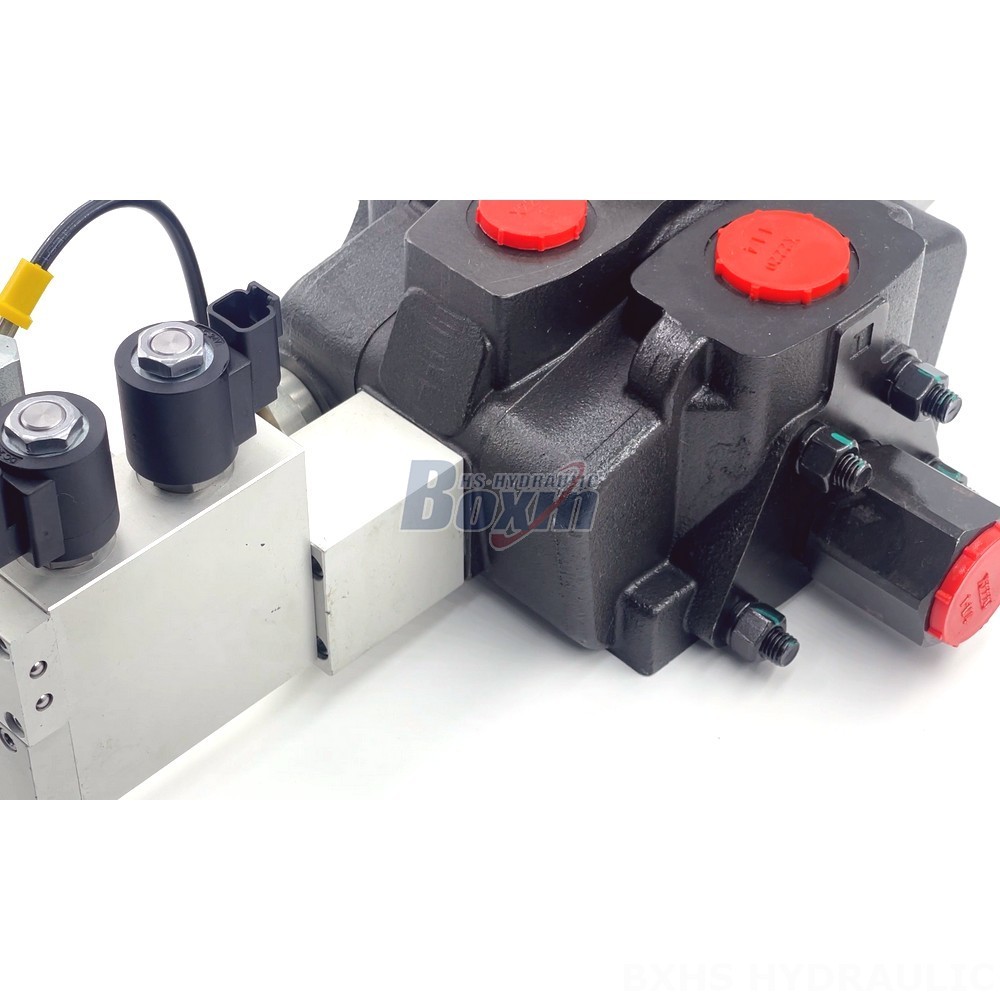

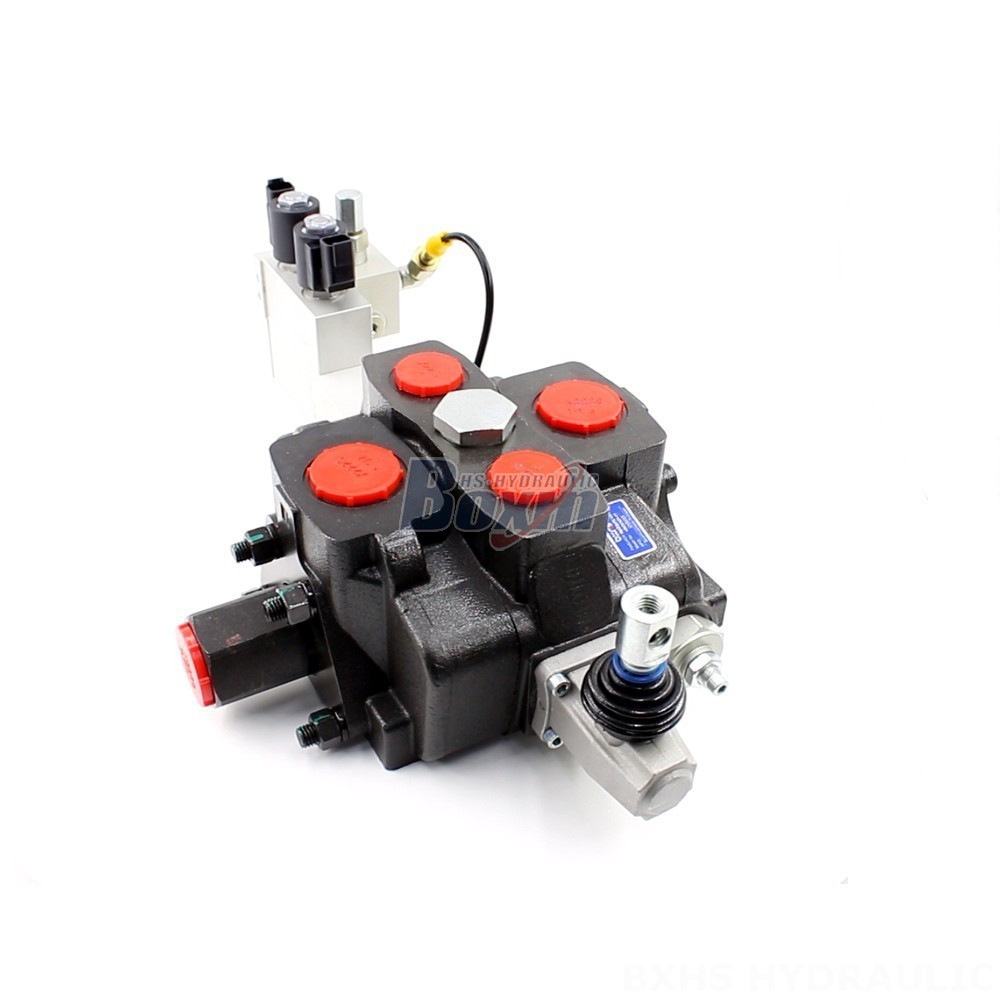

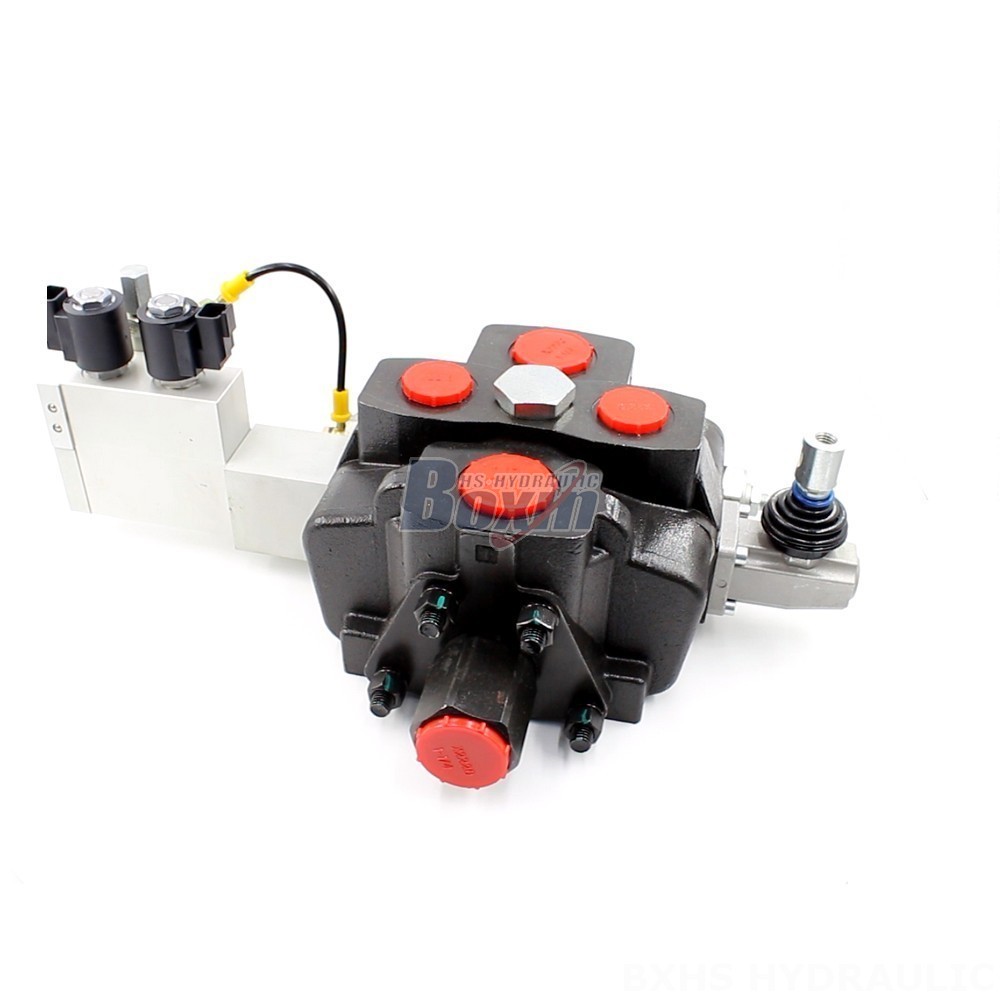

This Hydraulic Distributor with Electrovalve SD25 Valve is a robust and reliable solution for various applications including material handling, construction, and agriculture. It is manufactured directly from our factory, ensuring high quality and competitive pricing. We offer global distribution through our network of distributors, wholesalers, and agents.
| SD25系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 240 L/min (63.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1接口, SAE 16接头 |
| 出油口 | G1-1/4接口, SAE 16接头 |
| 接口尺寸 | G1接口, G1-1/4接口, SAE 12接头 |
Our Hydraulic Distributor with Electrovalve SD25 Valve is a high-performance monoblock valve designed for demanding applications. It features a 1-section design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi). Its electro-hydraulic control method offers precise and responsive operation. This valve is ideal for a wide range of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. As a manufacturer, we offer factory direct supply and wholesale pricing. We also welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
