The SDS180 Sectional Valve is a precision hydraulic control valve designed for use in various applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with a manual operation, a rated flow of 160 L/min, and a maximum pressure of 350 bar.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |

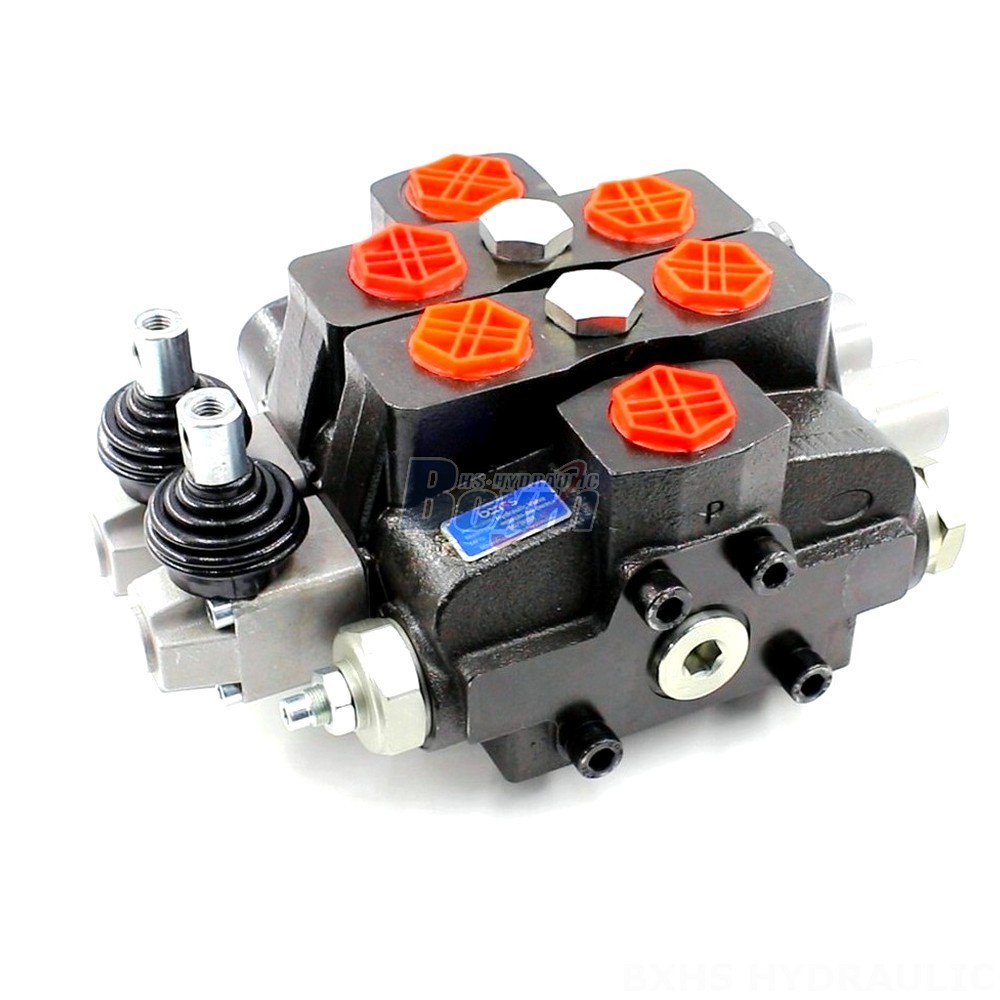

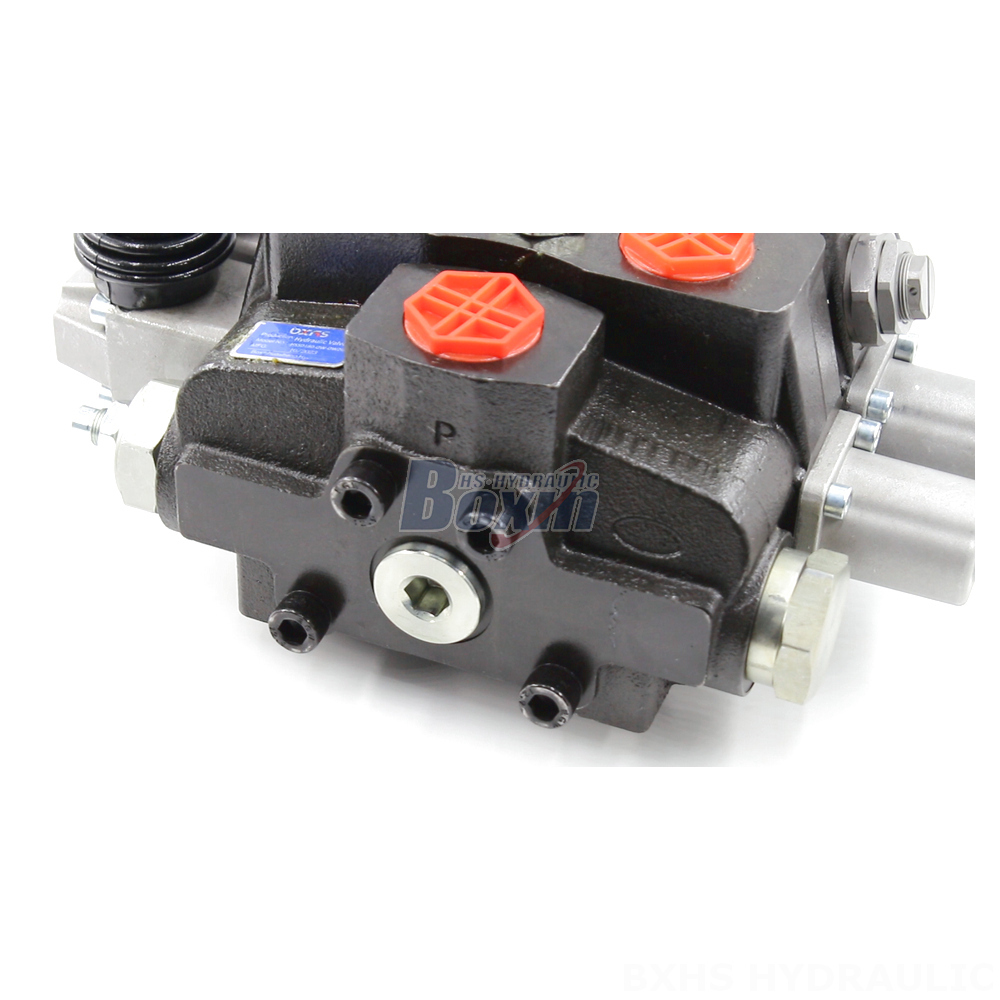

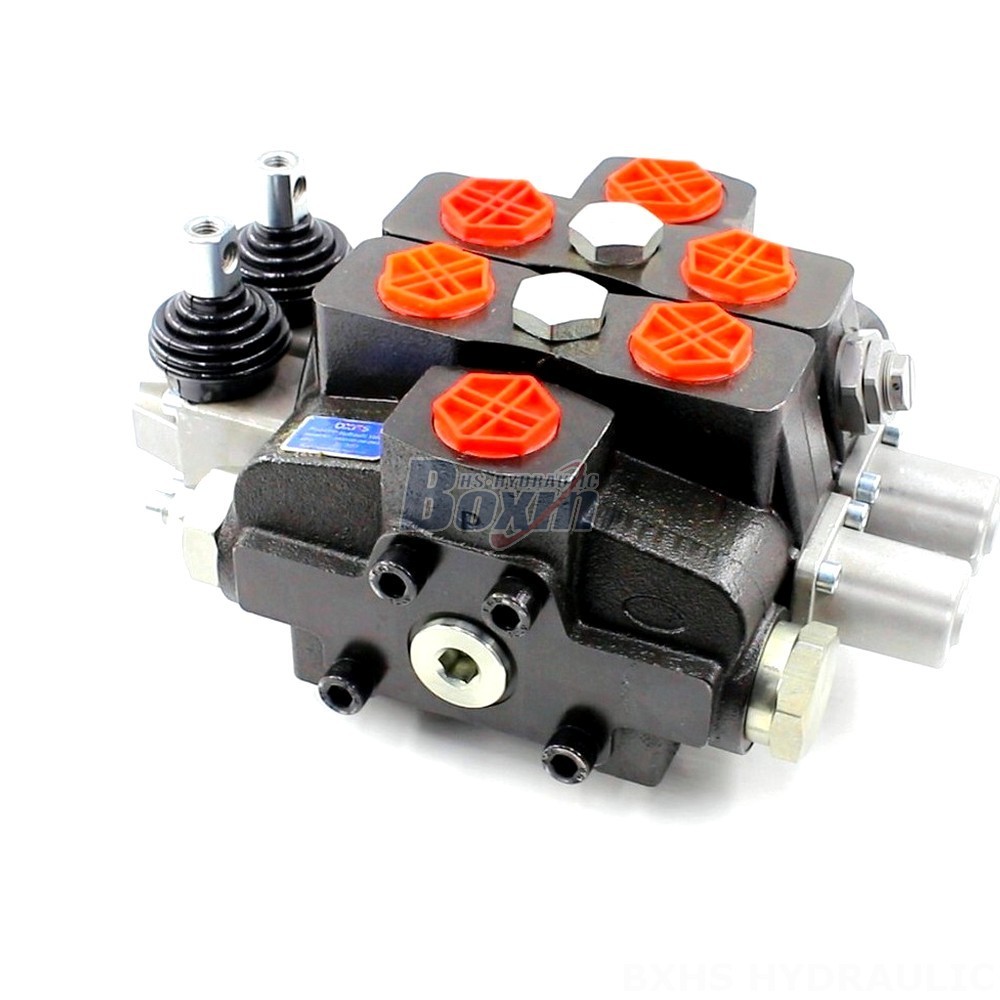

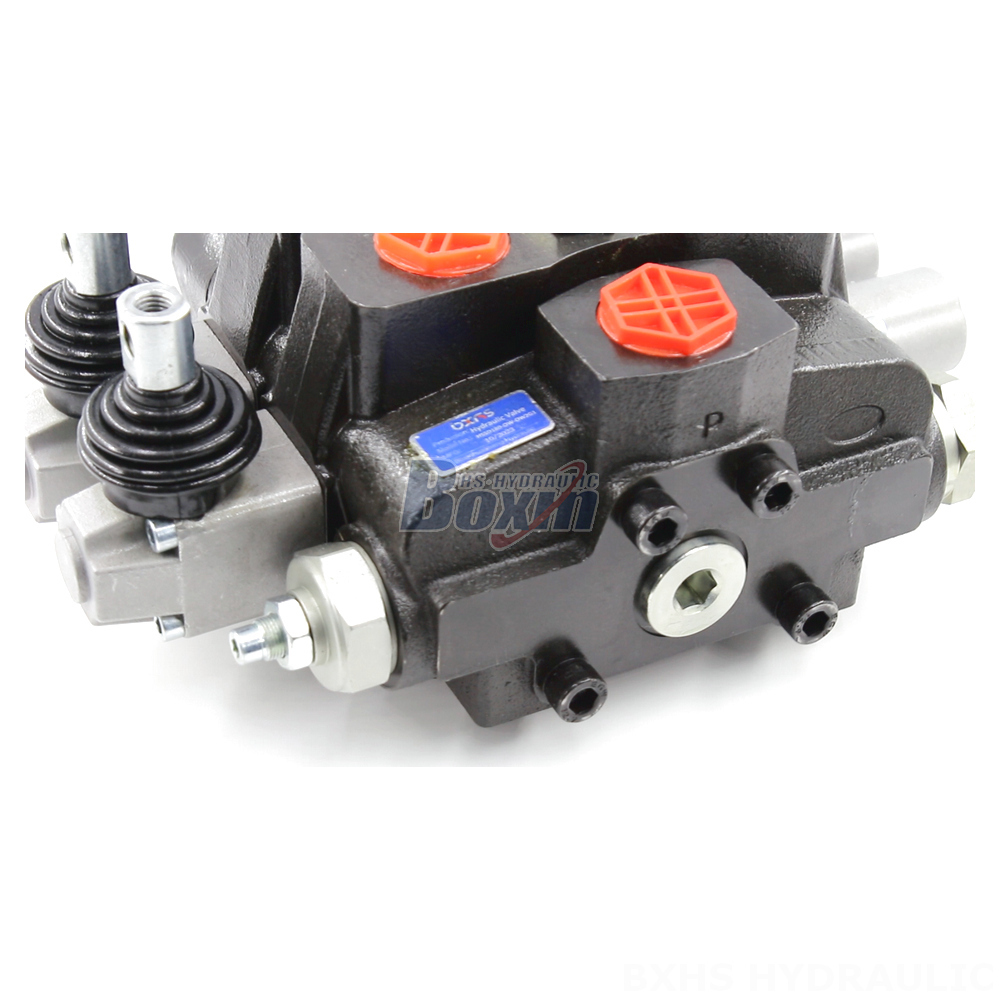

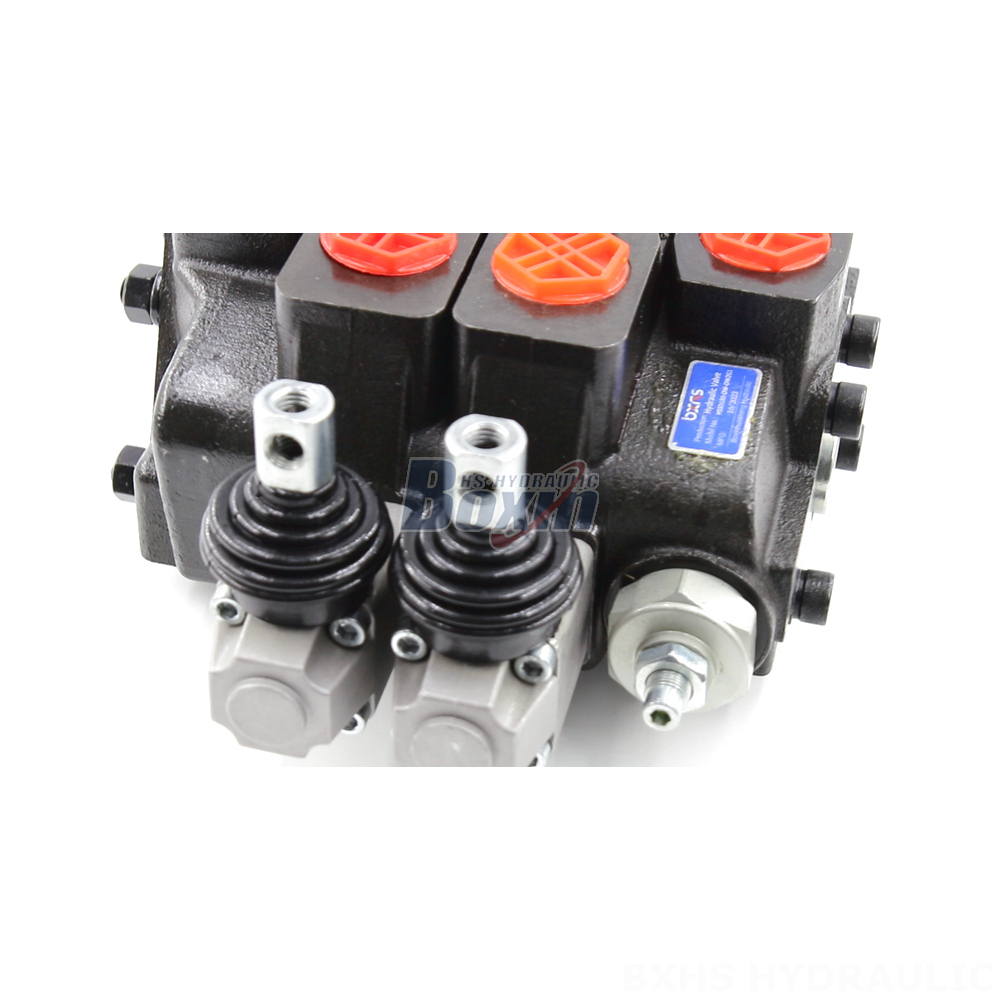

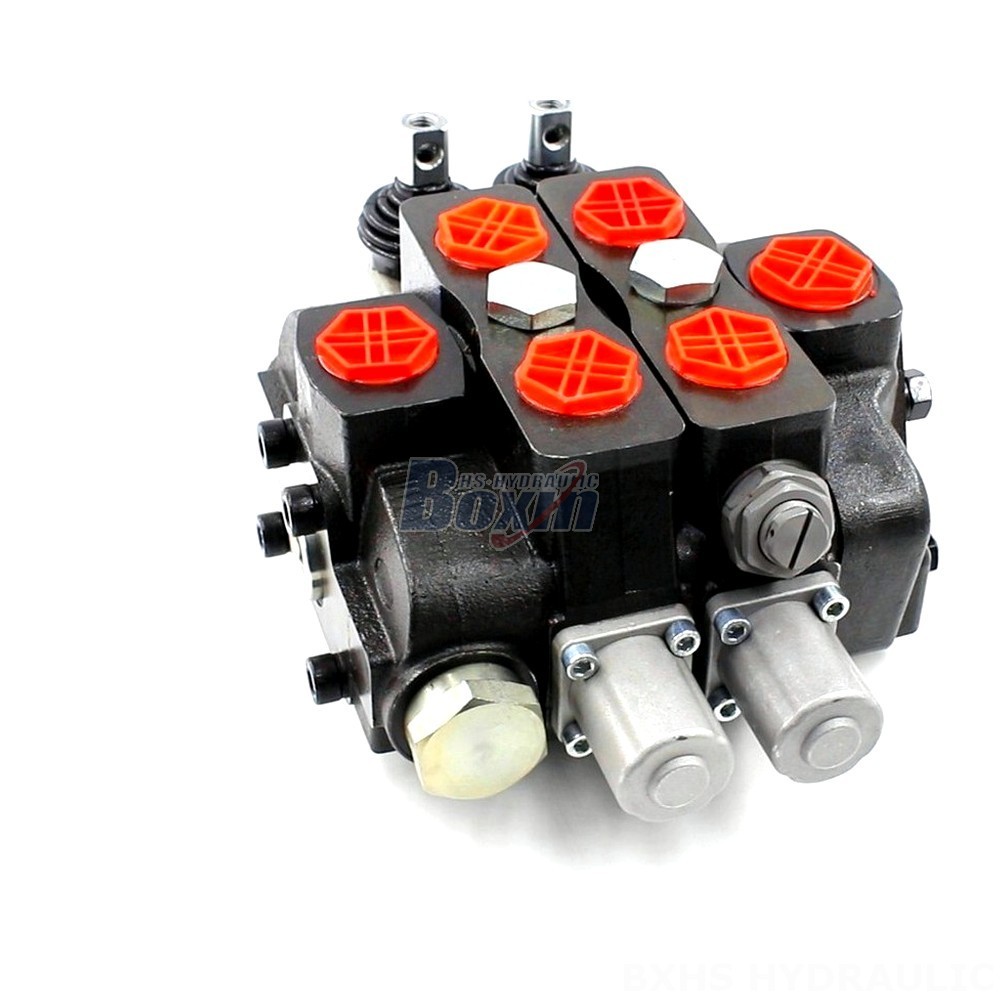

**SDS180 Sectional Valve**
The SDS180 Sectional Valve is a 2-section, manually operated hydraulic valve designed to provide precise control of hydraulic systems. It features a rated flow of 160 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 12 - 400 mm²/s. The valve is constructed using high-quality materials and is engineered to meet the demands of demanding applications.
**Key Features:**
* Manual control for precise operation
* 2-section design for versatility
* Rated flow of 160 L/min
* Maximum pressure of 350 bar
* Operating viscosity range of 12 - 400 mm²/s
* Durable construction for long-lasting performance
**Applications:**
The SDS180 Sectional Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
The SDS180 Sectional Valve is commonly used in the following types of equipment:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
