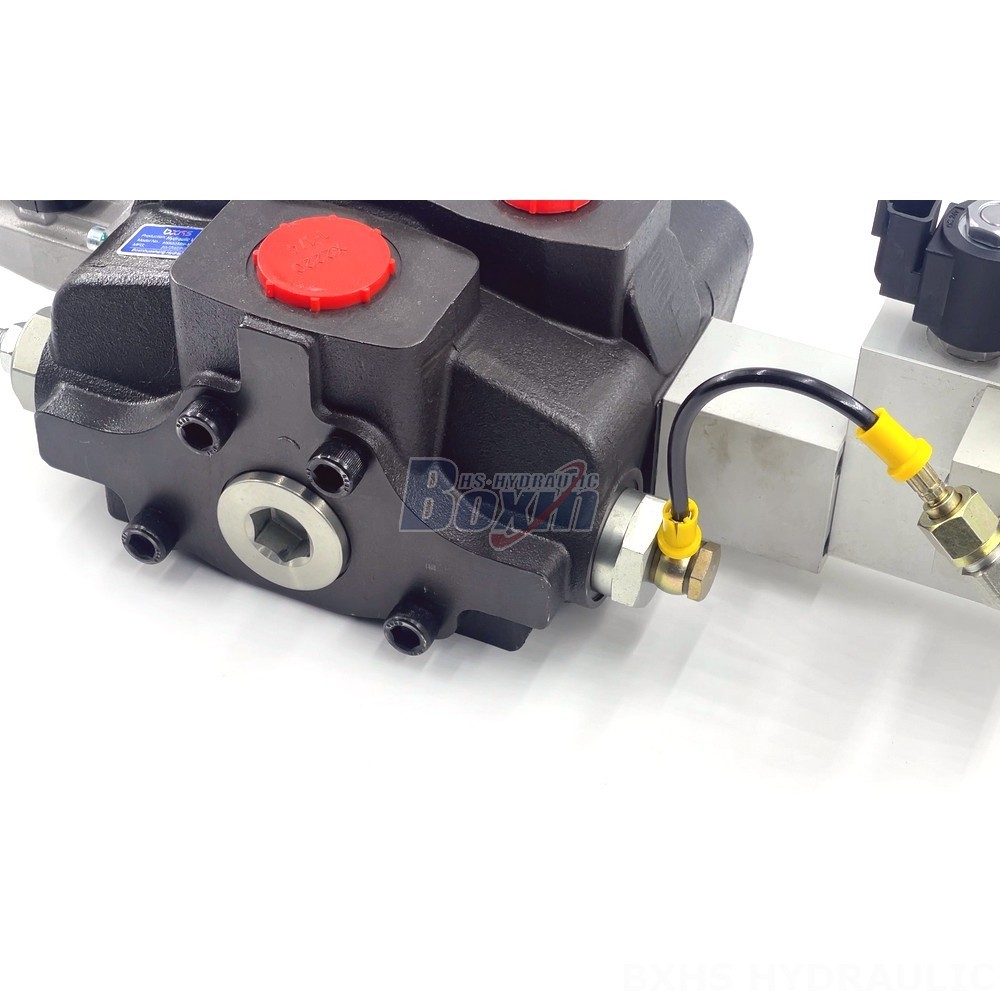

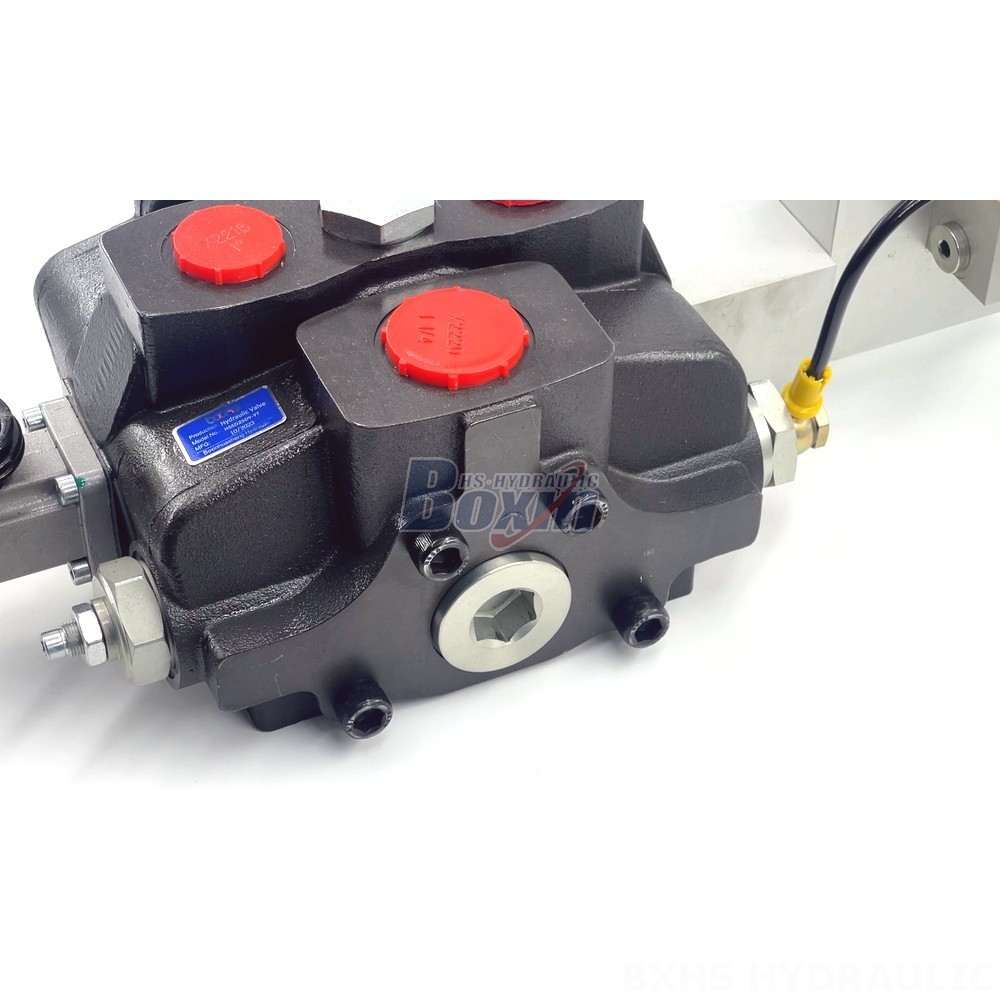

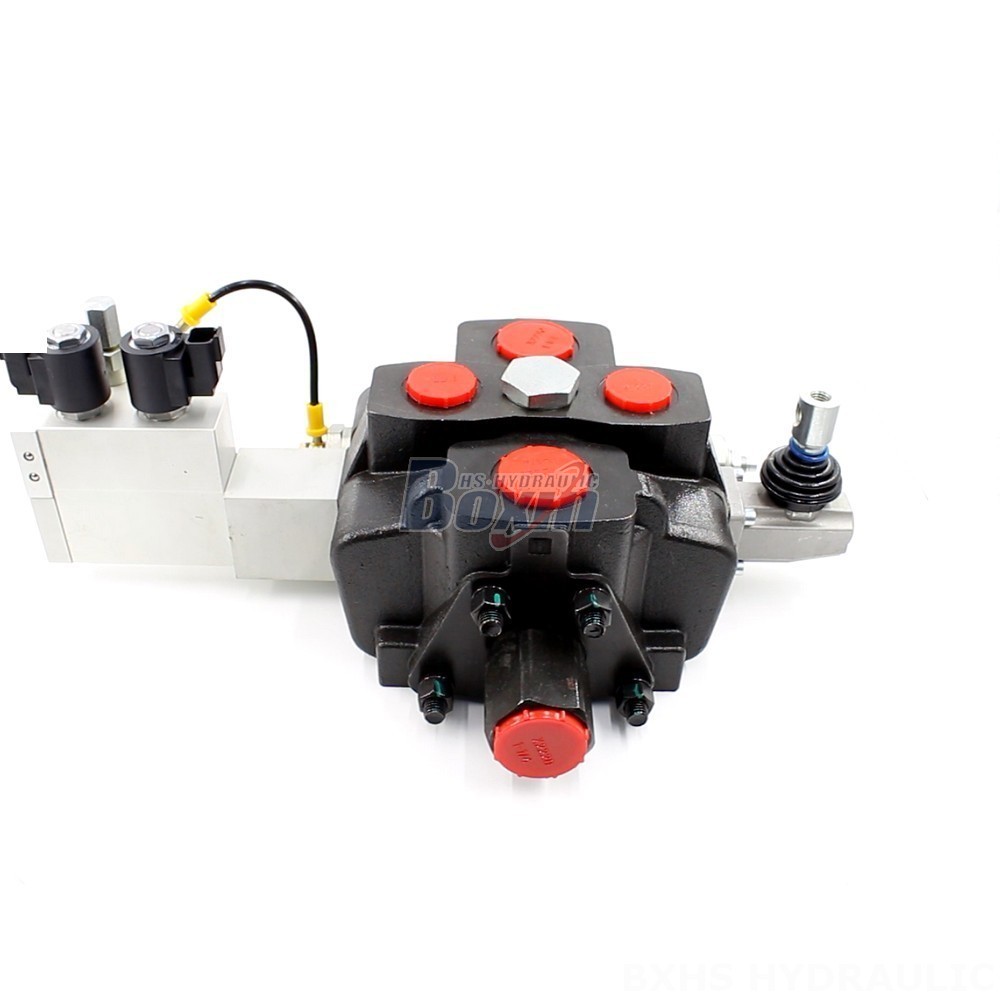

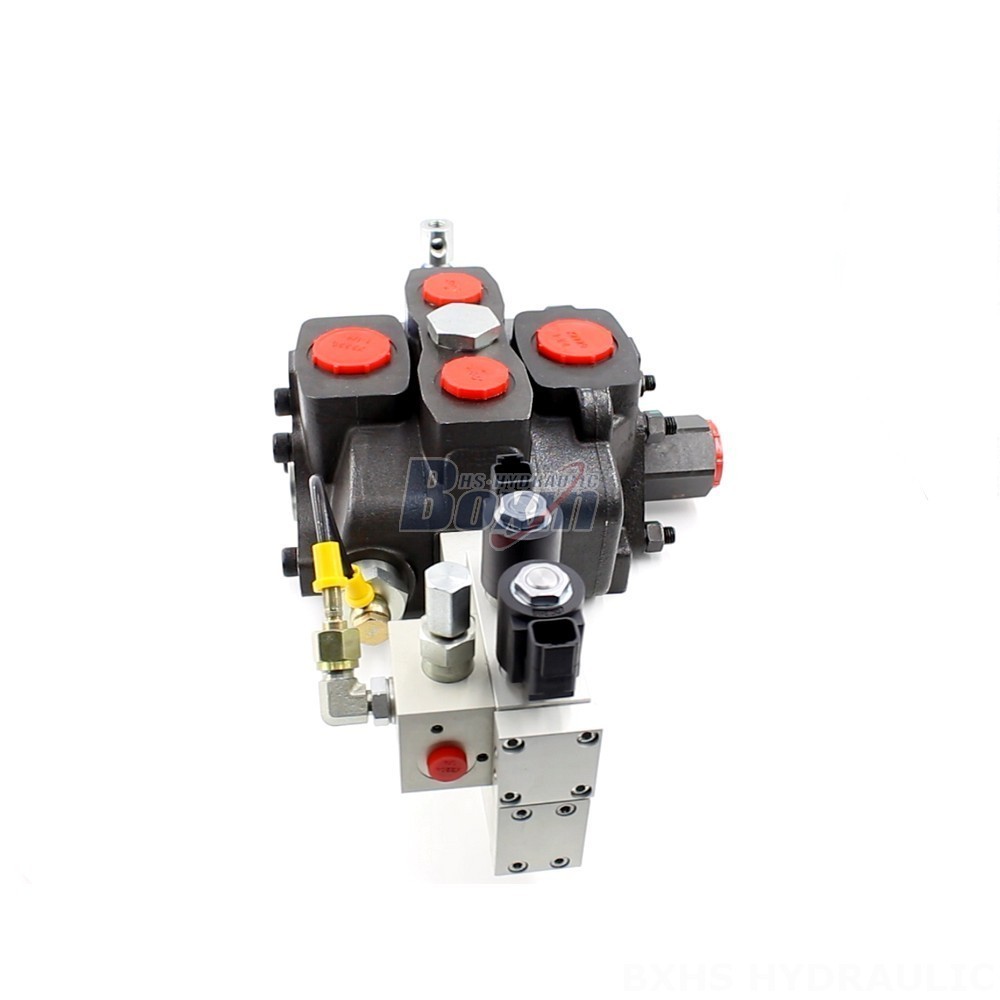

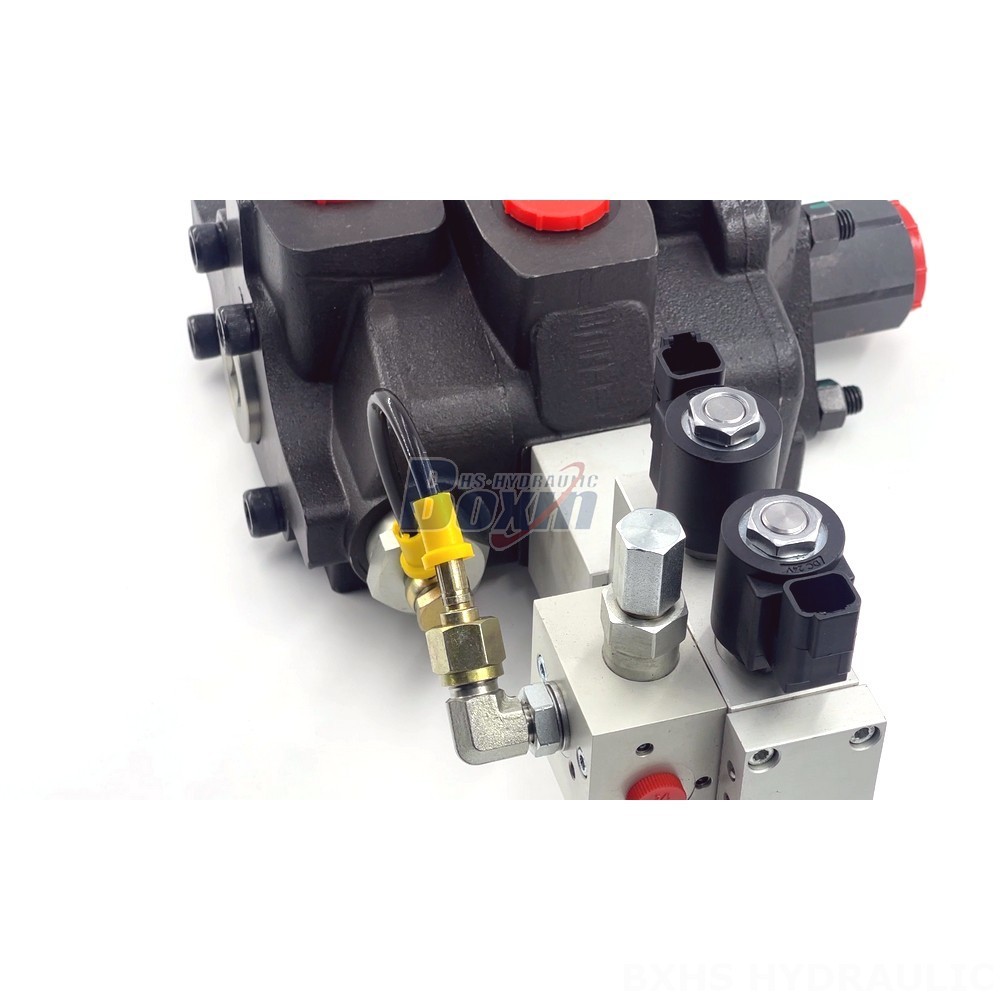

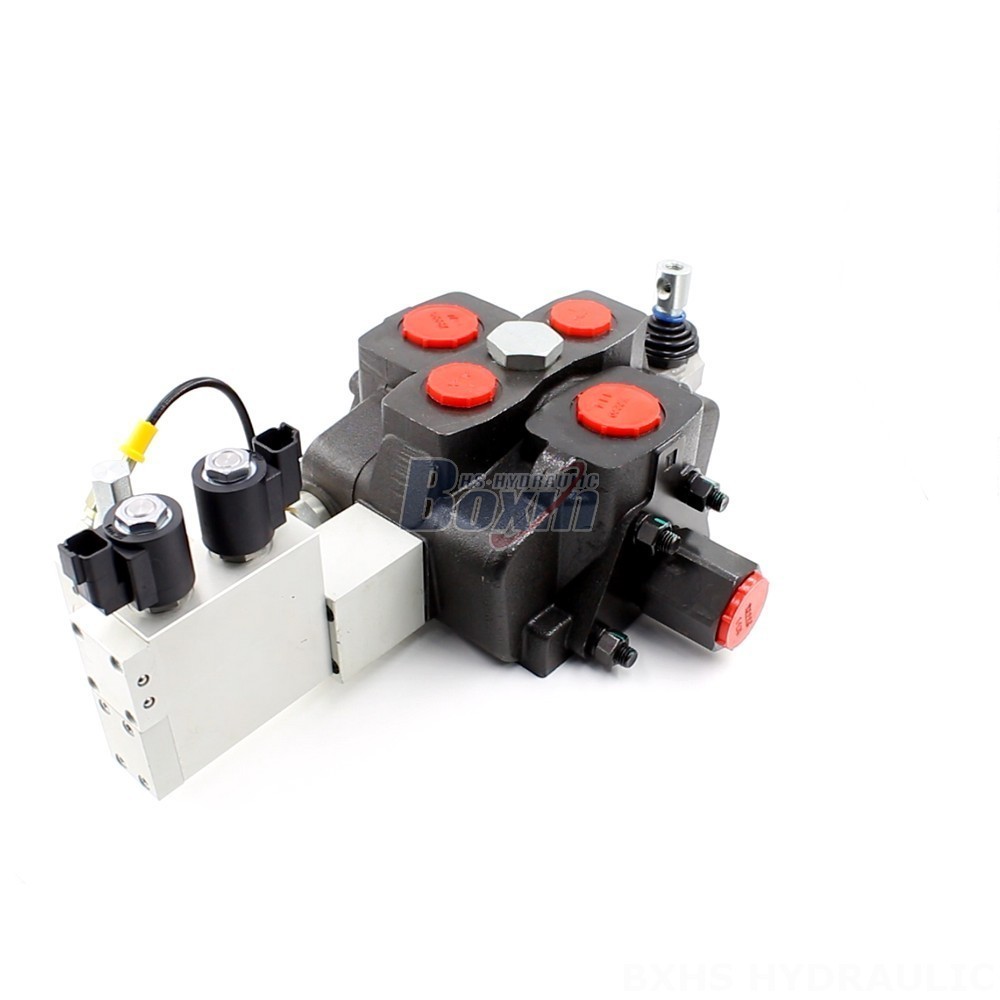

Maximize efficiency with the SD25 Valve, an electro-hydraulic control and automation solution designed for various applications, including material handling, construction, agriculture, and industrial vehicles.
| SD25系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 240 L/min (63.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1接口, SAE 16接头 |
| 出油口 | G1-1/4接口, SAE 16接头 |
| 接口尺寸 | G1接口, G1-1/4接口, SAE 12接头 |
The SD25 Valve is a monoblock valve with a rated flow of 240 L/min and a maximum pressure of 315 bar. It operates within an ambient temperature range of -40°C to +80°C and features a single spool. Its electro-hydraulic control system provides precise and efficient operation, making it an ideal choice for demanding hydraulic applications.
