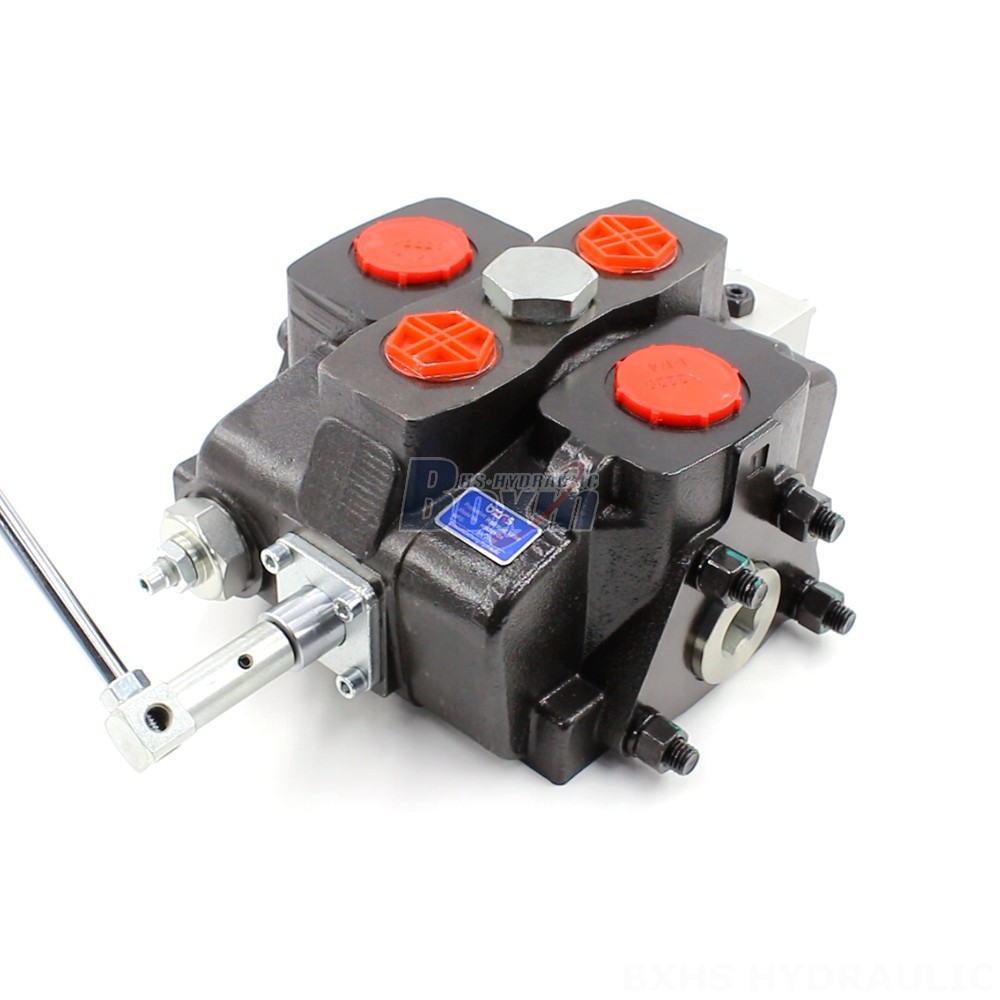

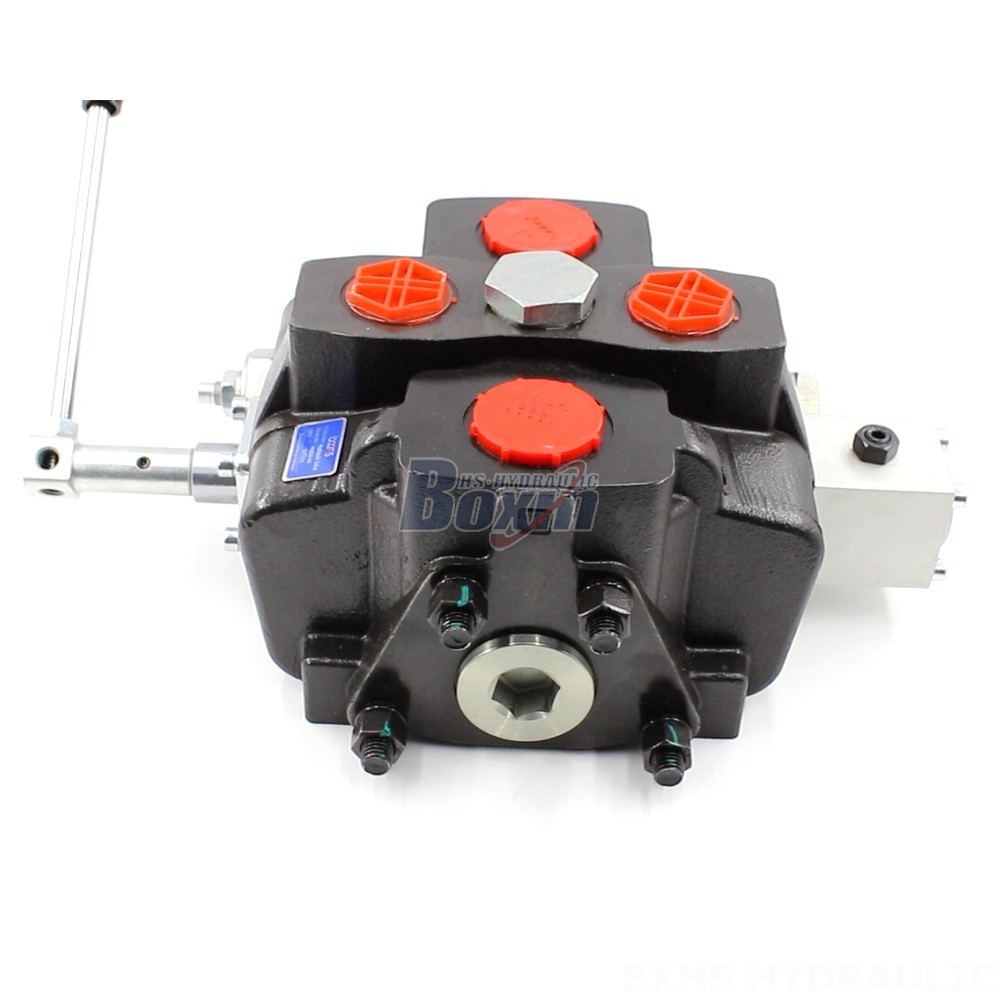

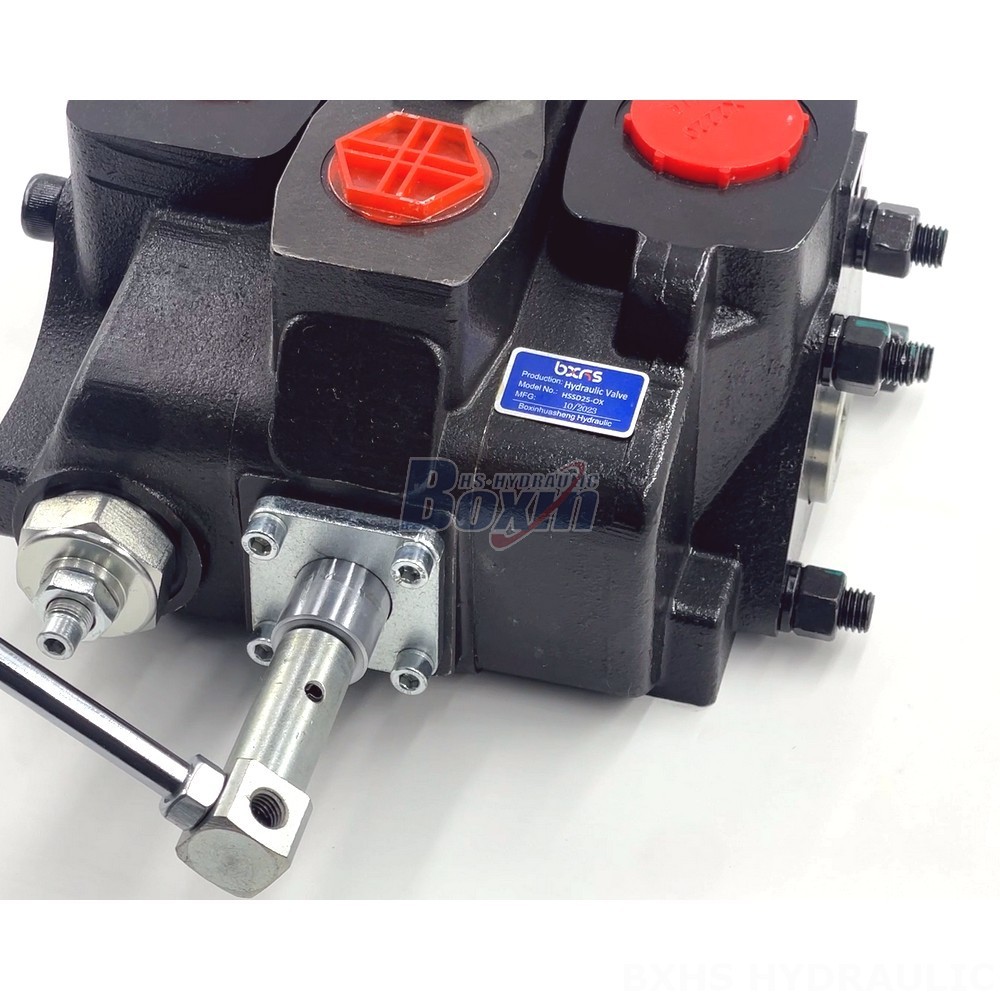

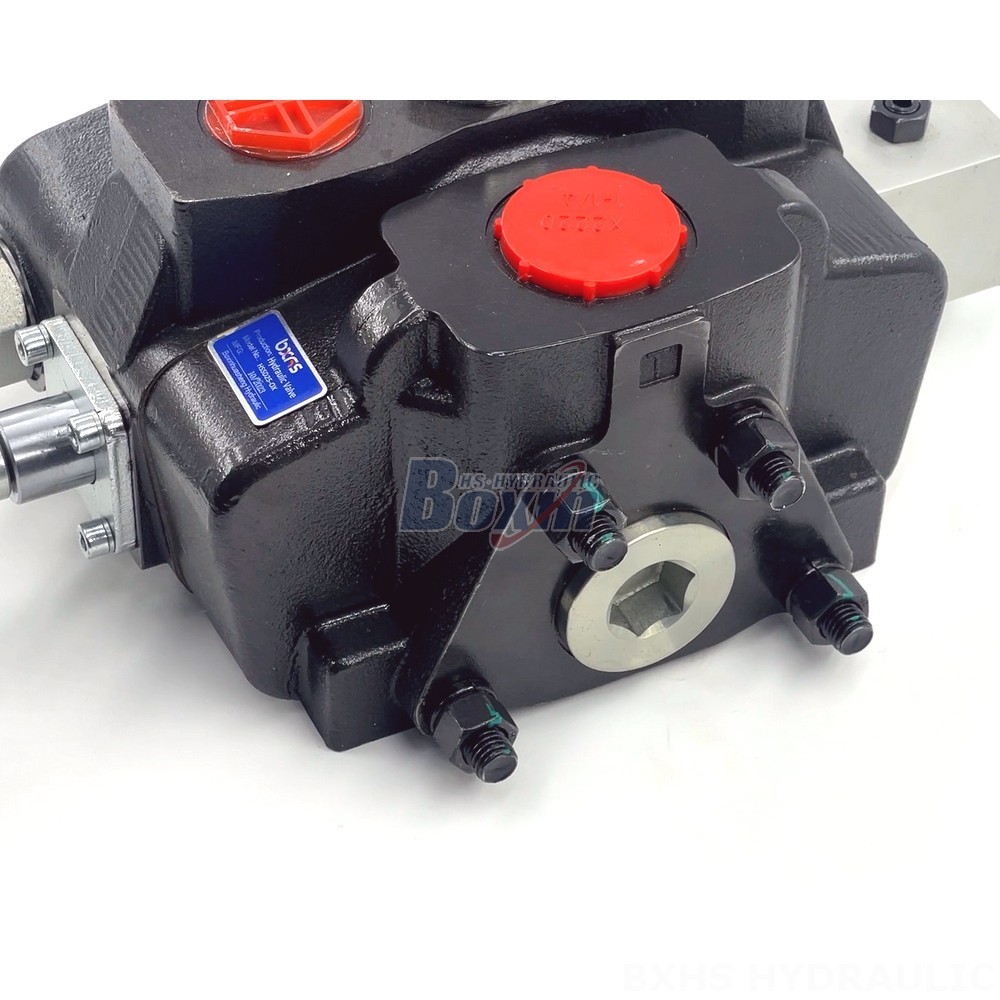

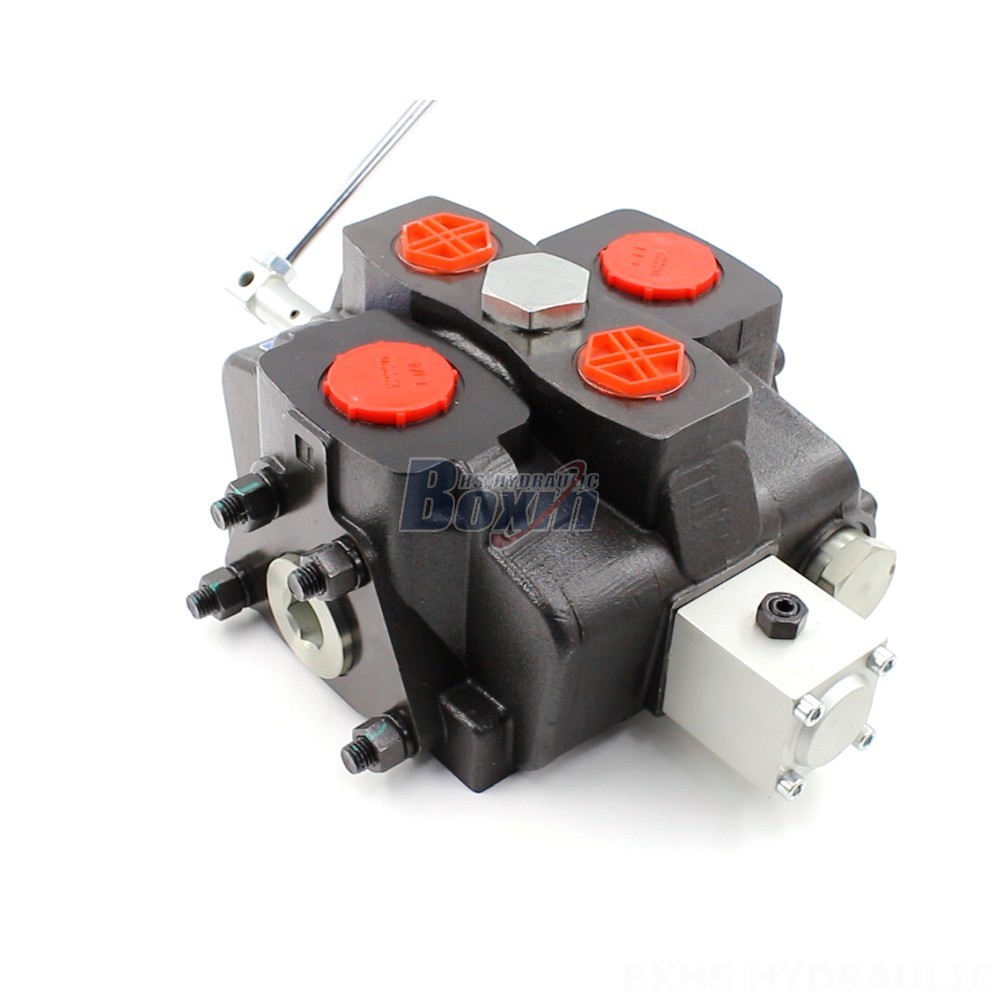

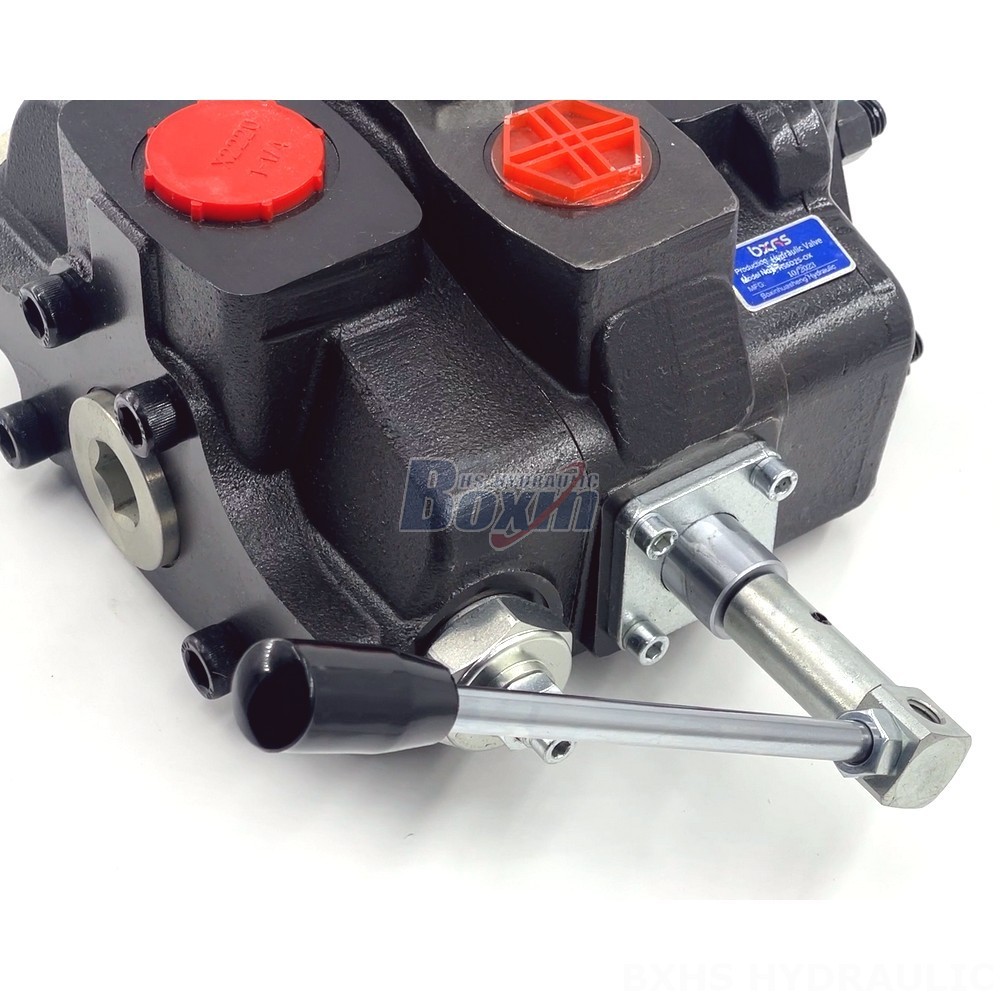

Our SD25 series 2-way hydraulic selector valve is a manual, monoblock valve designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 240 L/min and a maximum pressure of 315 bar, making it a reliable and powerful choice for your needs.
| SD25系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 240 L/min (63.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1接口, SAE 16接头 |
| 出油口 | G1-1/4接口, SAE 16接头 |
| 接口尺寸 | G1接口, G1-1/4接口, SAE 12接头 |
We are a manufacturer of hydraulic products, specializing in the production of high-quality hydraulic selector valves. Our SD25 series 2-way valve offers a range of features including manual control, monoblock construction, and a rated flow of 240 L/min. It is designed for use in demanding environments with a maximum pressure rating of 315 bar. We offer factory direct wholesale pricing and customization options to meet your specific requirements. Contact us today to learn more about our products and services.
