极速交货
30天极速交货
液压驱动世界 华盛智造未来
778 次查看了此产品
This SDS180 Series Hydraulic Valve is a manual operated, 4-spool, directional valve designed specifically for log splitter applications. With a rated flow of 160 L/min and a maximum pressure of 350 bar, it's suitable for various material handling, construction, agriculture, and industrial vehicles.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |

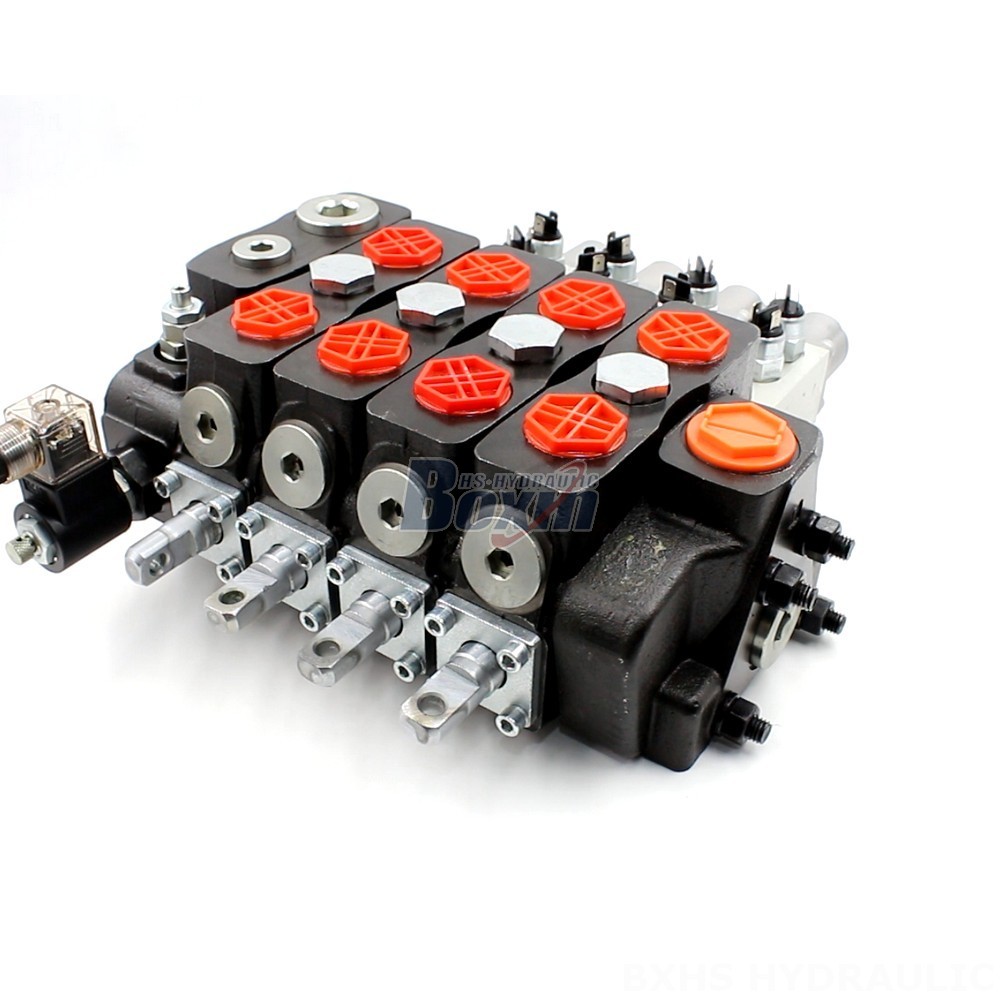

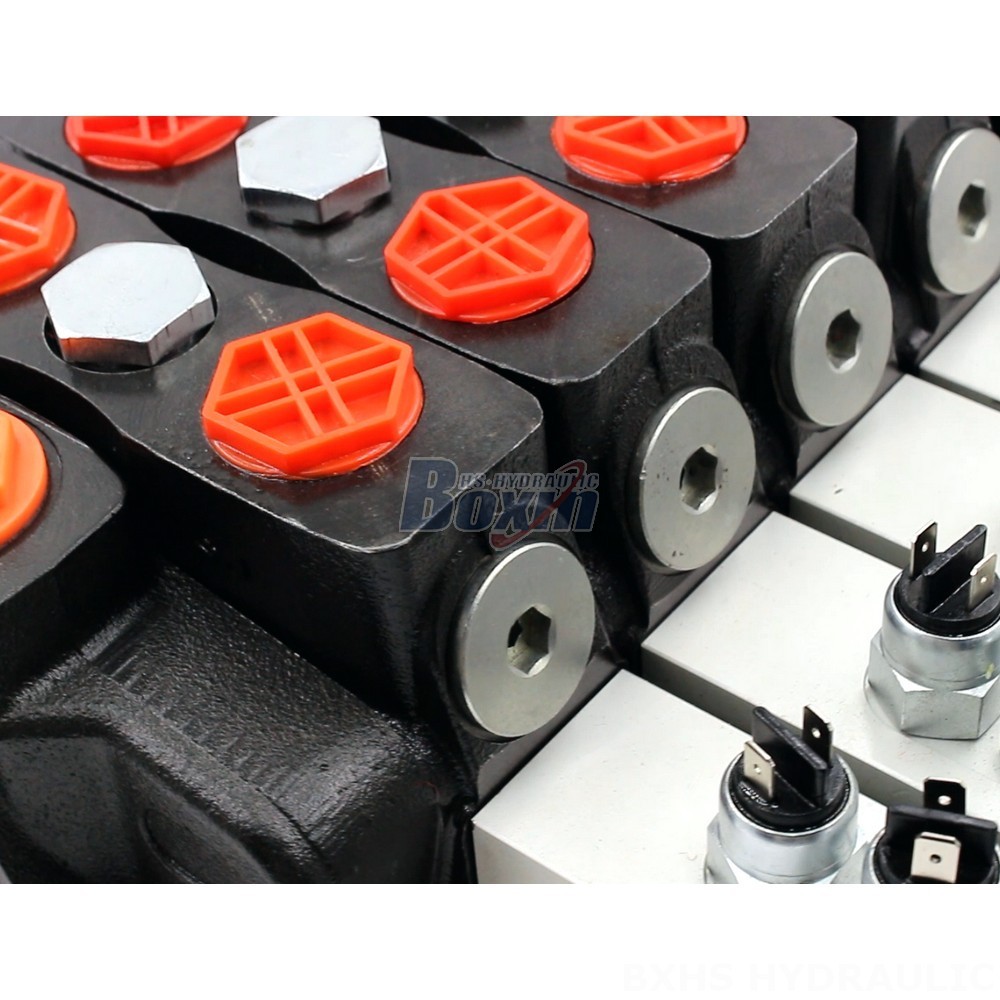

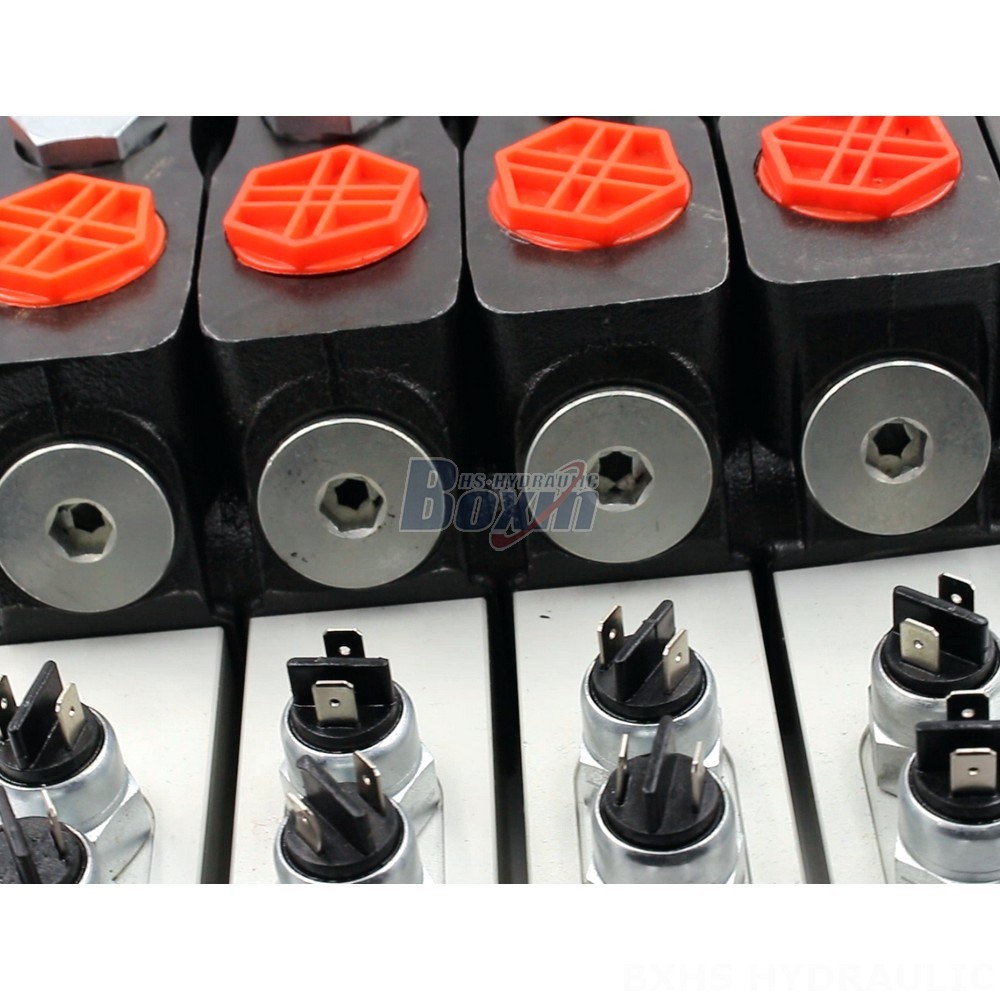

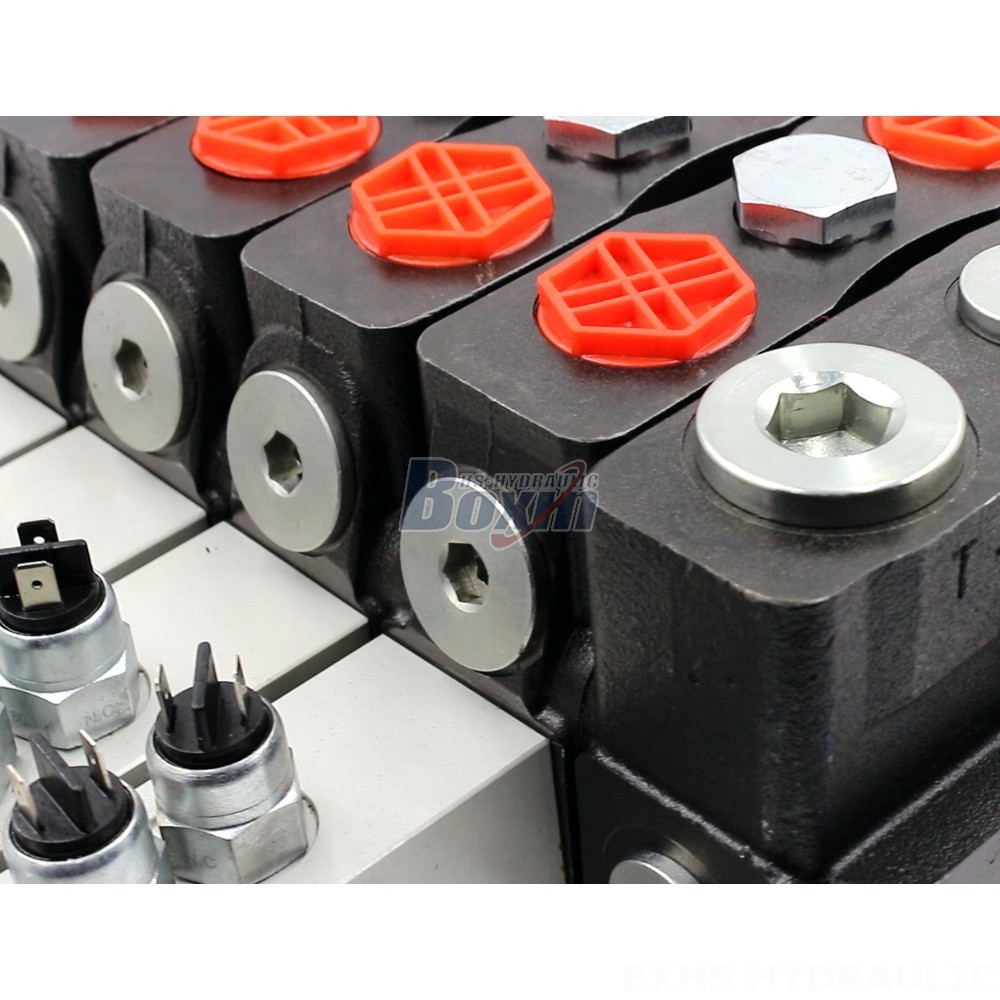

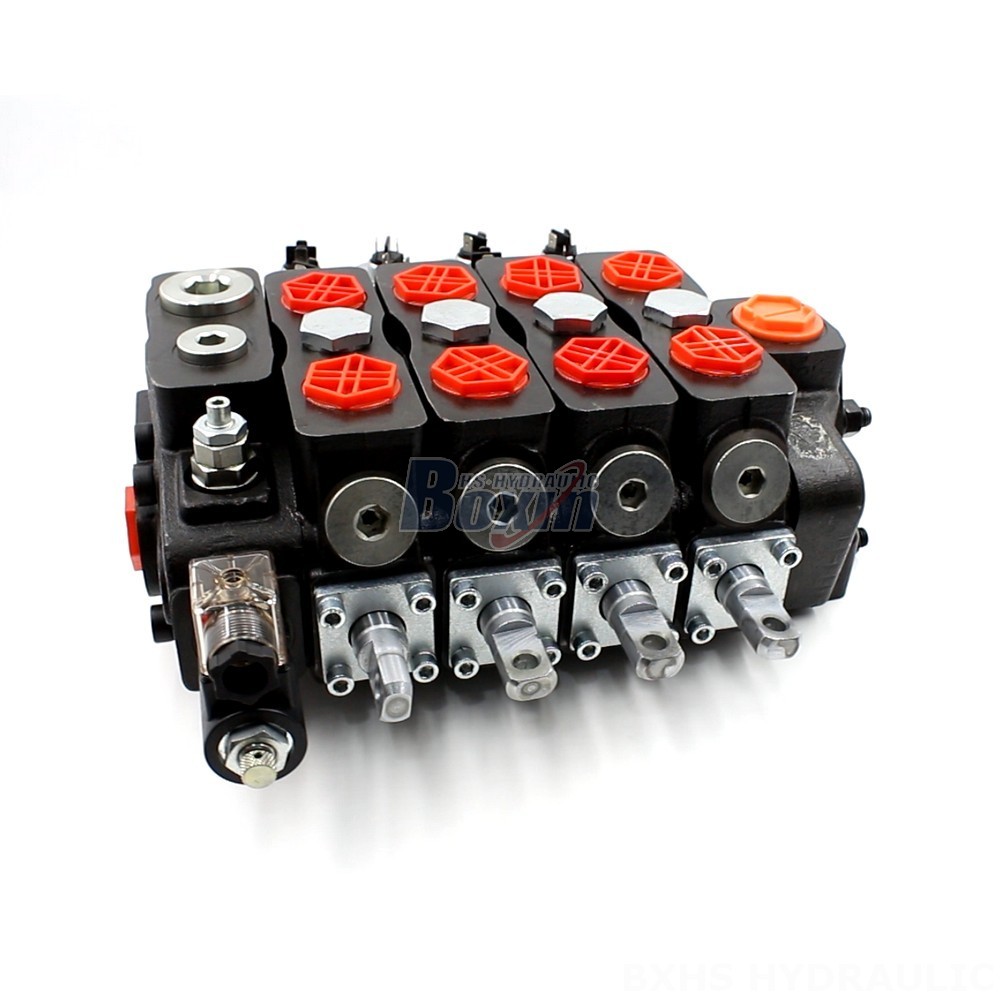

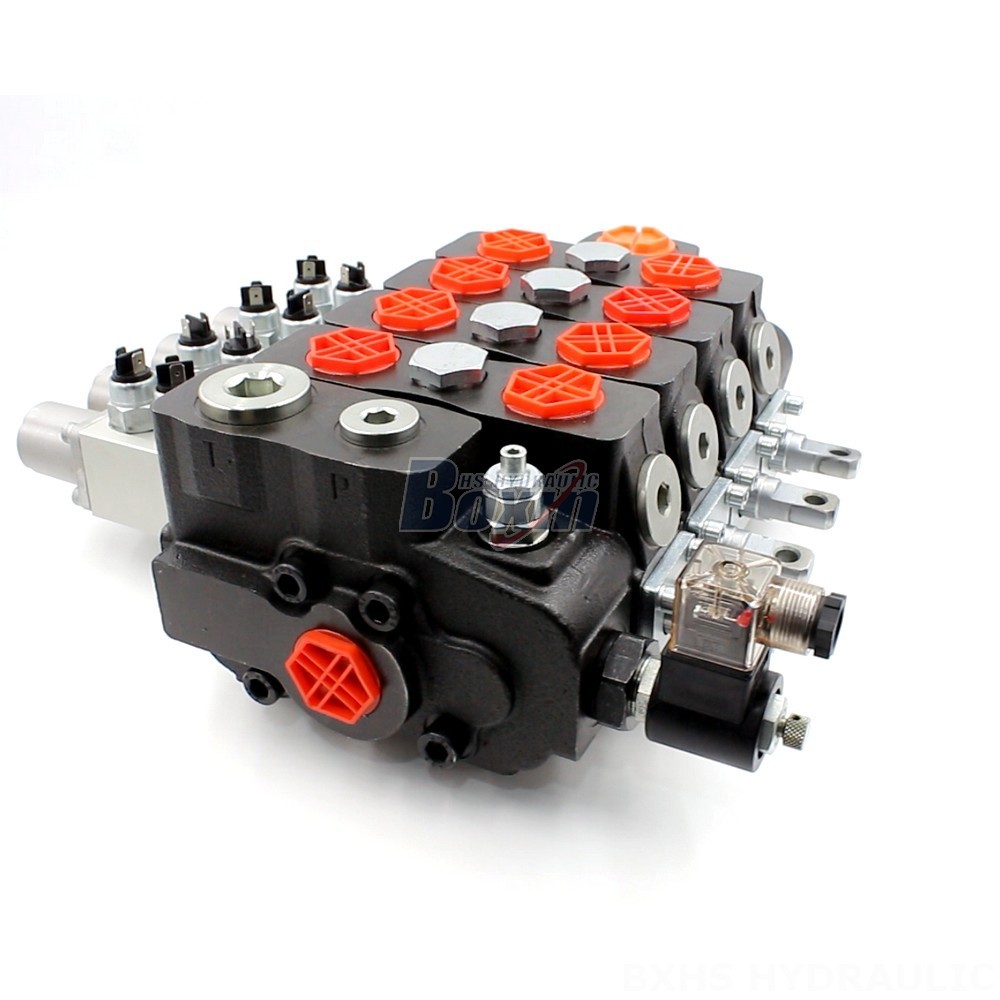

The DLS180 Micro Switch 4-Spool Hydraulic Valve is a sectional valve for manual control. It's rated for a flow of 160 L/min (42.2 US gpm) at a maximum pressure of 350 bar (5100 psi), with an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). This valve is specifically designed for log splitter applications, making it ideal for use in various heavy-duty equipment such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its 4-spool configuration offers versatile control capabilities, while the manual operation ensures ease of use and reliable performance.
