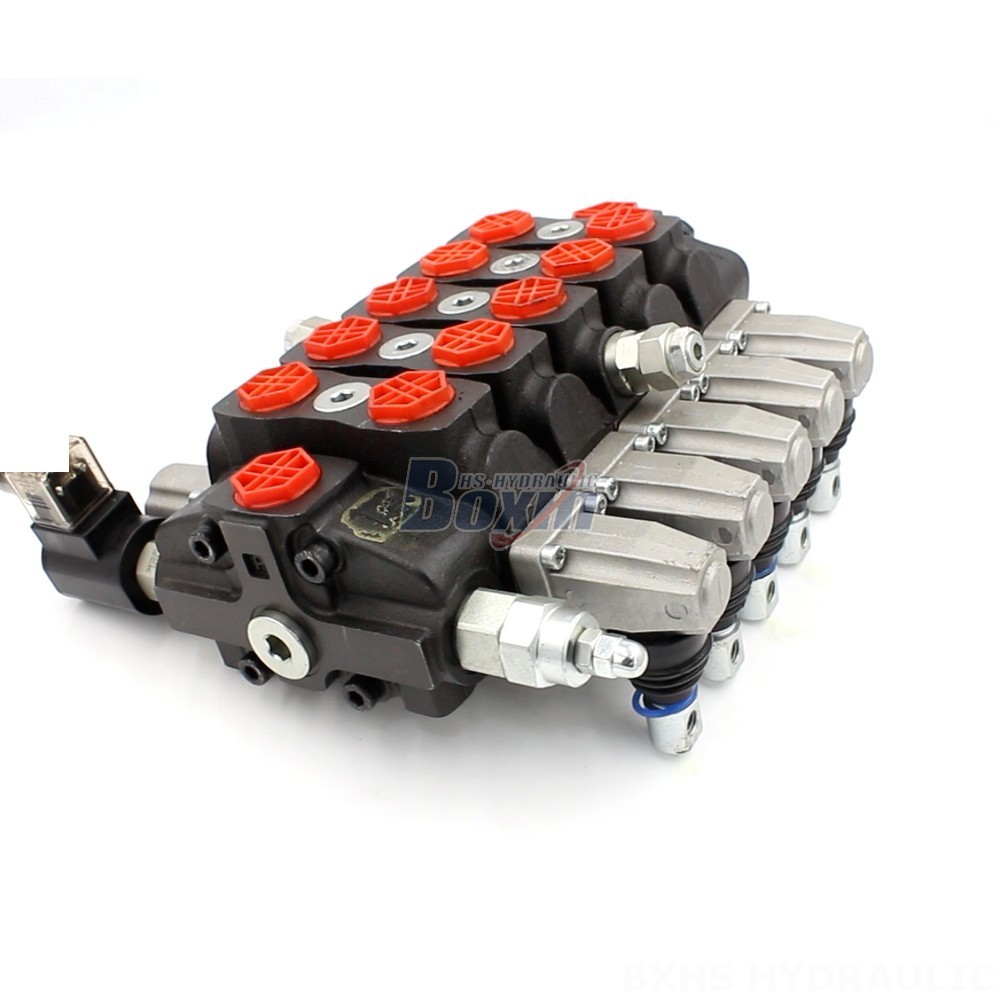

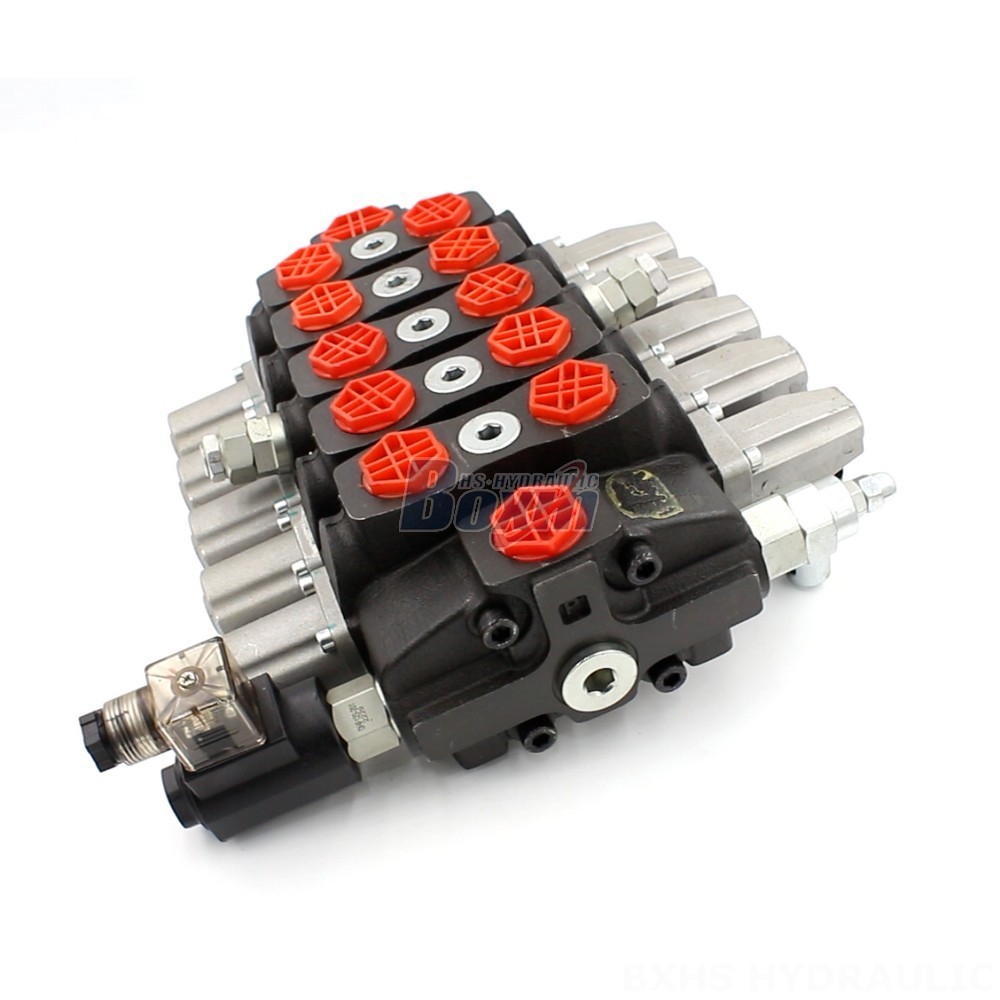

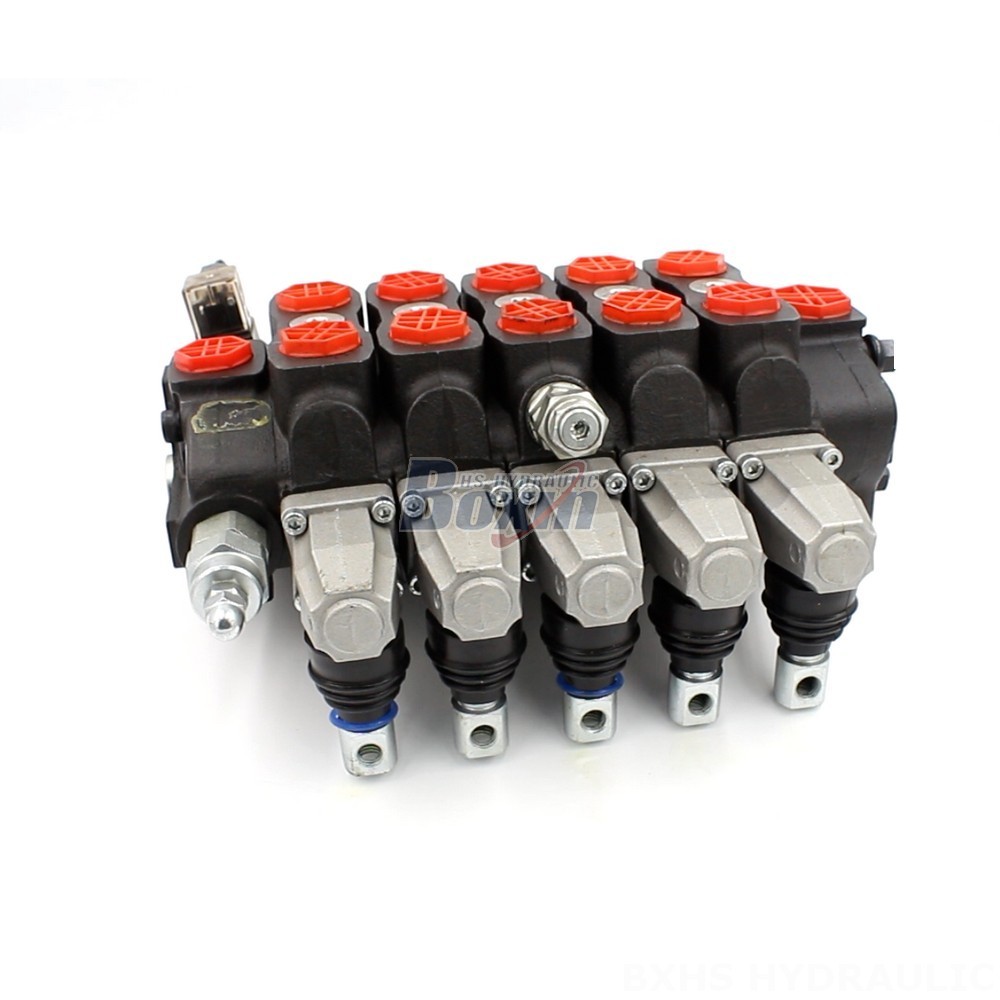

The SD8 Series Hydraulic Selector Valve is a manual, monoblock directional valve with 5 sections, offering a rated flow of 90 L/min and a maximum pressure of 350 bar. This versatile valve is ideal for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
The SD8 Series Hydraulic Selector Valve is a high-performance, manual control valve designed for a variety of applications. It features a 5-section, monoblock design with a rated flow of 90 L/min and a maximum pressure of 350 bar. The valve is constructed for durability and reliability, operating in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for applications requiring precise control of hydraulic systems, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve in both wholesale and OEM quantities, along with customization options to meet specific needs.
