The DCV58F Series Hydraulic Valve is available for OEM and ODM customization. It features a solenoid control, sectional valve structure, and a rated flow of 60 L/min (15.8 US gpm). With a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| DCV58F系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

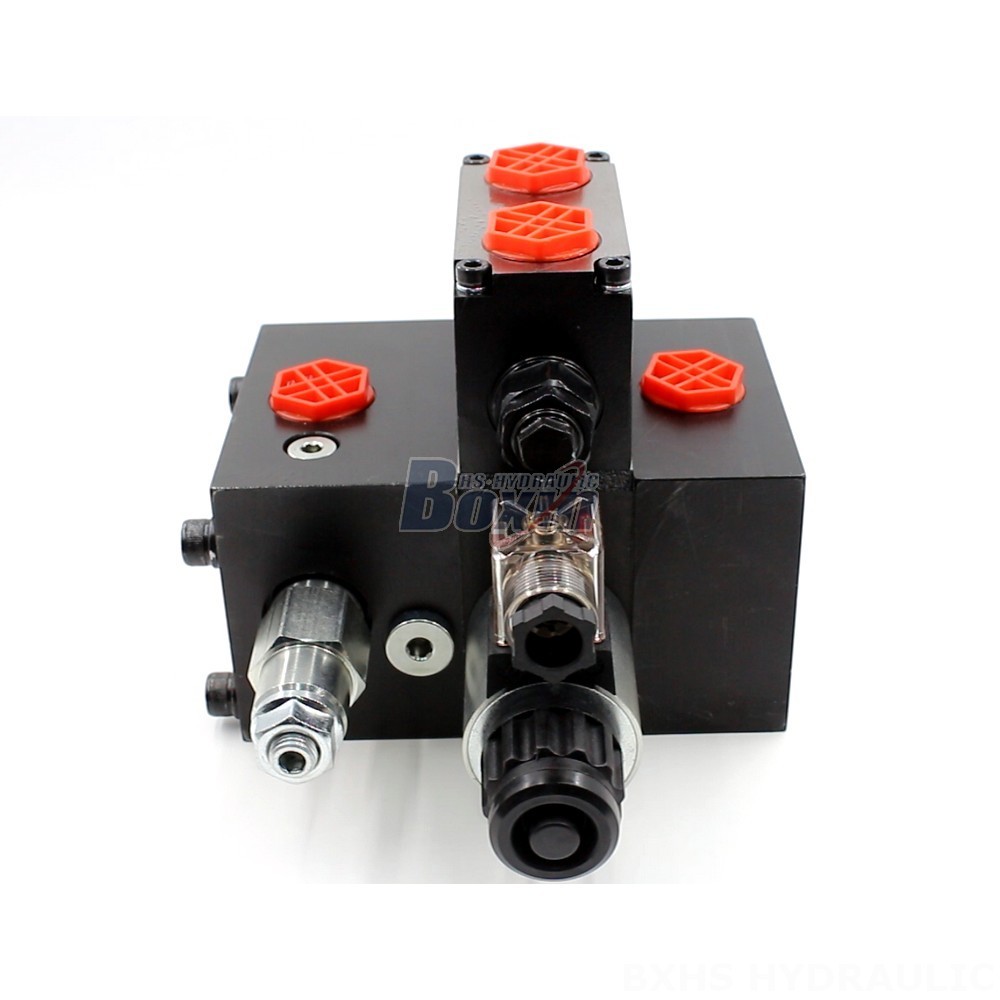

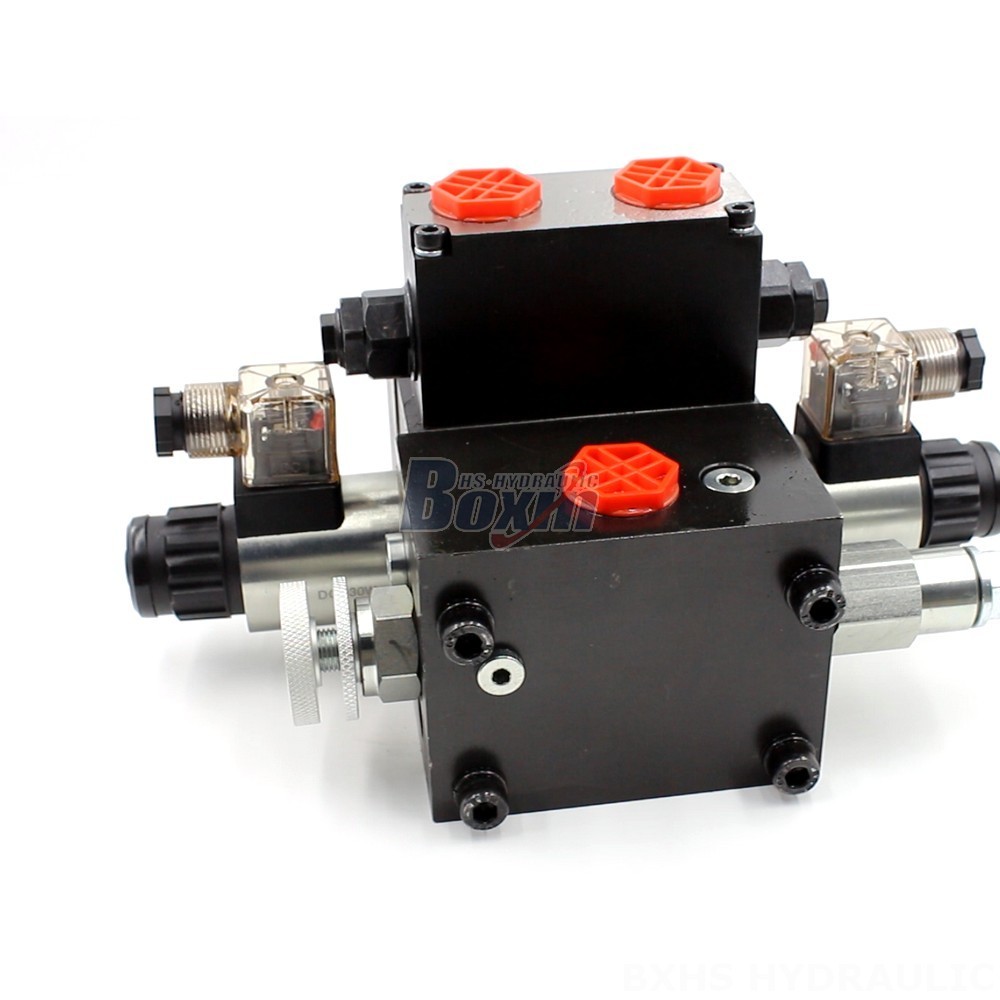

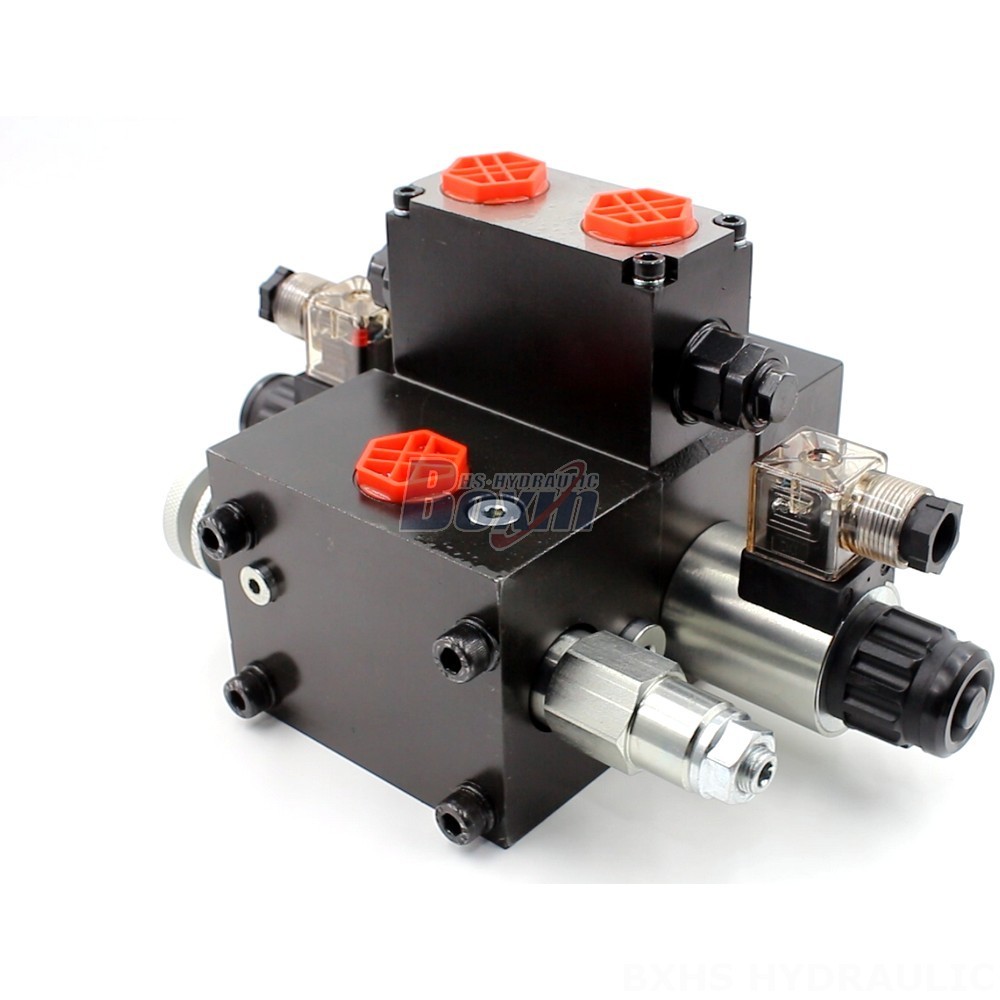

**DCV58F Series Hydraulic Valve**
**OEM and ODM Customization Available**
The DCV58F Series Hydraulic Valve is available for OEM and ODM customization. We can tailor the valve to meet your specific requirements, including flow rate, pressure, and porting configuration.

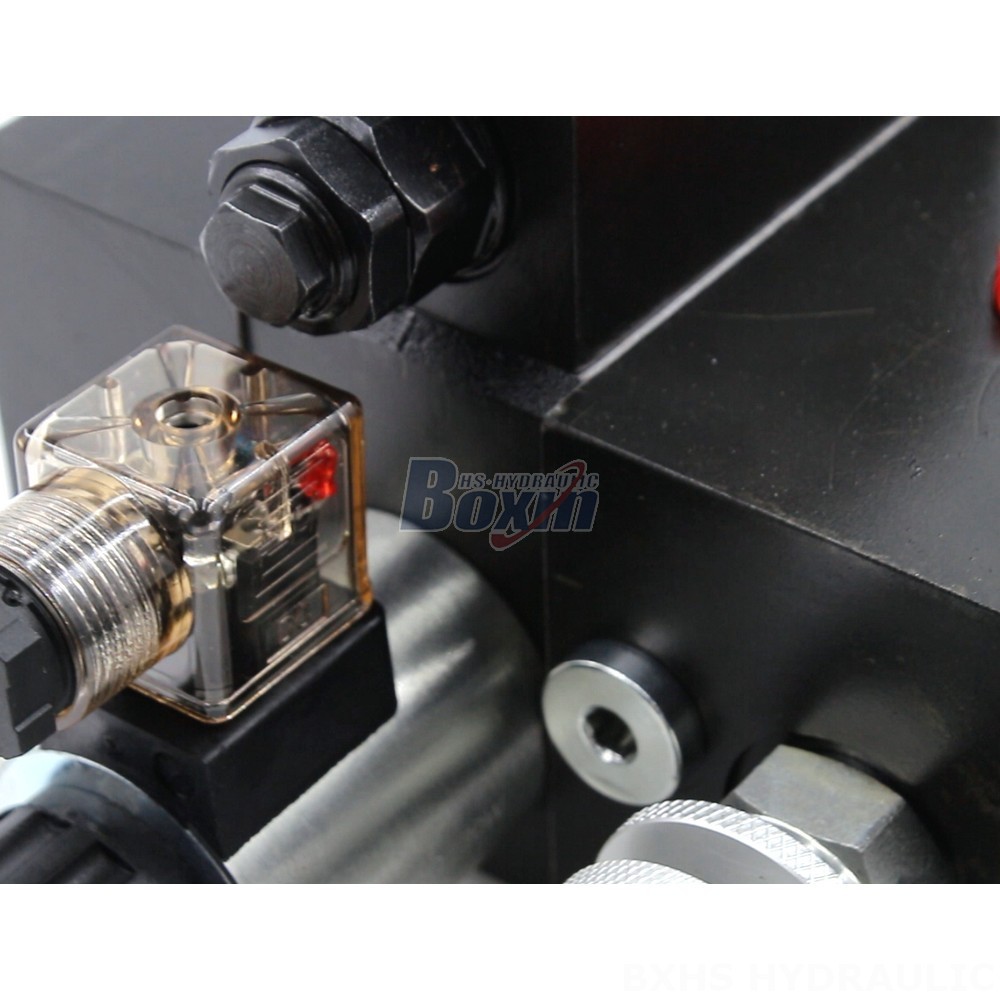

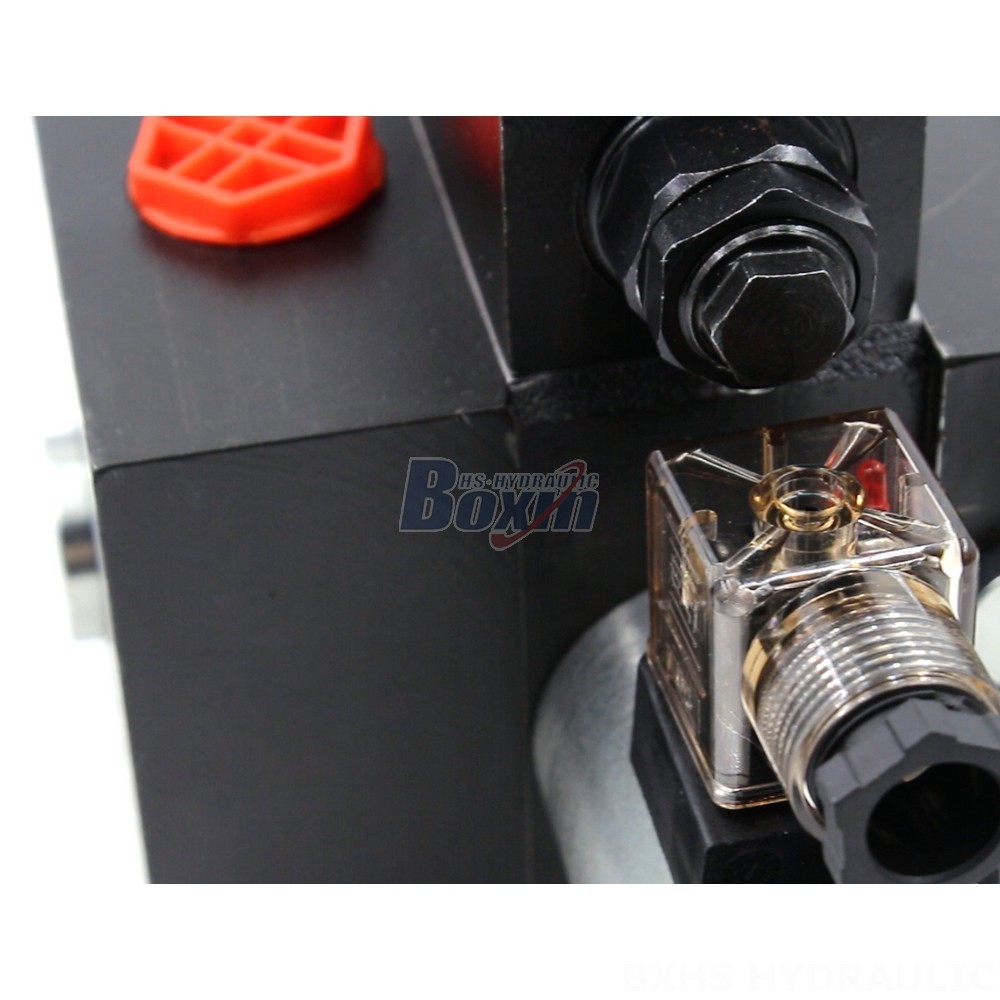

**Solenoid Control**
The valve is controlled by a solenoid, which provides precise and responsive control of the fluid flow.
**Sectional Valve Structure**
The sectional valve structure allows for easy maintenance and repair. The valve can be disassembled into individual sections, making it easier to replace worn or damaged components.
**Technical Specifications**
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV58F Series
**Applications**
The DCV58F Series Hydraulic Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models**
The valve is commonly used in the following models:
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
* Wheel Loader
* Backhoe Loader
* Dumper
