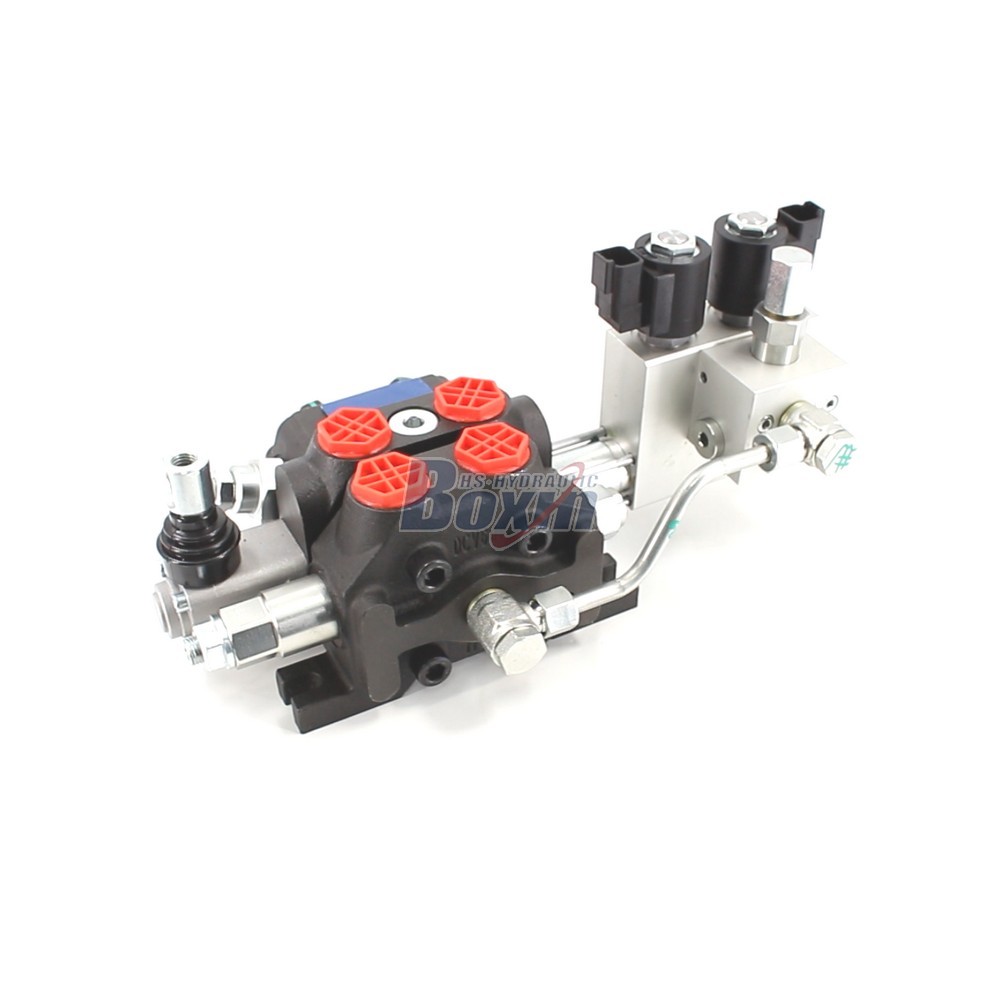

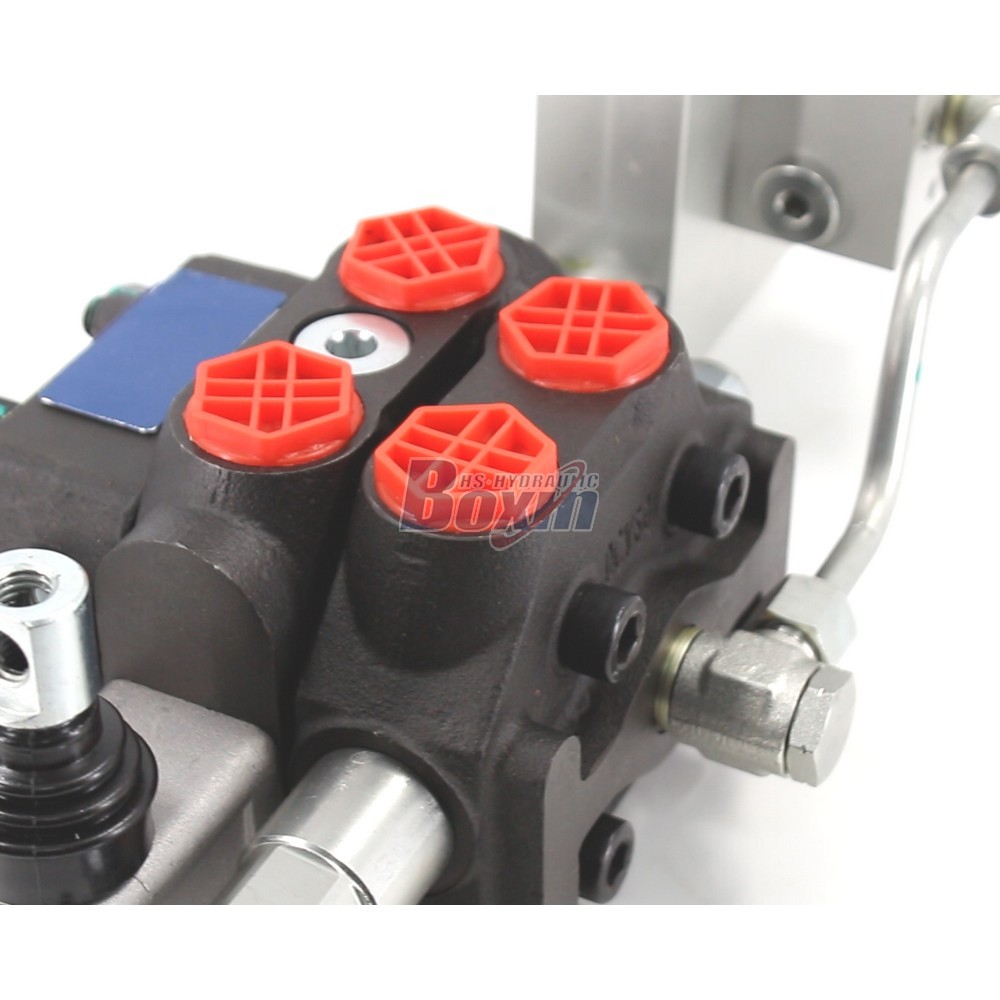

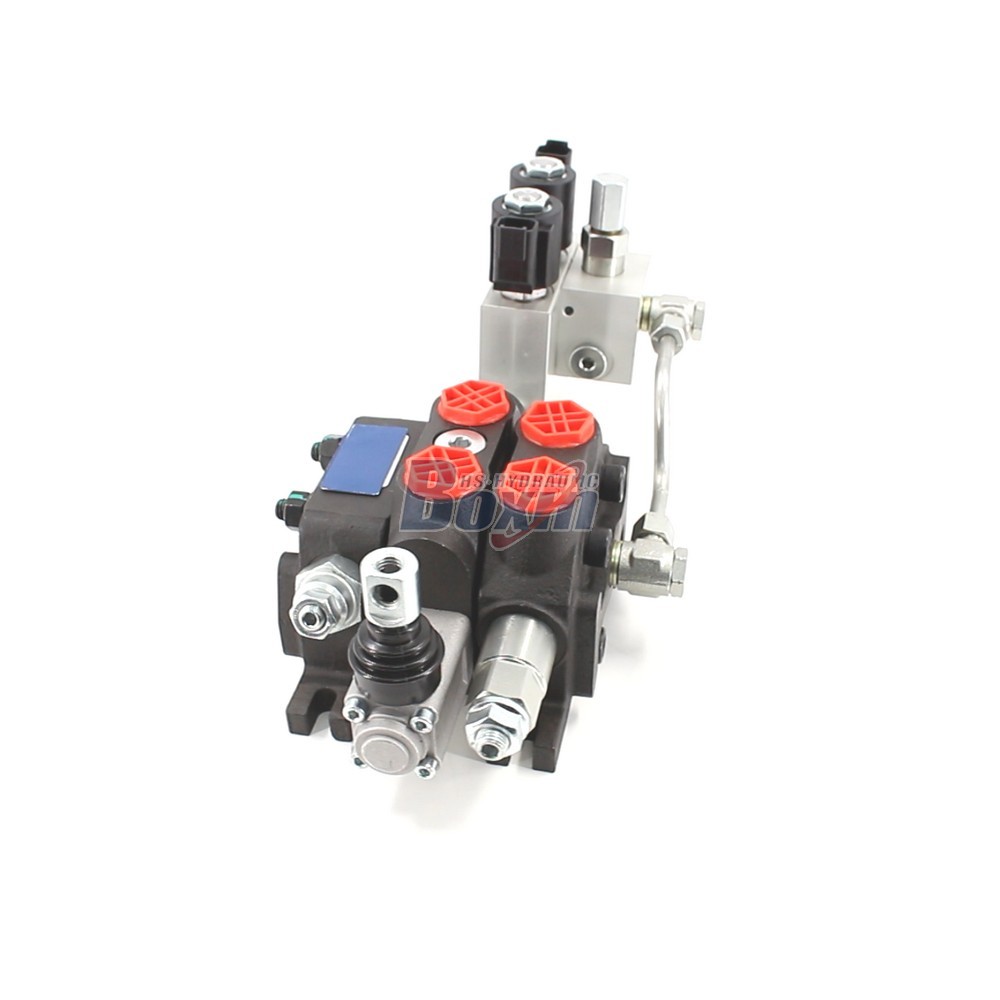

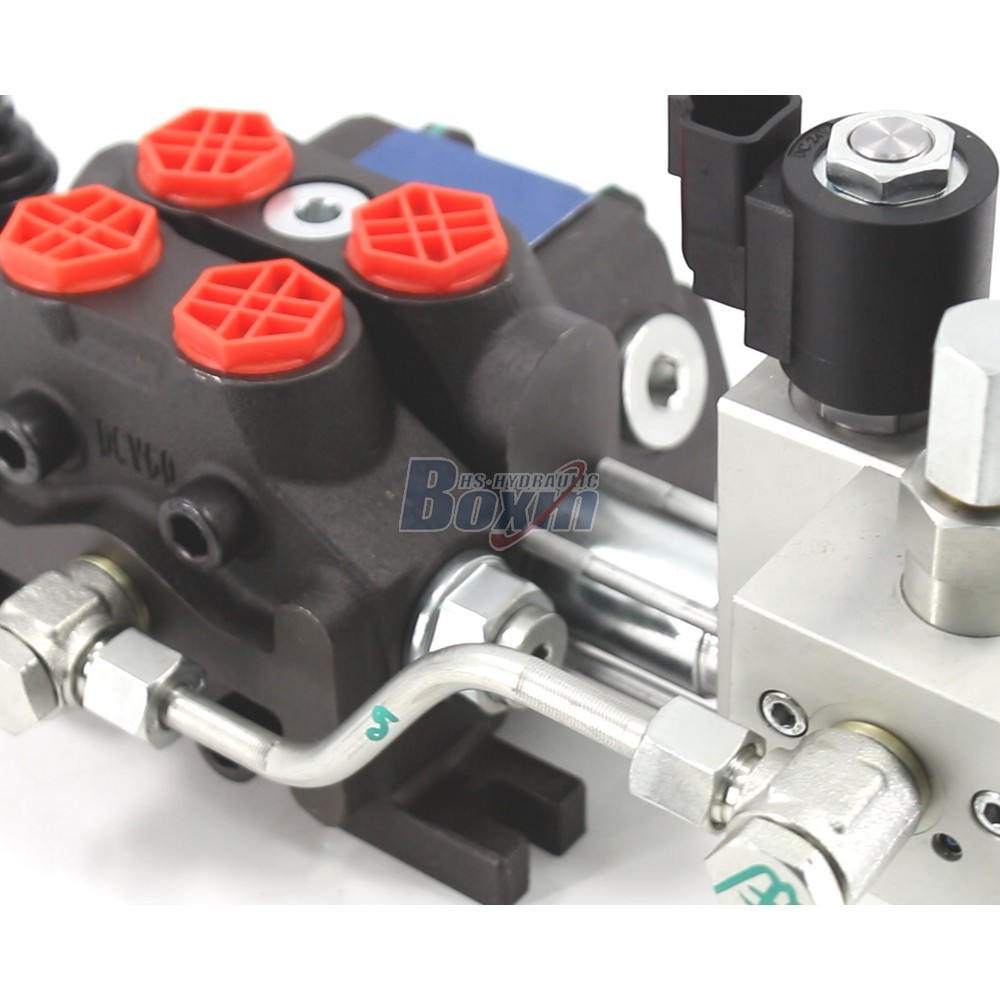

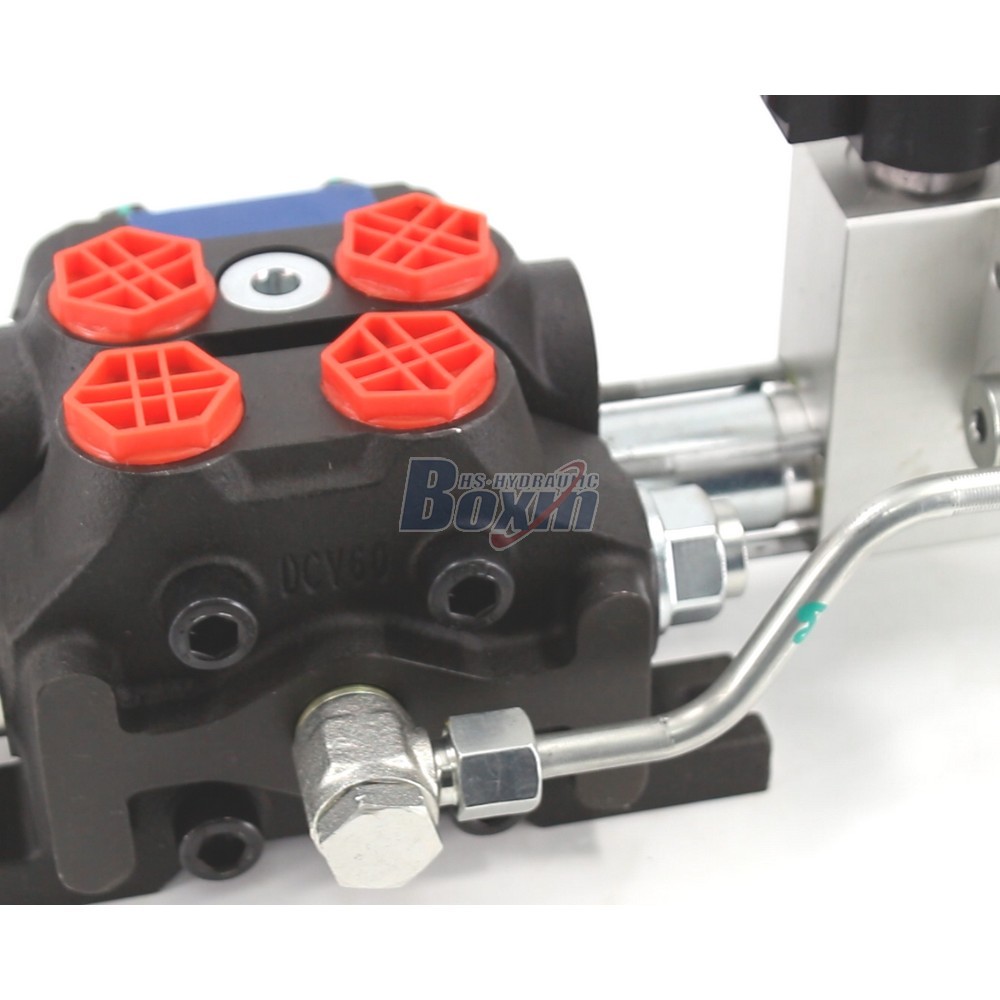

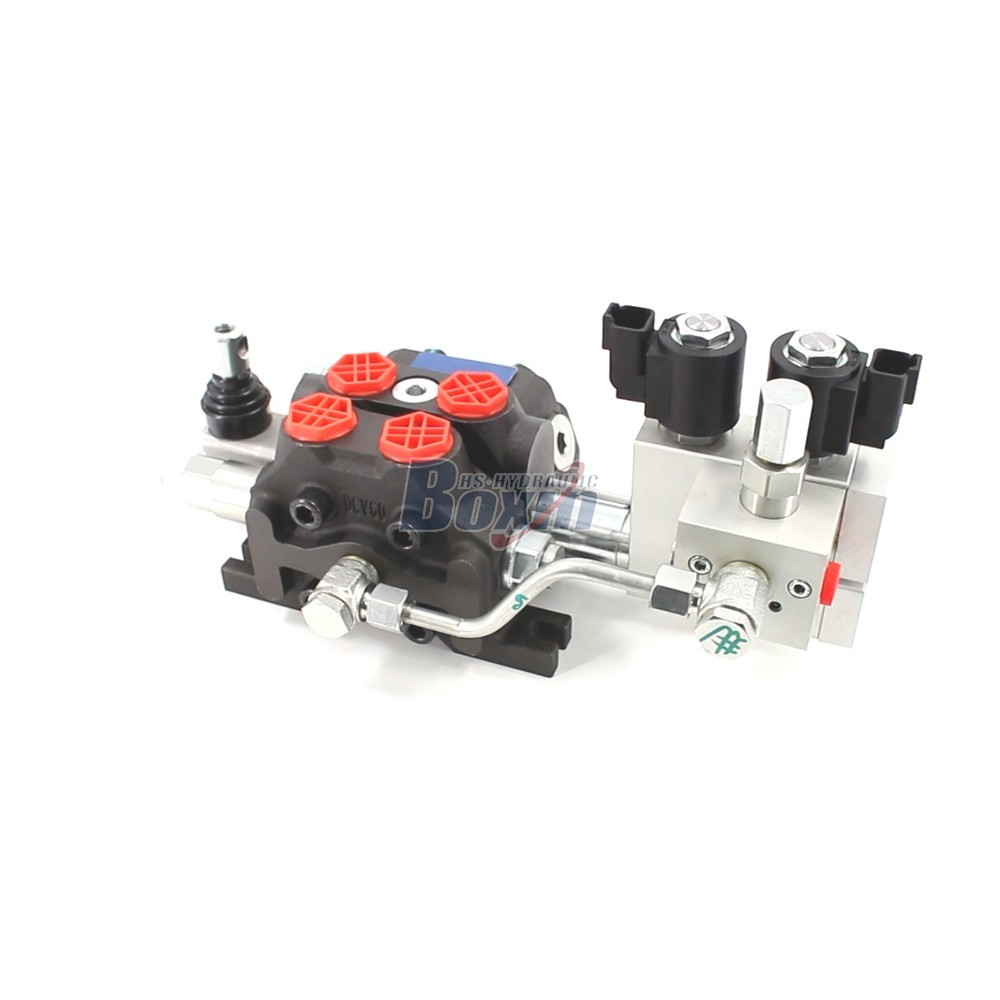

The DCV60 series is a reliable 1-spool electro-hydraulic directional control valve engineered for high-performance fluid power systems, featuring a 60 L/min flow rate and 350 bar pressure capacity for diverse mobile and industrial applications.
| DCV60系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
As a large-scale manufacturer of hydraulic components, we specialize in the production of high-quality DCV60 electro-hydraulic directional valves. Designed for construction, agricultural, and industrial machinery—including forklifts, tractors, and excavators—our valves offer precise flow management and durability. We provide comprehensive solutions including OEM/ODM services, private labeling, and custom engineering to meet specific technical requirements. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders globally. Benefit from our direct factory pricing, consistent bulk supply capacity, and professional manufacturing standards. Whether you require standard wholesale stock or tailored hydraulic solutions, our factory is equipped to support your supply chain needs with technical expertise and efficient production logistics.
