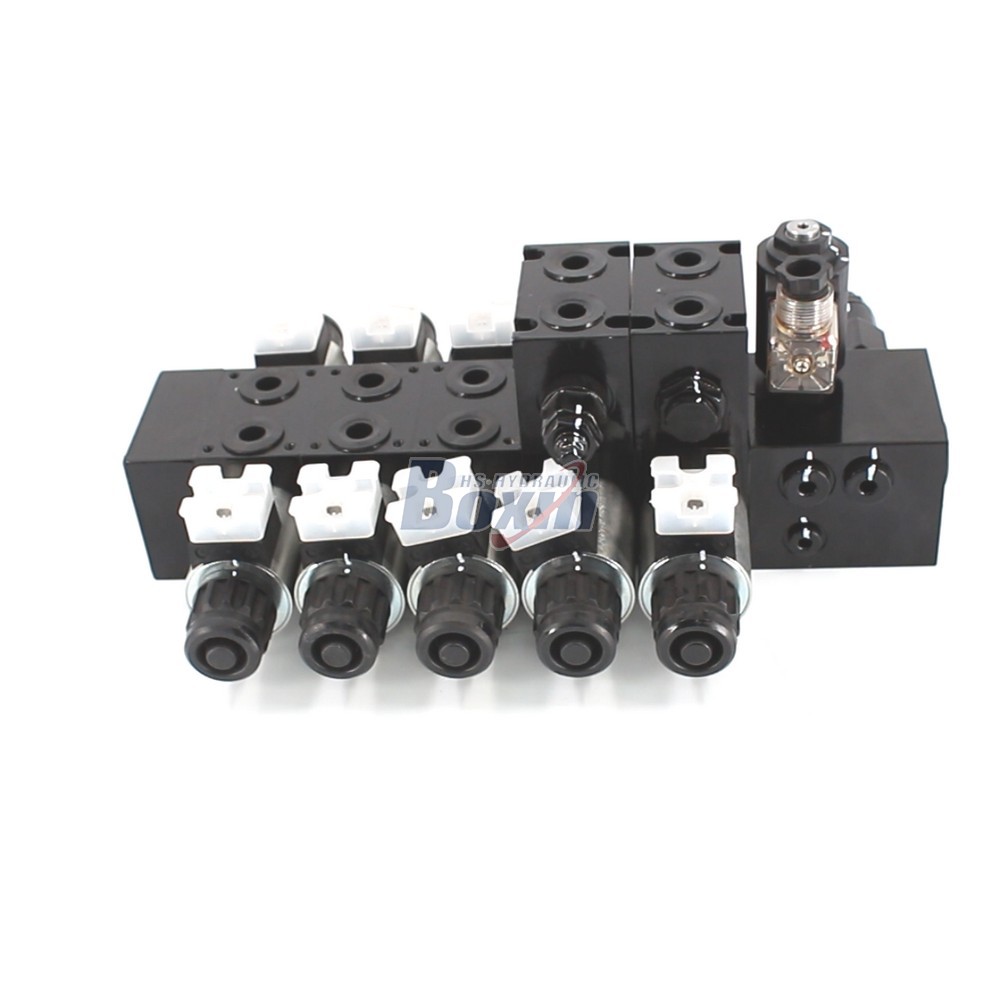

The DCV56-H is a high-performance 5-spool sectional control valve with solenoid operation, designed for a rated flow of 50 L/min and pressures up to 250 bar. Engineering for versatility, it is suitable for various mobile applications including agricultural machinery, construction equipment, and material handling vehicles.
| DCV56系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 电磁, 液控, 液控和手控, 一控二手柄控制, 电比例, 电磁和手动, 电比例+手控, 电磁+一控二, 手控+一控二, 手动和电液控制, 电动马达, 负载敏感比例, 气动和手动, 电液比例与电磁控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口 |
| 出油口 | G3/8接口, G1/2接口 |
| 接口尺寸 | G3/8接口, G1/2接口 |
As a leading manufacturer of hydraulic components, we offer the DCV56-H Solenoid 5 Spool Sectional Control Valve for global distribution. This industrial-grade valve supports a flow rate of 13.2 US gpm and is built to handle intensive tasks in forklifts, tractors, and mini-excavators. We provide comprehensive OEM and ODM services, allowing for customized specifications and private labeling to meet specific brand requirements. Our factory provides stable wholesale supply and large-scale production capabilities to ensure consistent quality and competitive pricing. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and trading companies. Whether you need reliable factory-direct supply for industrial vehicles or customized solutions for specialized machinery like log splitters and sweepers, our DCV56 series offers robust performance and flexible integration.
