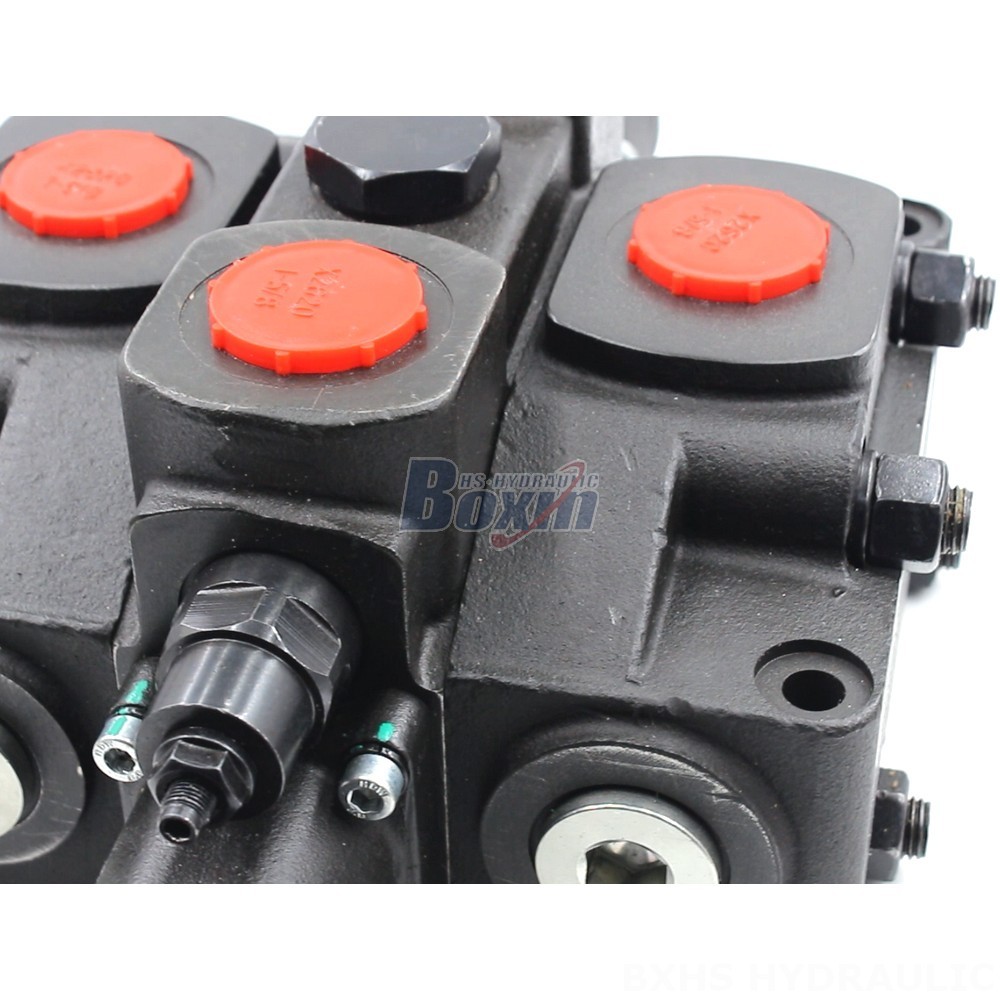

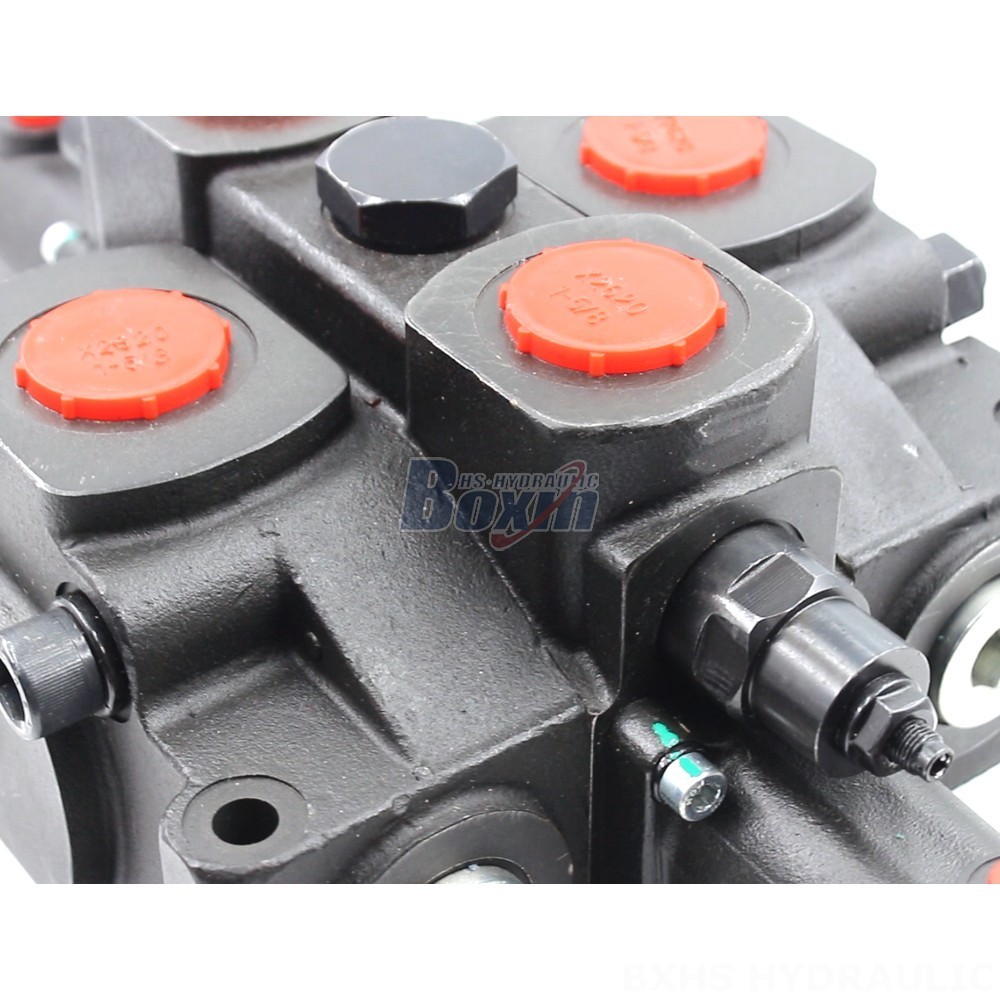

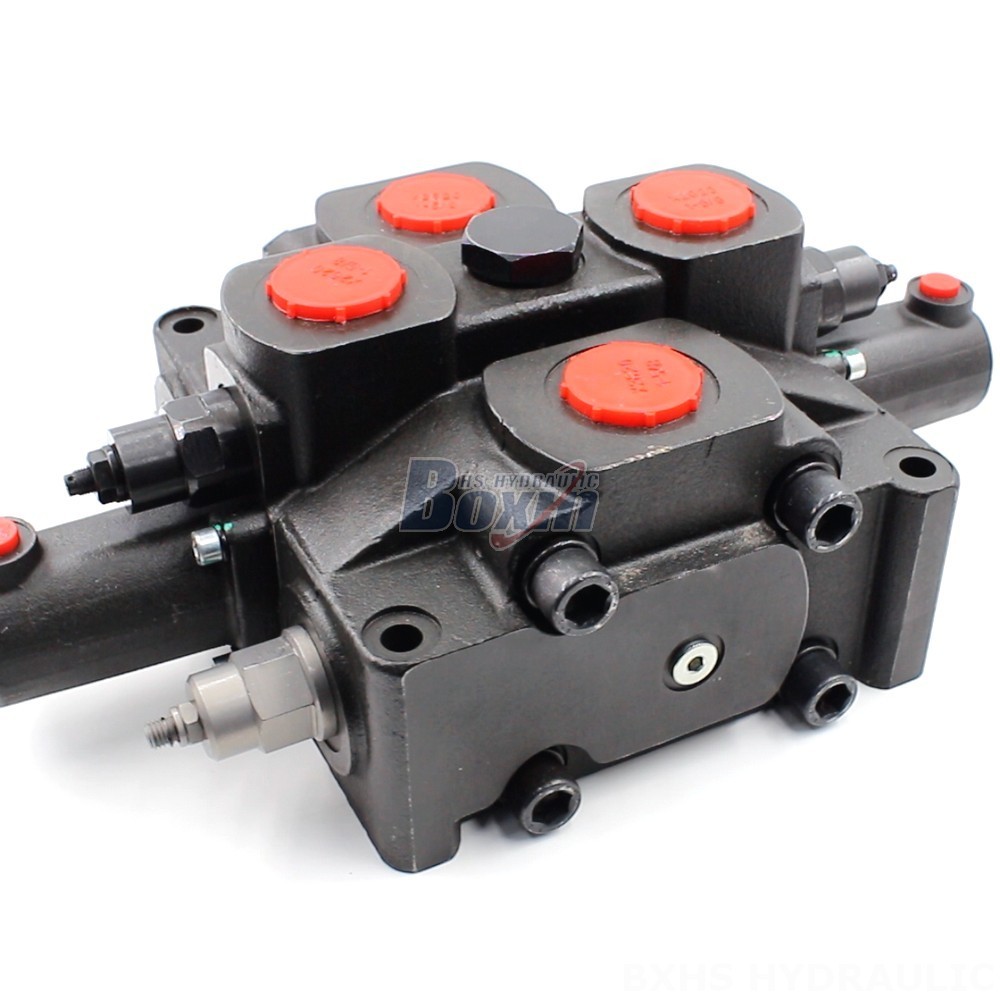

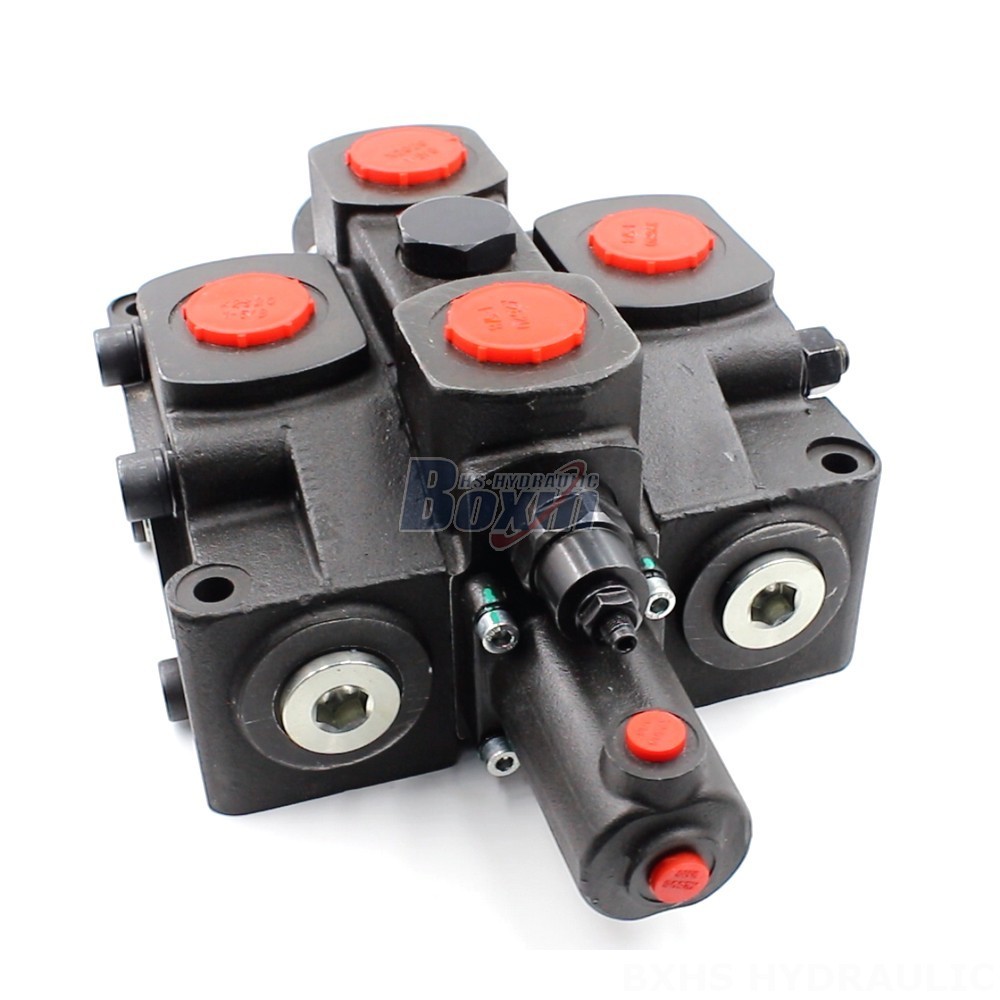

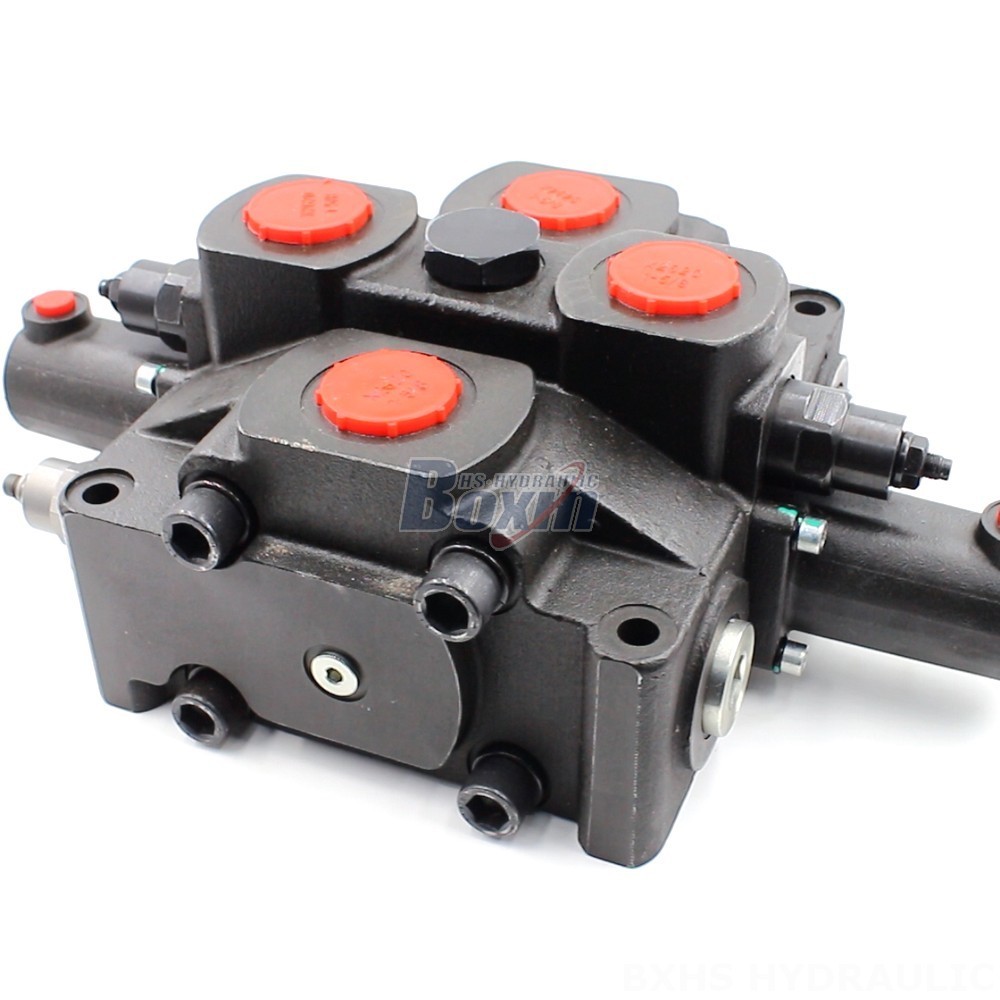

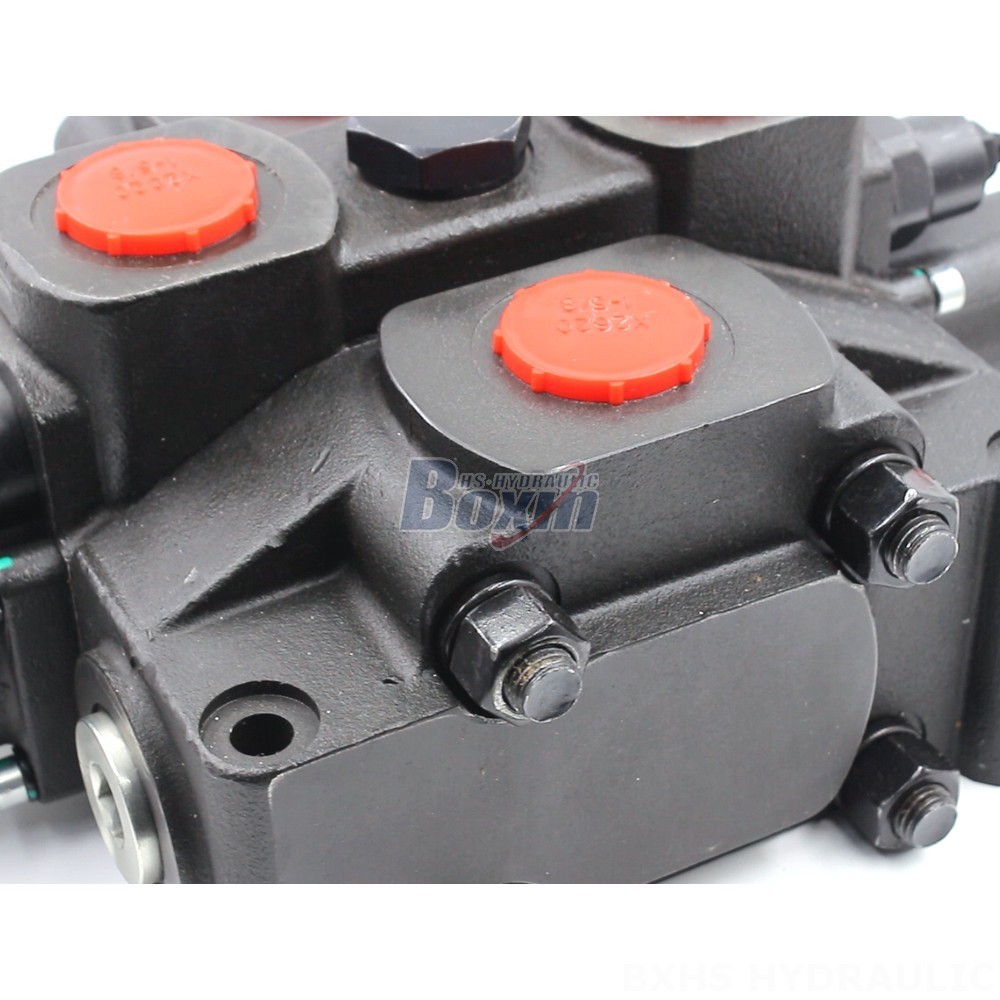

Introducing the SDS380 Directional Valve, an innovative hydraulic solution designed for advanced applications. With a rated flow of 380 L/min (100.4 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve offers exceptional performance and reliability.
| SDS380系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 软轴 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 380 L/min (100.4 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1-1/2接口, SAE 20接头 |
| 出油口 | G1-1/2接口 |
| 接口尺寸 | G1-1/2接口 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The SDS380 Directional Valve is a sectional valve with a 1-section structure, providing versatility for various applications. It is widely used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, tractors, front-end loaders, and harvesters. Its robust construction and advanced design ensure durability and precision even under demanding operating conditions.
