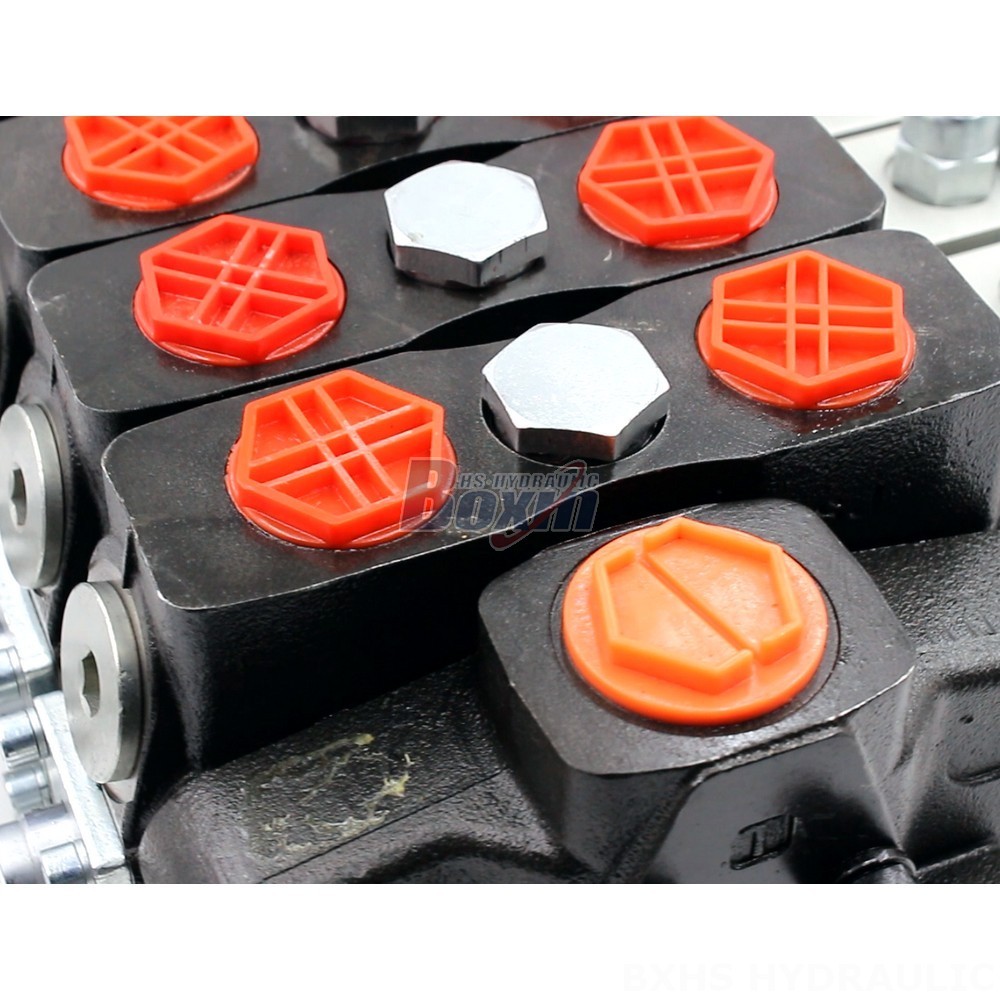

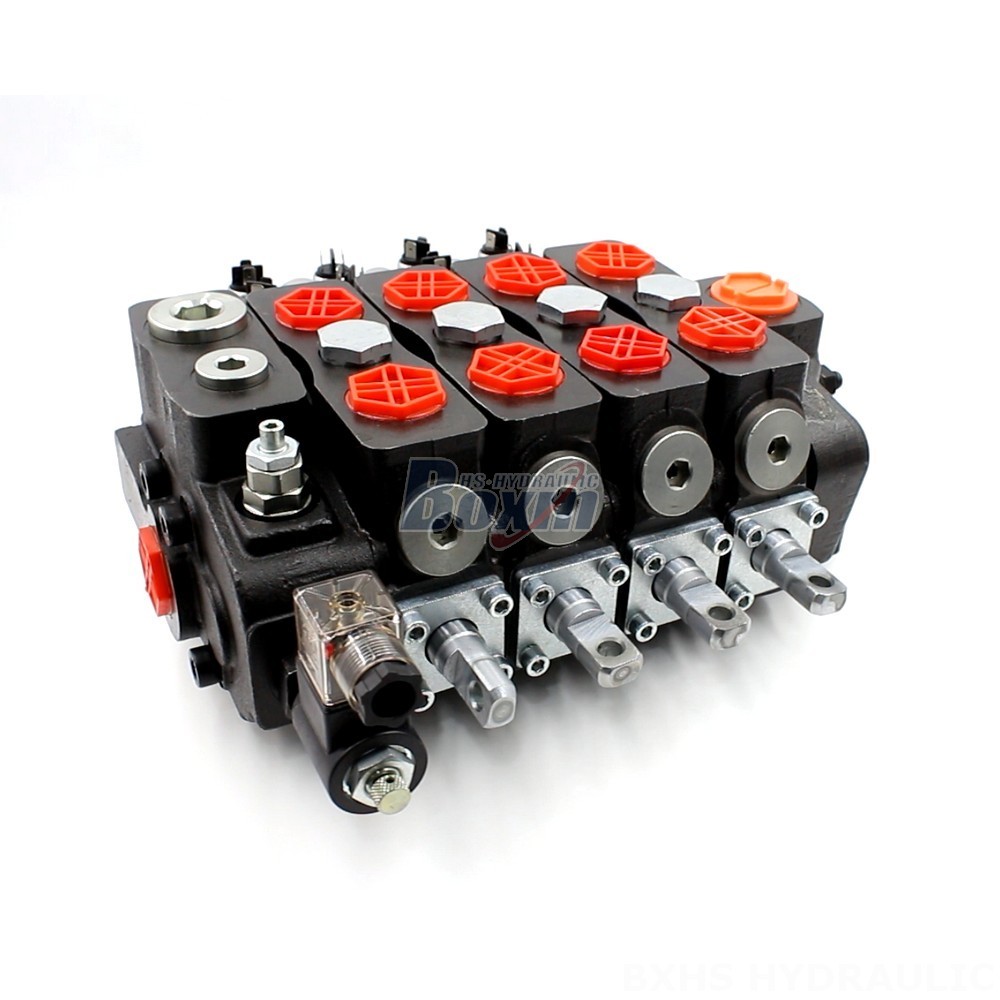

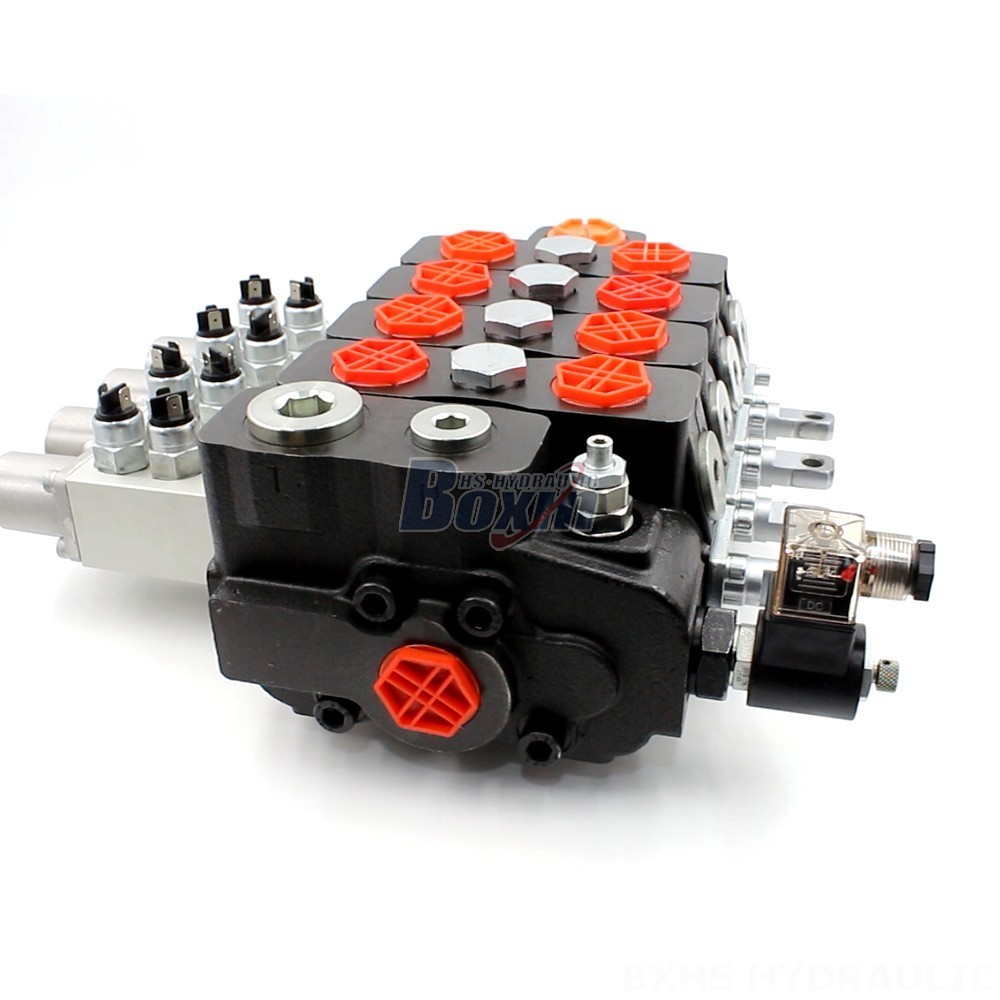

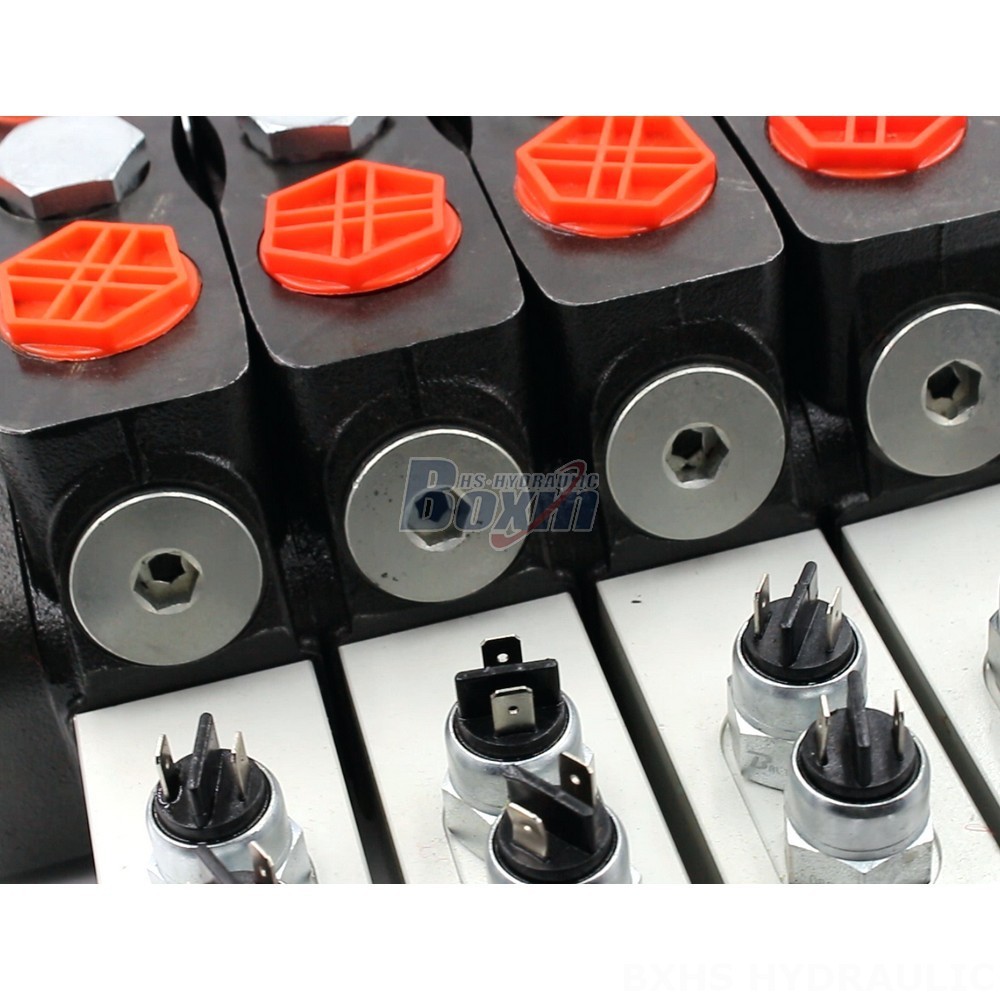

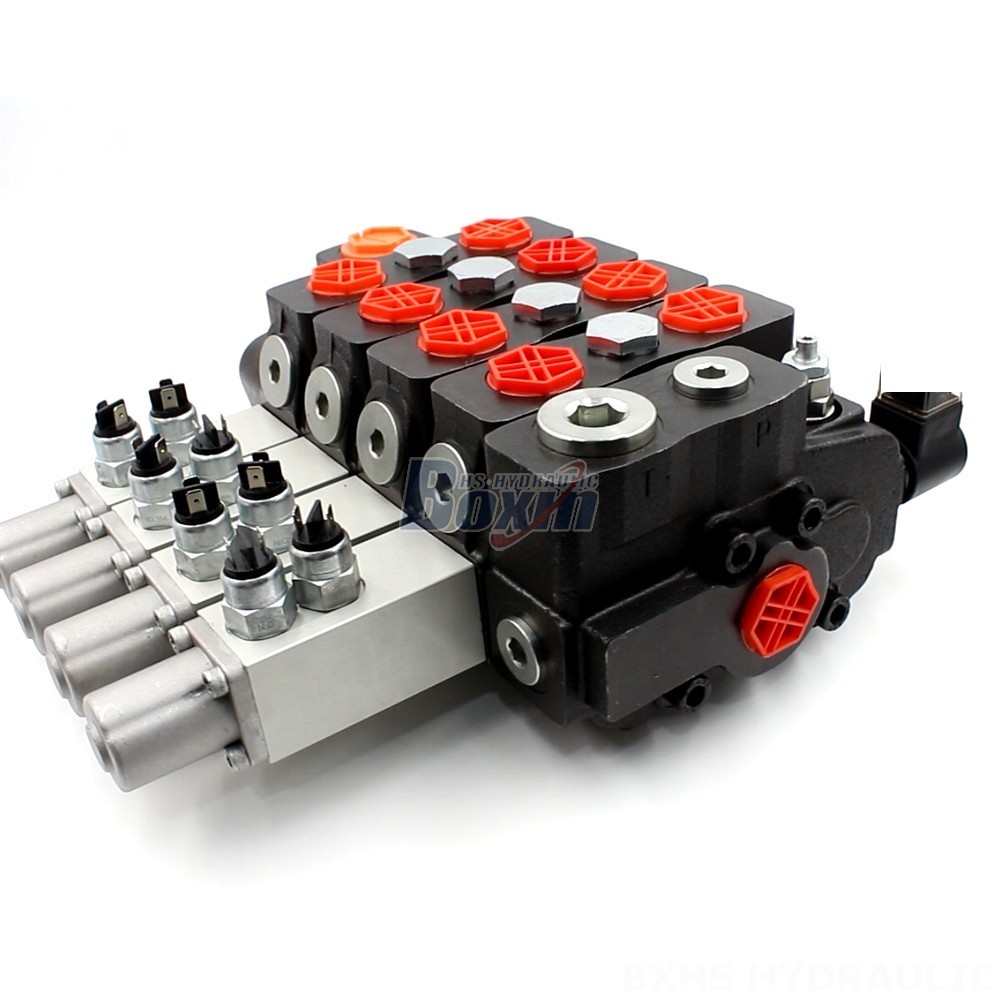

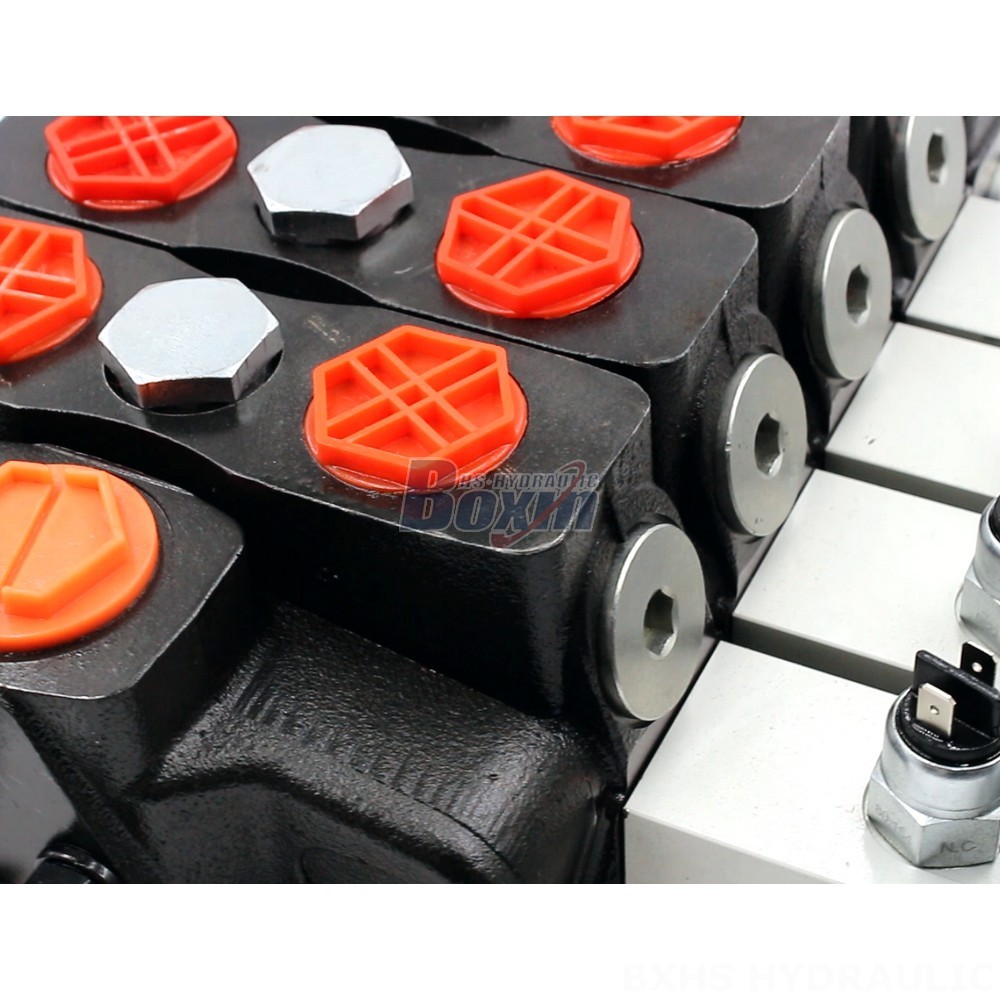

The DLS180 Micro Switch Manual 4 Spool Hydraulic Directional Valve is a high-performance, heavy-duty hydraulic valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. With a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve provides reliable and efficient hydraulic control.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |
This SDS180 Series 4-spool hydraulic directional valve features manual control with a micro switch for precise operation. It is suitable for various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The valve is designed for demanding environments, with a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi). It features a sectional valve structure and operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). Choose this durable and reliable hydraulic directional valve for optimal performance in your heavy-duty equipment.
