液压驱动世界 华盛智造未来
854 次查看了此产品

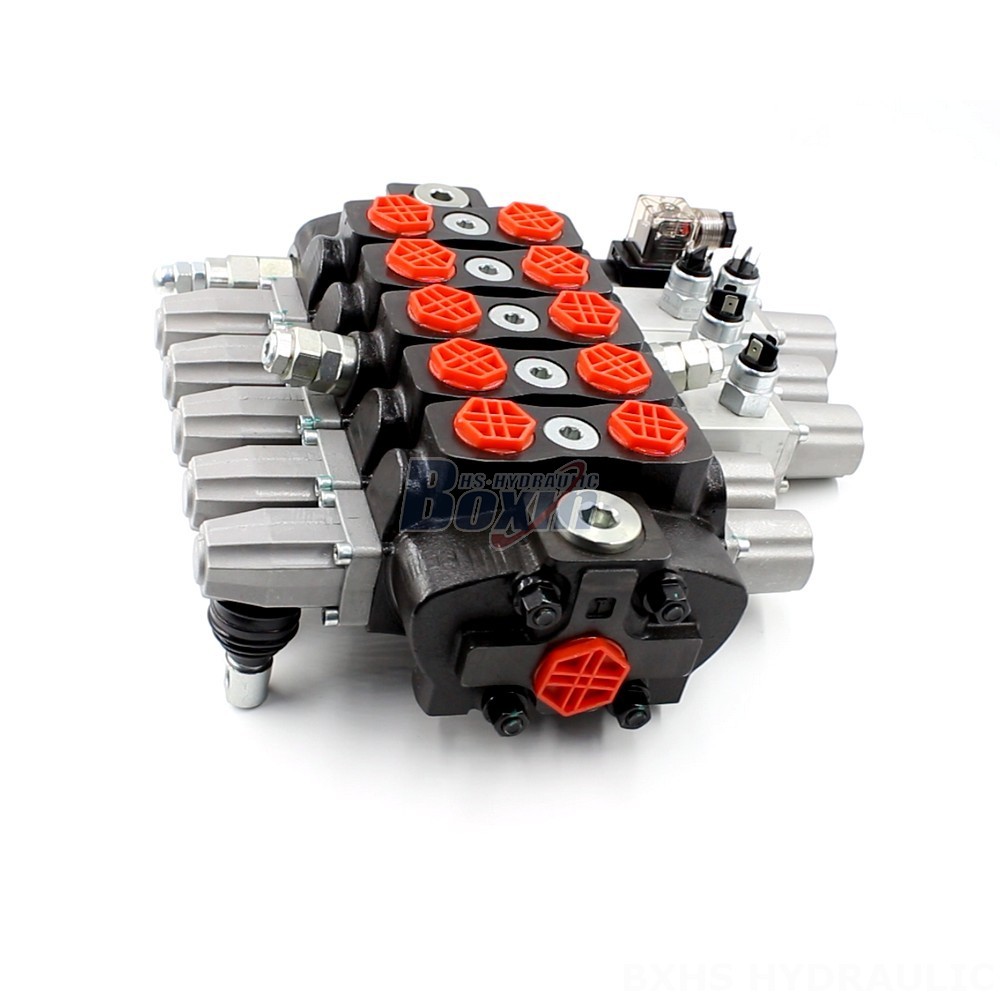

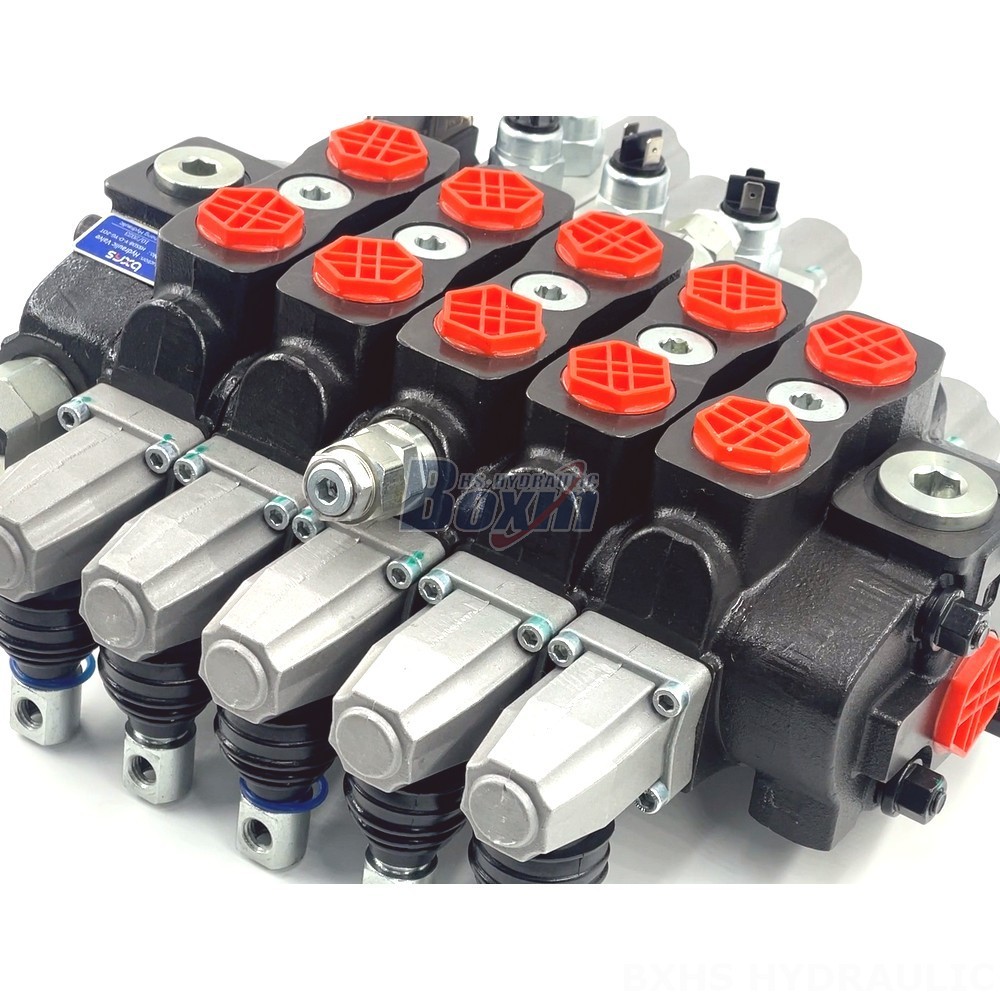

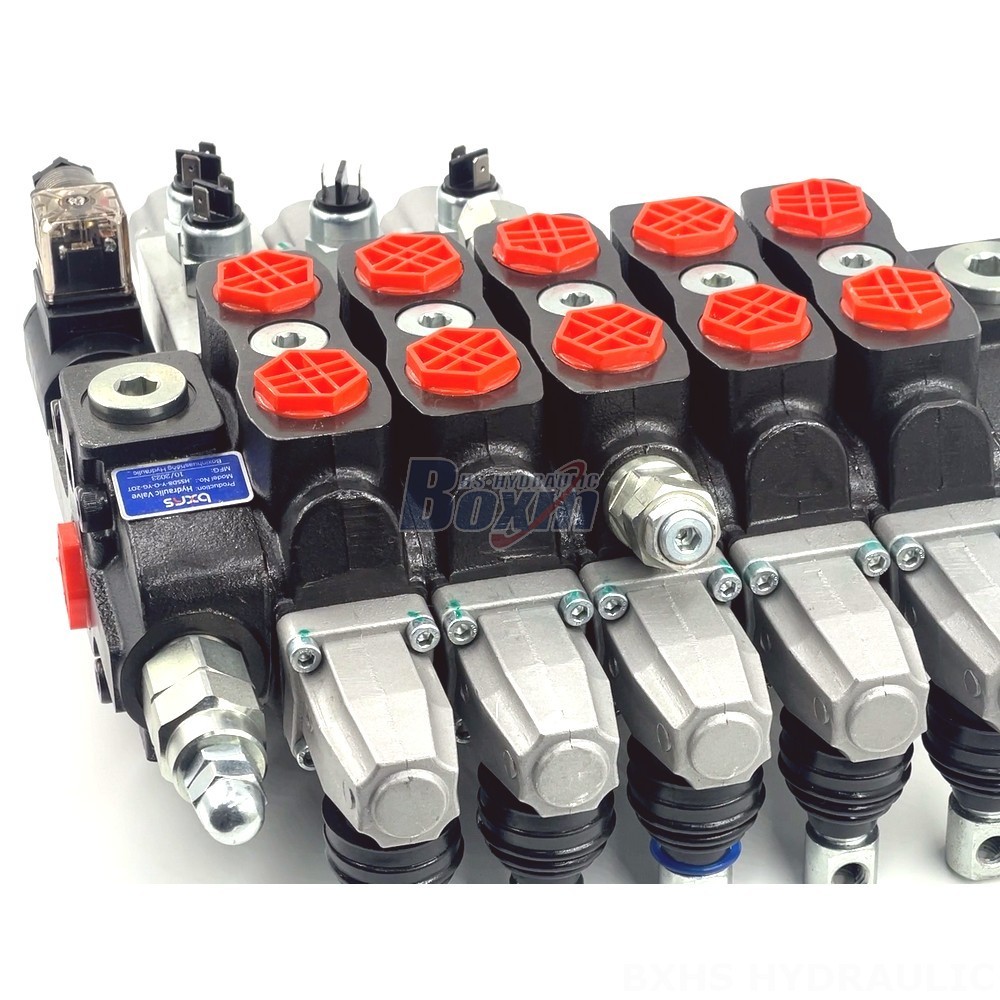

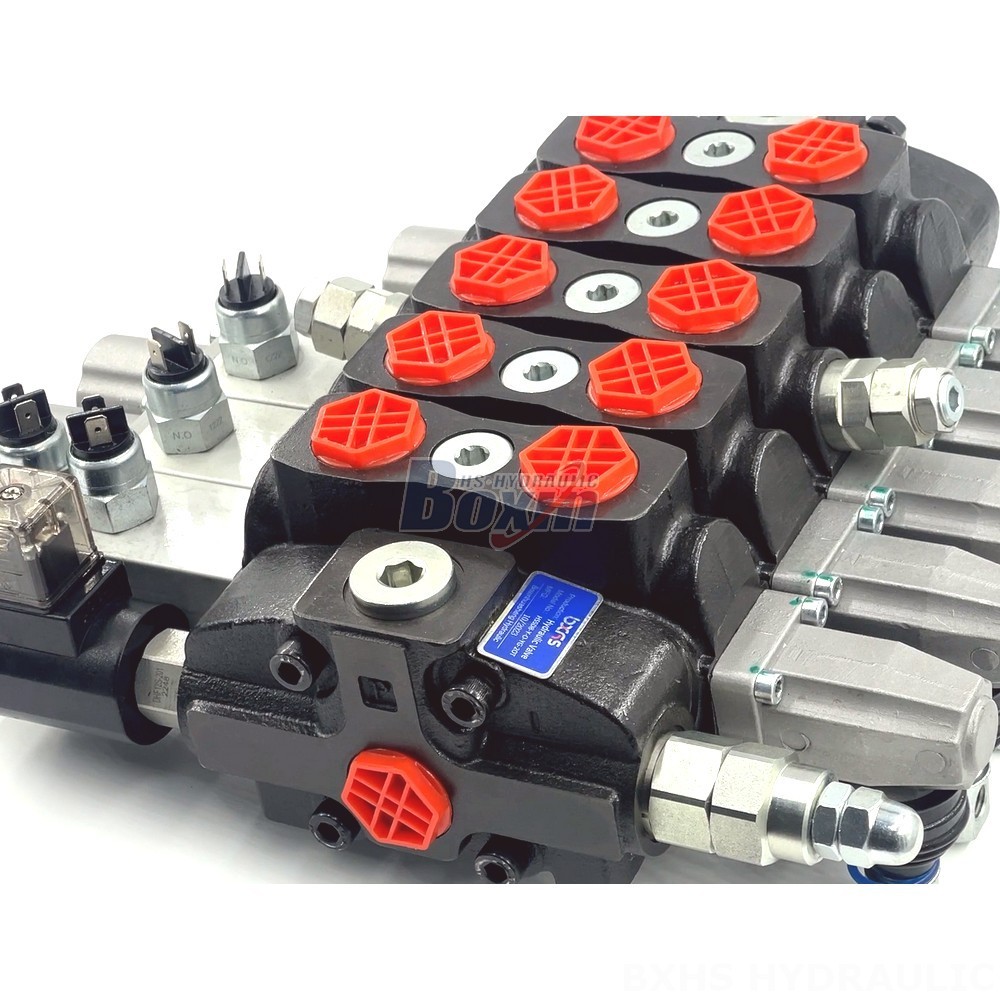

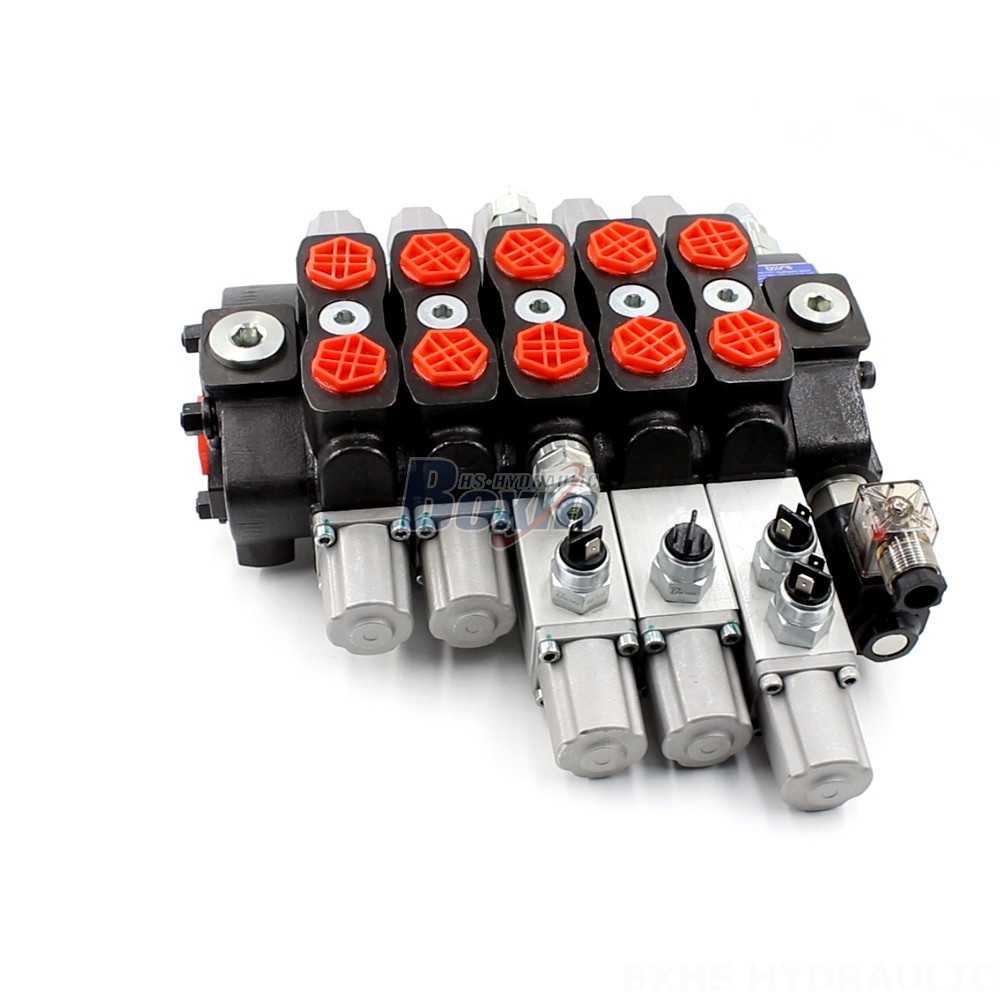

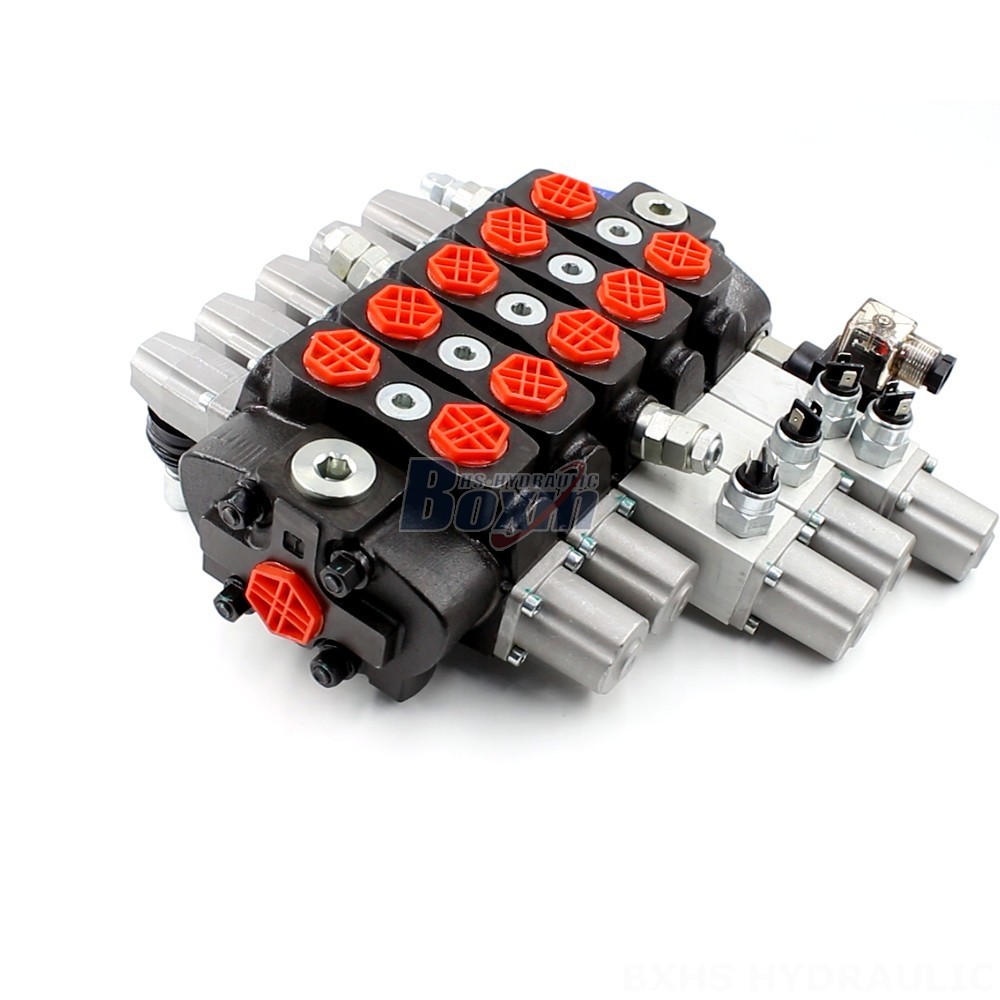

This 5 Spool Sectional Directional Valve is a high-performance, reliable component for a variety of mobile and industrial applications. It features a manual control method, 5 sections, and a rated flow of 90 L/min (23.8 US gpm). This valve is designed for use in material handling, construction, agriculture, and industrial vehicles, including forklifts, telehandlers, excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, and harvesters.
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
This high-quality 5 Spool Sectional Directional Valve is manufactured directly from our factory, offering competitive pricing and fast turnaround times. We provide a range of services including manufacturing, OEM, ODM, and private labeling. Our SD8 Series valves are designed for demanding applications and offer reliable performance in harsh environments. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is suitable for a wide range of heavy-duty equipment. We offer factory direct supply and wholesale pricing for distributors, wholesalers, agents, and traders, enabling you to get the best value for your hydraulic system needs.
