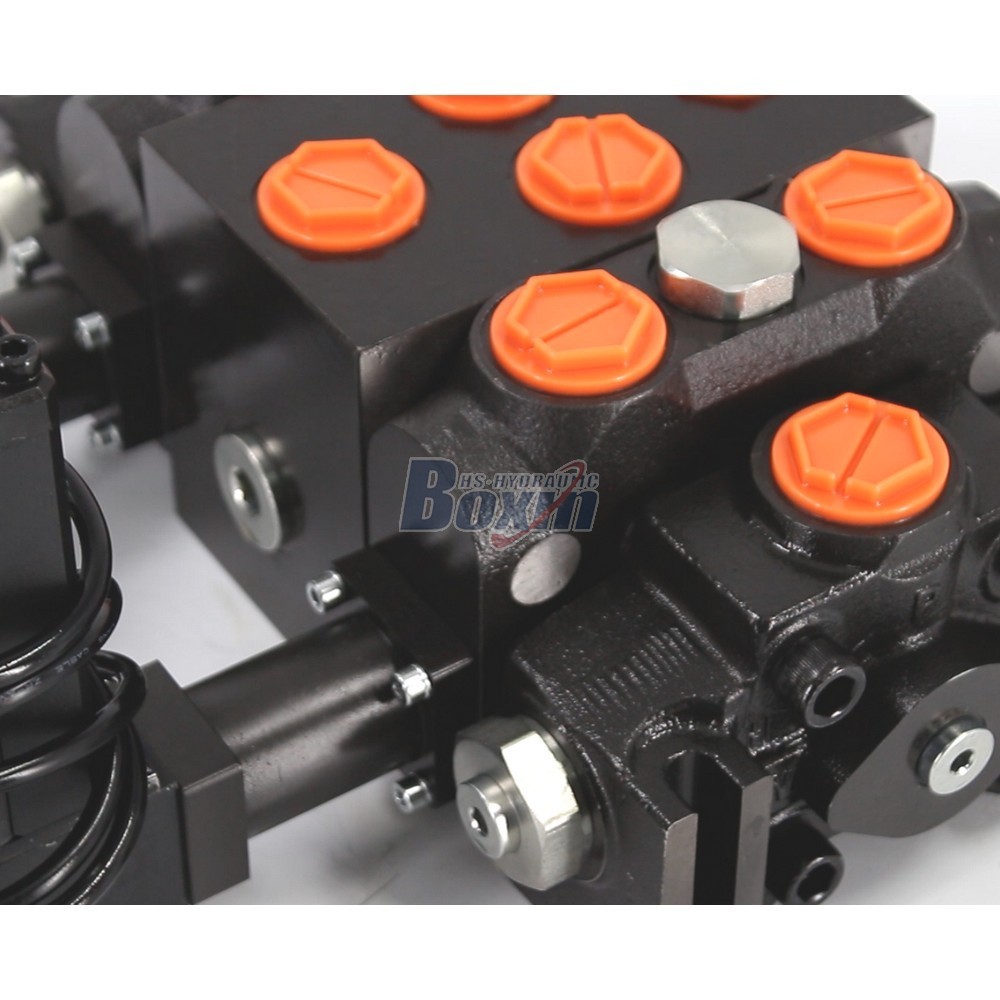

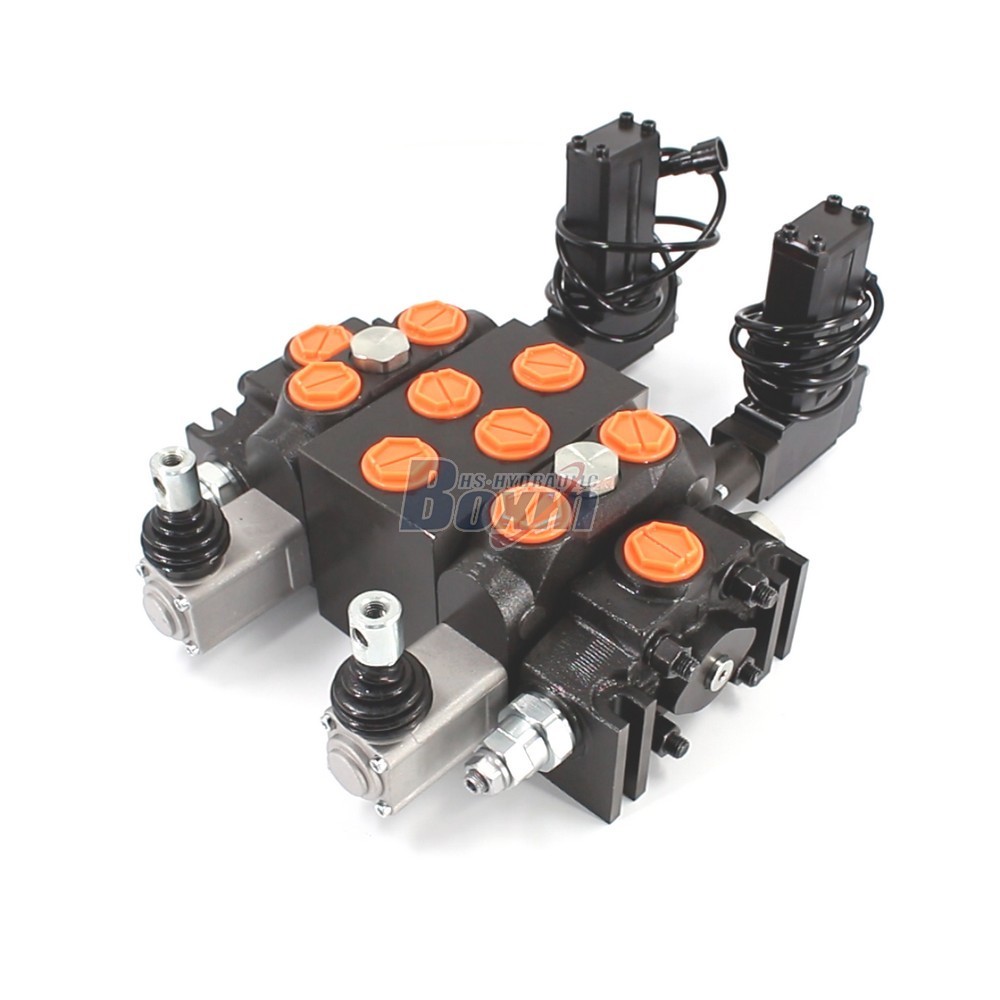

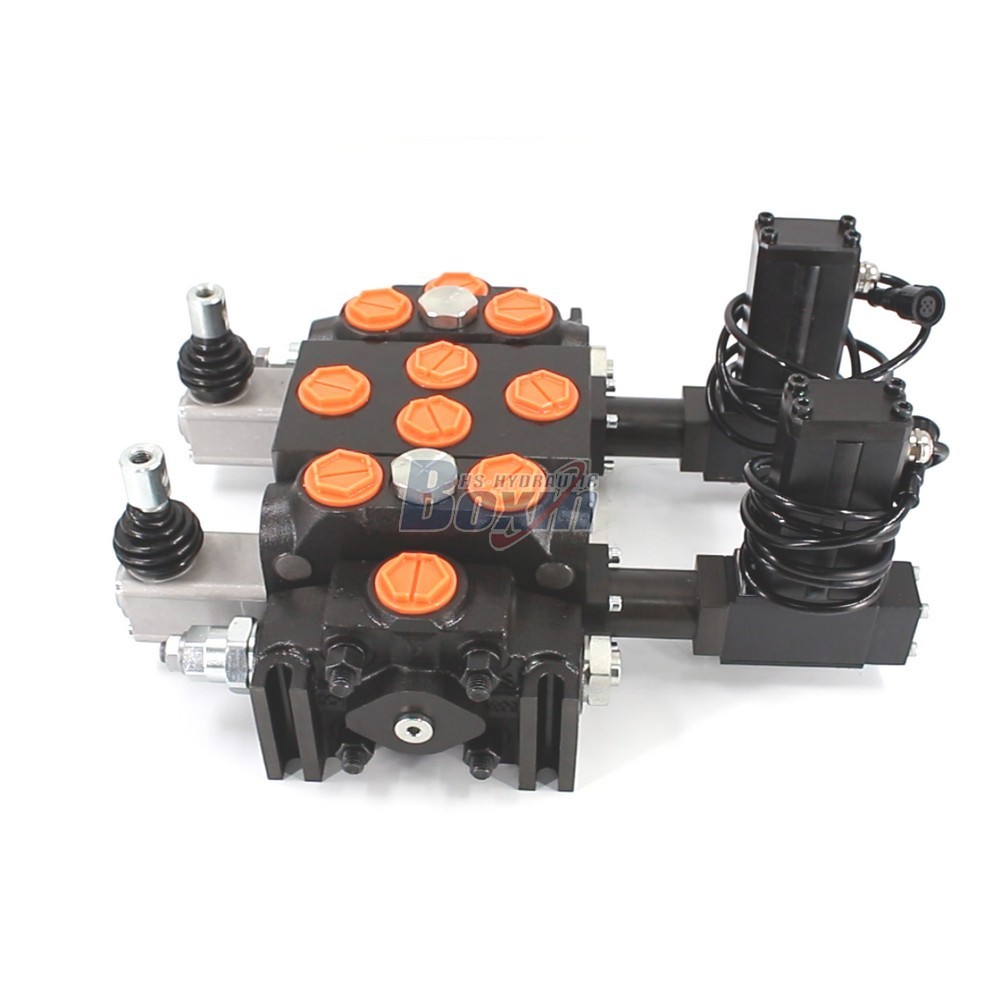

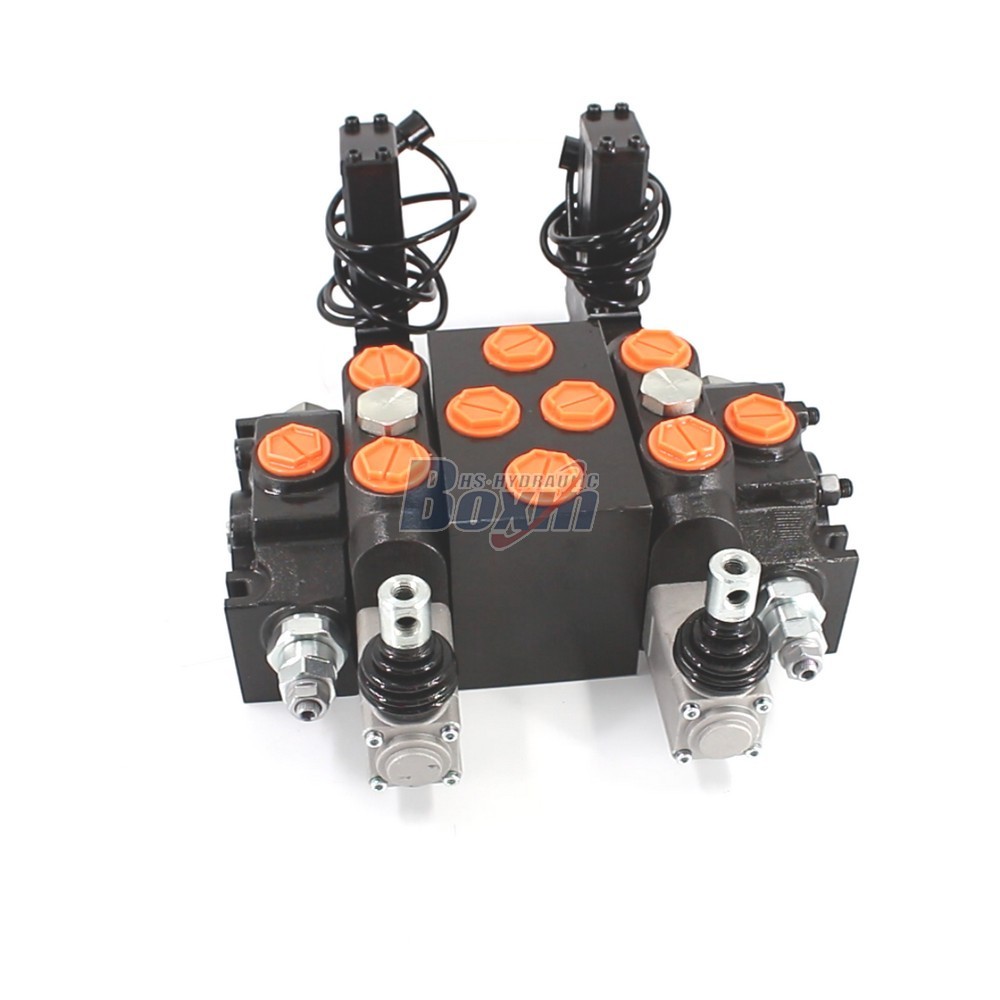

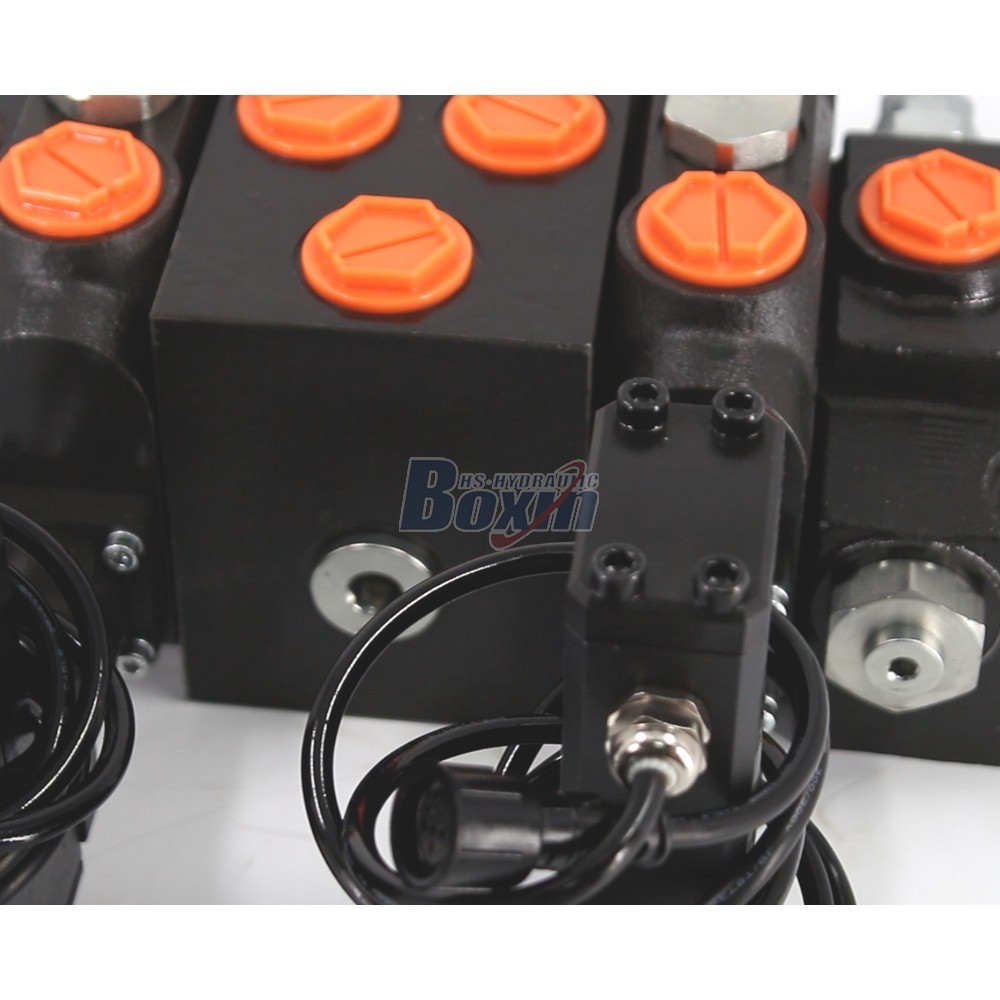

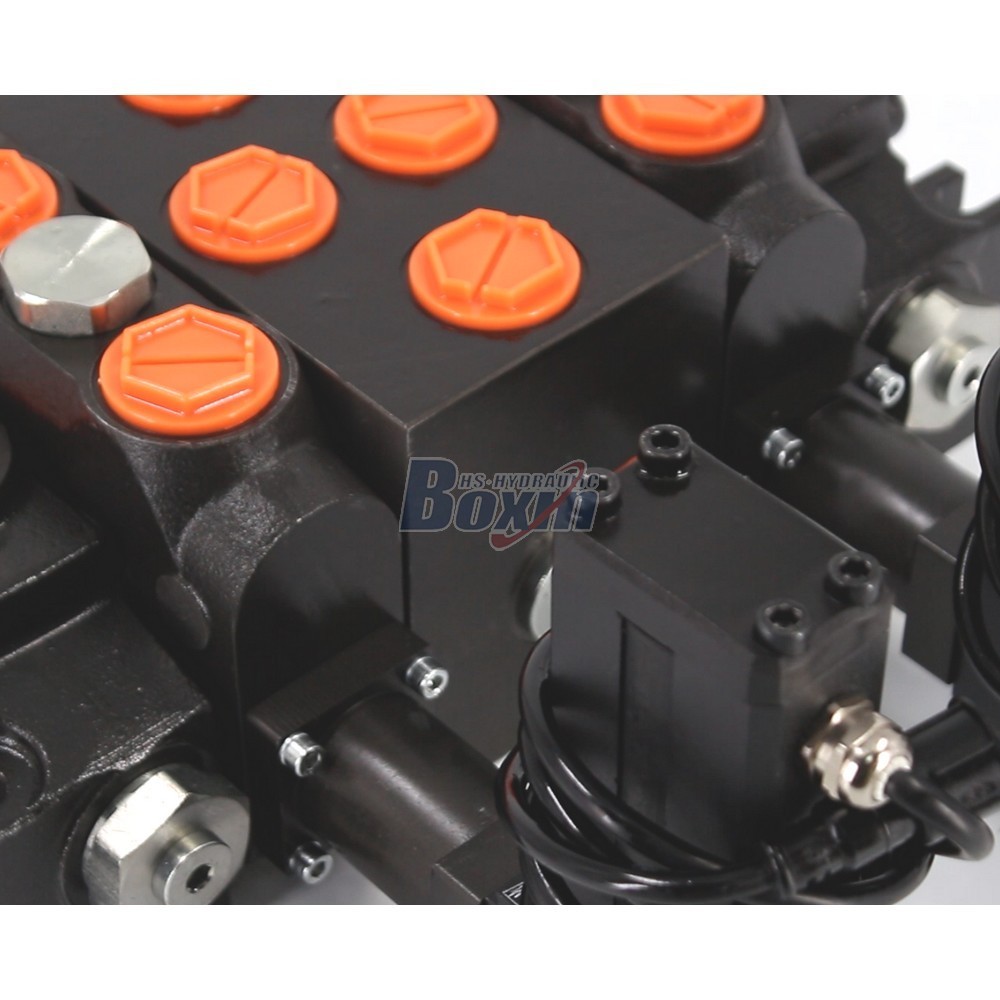

The DCV200 series is a robust 2-spool sectional directional control valve featuring electric motor operation, engineered for high-performance hydraulic systems with a capacity of 200 L/min and pressure handling up to 315 bar, ideal for heavy-duty mobile and industrial machinery.
| DCV200系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
| 出油口 | G1接口, M33×2.0螺纹, SAE 16接头, 1 NPT螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
As a professional hydraulic manufacturer and factory supplier, we offer the DCV200 2 Spool Electric Motor Sectional Directional Valve designed for demanding applications including wheel loaders, excavators, forklifts, and agricultural machinery. With a rated flow of 200 L/min and a maximum pressure of 315 bar, our valves ensure precise control and reliability in construction, material handling, and industrial operations. We provide comprehensive manufacturing, OEM, and private label services to fulfill specific technical requirements and branding needs. Whether you require customized hydraulic solutions, bulk wholesale orders, or reliable manufacturing support, our factory is equipped to scale production for your specific project. We are actively seeking global partnerships and inviting distributors, wholesalers, agents, and international traders to collaborate with us. Benefit from our integrated manufacturing capabilities, competitive factory-direct pricing, and commitment to delivering high-quality hydraulic components for your distribution network.
