The DLS180 Micro Switch Manual 4 Spool Sectional Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is capable of handling demanding applications. The manual control method allows for precise control of the valve's operation, while the sectional design provides flexibility and easy maintenance.
| SDS180系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G3/4接口, G1接口, SAE 12接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G3/4接口, G1接口, SAE 12接头 |

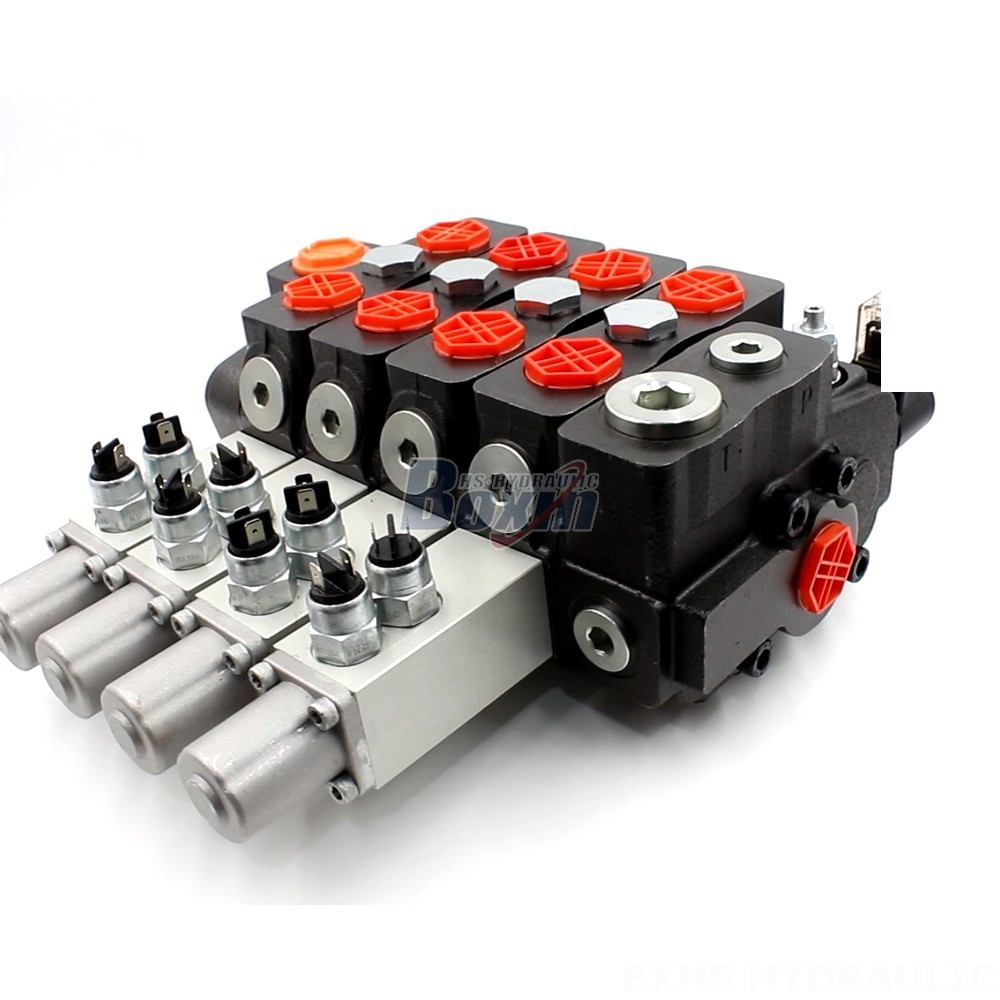

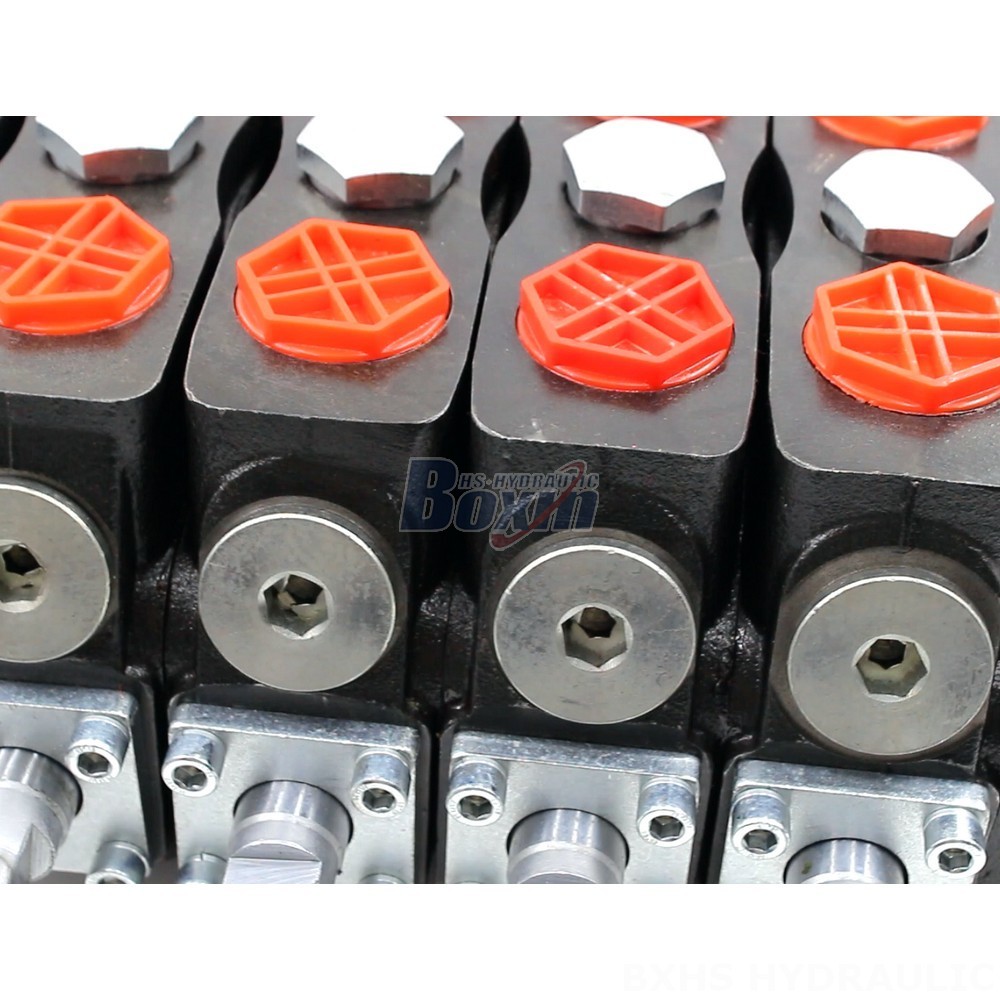

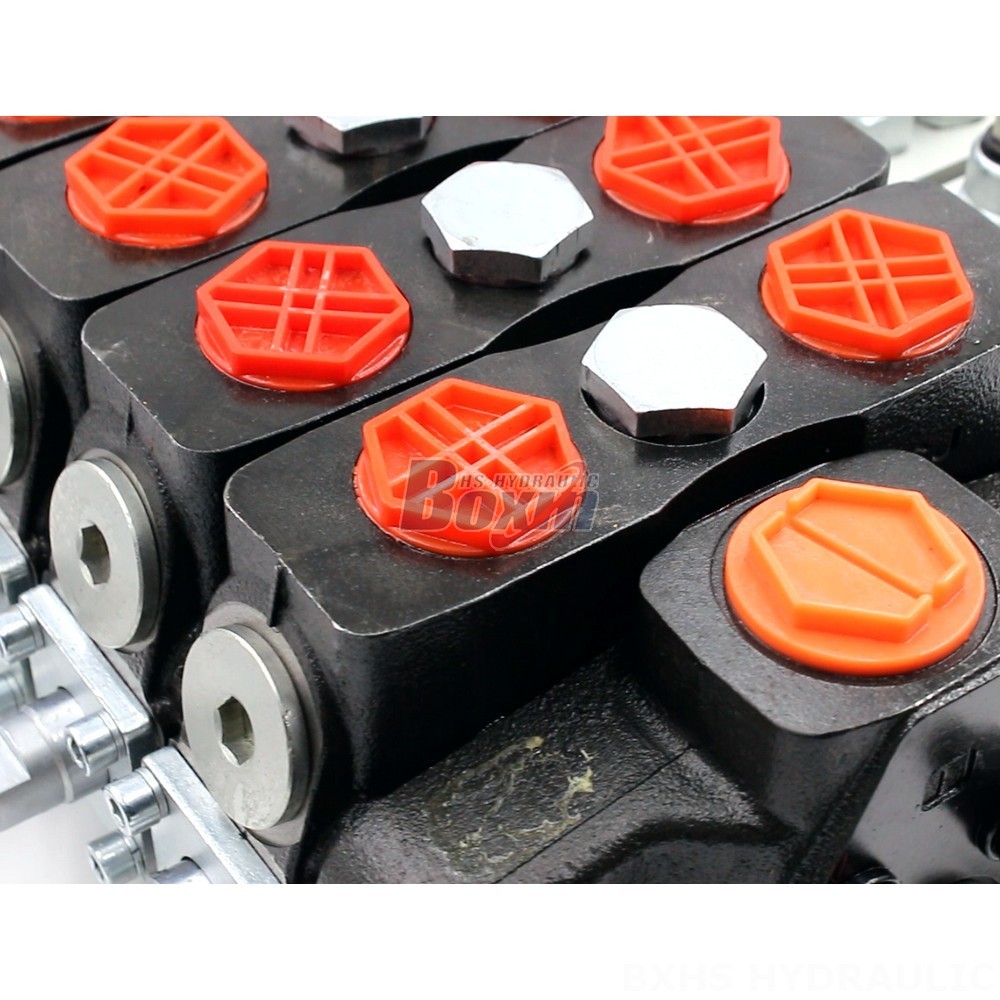

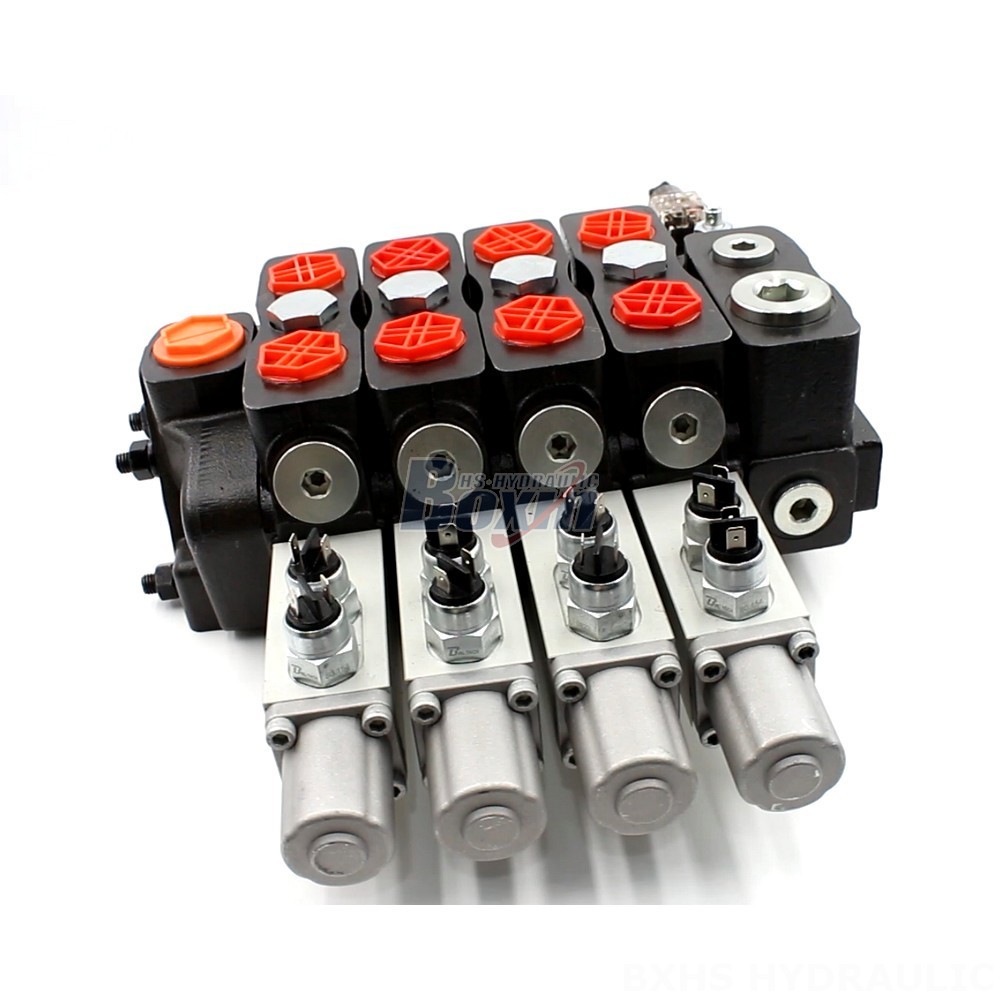

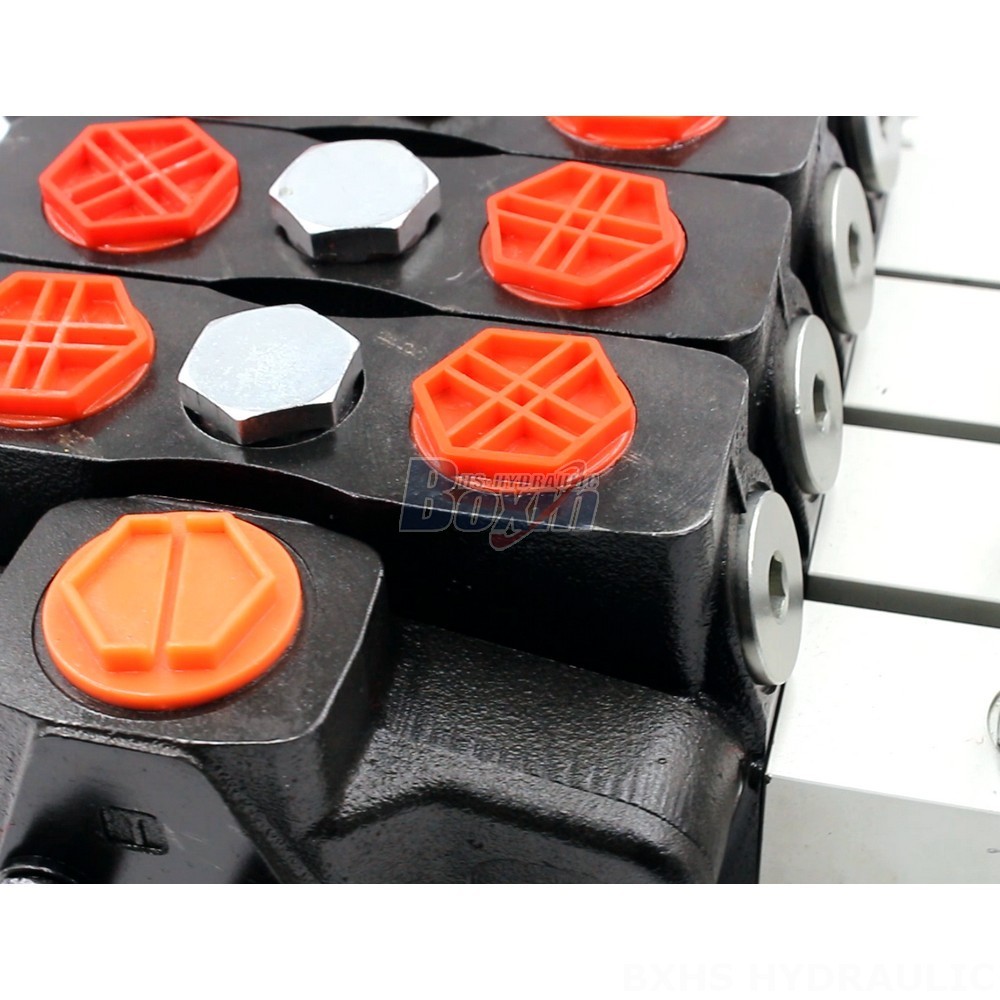

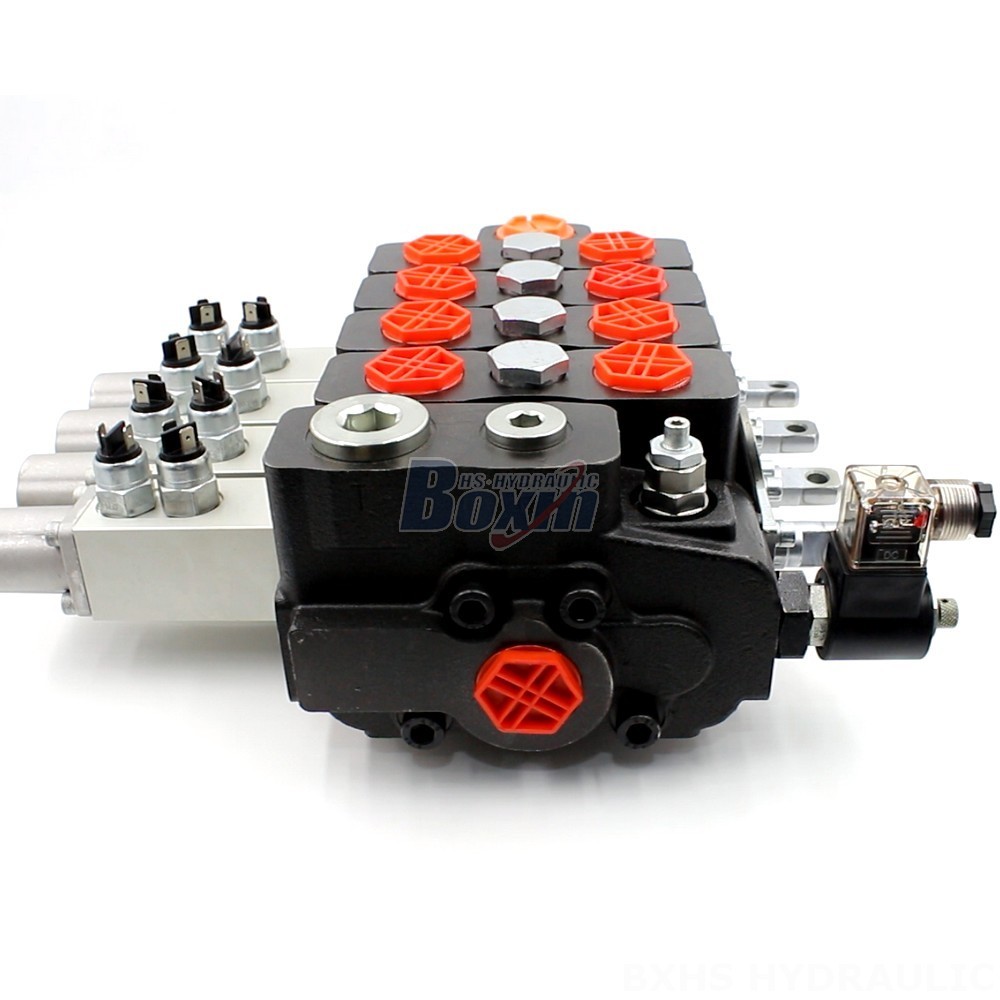

**DLS180 Micro Switch Manual 4 Spool Sectional Directional Valve**
**Product Features:**
* Control Method: Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Rated Flow: 160 L/min (42.2 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* Series: SDS180 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The DLS180 Micro Switch Manual 4 Spool Sectional Directional Valve is a high-quality, durable valve that is designed to meet the demands of a wide range of industrial applications. With its robust construction and reliable performance, this valve is an excellent choice for applications where precision and control are critical.
