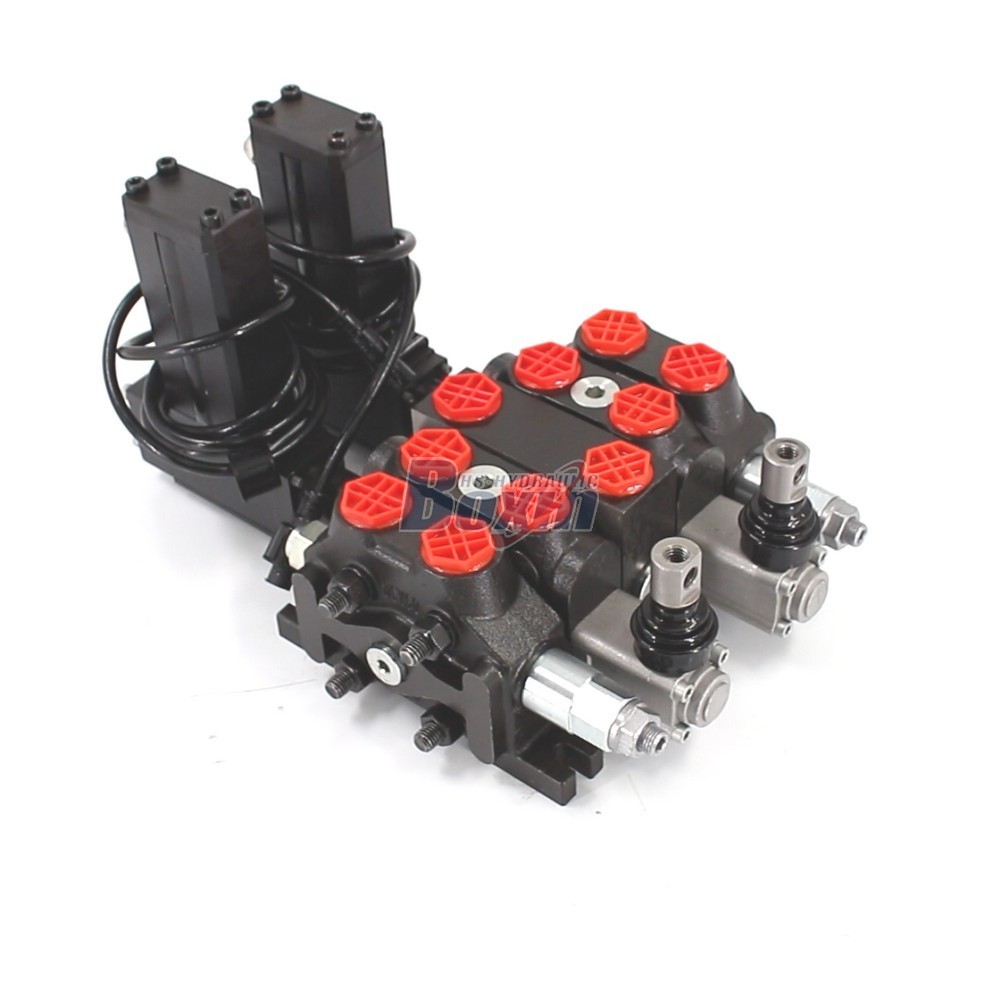

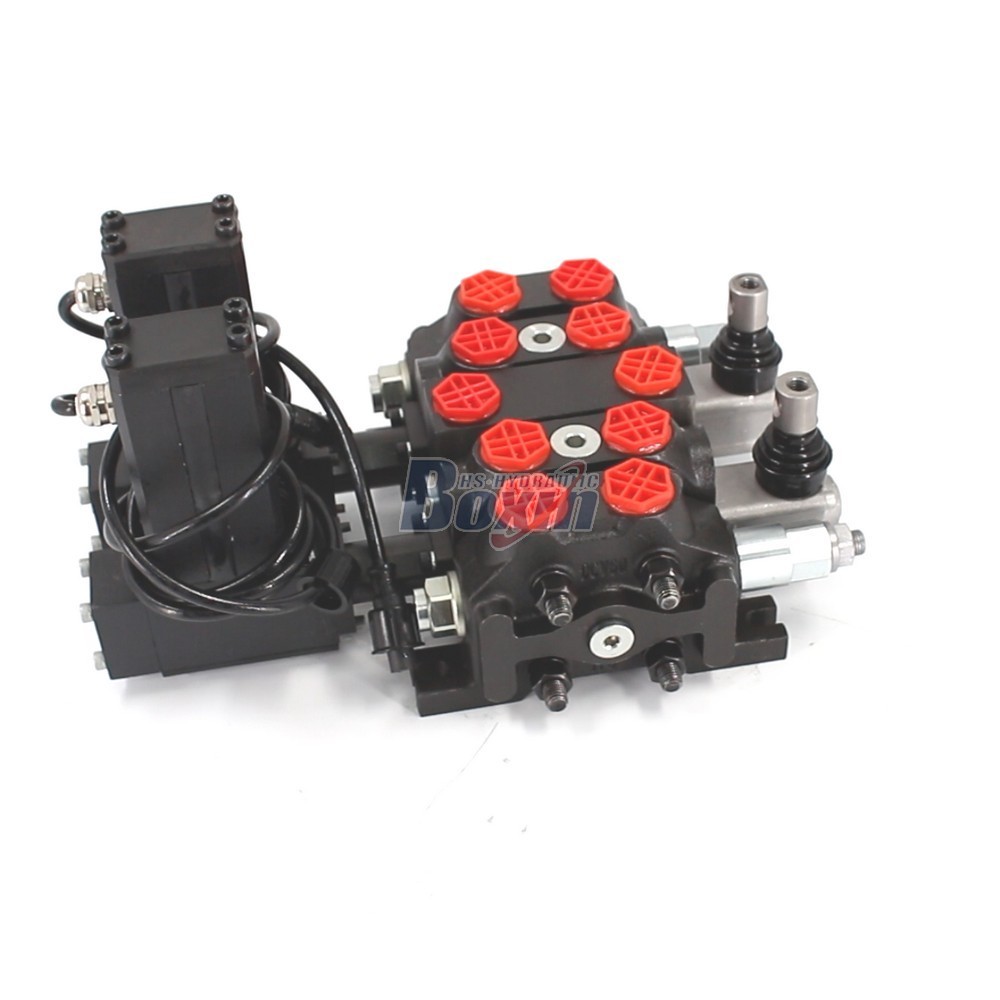

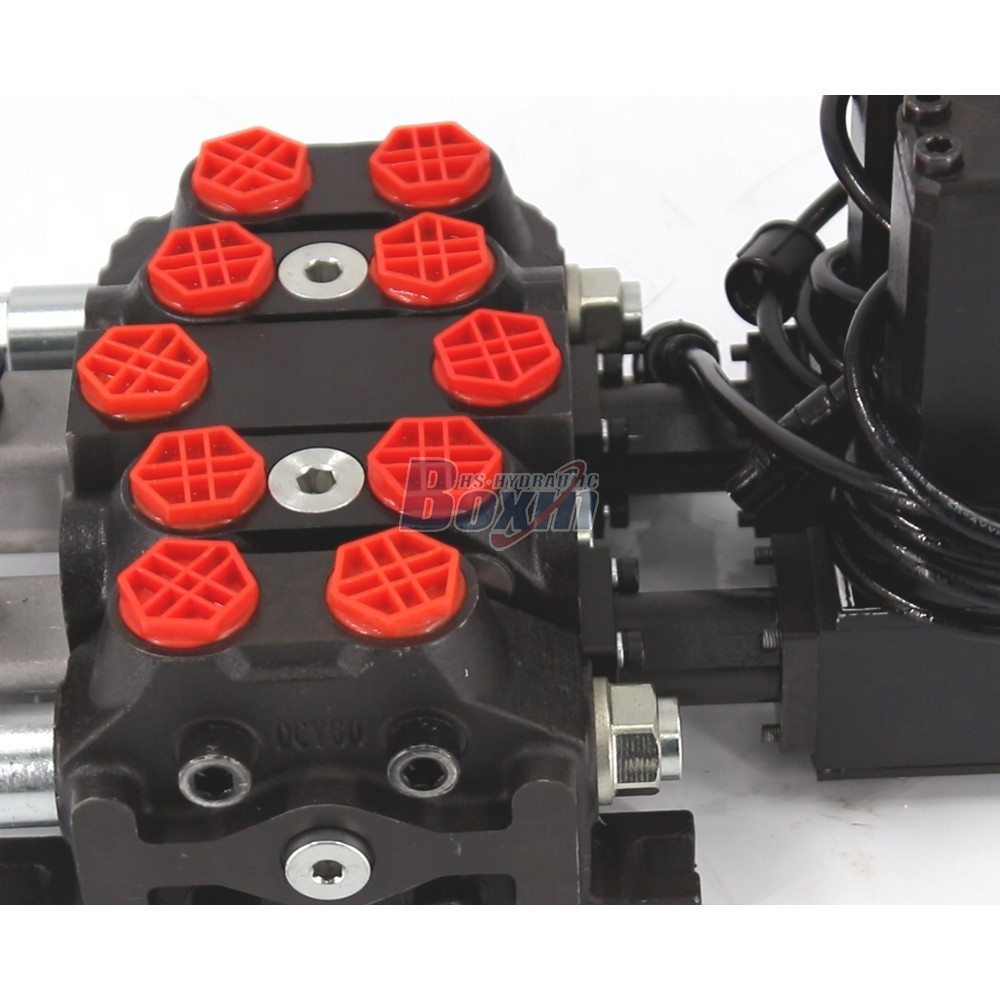

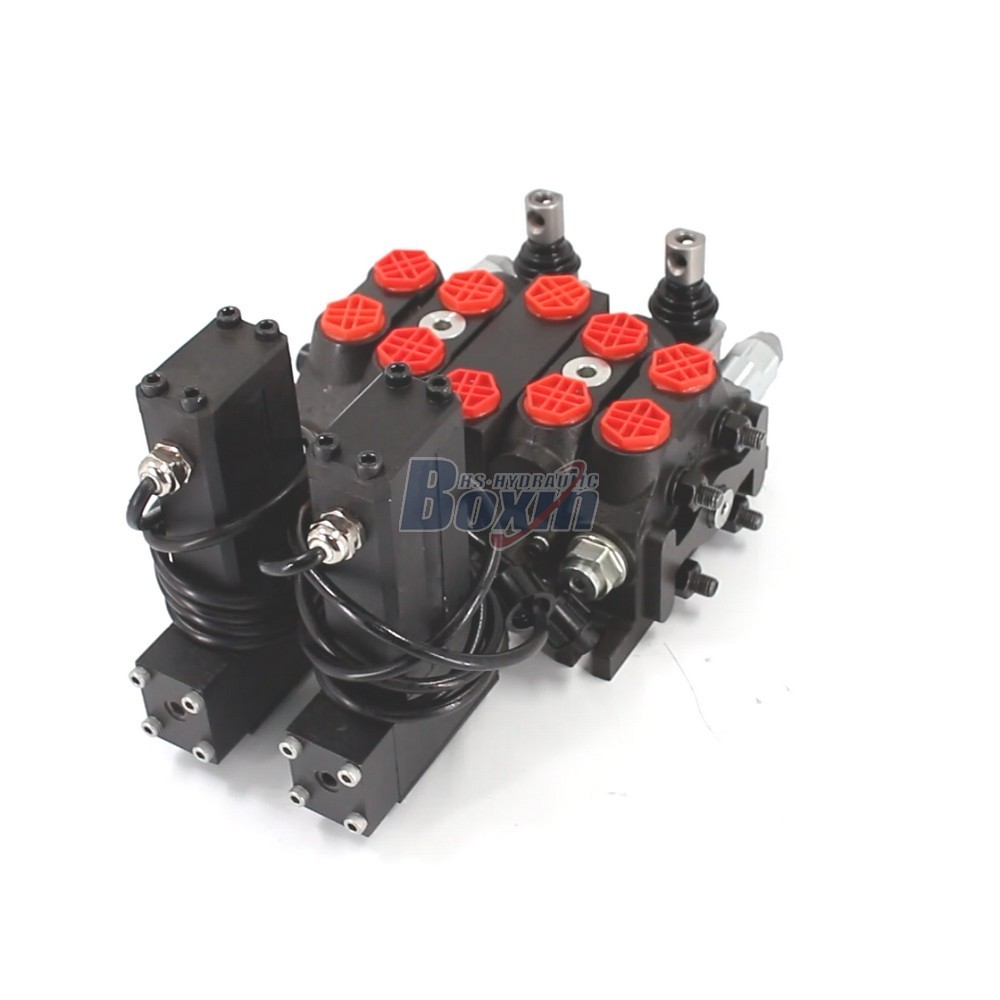

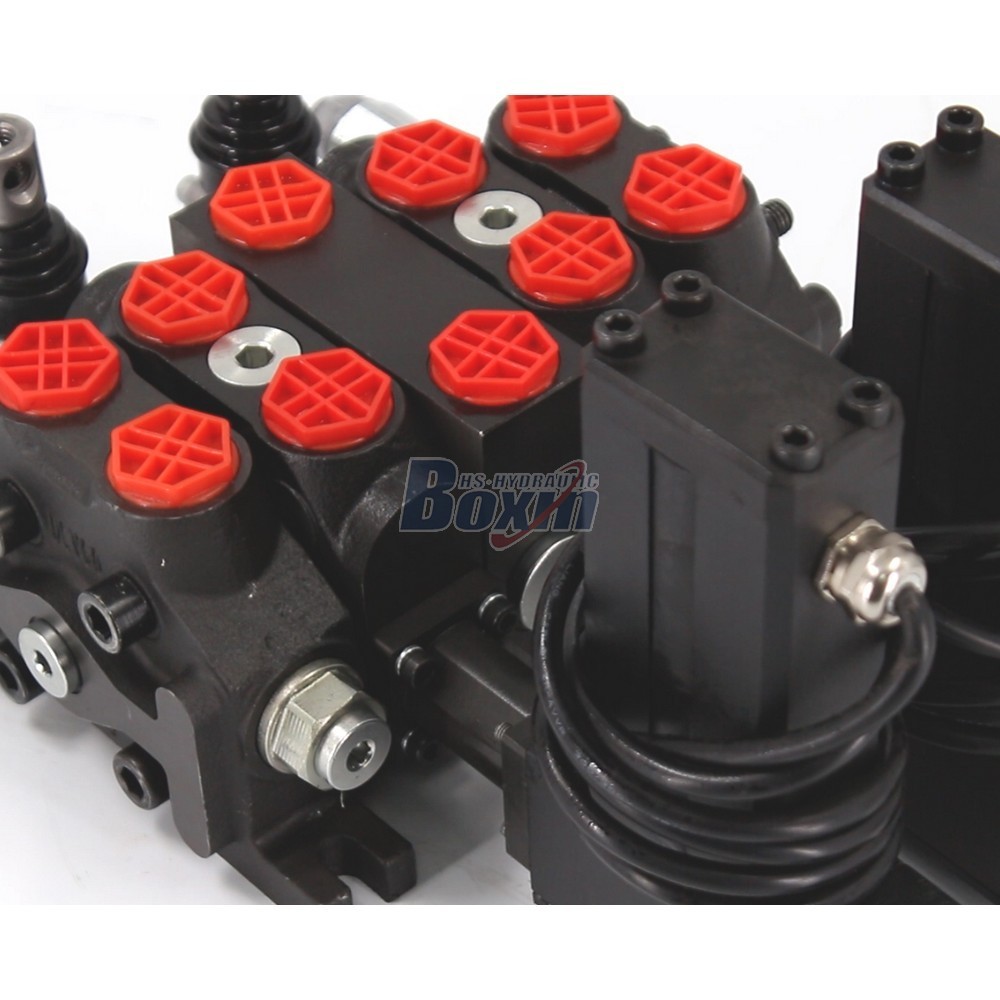

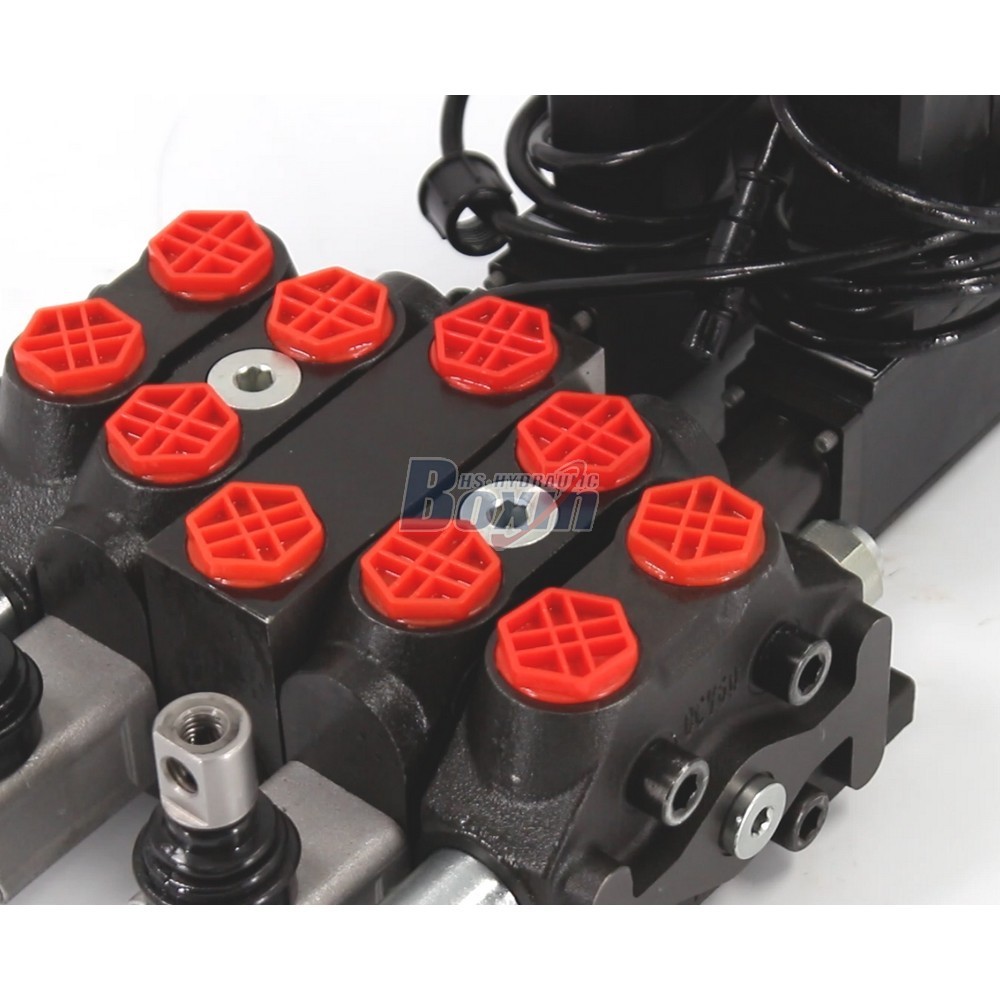

DCV60 Series 2 Spool Electric Control Sectional Directional Control Valve

控制方式:电动马达

路数:2 联

额定流量:60 L/min (15.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:DCV60系列 分块式方向阀

Packagingsize:22.5*34.05*18.85

Grossweight:20.50 kg

库存: 有货

14 次查看了此产品

DCV60 Series 2 Spool Electric Control Sectional Directional Control Valve

DCV60 Series 2 Spool Electric Control Sectional Directional Control Valve

DCV60 Series 2 Spool Electric Control Sectional Directional Control Valve drawing image

As a leading manufacturer of hydraulic solutions, we offer the DCV60 series 2-spool electric control sectional directional control valve. Engineered for heavy-duty applications, this valve features a rated flow of 60 L/min and handles pressures up to 315 bar, providing precise electric motor control for various machinery.

DCV60系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 60 L/min (15.8 US gpm)
最大压力 315 bar (4600 psi), 350 bar (5100 psi)
进油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹

Empower your machinery with our DCV60 series 2-spool electric control sectional directional control valve. As a specialized hydraulic manufacturer, we provide factory-direct supply and wholesale opportunities for global markets. This robust valve is designed for high-performance applications in construction, agriculture, and material handling, making it ideal for equipment like tractors, mini-excavators, and forklifts. We offer comprehensive manufacturing services, including OEM, ODM, and customized solutions to meet your specific technical requirements. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. By choosing our factory wholesale services, you gain access to reliable products featuring a 60 L/min flow rate, G1/2 porting, and 315 bar max pressure capability. Enhance your product portfolio with our precision-engineered hydraulic valves and benefit from our extensive industry expertise and global export capacity.
