The DCV60 Cable 3 Spool Sectional Directional Valve is a high-performance directional valve designed for use in mobile hydraulic systems. It features a cable control mechanism, a sectional design for easy maintenance, and a rated flow of 60 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| DCV60系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

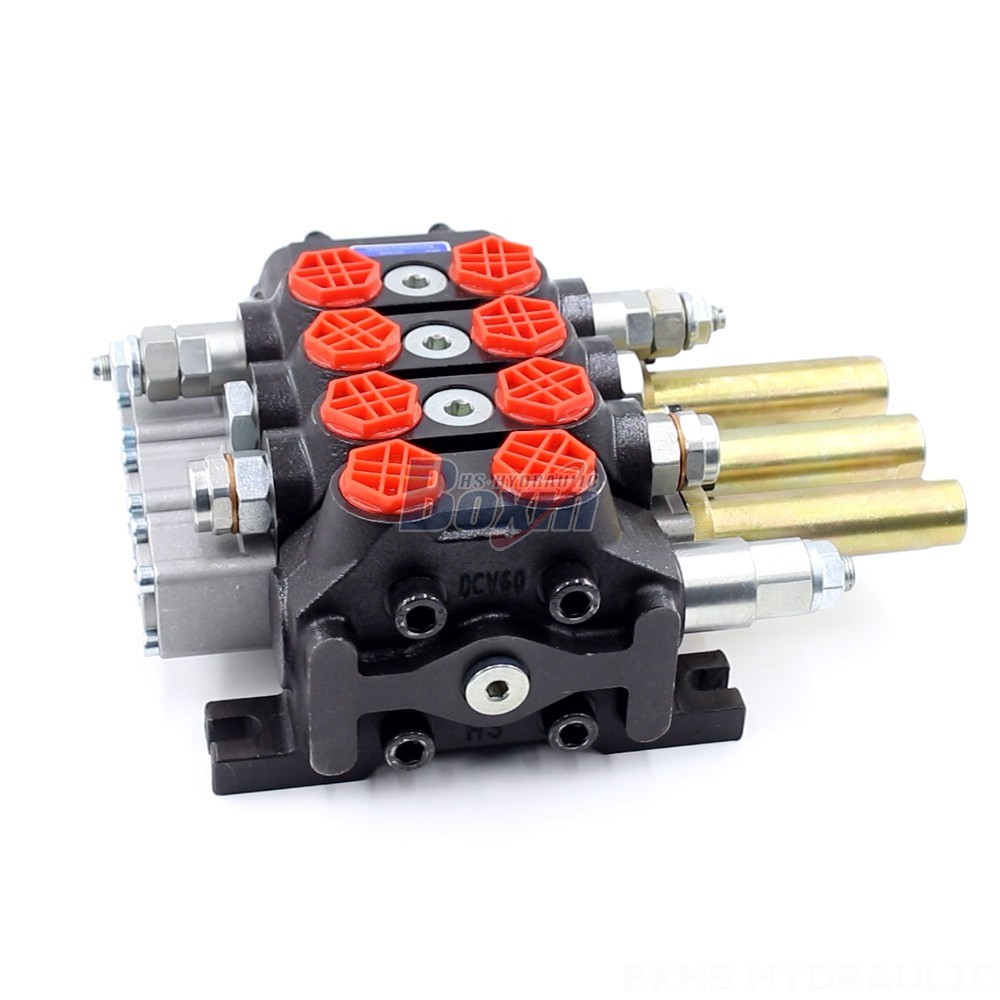

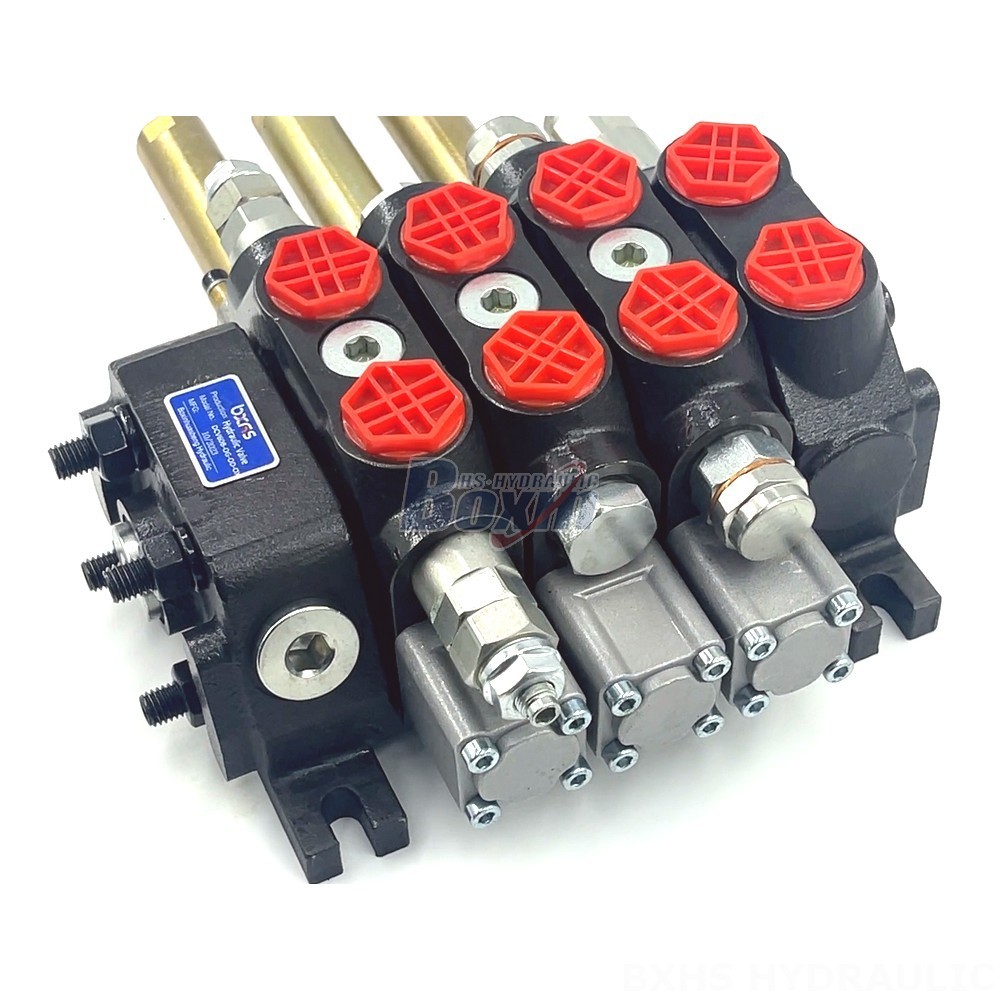

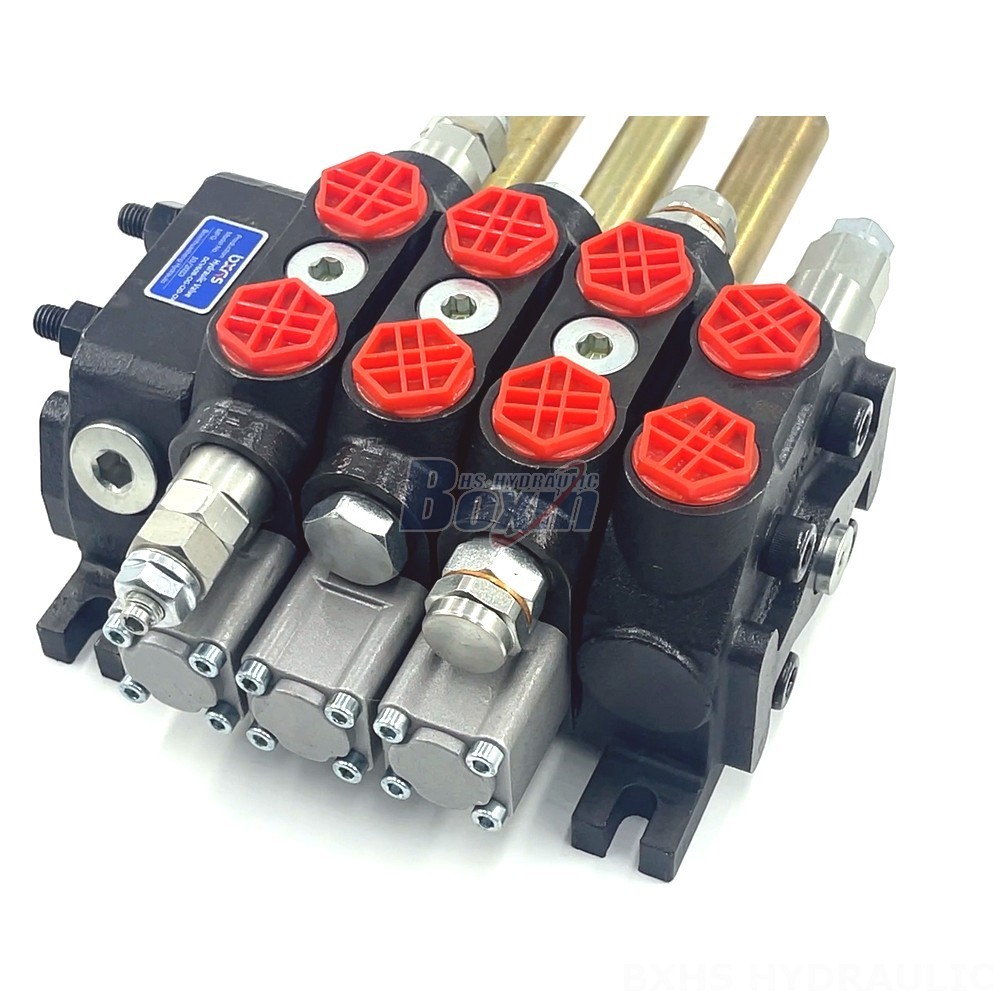

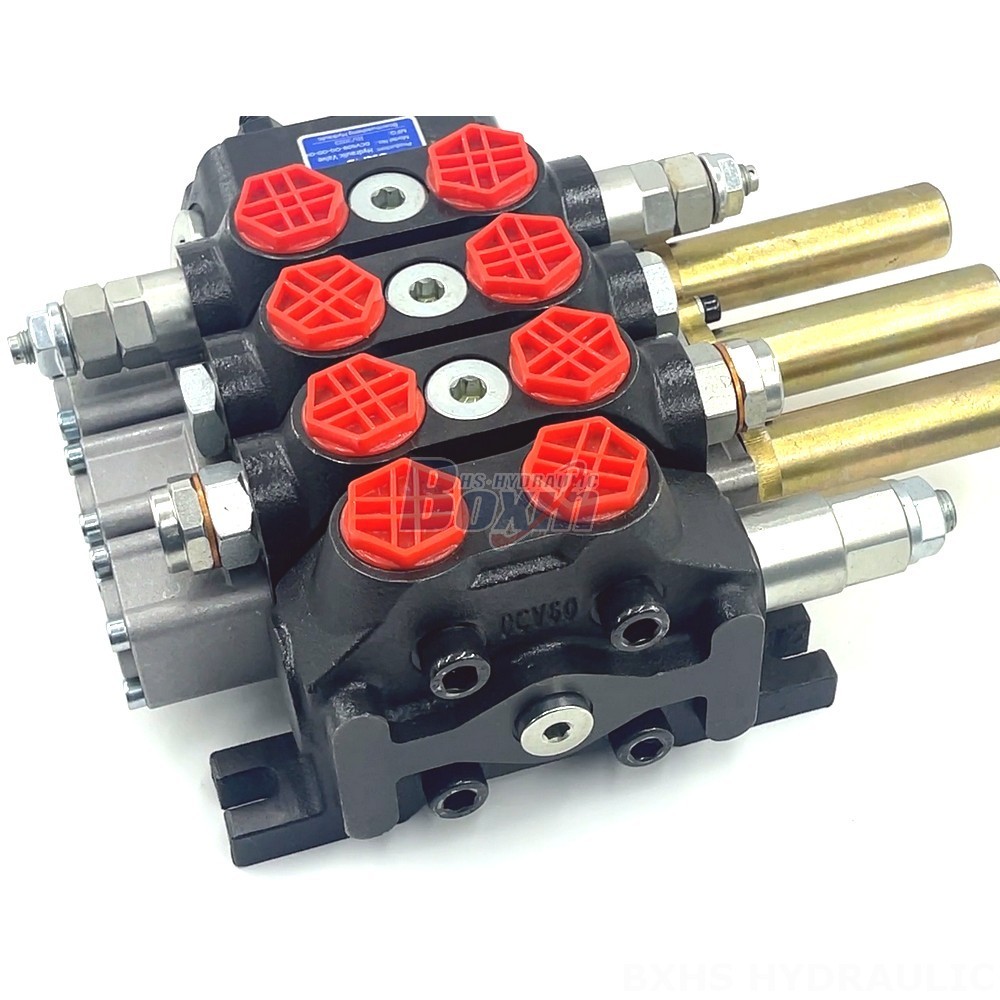

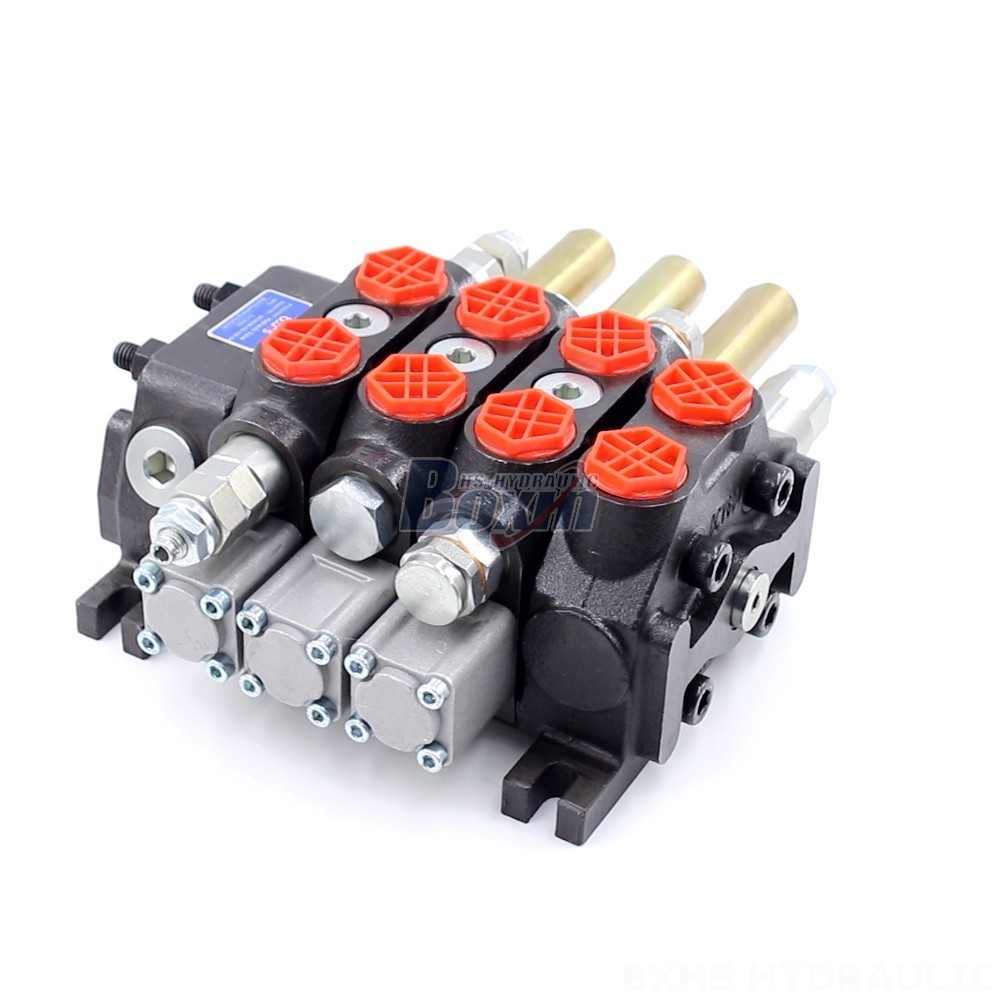

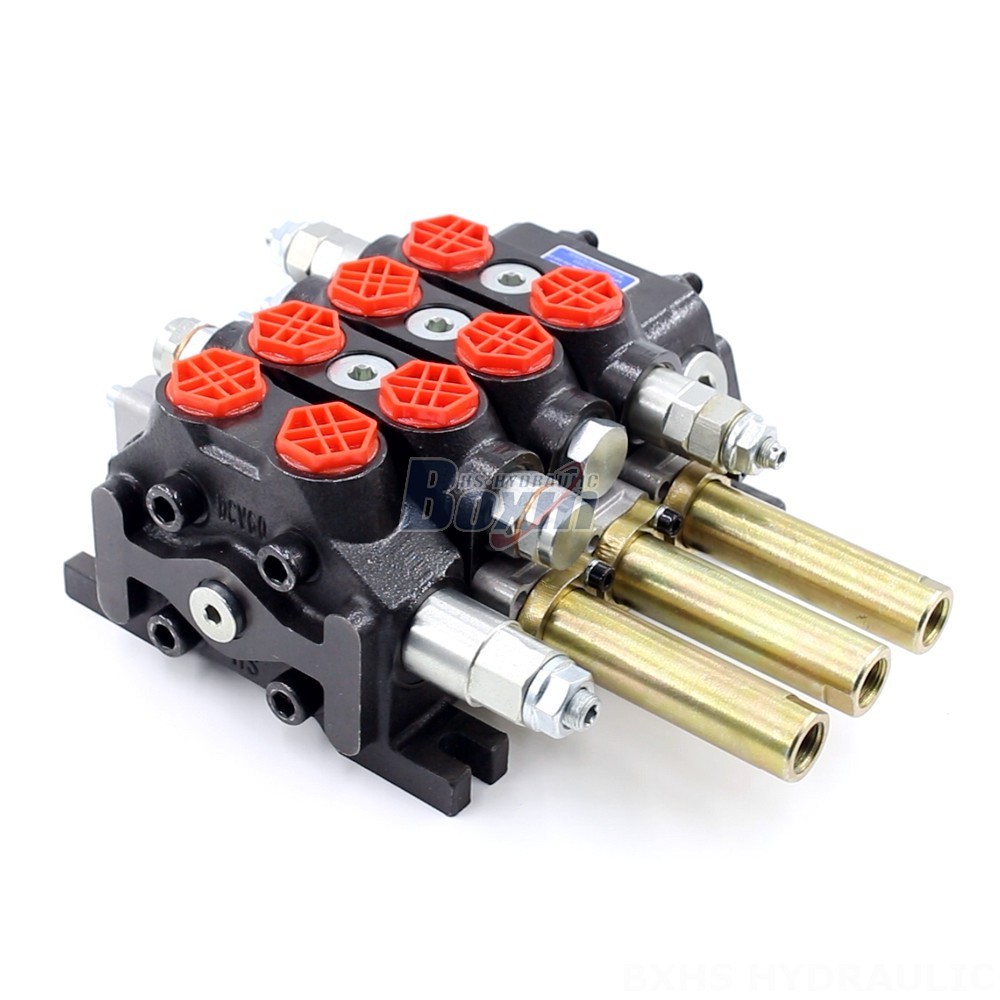

**DCV60 Cable 3 Spool Sectional Directional Valve**
**Control Method:** Cable
**Section:** 3 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** DCV60 Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
