The DCV60 2-Spool Electro-hydraulic Directional Valve is a high-performance valve designed for various industrial applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, it ensures efficient and precise control of hydraulic systems in demanding conditions.
| DCV60系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

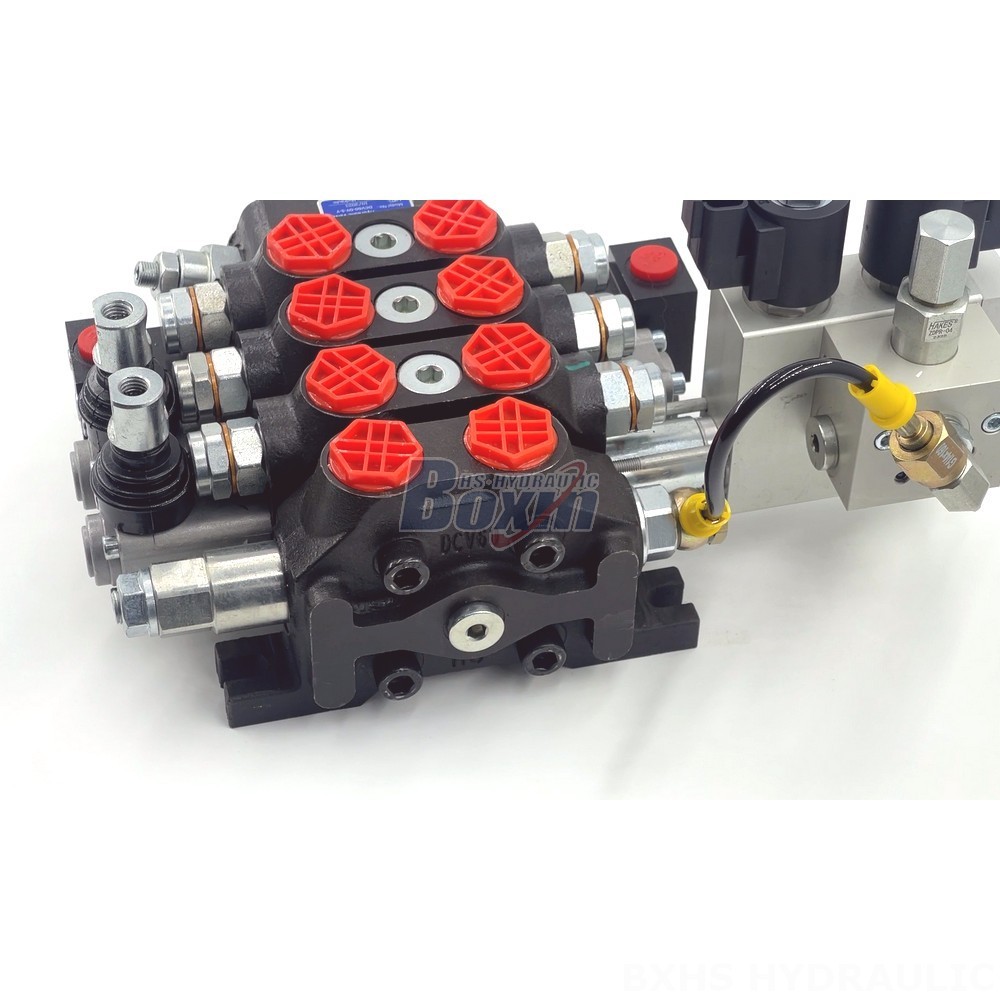

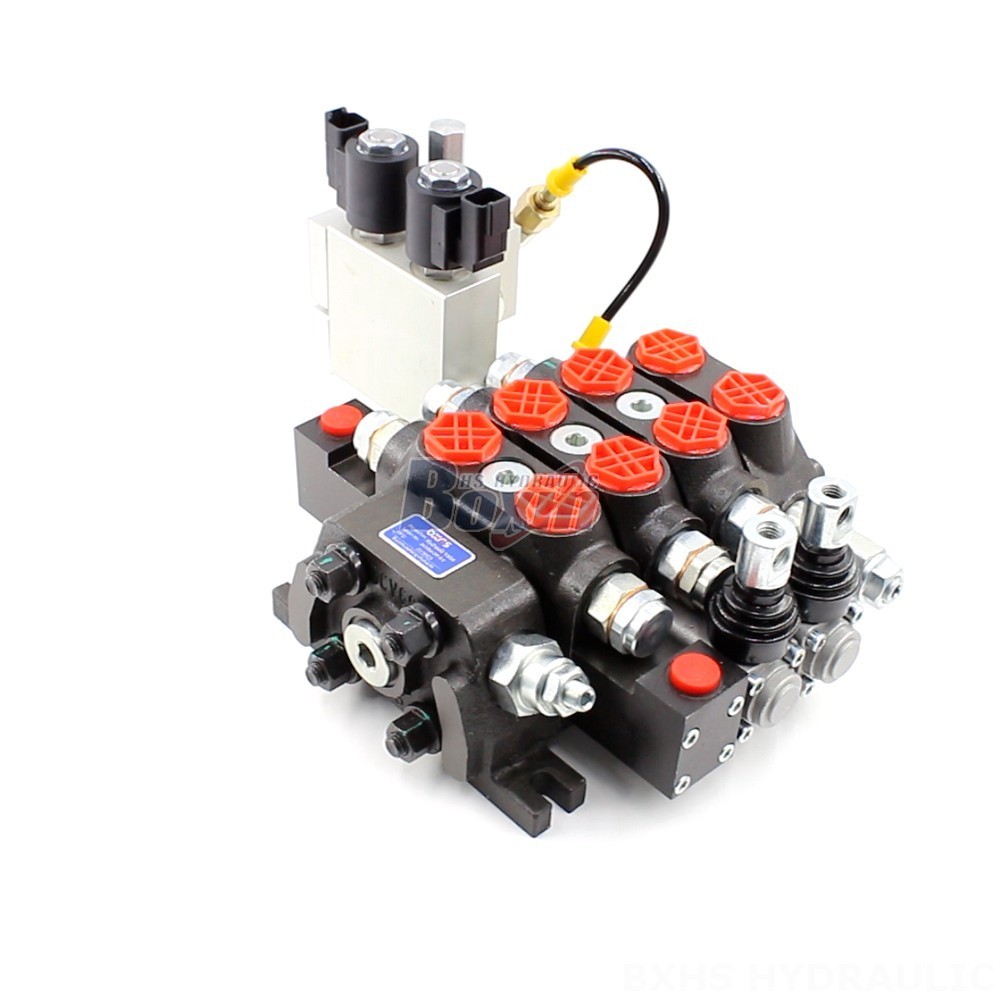

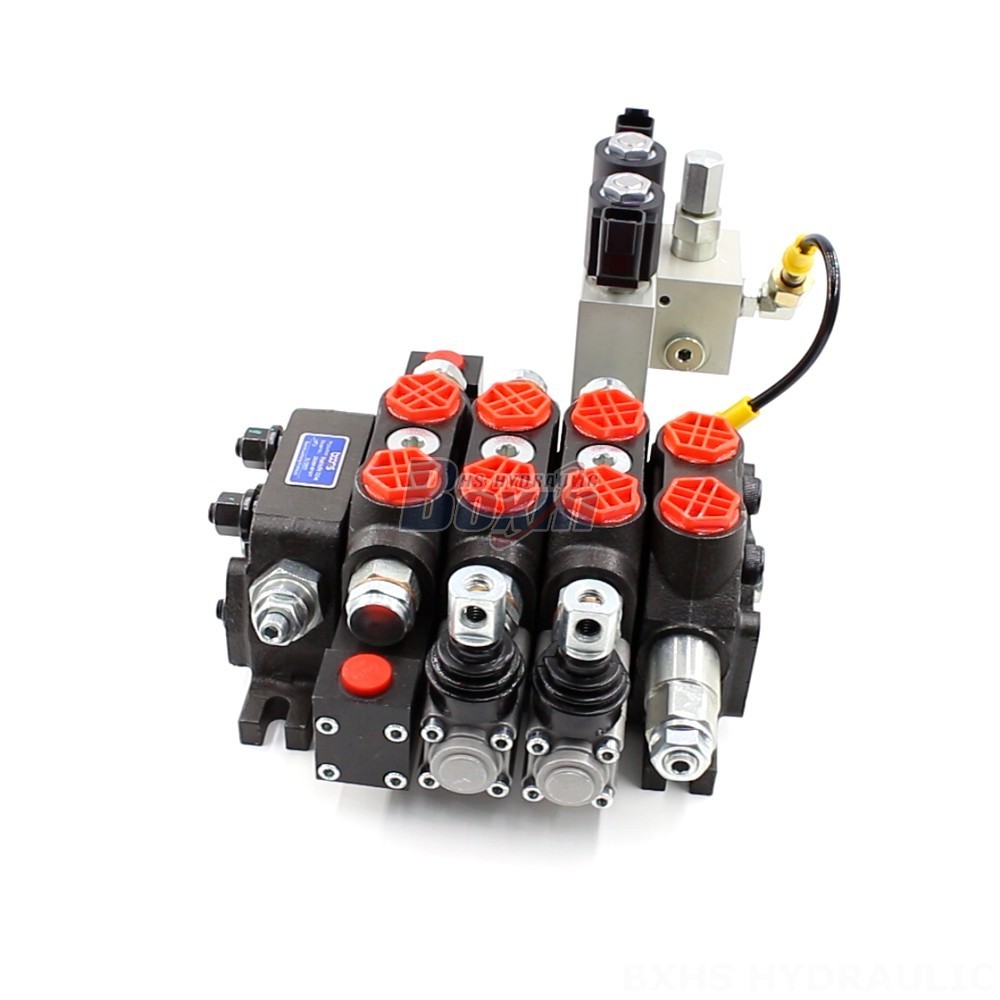

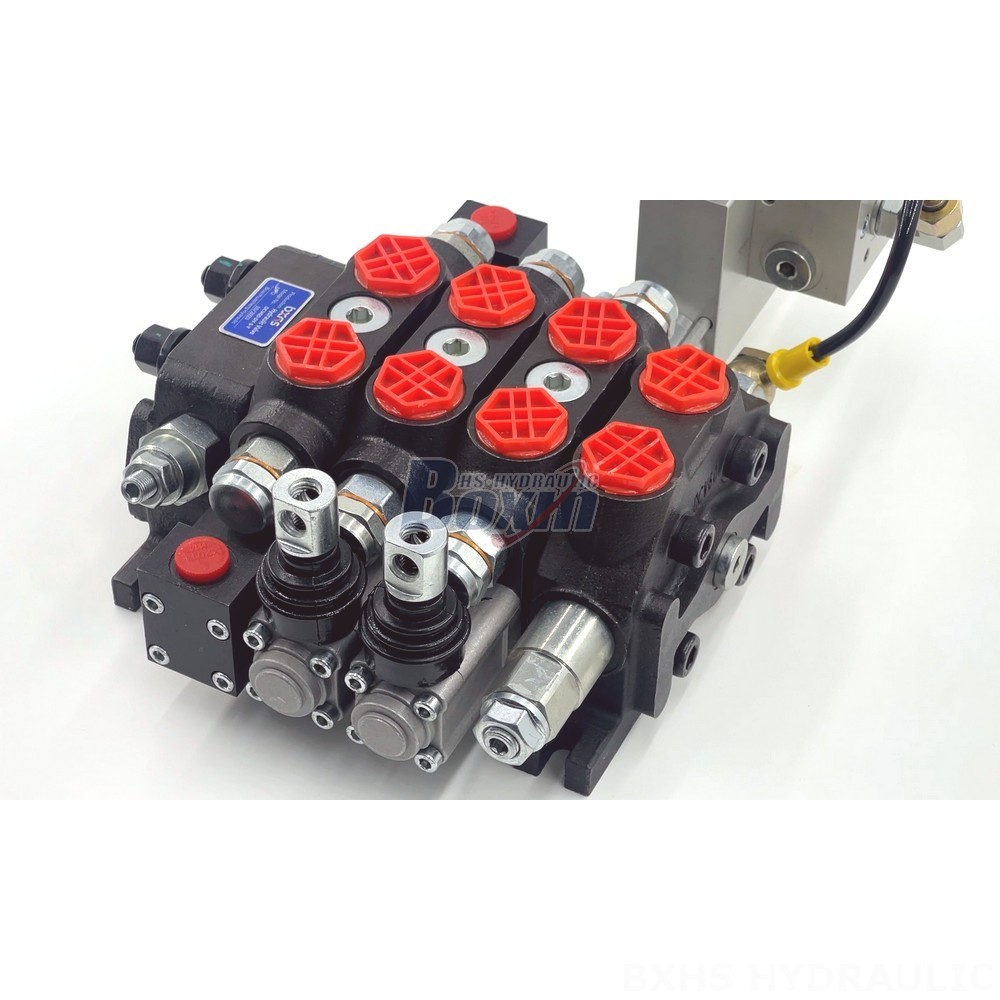

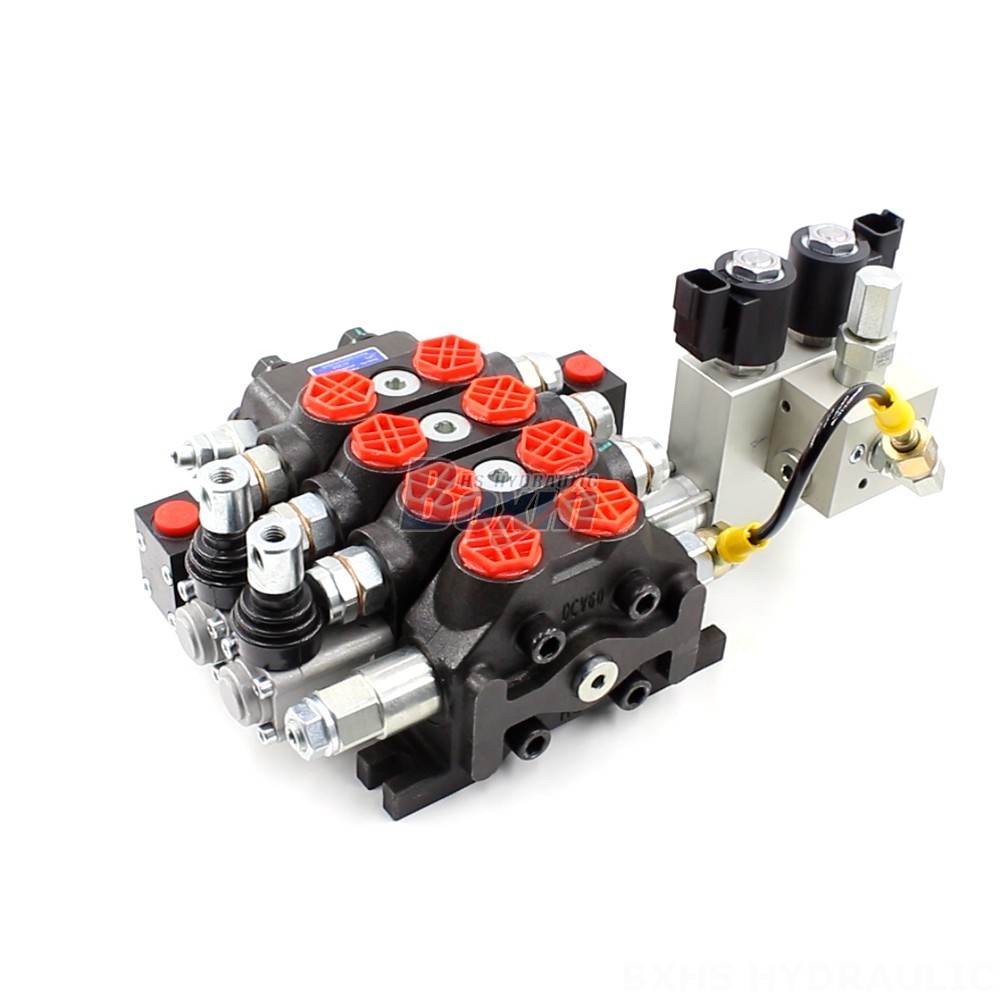

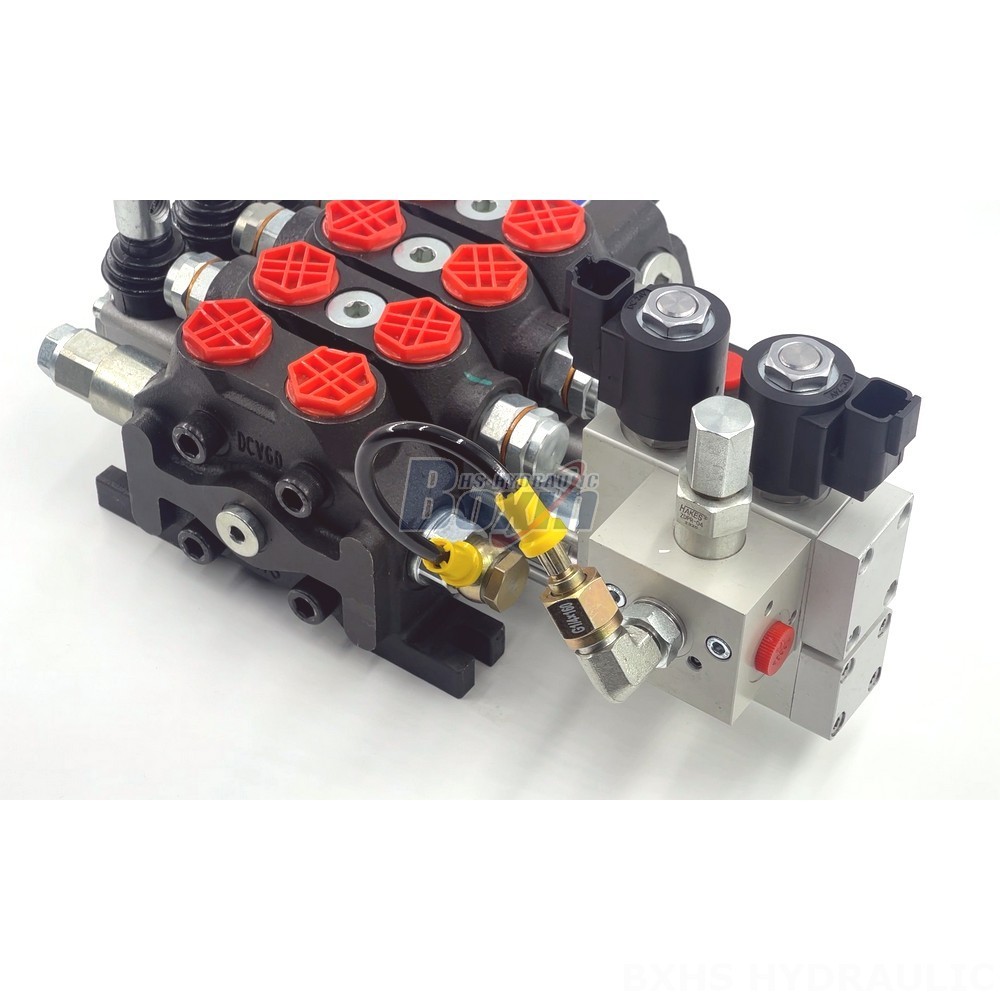

**DCV60 2-Spool Electro-hydraulic Directional Valve**
**Product Description:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is a compact and reliable valve that offers precise control of hydraulic systems. It features a sectional valve structure, allowing for easy customization and integration into various applications. The valve is designed to operate within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), ensuring optimal performance in diverse operating conditions.
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 2-spool design for versatile flow control
- Sectional valve structure for easy customization
- Rated flow of 60 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity and temperature ranges for adaptability
- Compact design for space optimization
- Suitable for various industrial applications, including material handling, construction, agriculture, and industrial vehicles
**Applications:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is widely used in hydraulic systems of:
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
