847 次查看了此产品
The DCV58F Solenoid 1 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a flow rate of 60 L/min, a maximum pressure of 350 bar, and a wide operating temperature range of -40°C to +80°C, this valve ensures reliable and efficient operation even in harsh environments.
| DCV58F系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

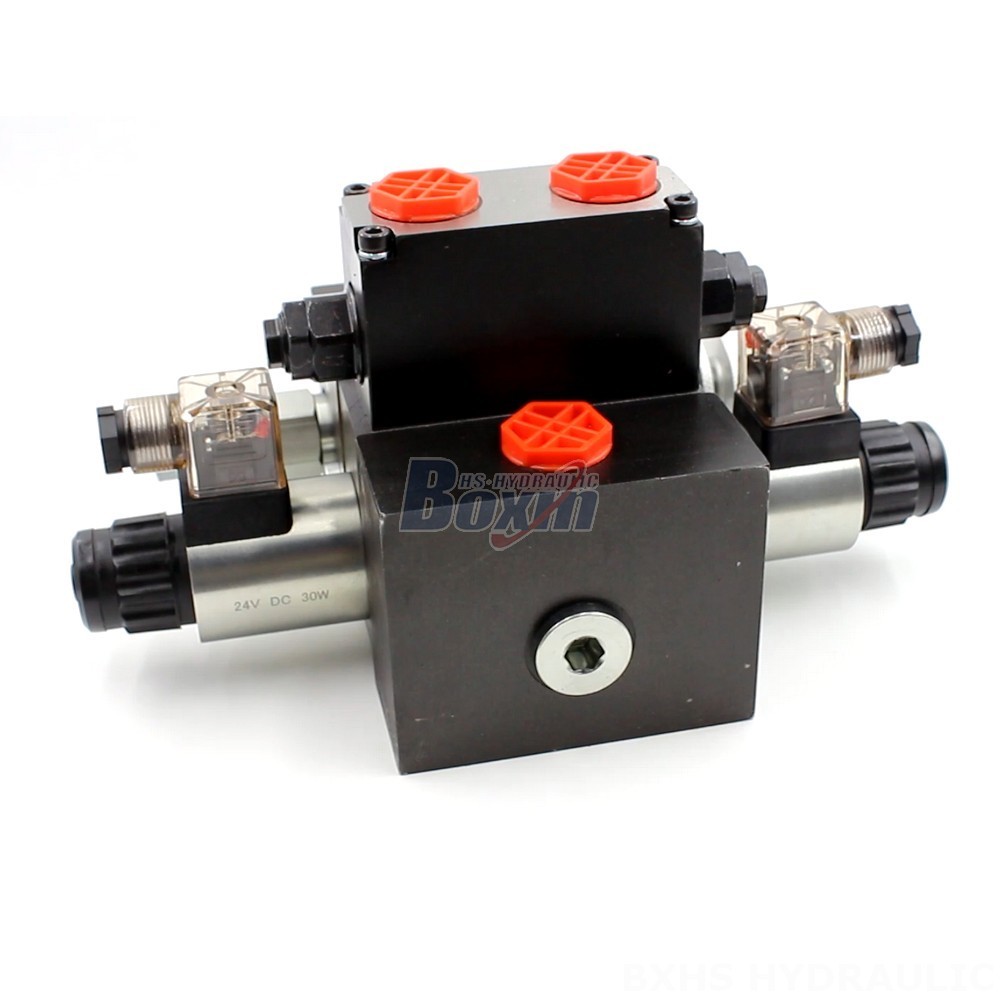

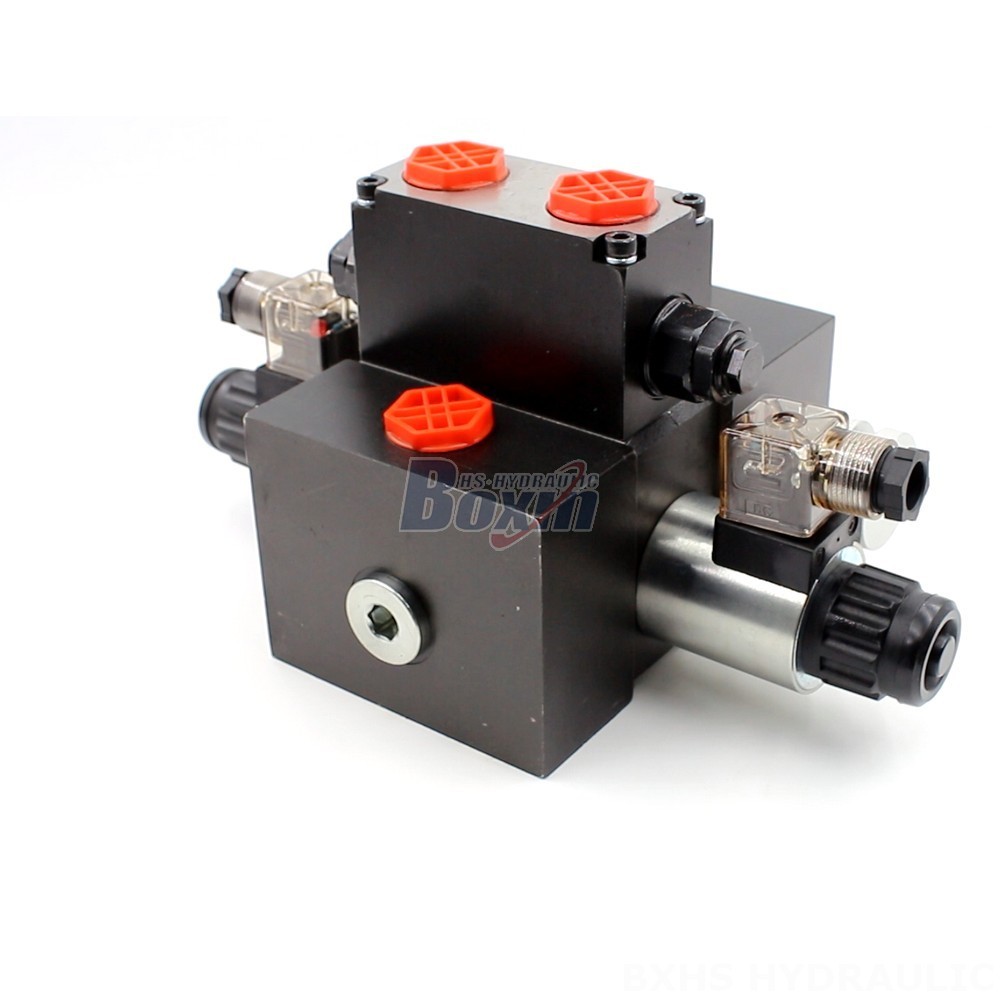

**DCV58F Solenoid 1 Spool Sectional Directional Valve**
**Features:**
* Solenoid control for precise and responsive operation
* Sectional design allows for easy integration into complex hydraulic systems
* High flow rate of 60 L/min for efficient fluid flow
* Maximum pressure of 350 bar for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s
* Robust construction for durability in harsh environments
* Temperature range of -40°C to +80°C for versatility
* Single spool design for simple control
**Applications:**
* Material handling equipment
* Construction machinery
* Agricultural vehicles
* Industrial vehicles
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Dumpers
