液压驱动世界 华盛智造未来
2046 次查看了此产品

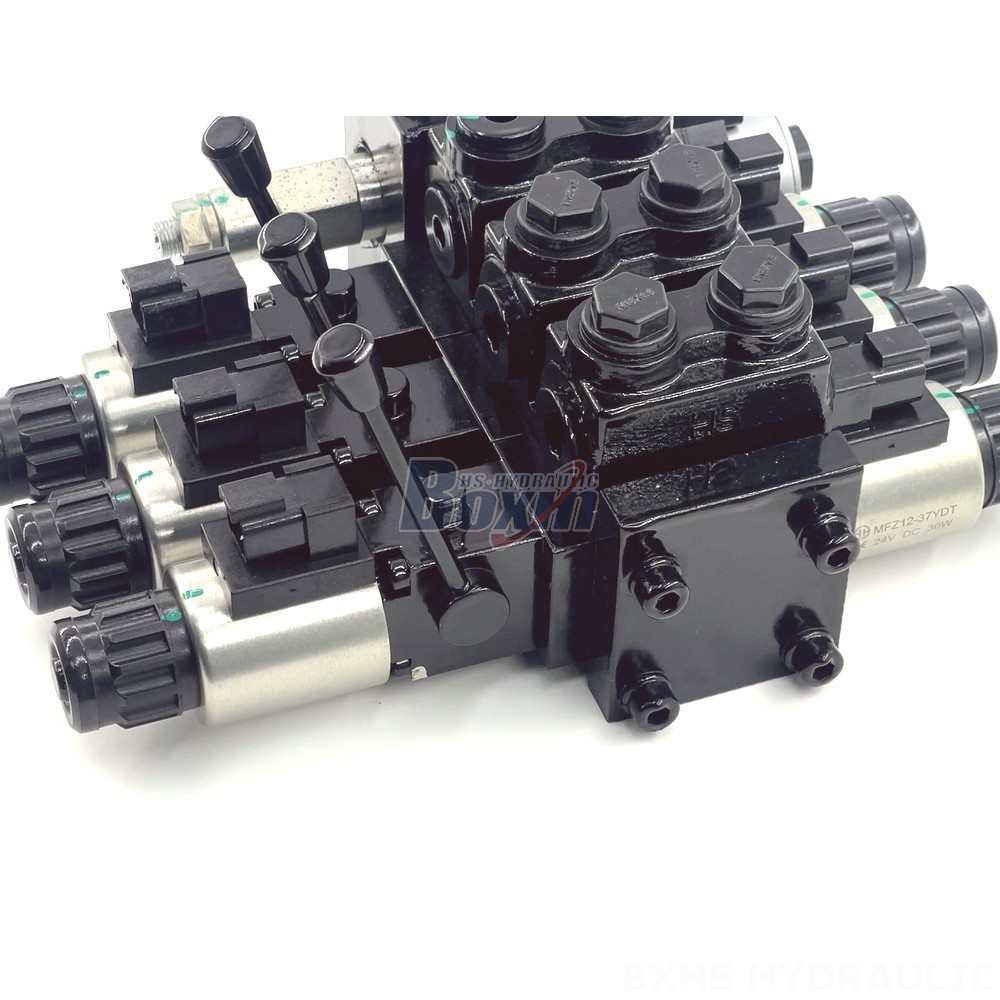

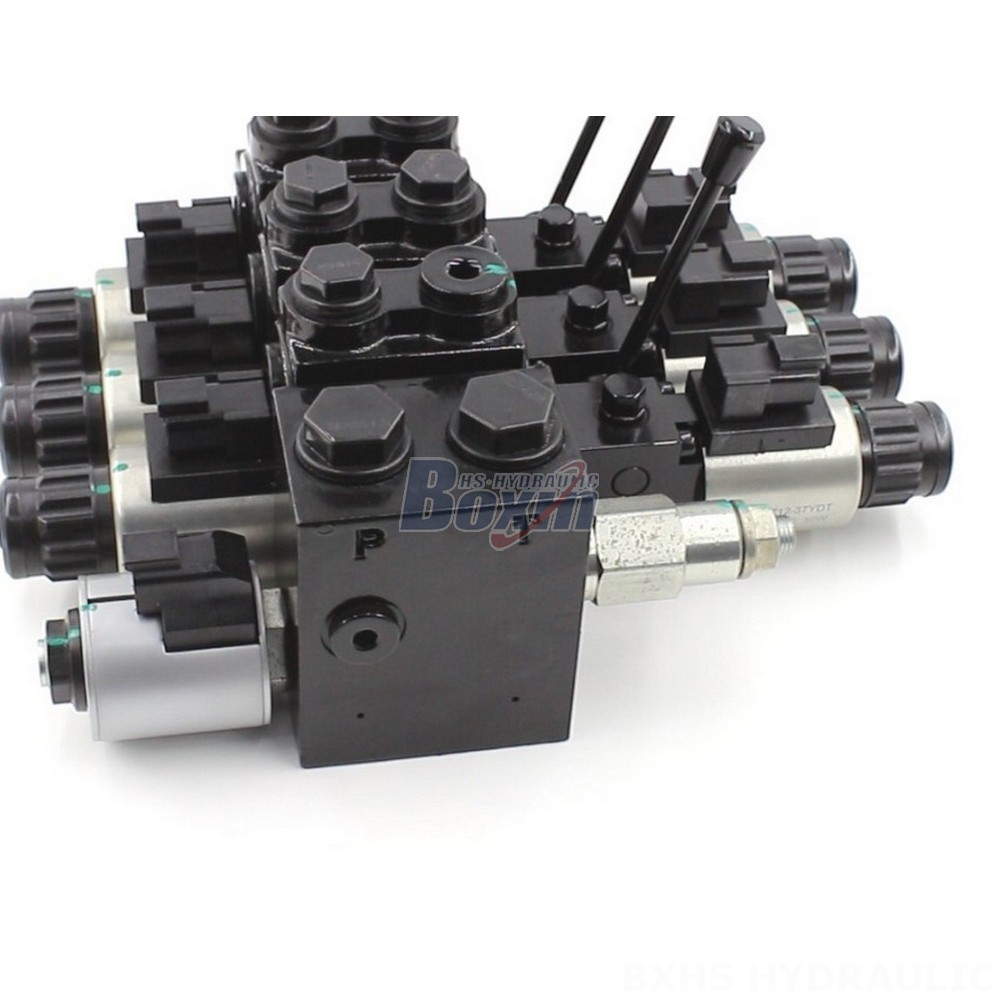

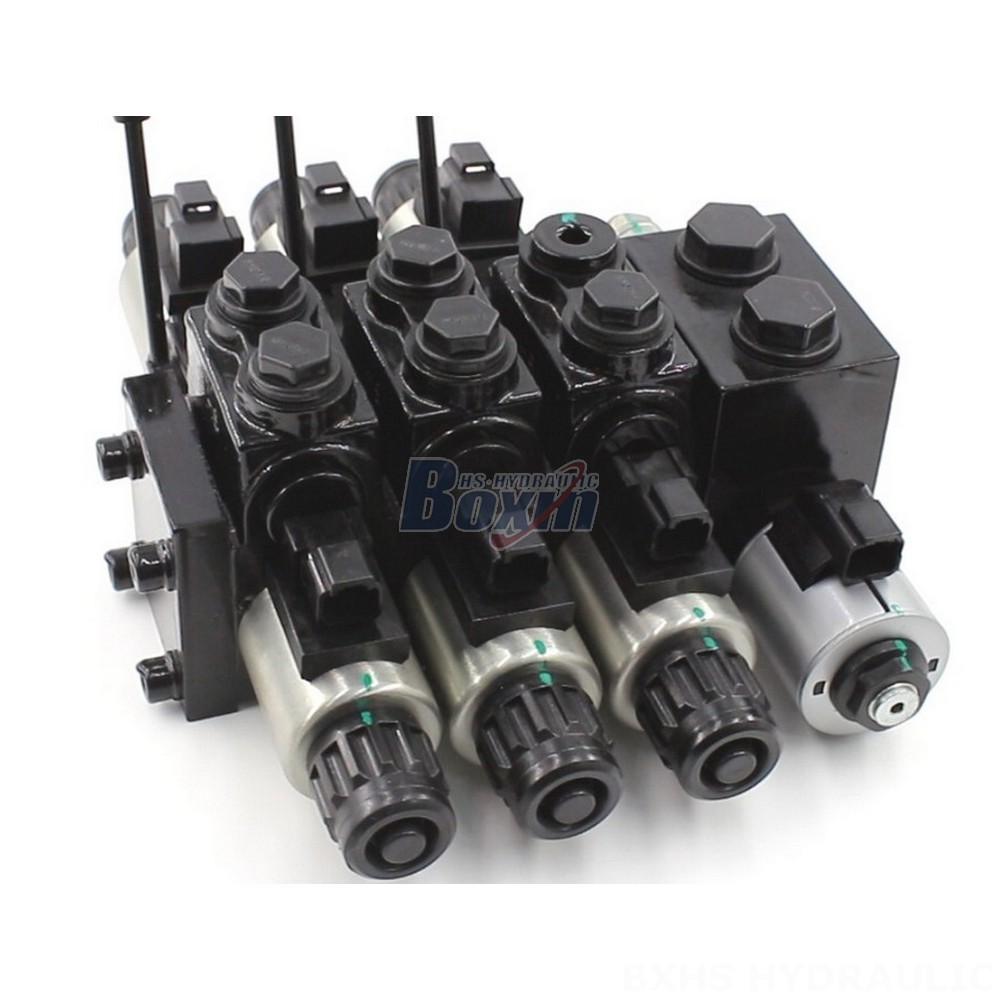

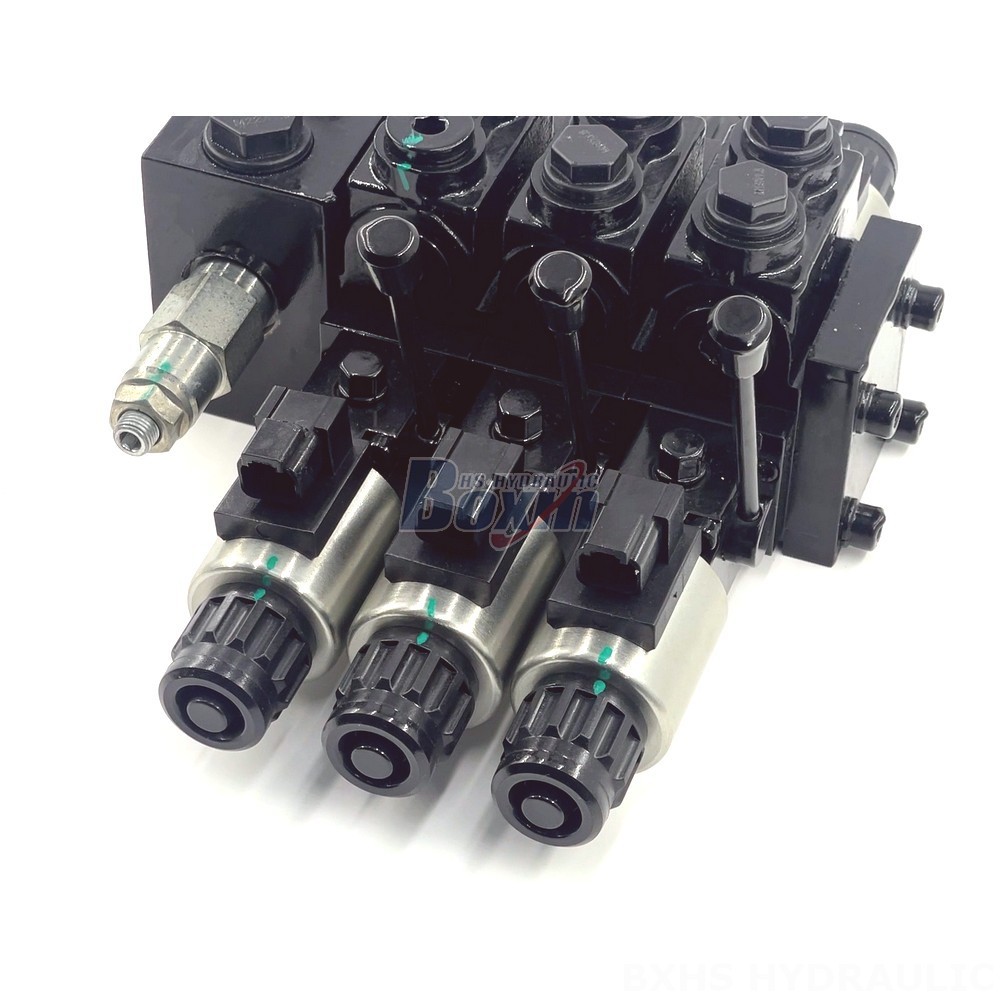

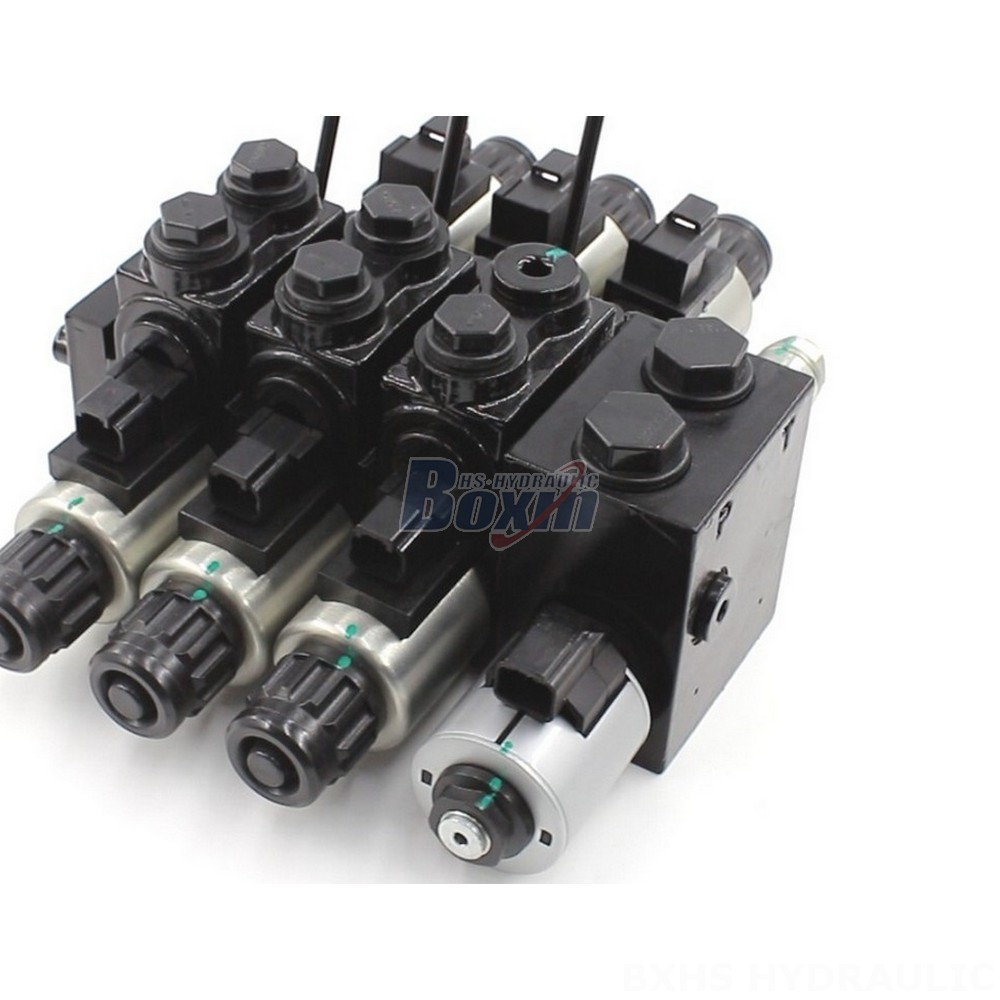

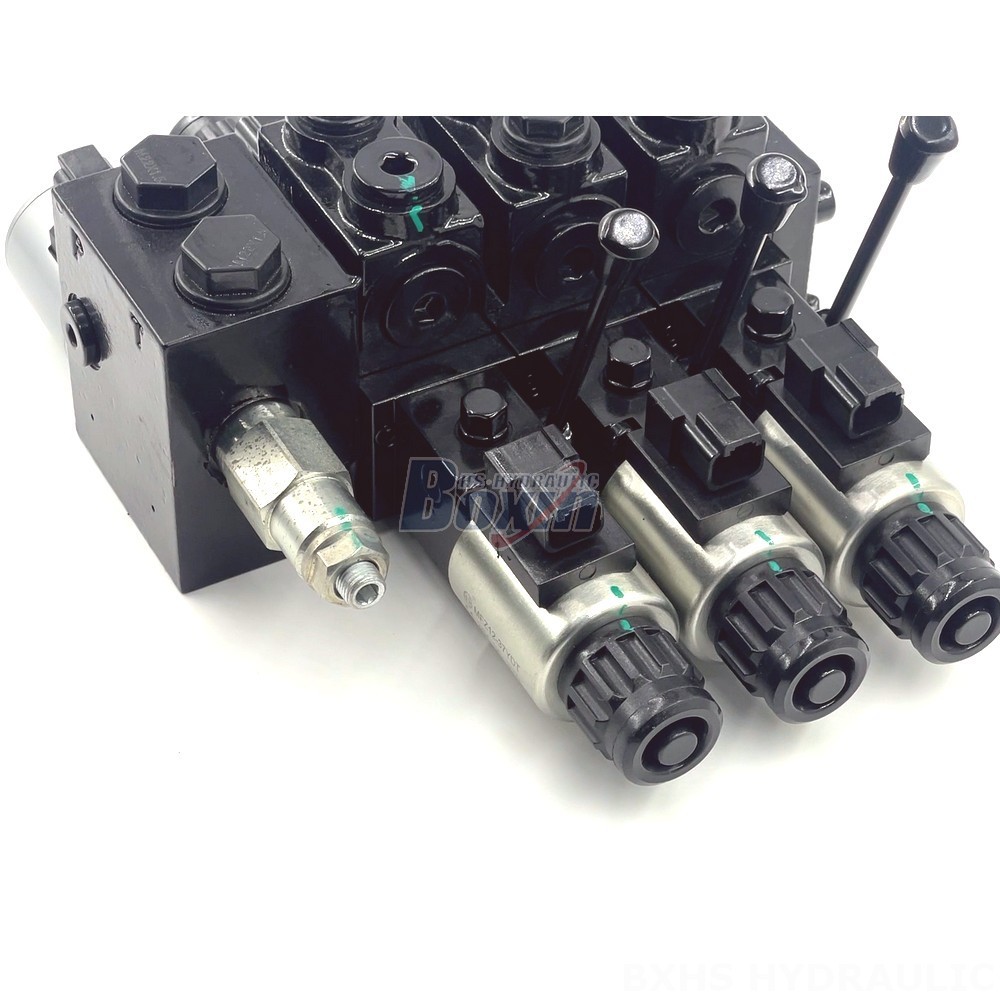

The DCV58 Directional Valve is a high-quality, high-performance hydraulic control valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 3-section, sectional valve offers reliable flow control, solenoid and manual control options, and is built to withstand high pressures.
| DCV58系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
The DCV58 Series Hydraulic Control Valve provides precise flow control for various applications. It features a 3-section, sectional valve design with a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure rating of 350 bar (5100 psi). The valve can operate in a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is suitable for ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve is equipped with a 3-spool system and offers both solenoid and manual control options. Its robust construction makes it ideal for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and mini-excavators.
