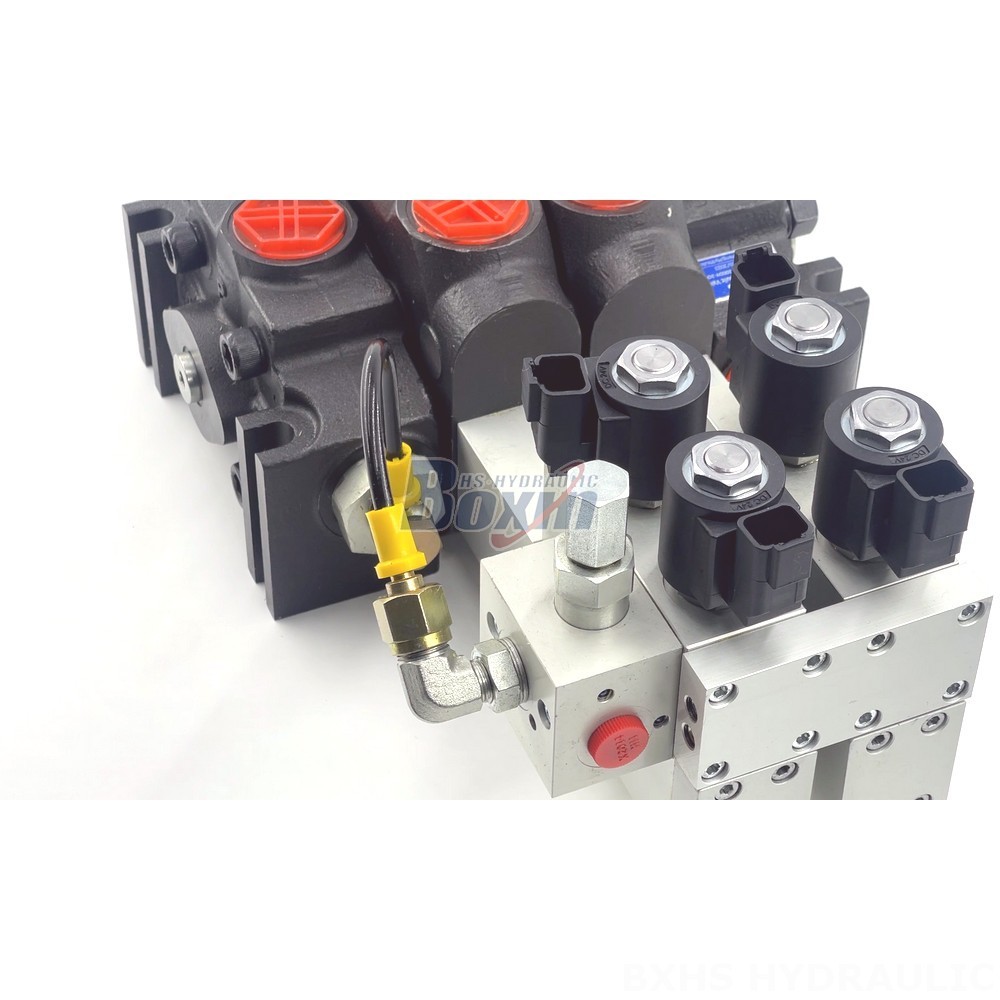

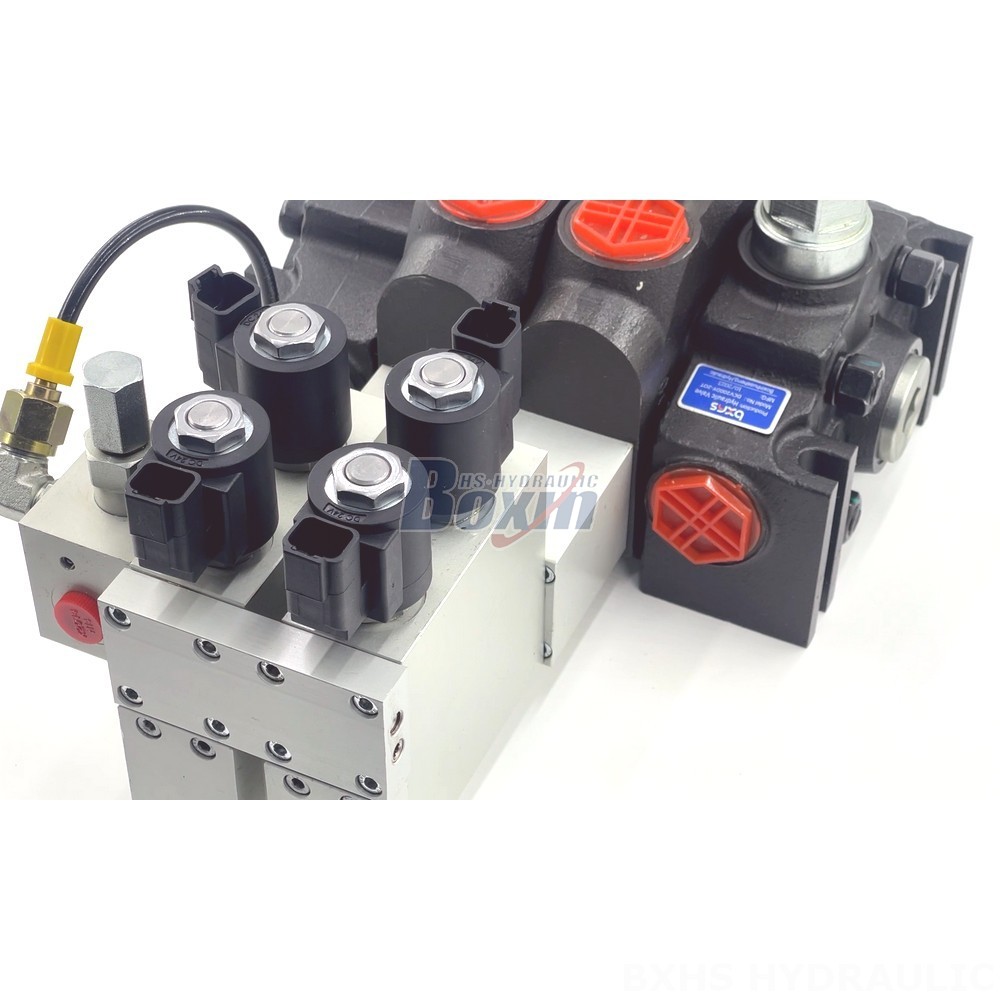

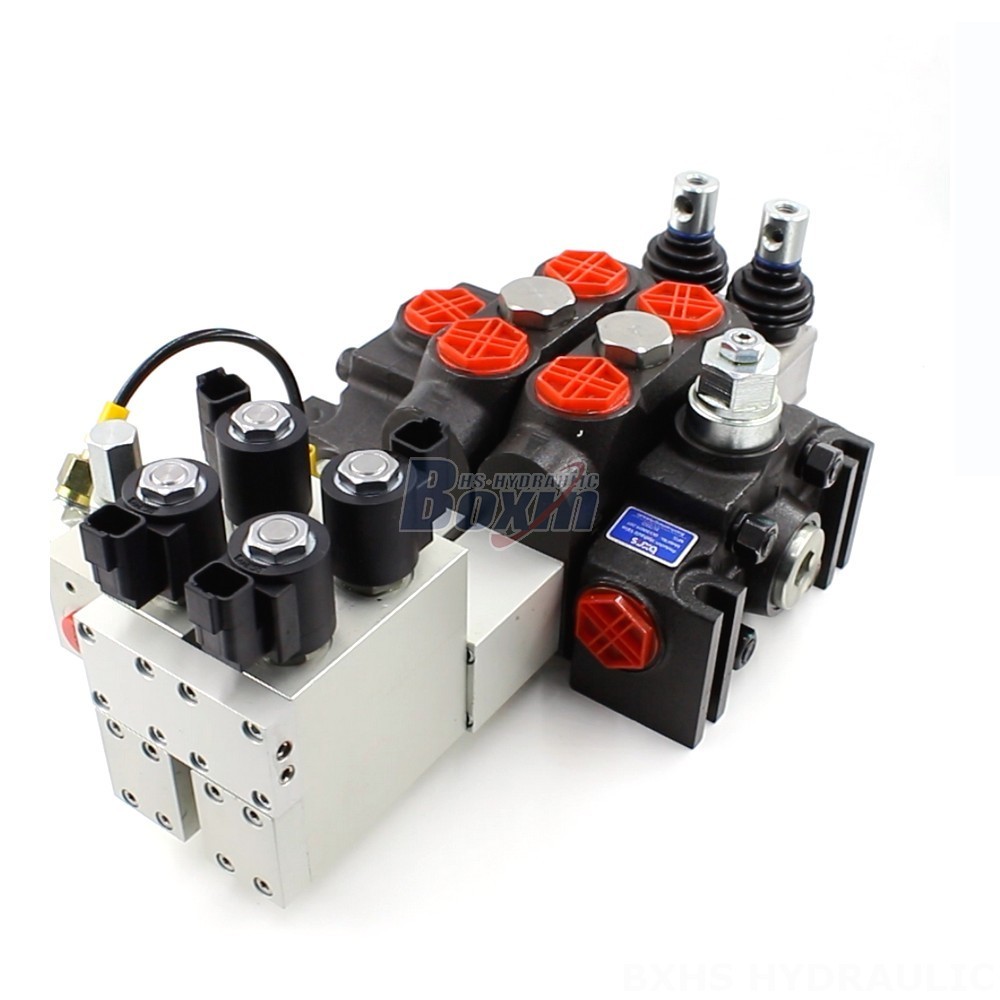

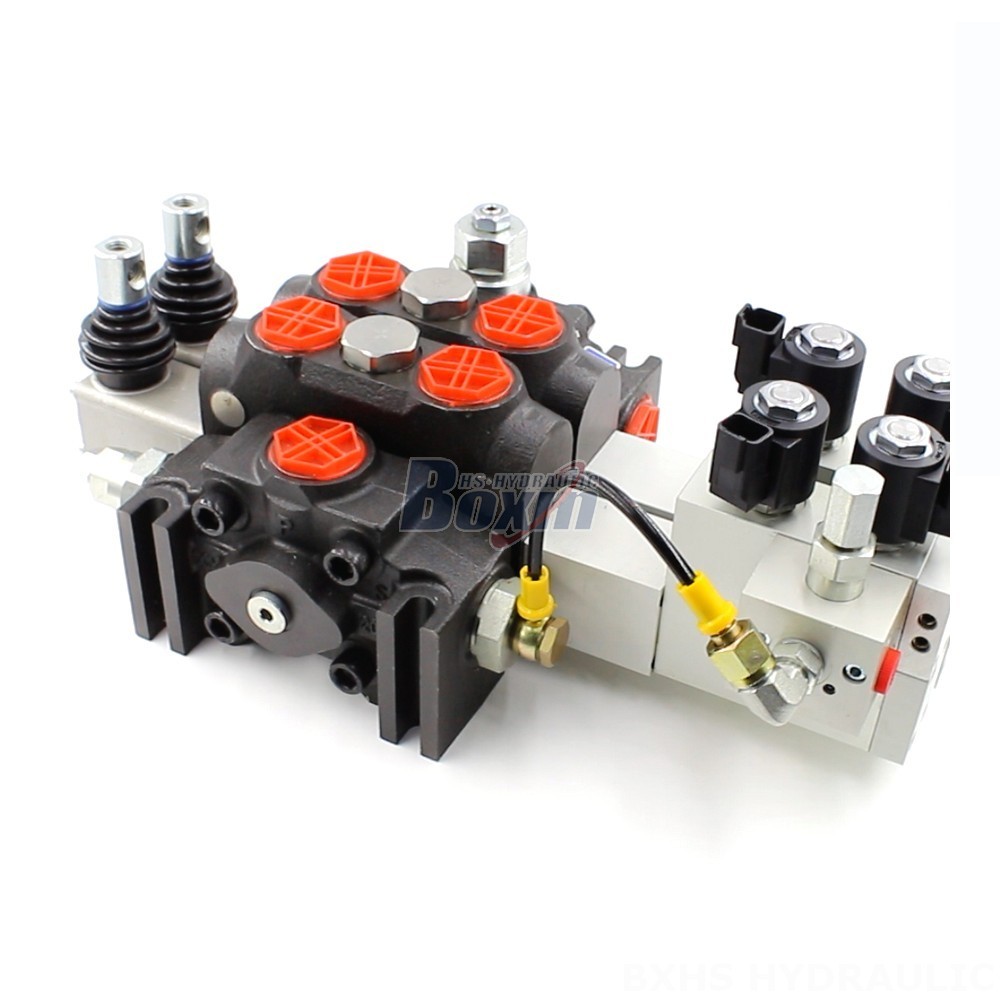

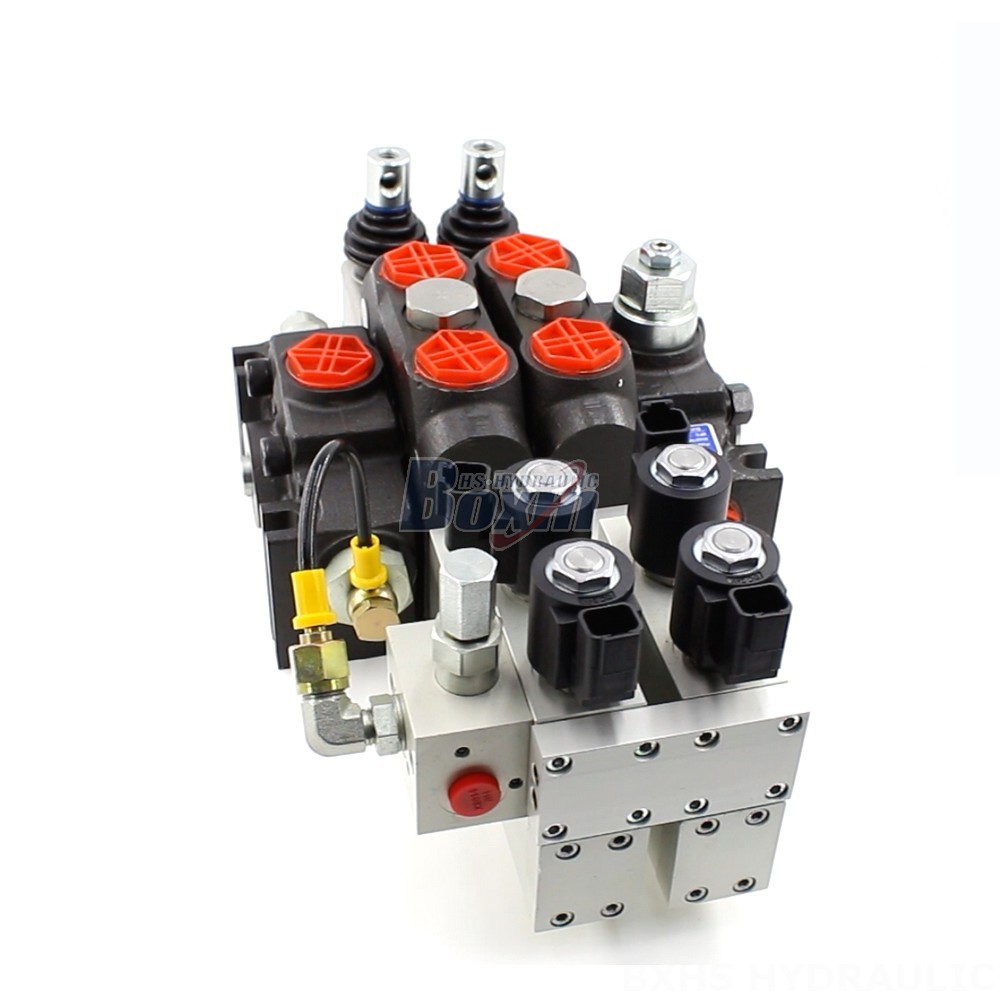

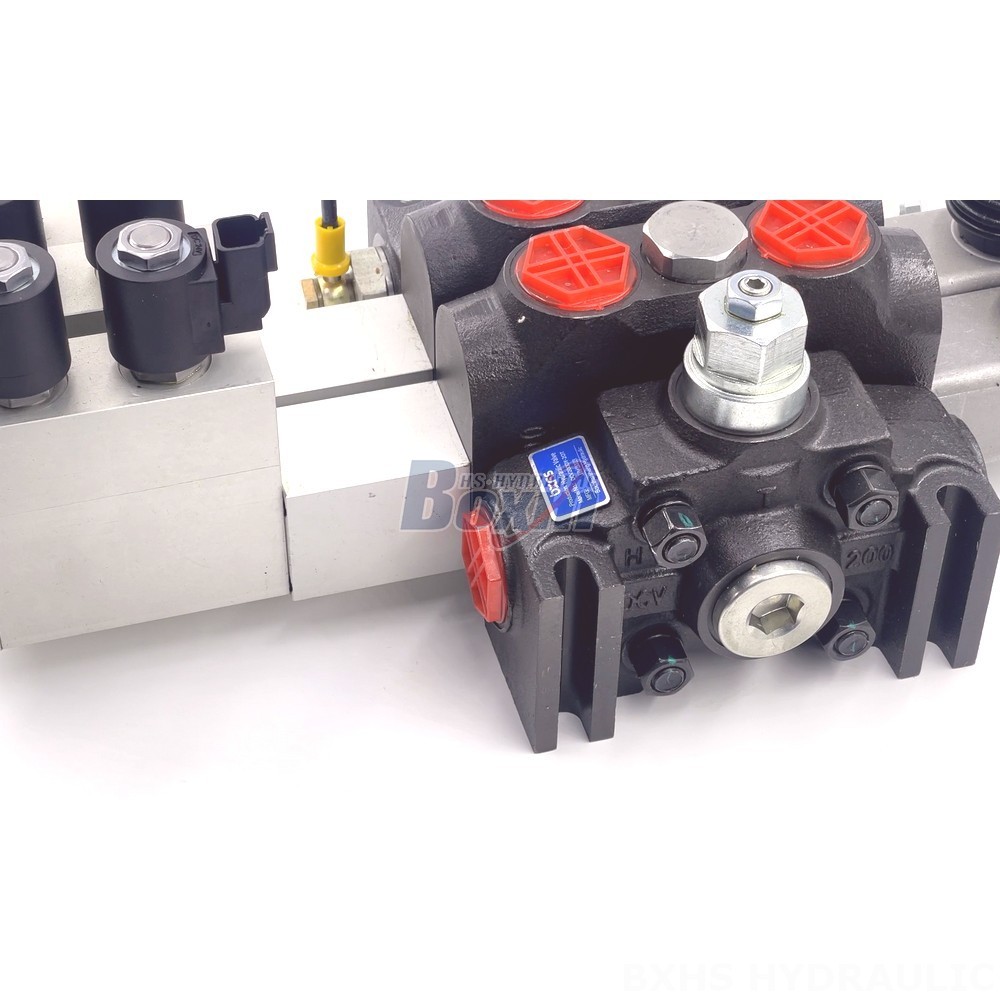

The DCV200 Series Electro-hydraulic Valve is designed for a wide range of applications in material handling, construction, earth moving, and agriculture. It features a 2-section design, 2-spool configuration, and a maximum pressure of 350 bar (5100 psi). With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), it is suitable for demanding environments.
| DCV200系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二, 手动和电液控制, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
| 出油口 | G1接口, M33×2.0螺纹, SAE 16接头, 1 NPT螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M33×2.0螺纹, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹 |
The DCV200 Series Electro-hydraulic Valve is manufactured by our company, a leading provider of hydraulic products. We offer factory direct supply and global distribution, ensuring competitive pricing and timely delivery. Our valves are known for their reliability, durability, and high performance. We also provide OEM, ODM, and private label services to meet your specific requirements. Whether you are a distributor, wholesaler, agent, or trader, we invite you to explore our product offerings and partner with us for your hydraulic valve needs.
