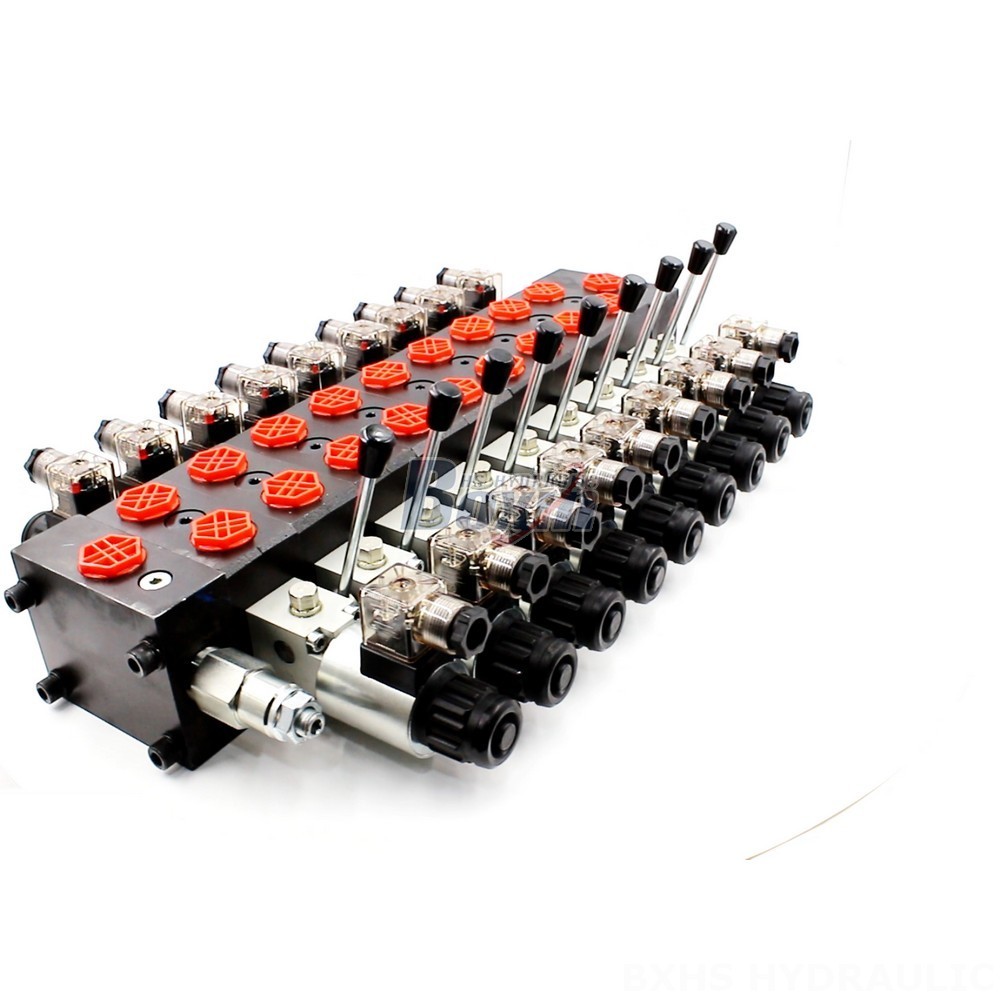

This Electric Hydraulic Valve Block is a 9 Spool Directional Control Valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It offers OEM and private label services, making it a customizable solution for different needs.
| DCV58系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
The Electric Hydraulic Valve Block features 9 spools, solenoid control, sectional valve structure, and a rated flow of 60 L/min. It operates at a maximum pressure of 350 bar and is suitable for operating viscosities ranging from 15 to 75 mm²/s. This valve is designed for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Its versatile design allows for customization, making it ideal for OEM and private label services. With its high performance and durability, this valve is a reliable solution for various hydraulic systems.
