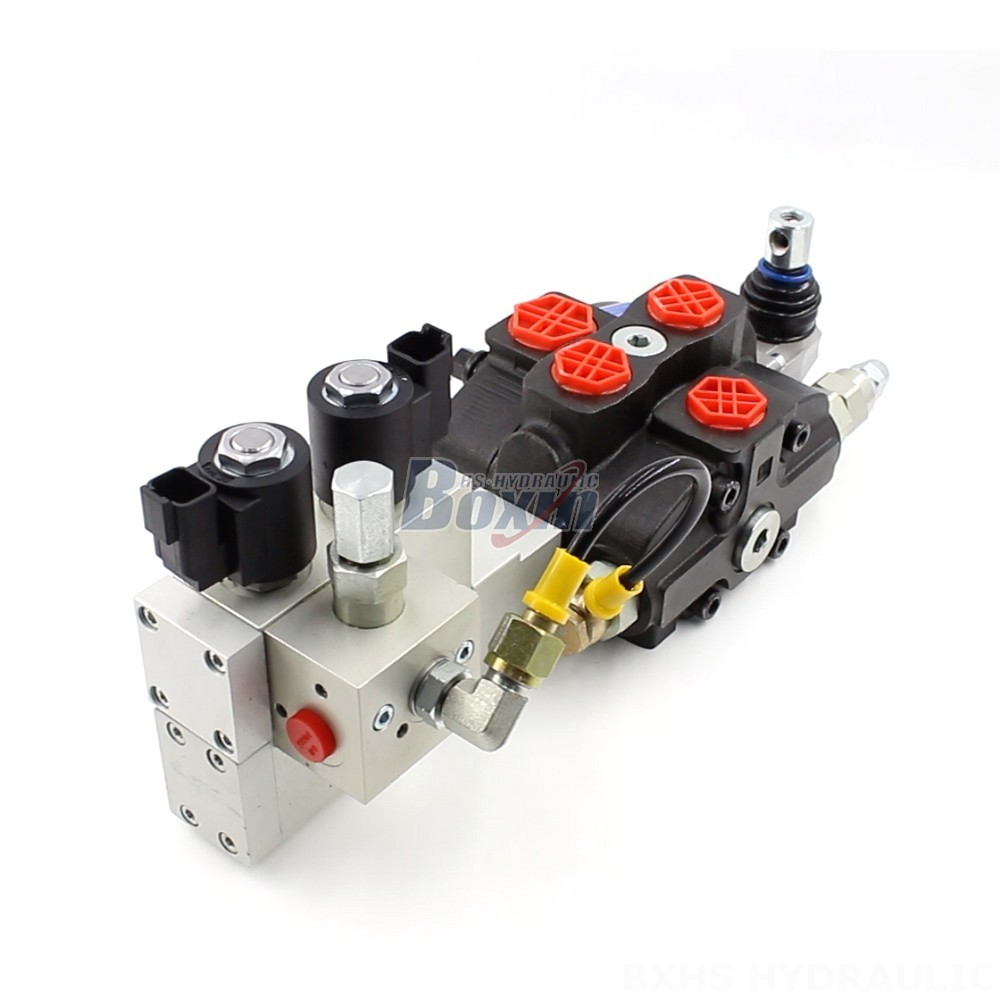

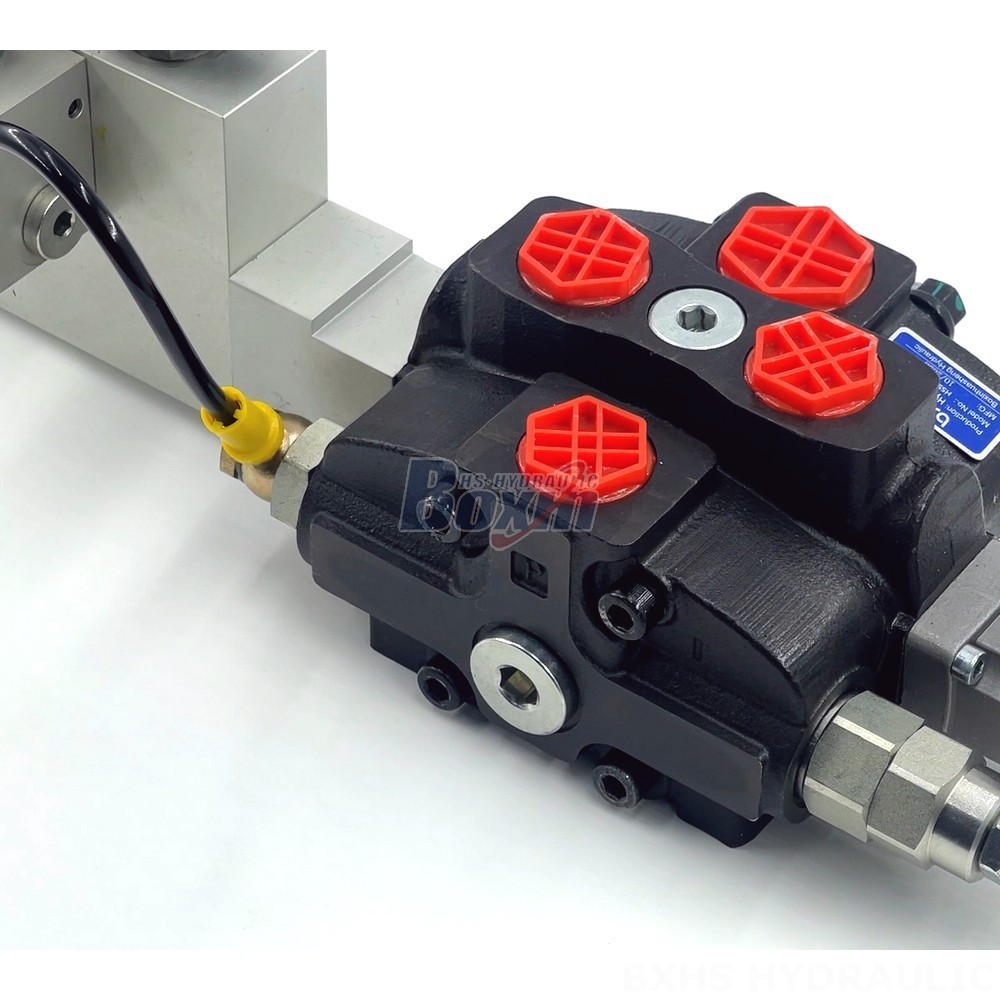

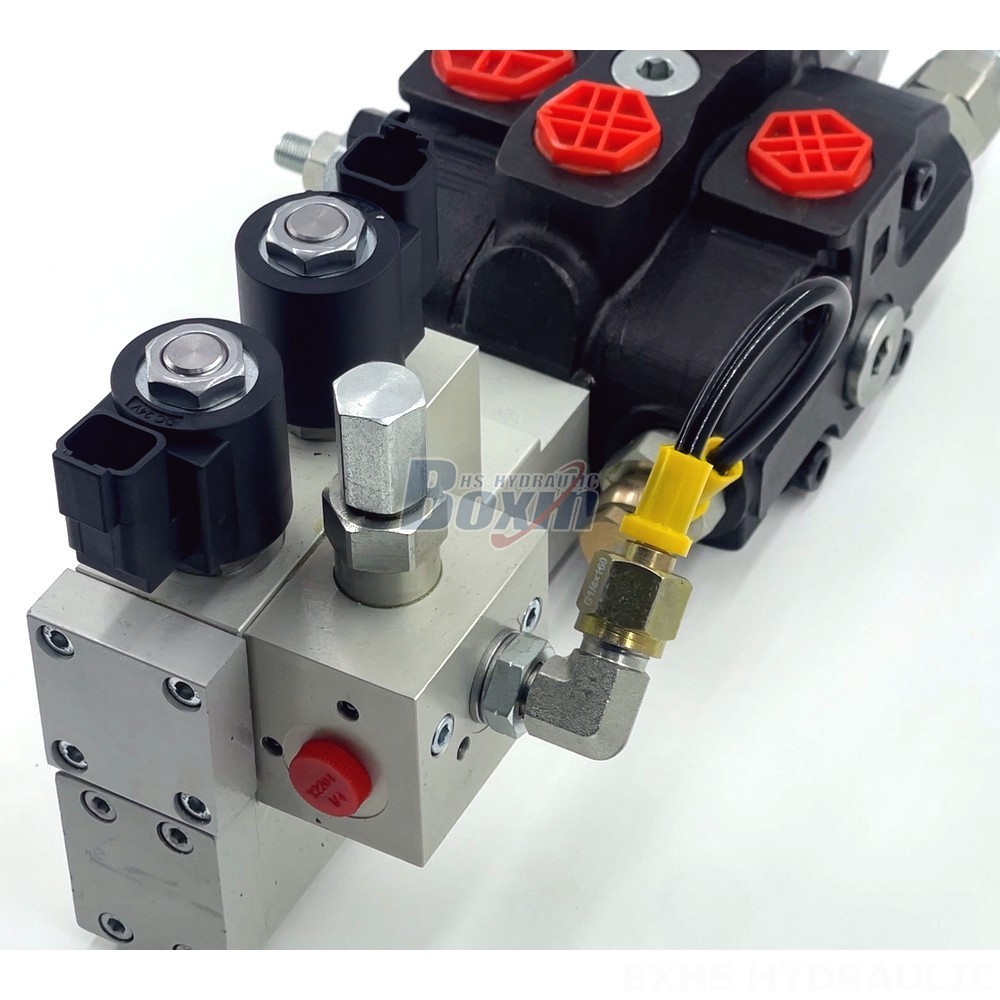

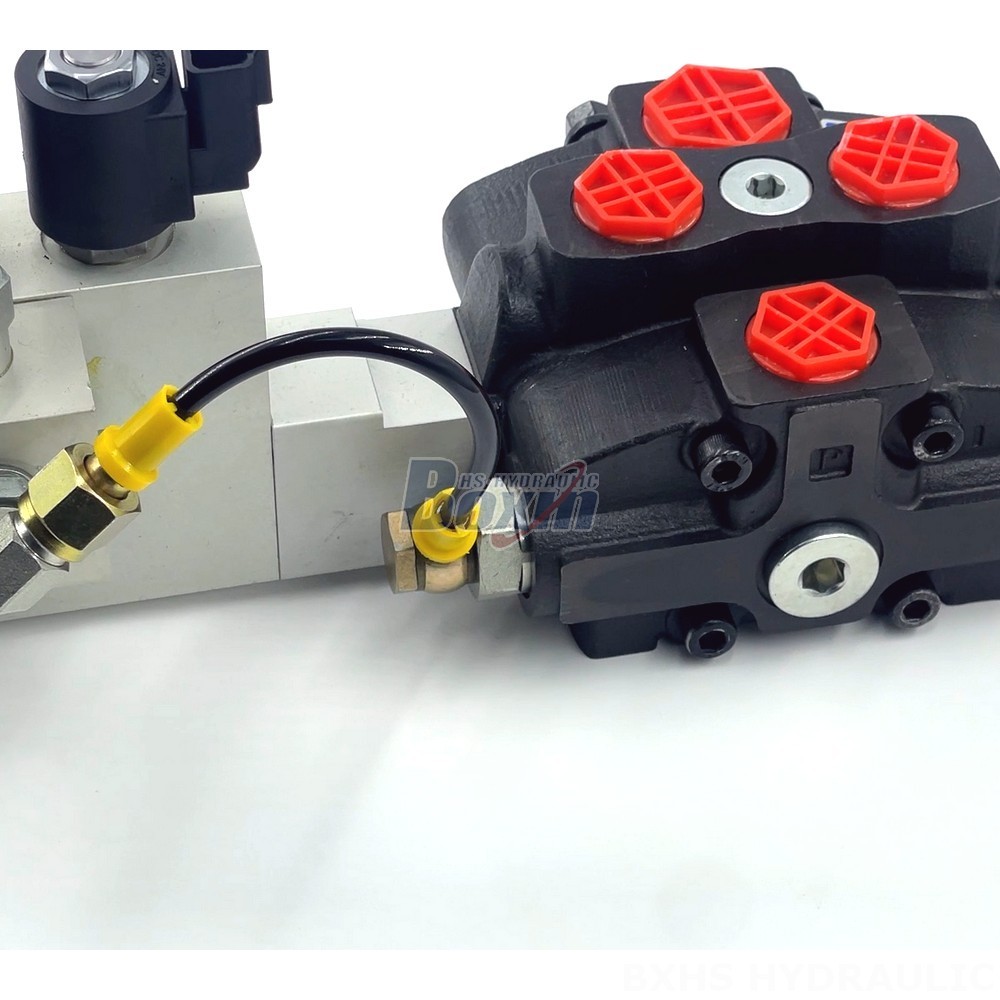

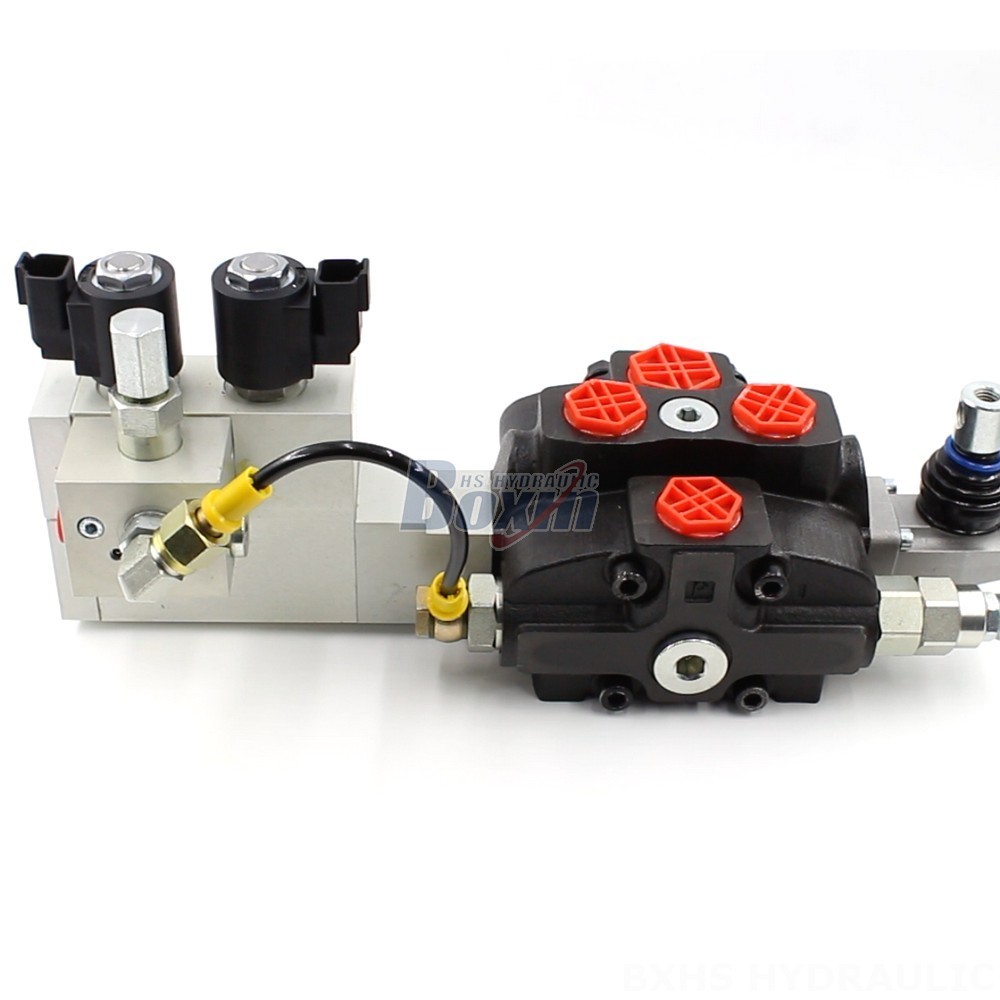

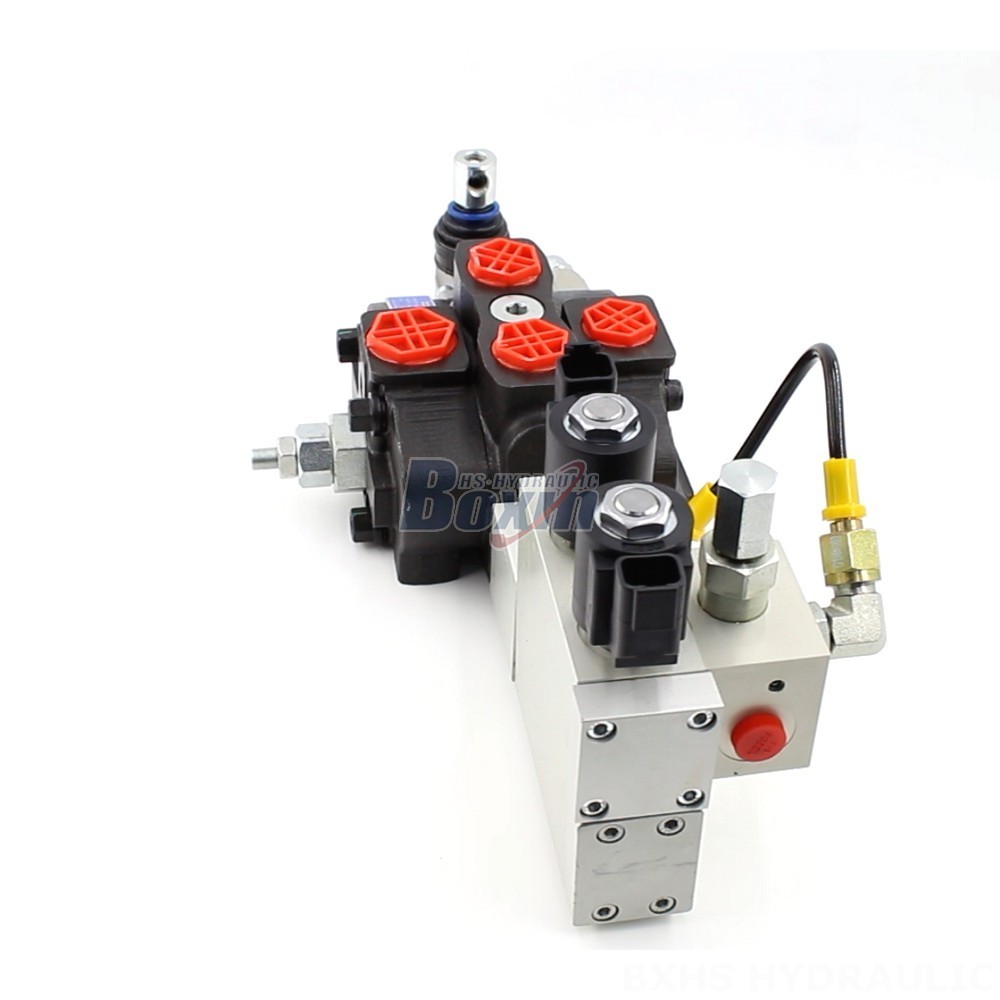

The SD8 Series 1-Spool Sectional Directional Valve is a reliable and efficient hydraulic flow control valve designed for material handling, construction, and industrial applications. It features electro-hydraulic control and offers a rated flow of 90 L/min (23.8 US gpm) with a maximum pressure of 350 bar (5100 psi).
| SD8系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, SAE 10接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 10接头, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, SAE 10接头 |
This 1-section sectional valve is engineered for demanding applications, boasting a wide operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for a variety of machinery, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The SD8 Series valve is available for wholesale and OEM (Original Equipment Manufacturer) needs, offering customizability and flexibility for your specific hydraulic system requirements.
