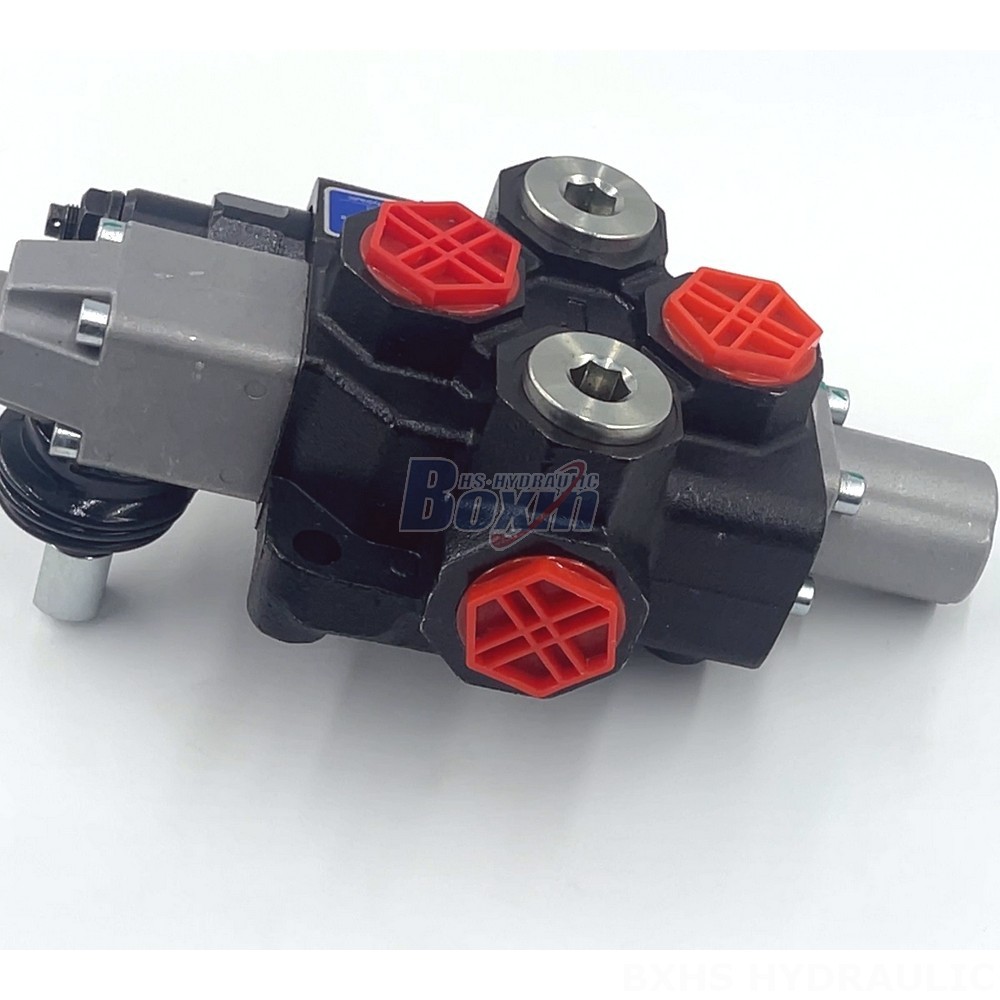

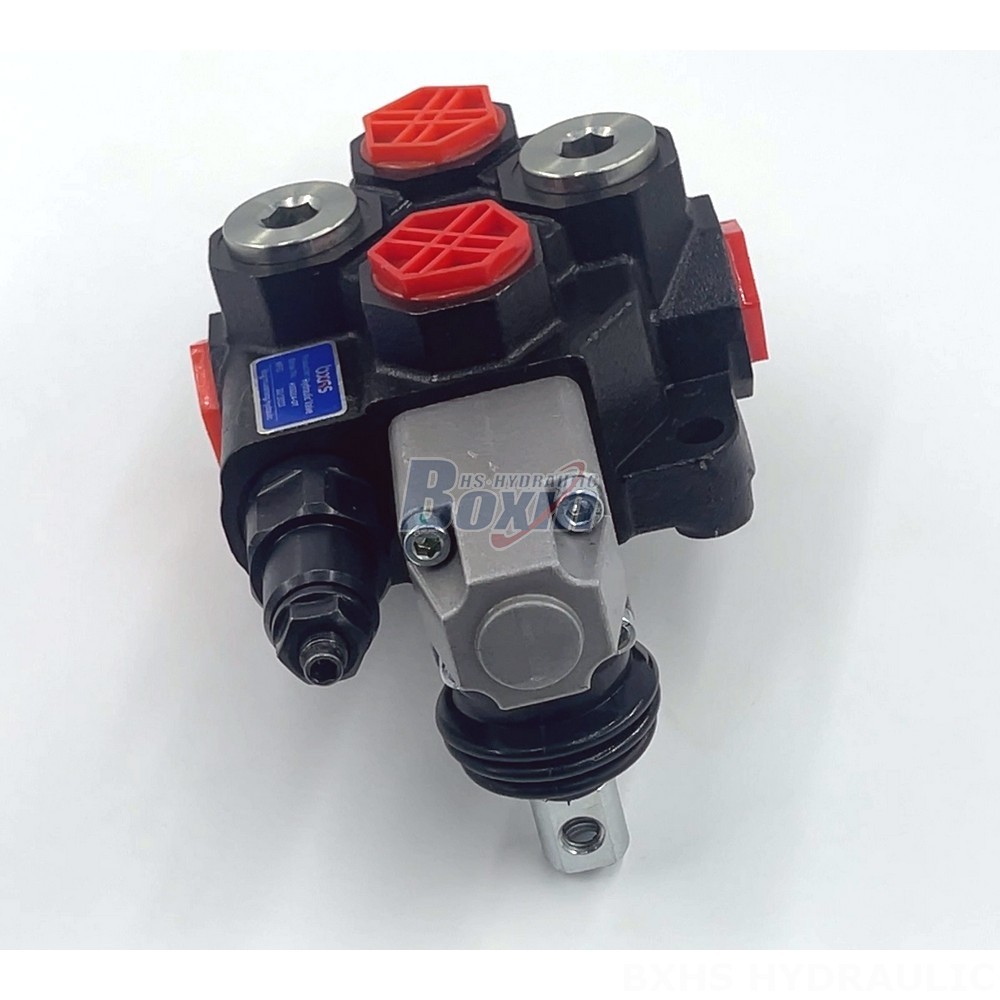

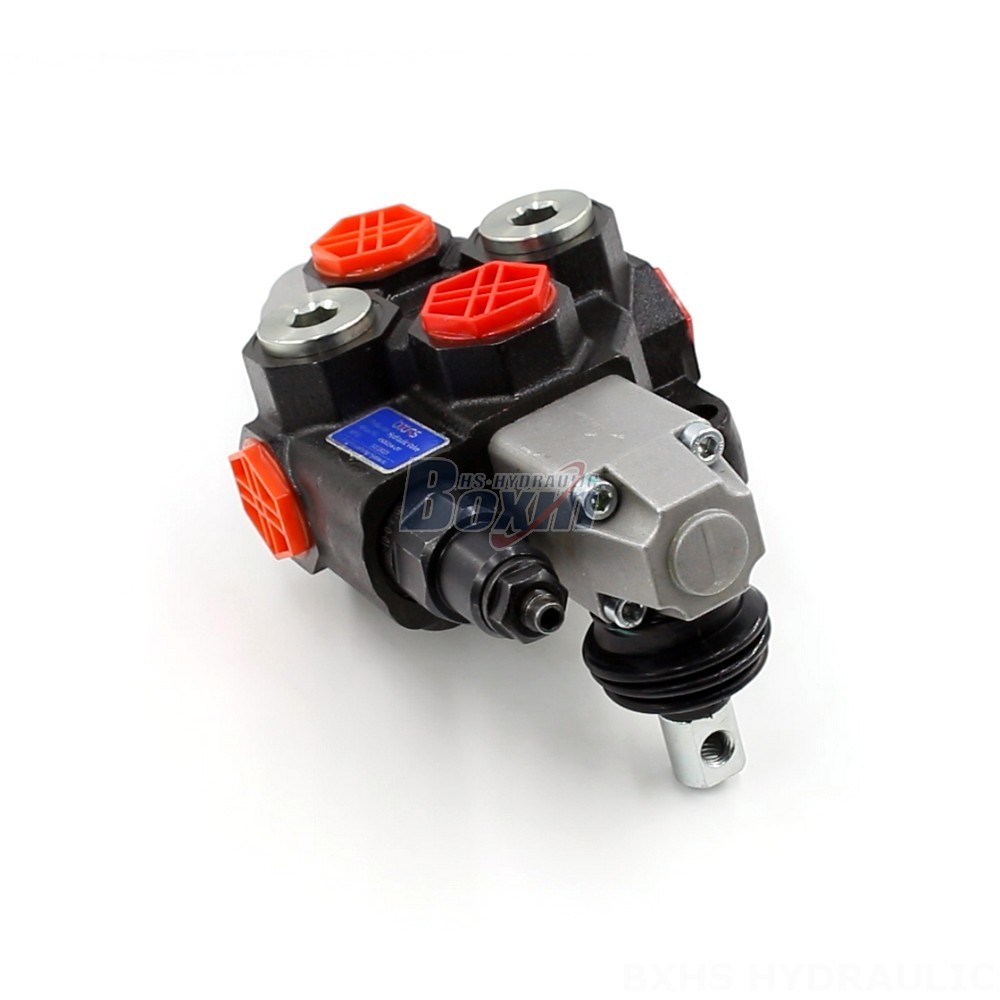

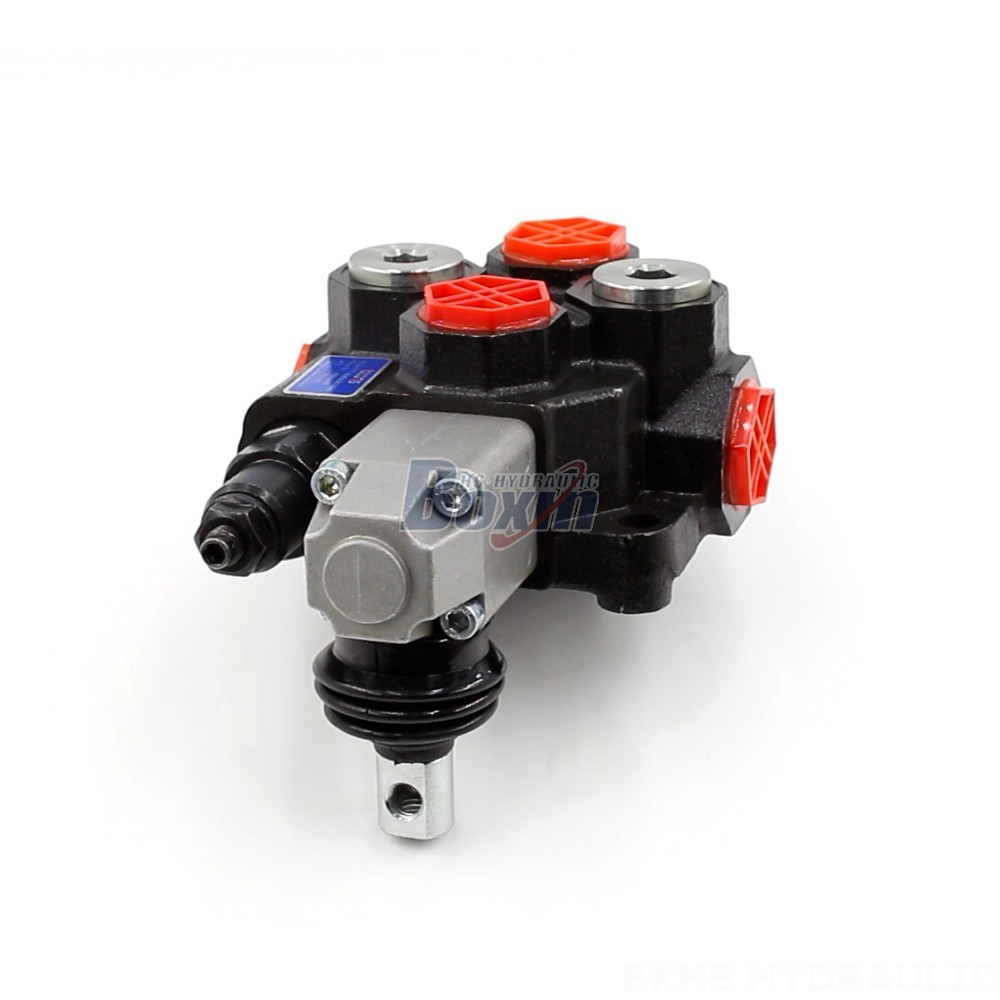

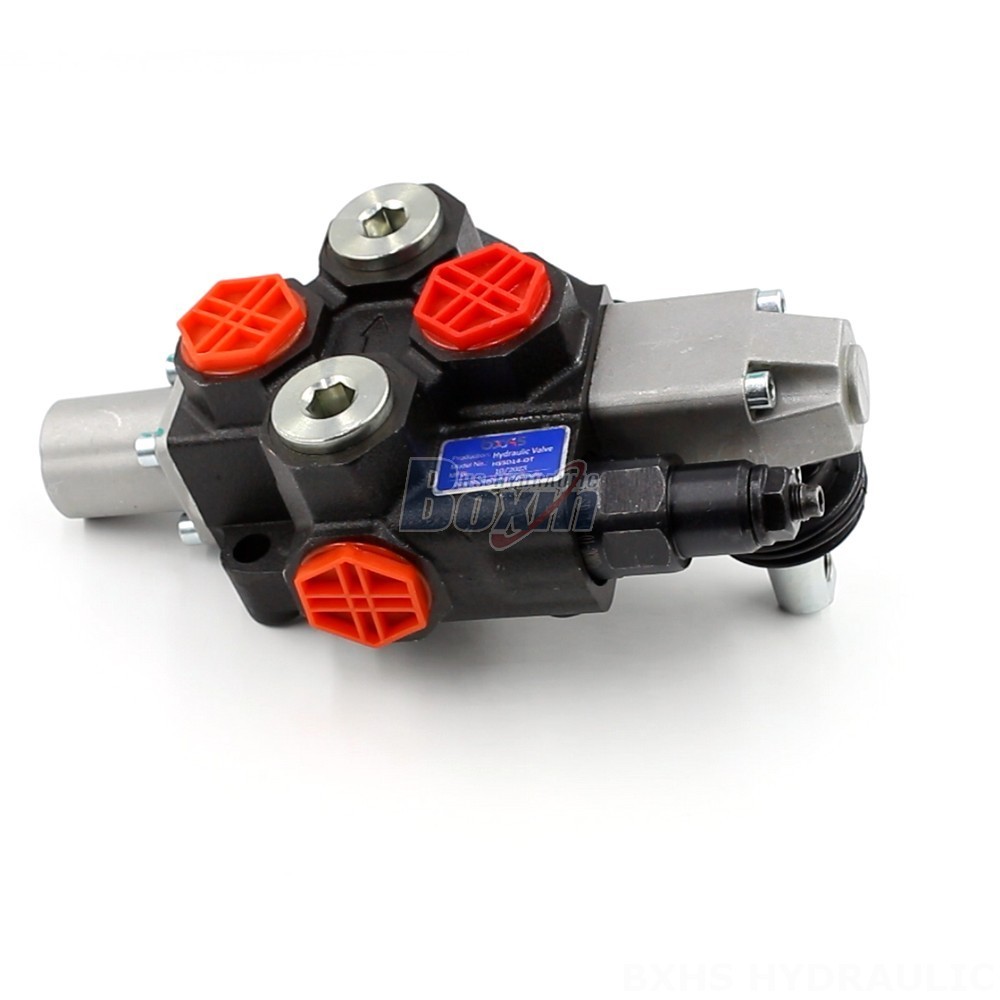

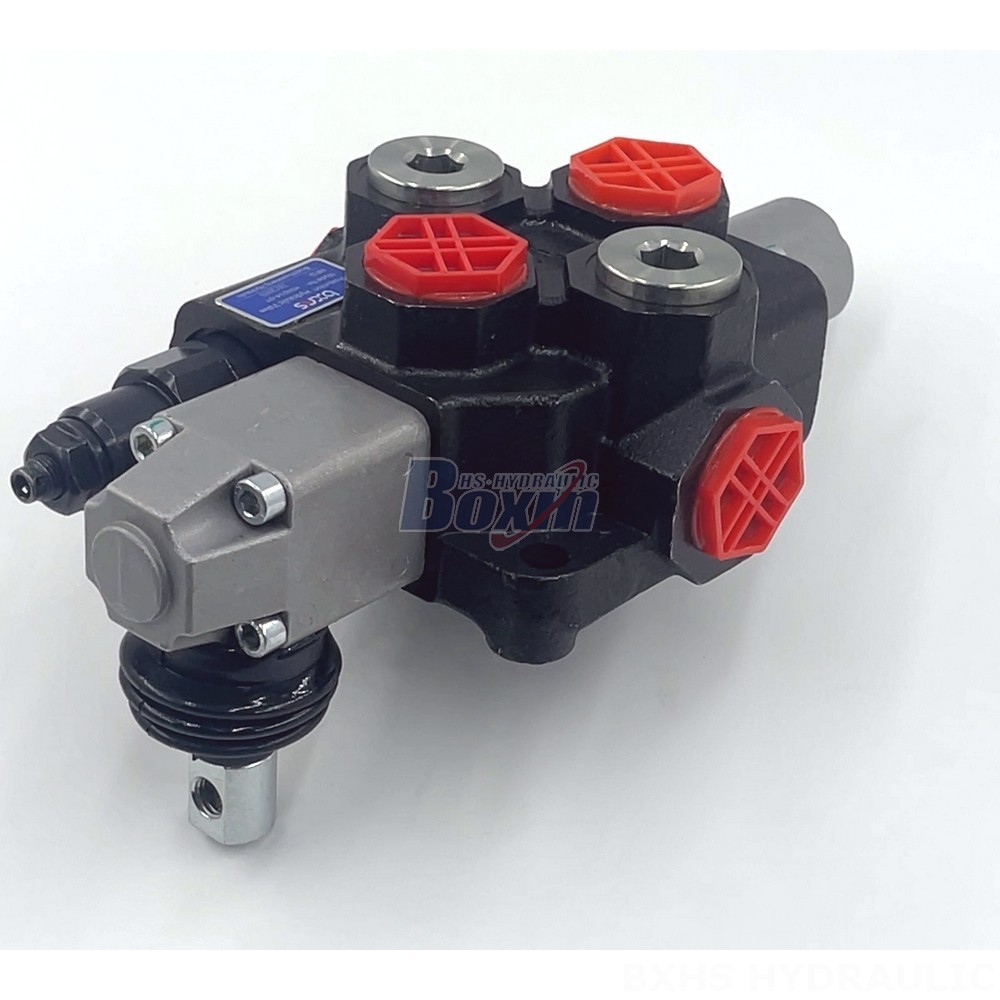

Hydraulic Sectional Valve 1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

控制方式:手控

路数:1 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:305 bar (4400 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD14系列 单块式方向阀

Packagingsize:15*26*15

Grossweight:6.80 kg

库存: 有货

848 次查看了此产品

Hydraulic Sectional Valve 1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

Hydraulic Sectional Valve 1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

Hydraulic Sectional Valve 1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

SD14系列 单块式方向阀 参数
控制方式 手控, 气控, 液控
路数 1 联
环境温度范围 -40°C to +60°C (-40°F to +140°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 315 bar (4600 psi)
进油口 G3/4接口
出油口 G3/4接口
接口尺寸 G3/4接口

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
