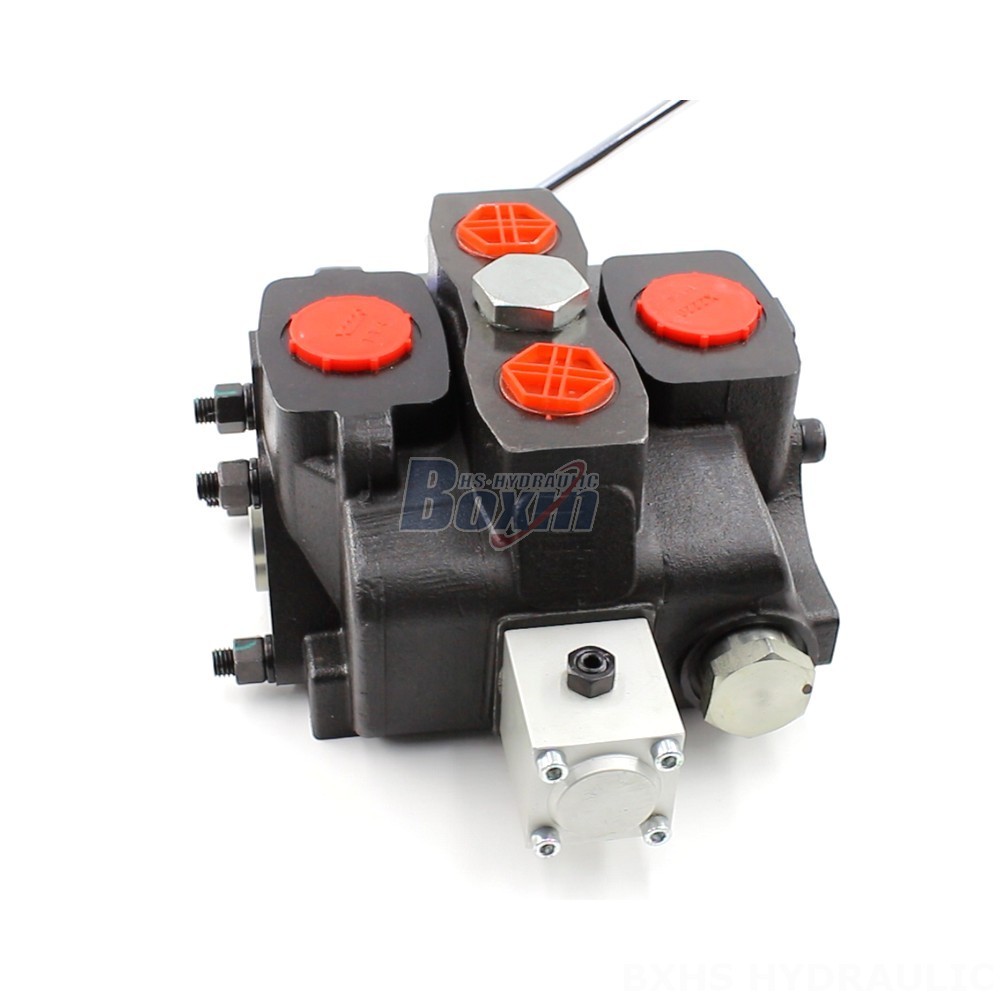

Two Spool Hydraulic Control Valve Source Directly & Save: SD25 Valves from the Factory Producer

控制方式:手控

路数:1 联

额定流量:240 L/min (63.4 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1接口

出油口:G1-1/4接口

接口尺寸:G1接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:SD25系列 分块式方向阀

Packagingsize:30*45*20

Grossweight:28.50 kg

库存: 有货

973 次查看了此产品

Two Spool Hydraulic Control Valve Source Directly & Save: SD25 Valves from the Factory Producer

Two Spool Hydraulic Control Valve Source Directly & Save: SD25 Valves from the Factory Producer

Two Spool Hydraulic Control Valve Source Directly & Save: SD25 Valves from the Factory Producer drawing image

Our SD25 series two spool hydraulic control valve is a high-performance, reliable option for various applications, including construction equipment, material handling, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 240 L/min (63.4 US gpm) and a max pressure of 315 bar (4600 psi). Designed for durability and efficiency, it is suitable for demanding environments.

SD25系列 分块式方向阀 参数
控制方式 手控, 电液控, 液控
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 分片阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)
额定流量 240 L/min (63.4 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1接口, SAE 16接头
出油口 G1-1/4接口, SAE 16接头
接口尺寸 G1接口, G1-1/4接口, SAE 12接头

The SD25 series two spool hydraulic control valve is a reliable and efficient solution for various applications. Manufactured directly from our factory, we offer wholesale pricing and direct supply, ensuring competitive pricing and high-quality products. This monoblock valve features manual control, a rated flow of 240 L/min (63.4 US gpm), and a maximum pressure of 315 bar (4600 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Choose our SD25 series two spool hydraulic control valve for reliable performance and cost-effectiveness, directly from the factory.
