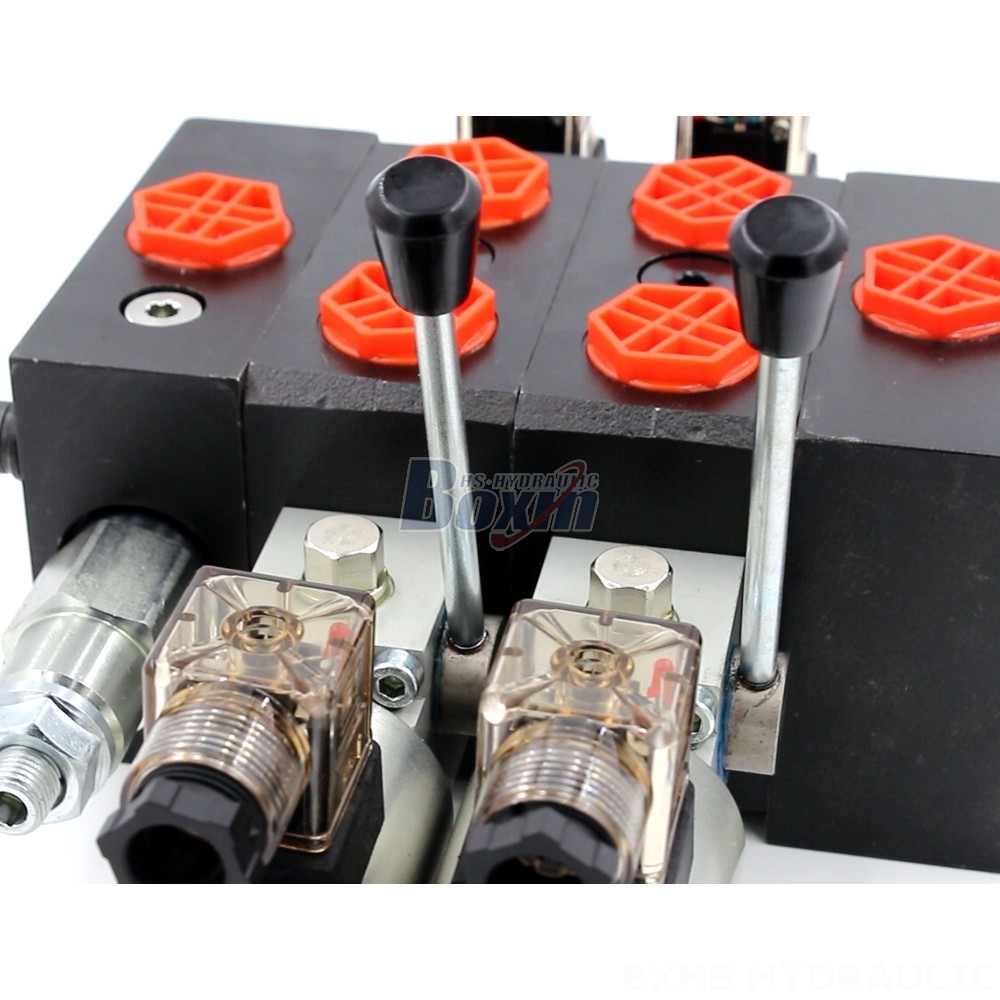

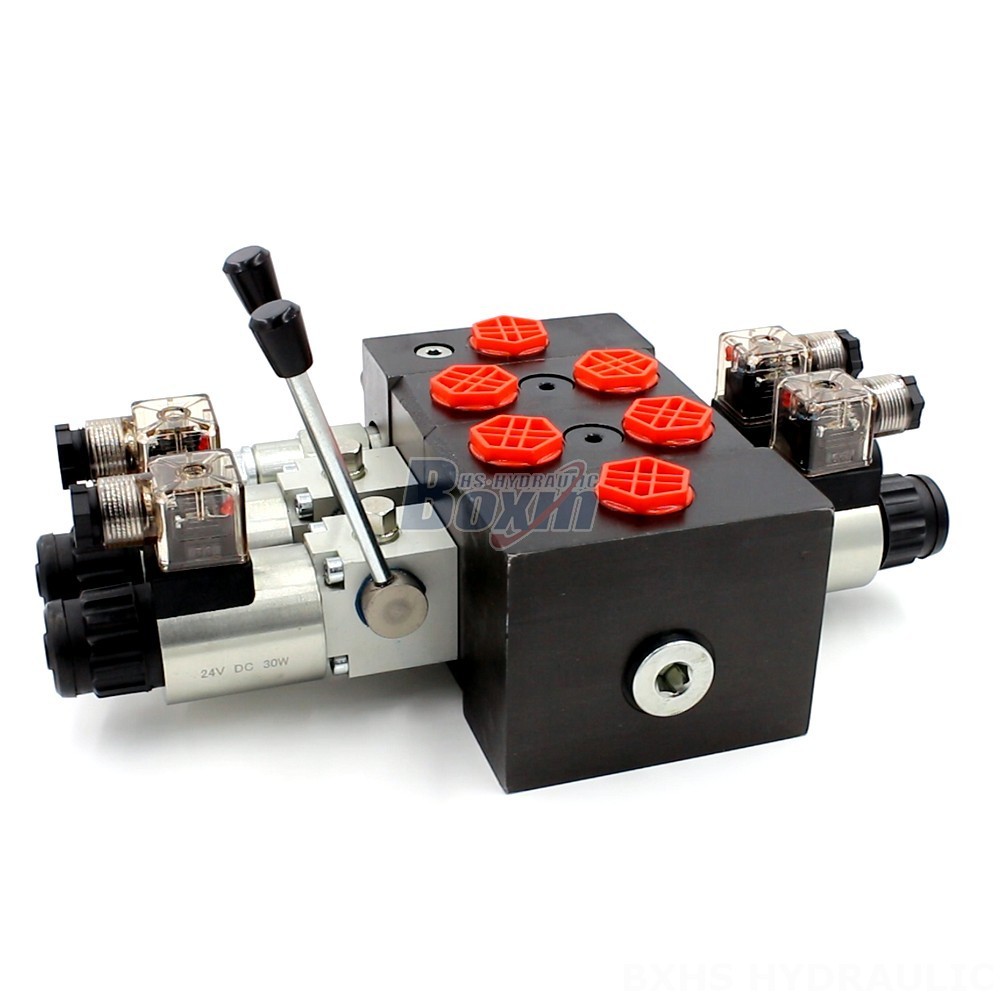

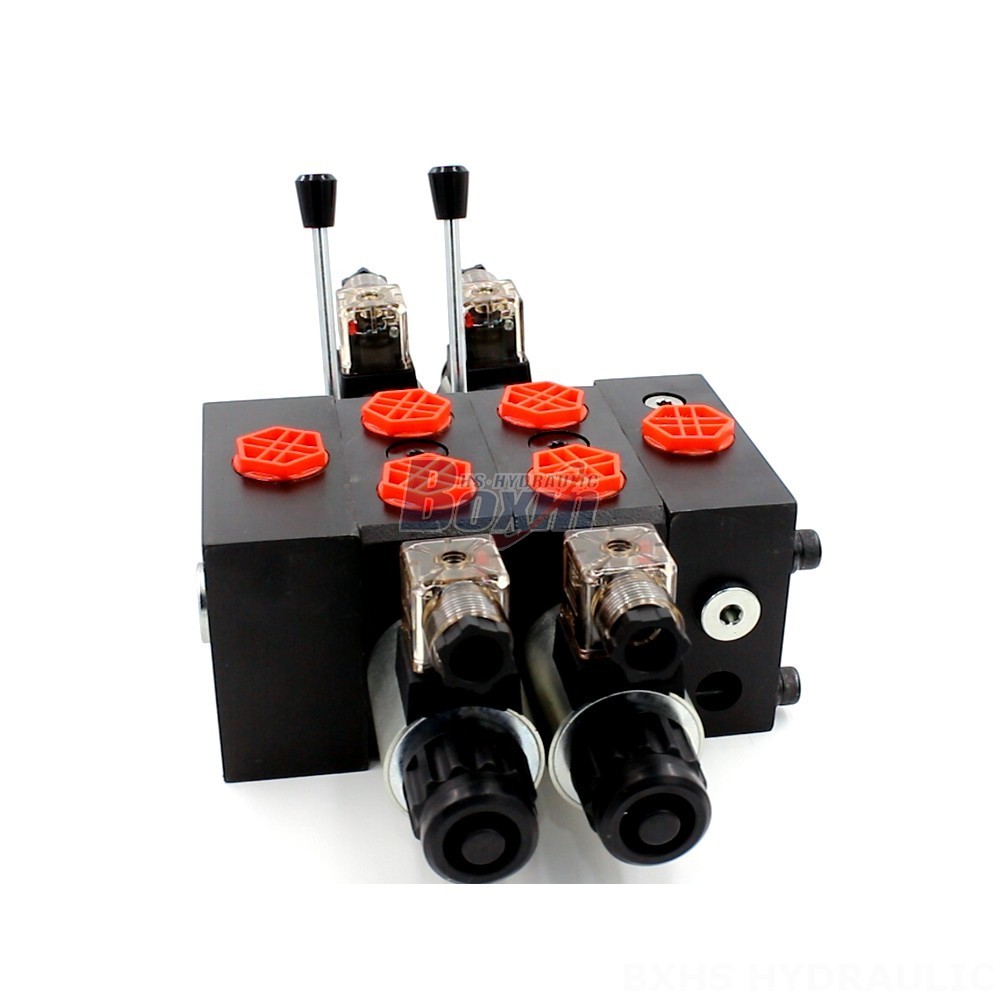

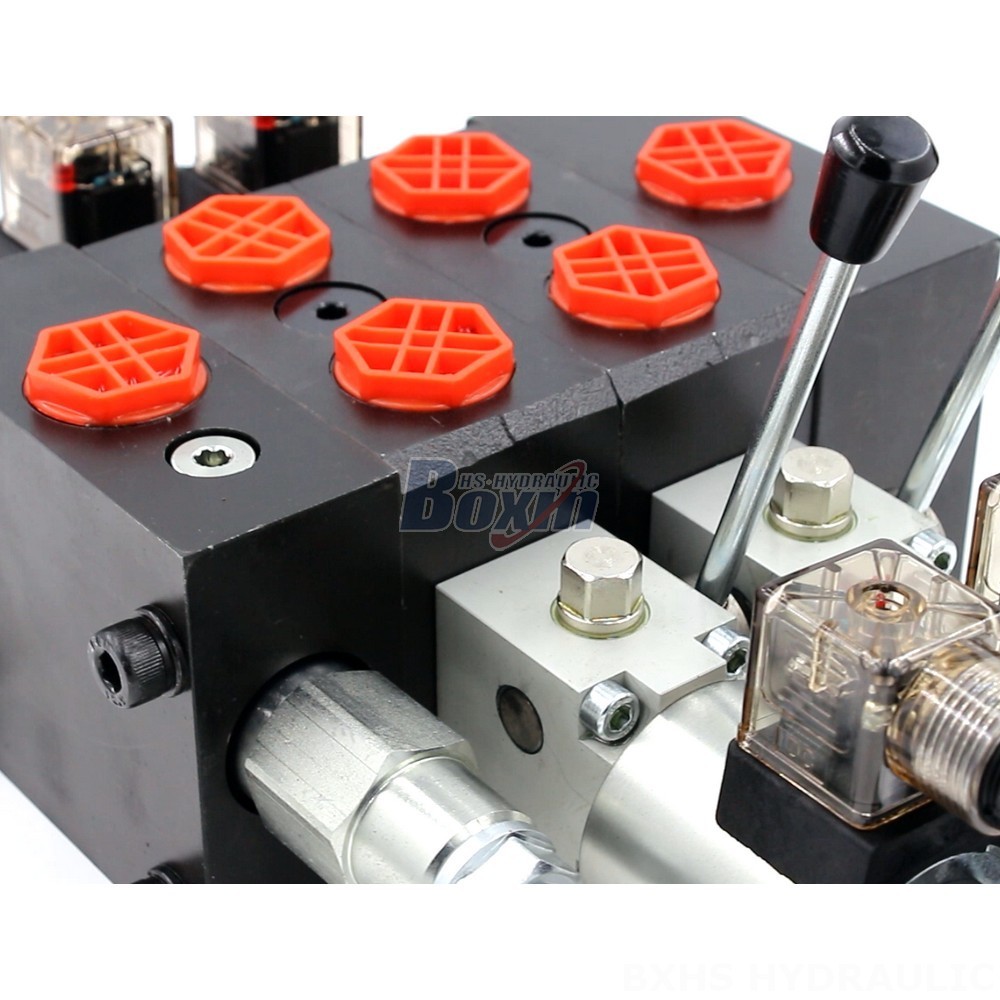

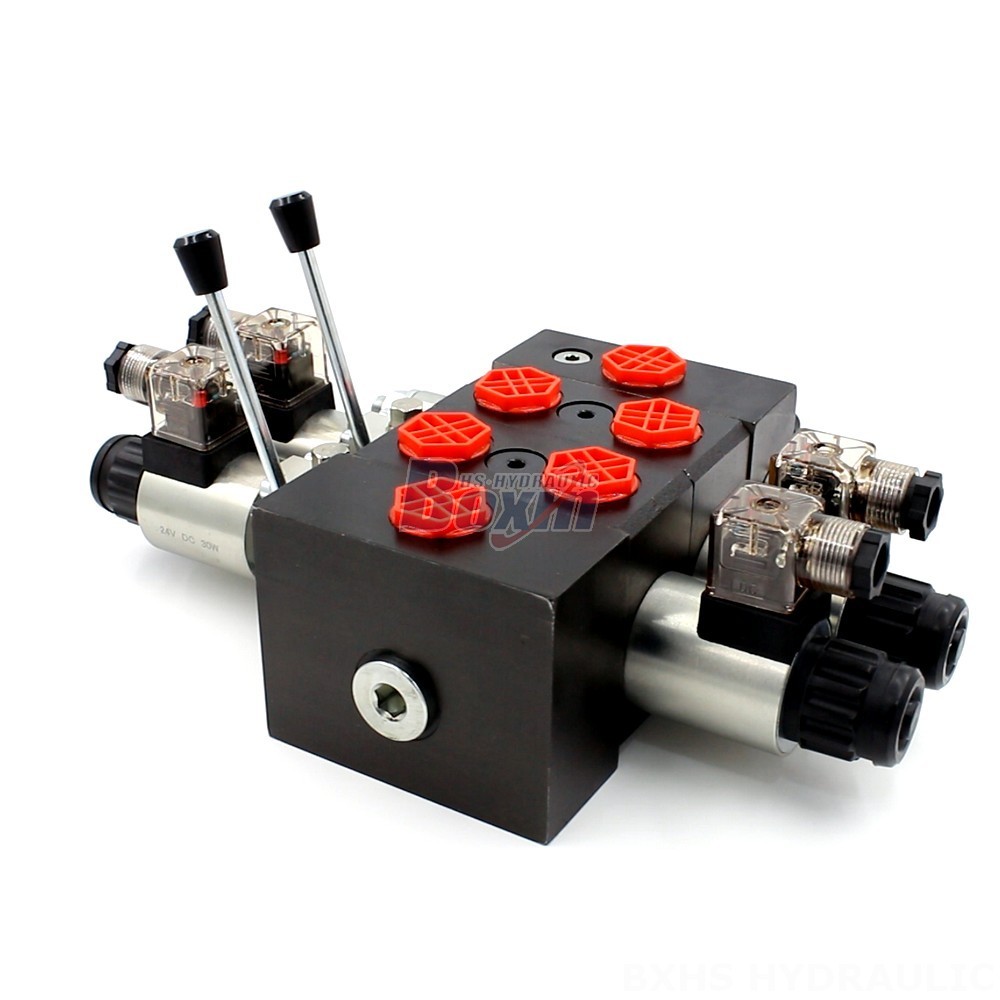

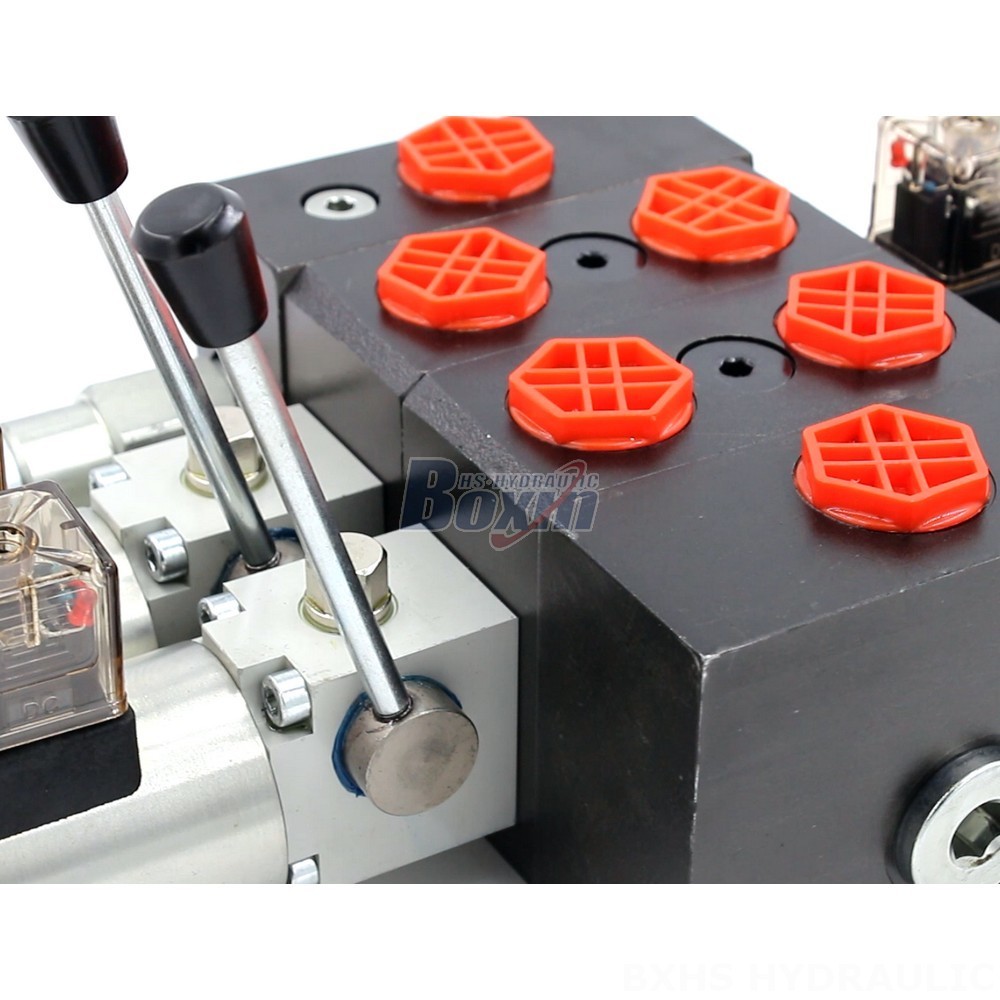

The DCV58 Series Electric Over Hydraulic Valve Block is a high-performance, 2-section sectional hydraulic valve designed for use in a wide range of applications, including material handling, construction, and agriculture. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is ideal for demanding applications. The valve is available for wholesale and OEM orders.
| DCV58系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 电磁, 电磁和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M22×1.5螺纹, SAE 10接头, 1/2 NPT螺纹 |
The DCV58 Series Electric Over Hydraulic Valve Block is a reliable and efficient hydraulic valve that offers a wide range of benefits, including:
* **High Performance:** Rated flow of 60 L/min and a maximum pressure of 350 bar for demanding applications.
* **Versatility:** 2-section design for a variety of hydraulic control functions.
* **Easy Control:** Solenoid control for precise and responsive operation.
* **Durable Construction:** Designed for long life and reliability in harsh environments.
* **Wide Applications:** Suitable for use in material handling, construction, agriculture, and industrial vehicles.
Available for wholesale and OEM orders. Contact us to discuss your specific needs.
