Motor Operated Valve SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

控制方式:手控

路数:1 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G3/8接口

出油口:G3/8接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD5系列 单块式方向阀

Packagingsize:23*20*12

Grossweight:3.80 kg

库存: 有货

938 次查看了此产品

Motor Operated Valve SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

Motor Operated Valve SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

Motor Operated Valve SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need drawing image

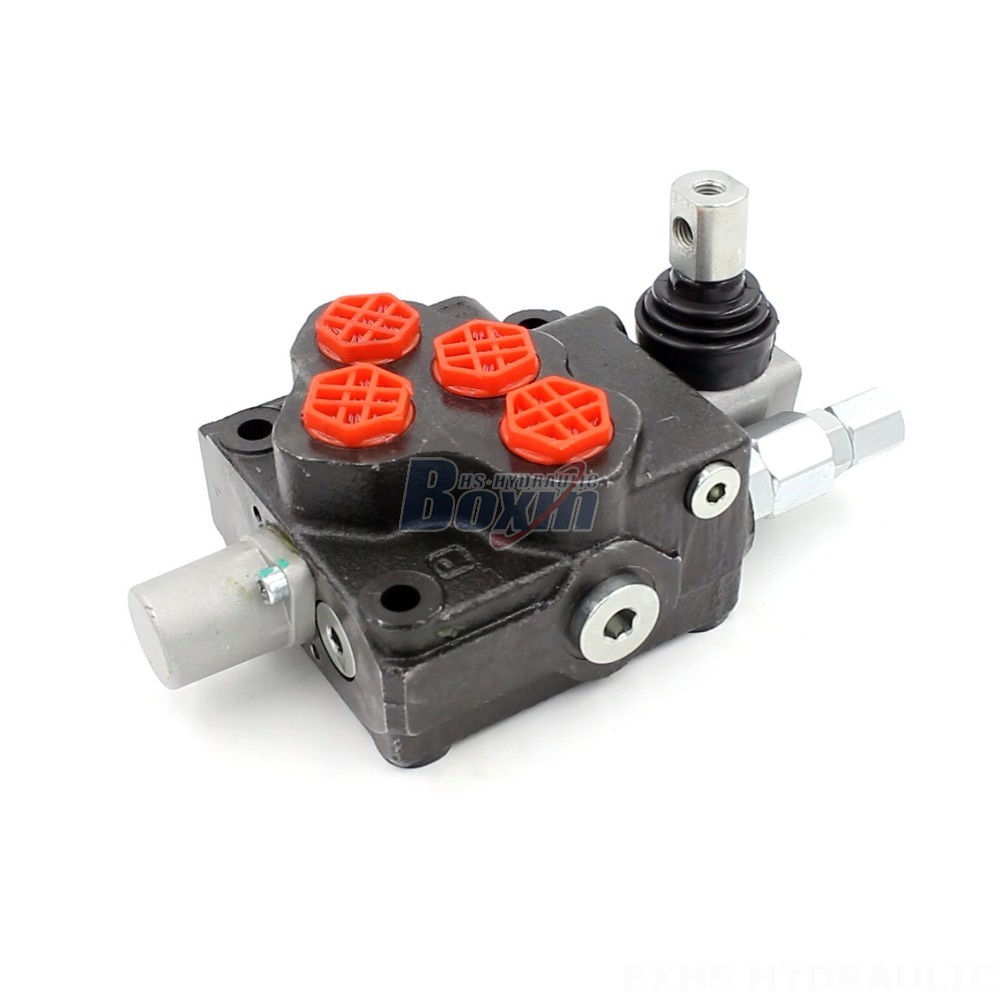

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual valve features a compact monoblock design, a rated flow of 40 L/min, and a maximum pressure rating of 305 bar.

SD5系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +60°C (-40°F to +140°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 305 bar (4400 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. This robust valve features a single spool design, a compact monoblock structure, and a rated flow of 40 L/min. The valve is capable of handling pressures up to 305 bar, making it suitable for demanding applications. It's designed for use in a variety of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. The SD5-G38 is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
