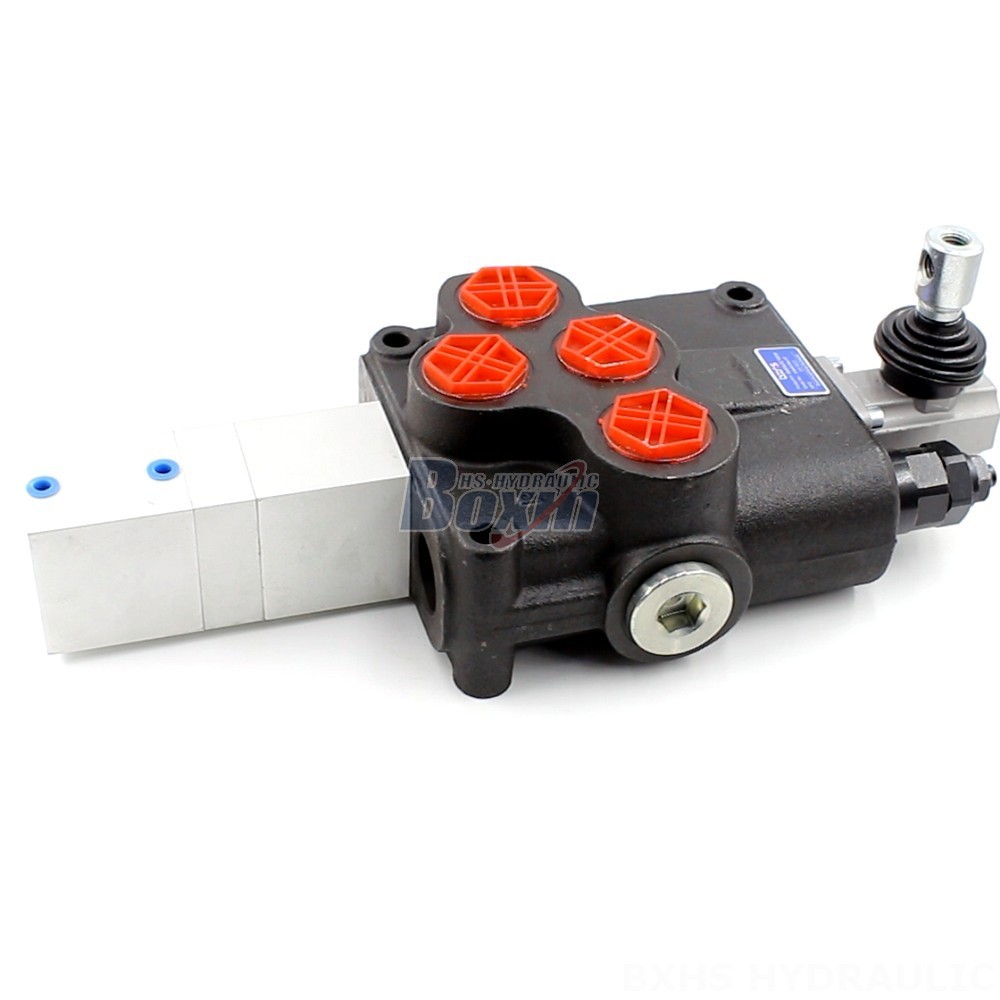

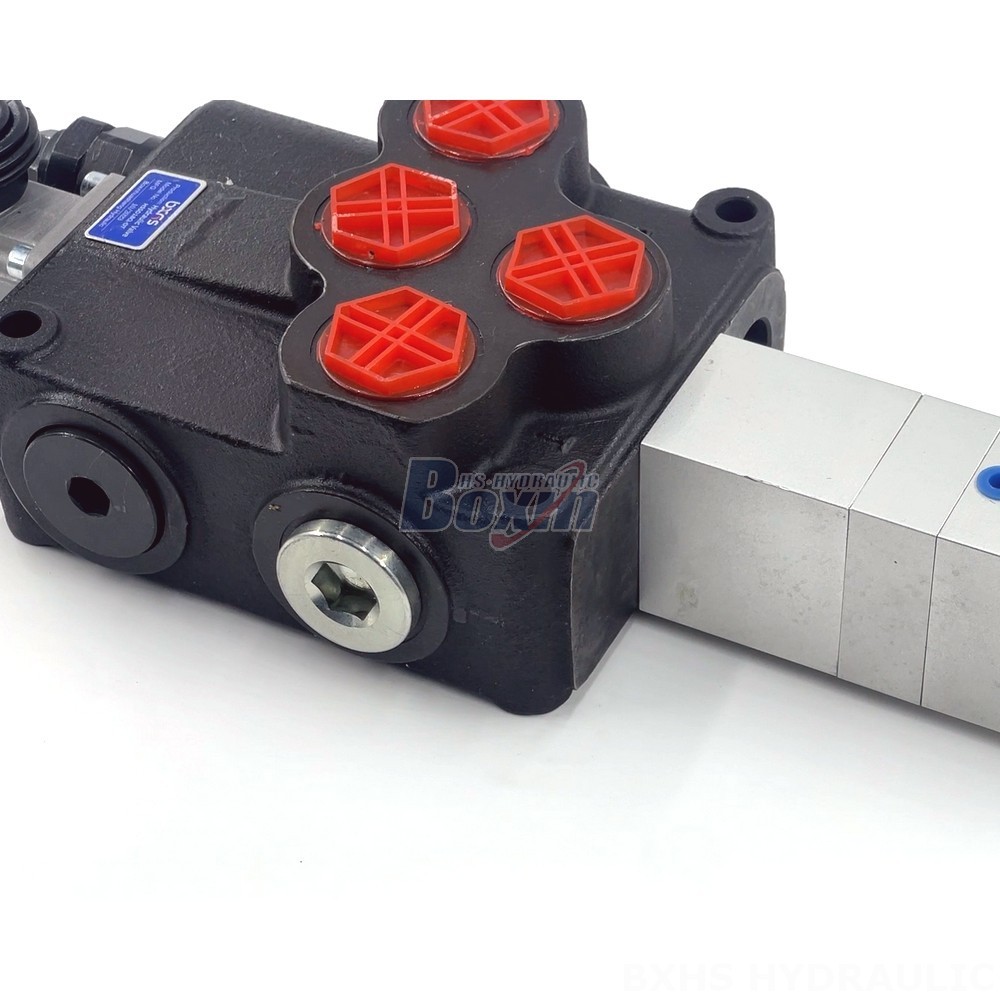

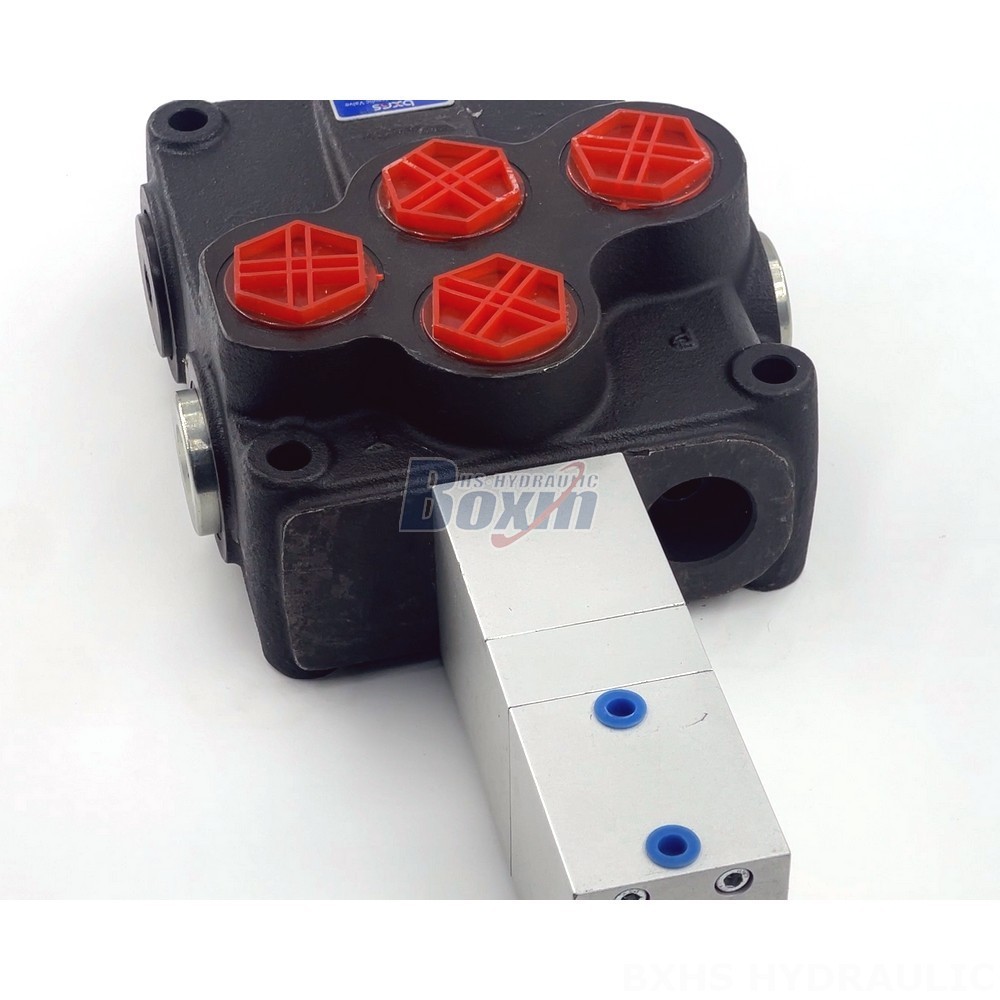

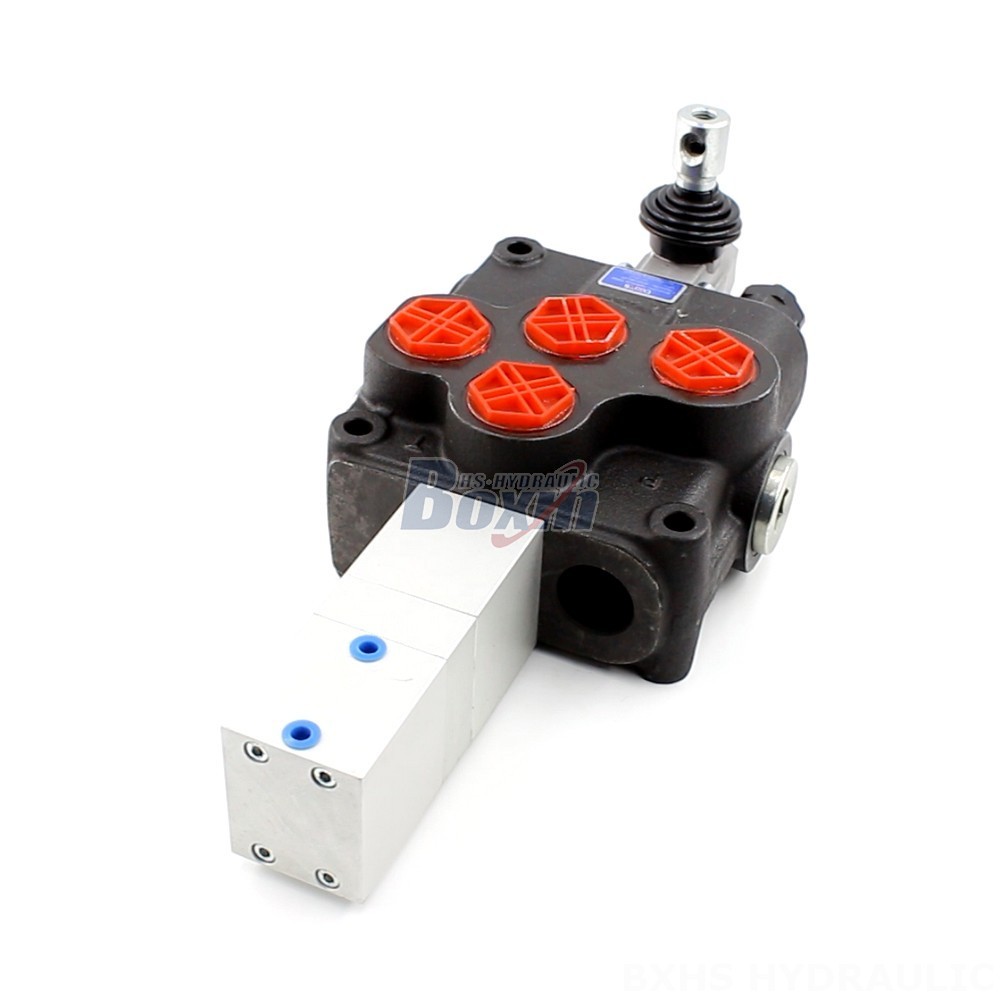

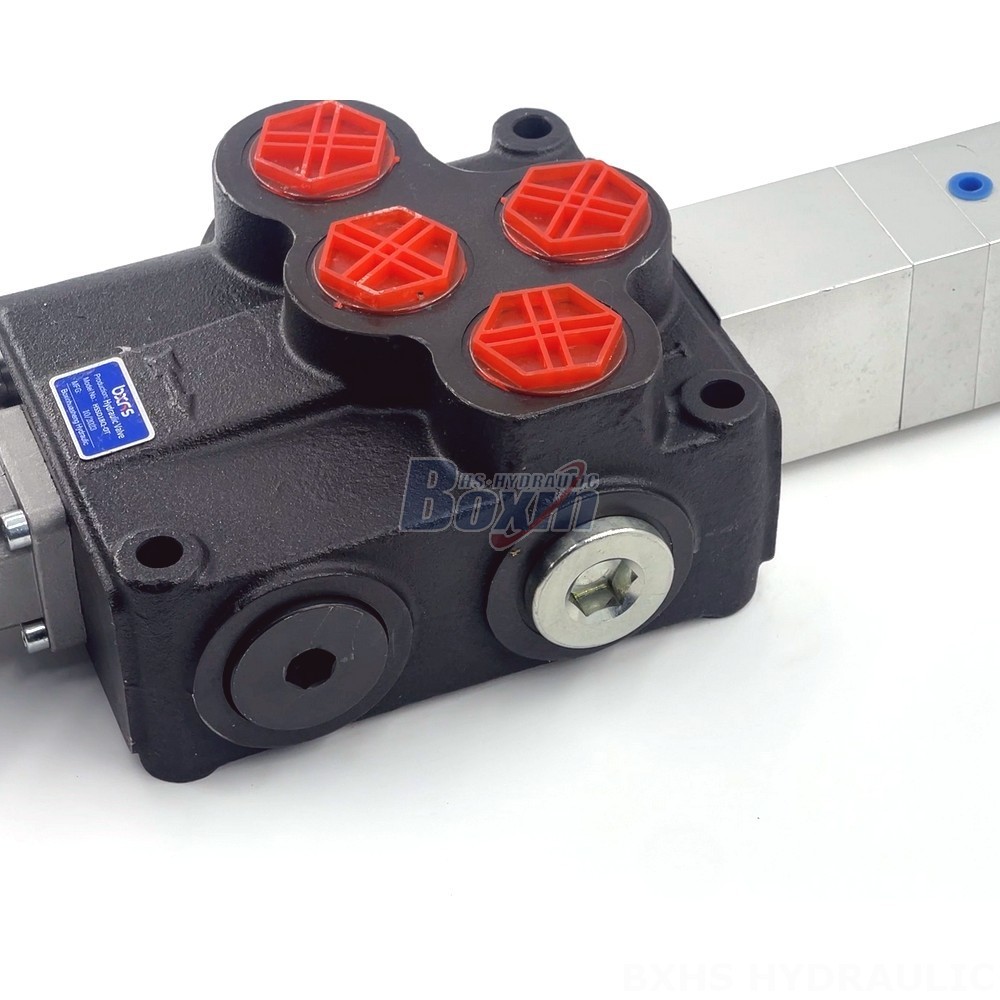

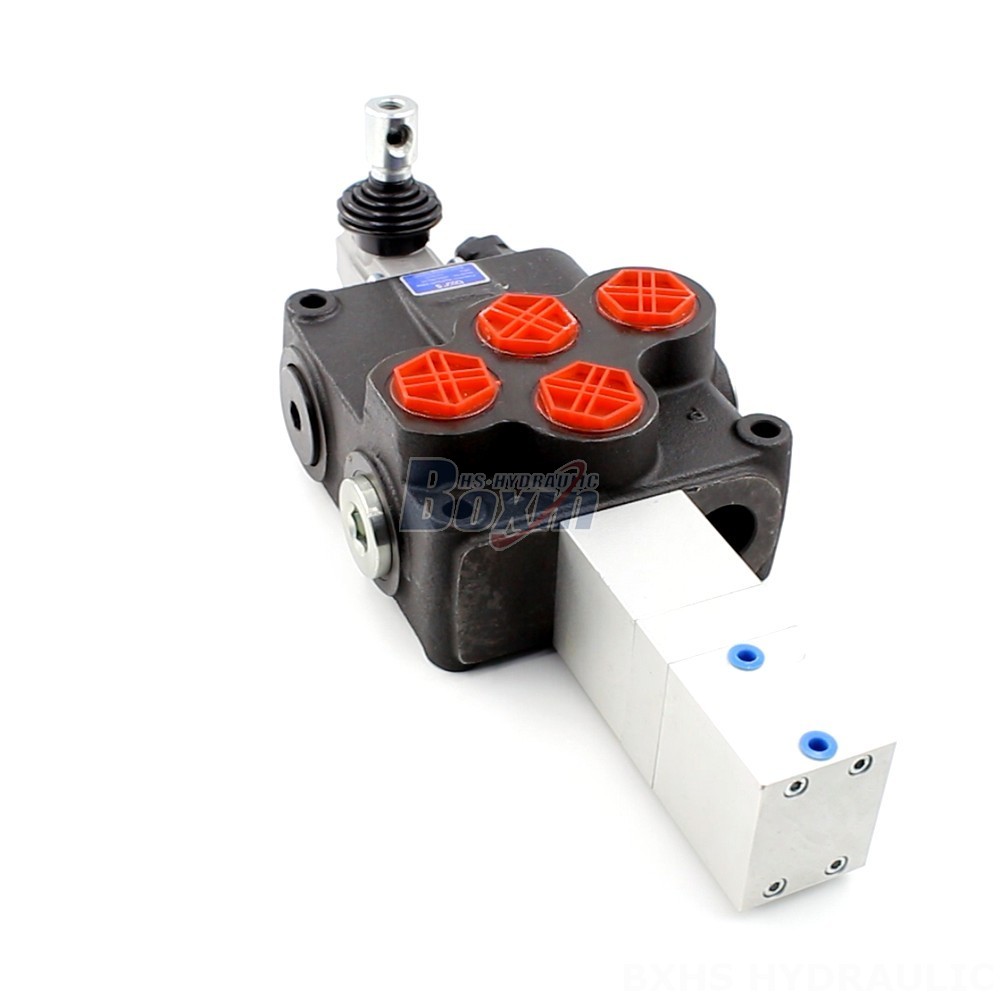

SD18 Pneumatic Directional Control Valve: Technical Specifications & Applications

控制方式:气控

路数:1 联

额定流量:160 L/min (42.2 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD18系列单块式方向阀

Packagingsize:27*44*16

Grossweight:16.00 kg

库存: 有货

描述

SD18 Pneumatic Directional Control Valve: Technical Specifications & Applications

SD18 Pneumatic Directional Control Valve: Technical Specifications & Applications drawing image

The SD18 Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It offers precise control of fluid flow and is constructed from high-quality materials for long-lasting durability.

SD18系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制
路数	1 联, 2 联, 3 联, 4 联
额定流量	160 L/min (42.2 US gpm)
最大压力	305 bar (4400 psi)
进油口	G1/2接口, G1接口, SAE 16接头
出油口	G1接口, SAE 16接头
接口尺寸	G1接口, SAE 16接头
联数	1联, 2联, 3联, 4联
结构类型	整体阀
环境温度范围	-40°C to +80°C (-40°F to +176°F)
工作粘度范围	12 - 400 mm²/s (12 cSt to 400 cSt)

**SD18 Pneumatic Directional Control Valve: Technical Specifications**

**Control Method:** Pneumatic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:**-40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series

**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
