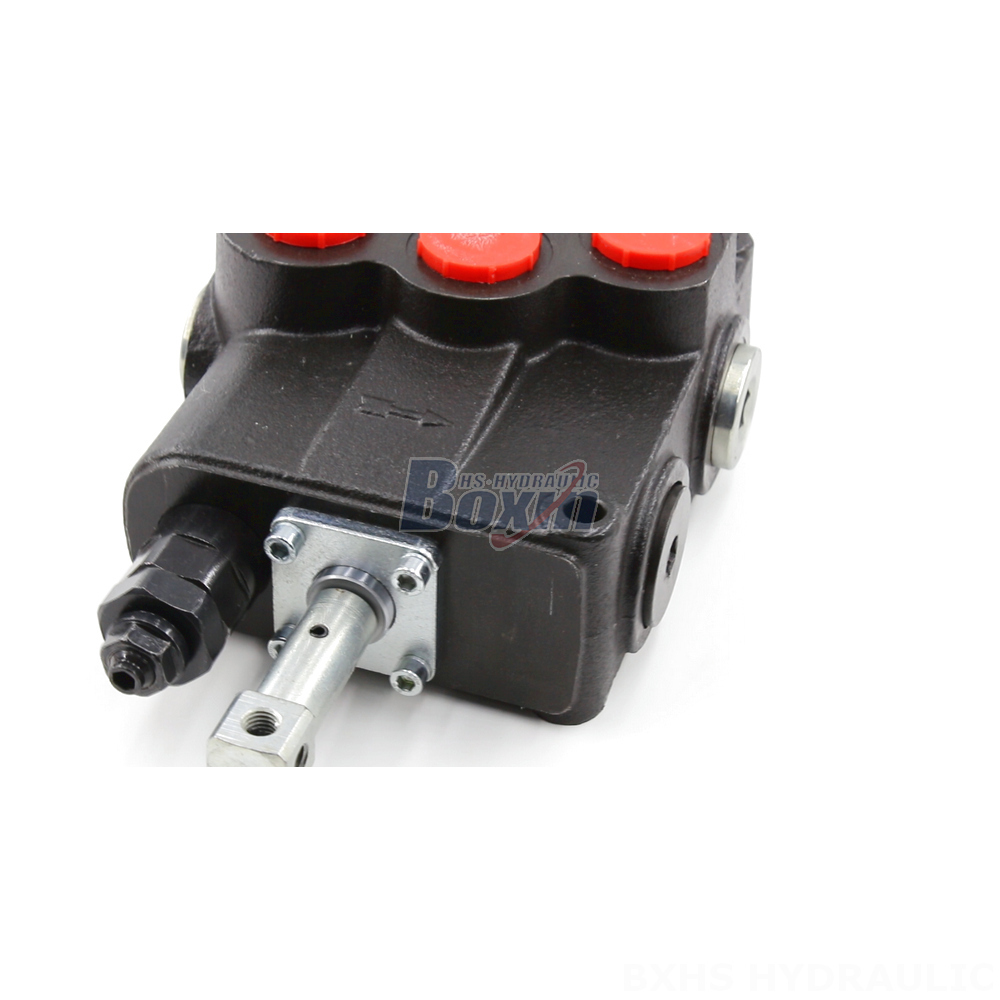

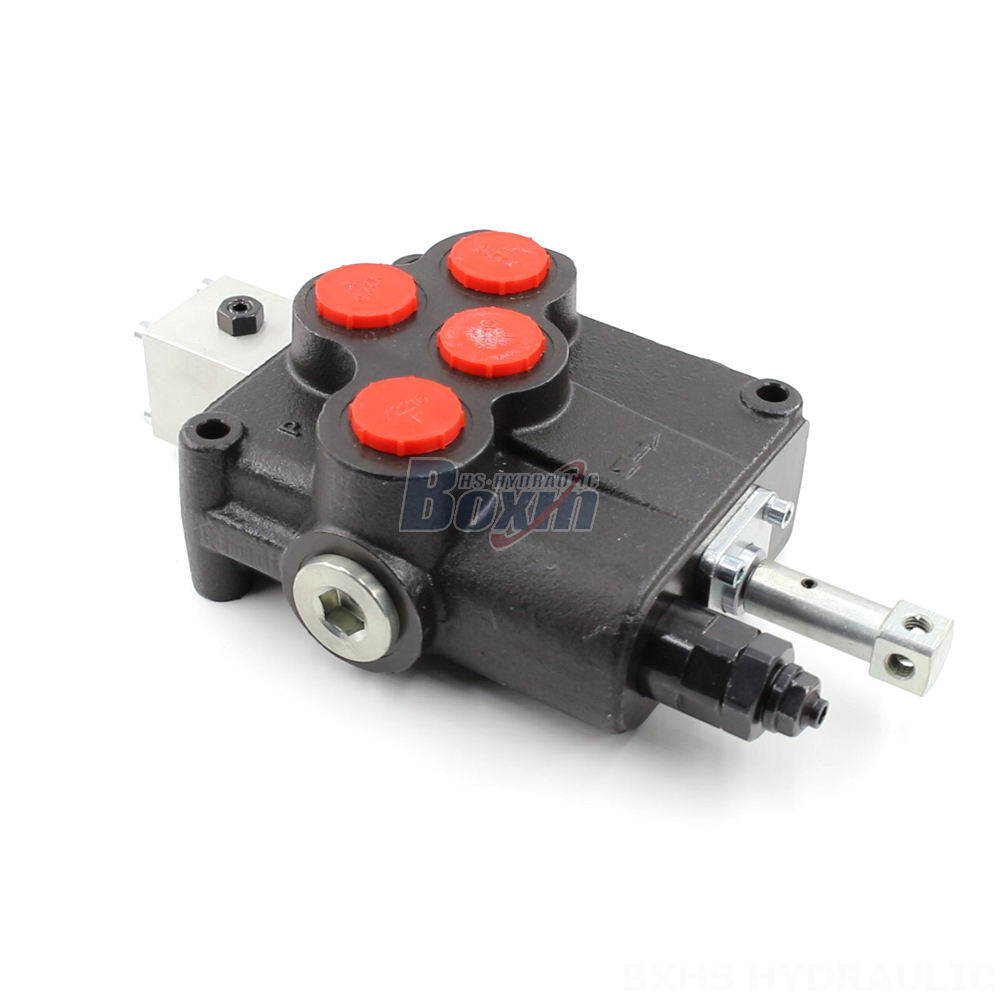

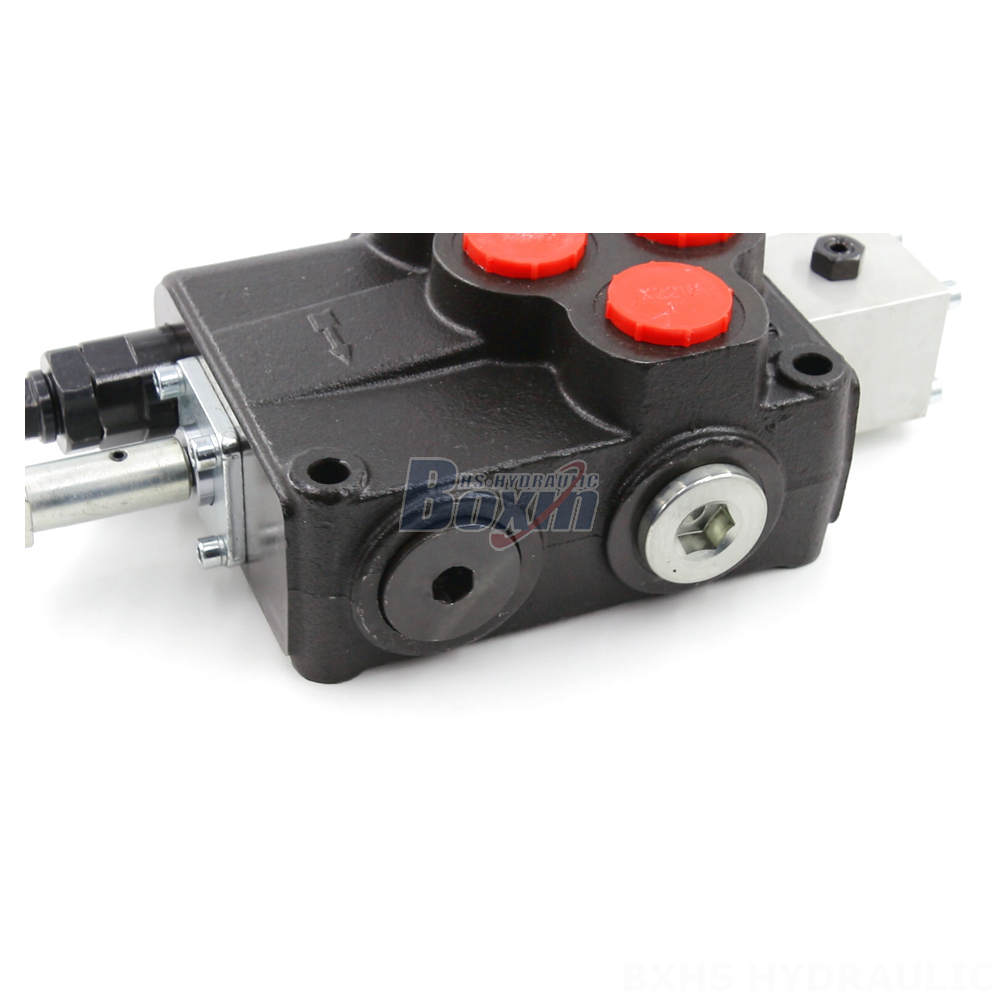

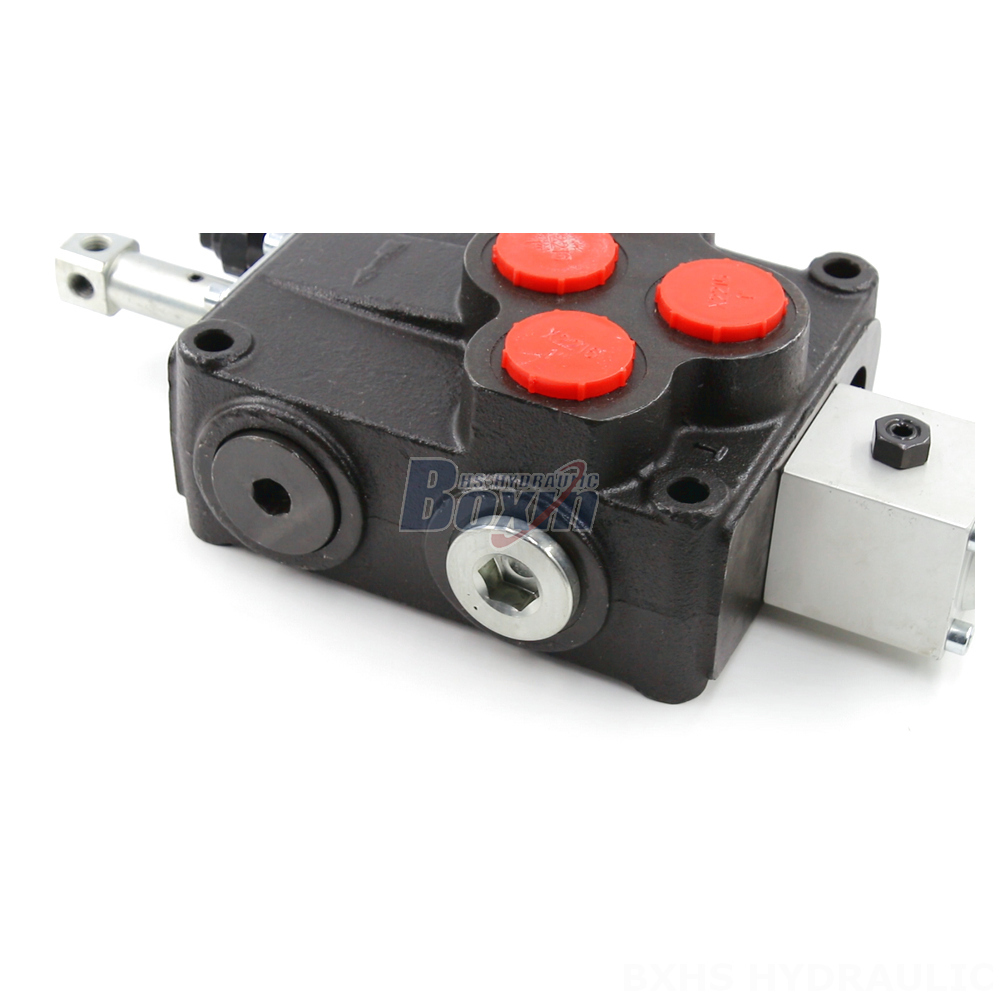

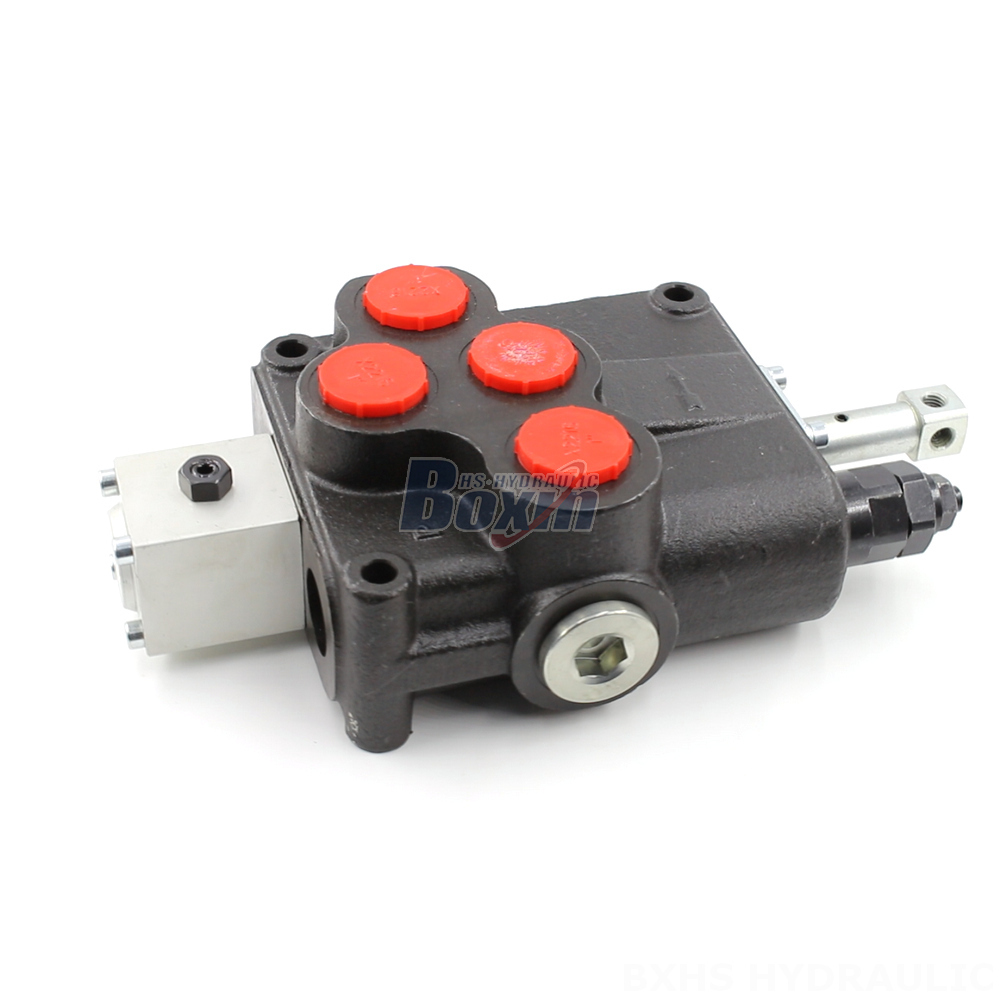

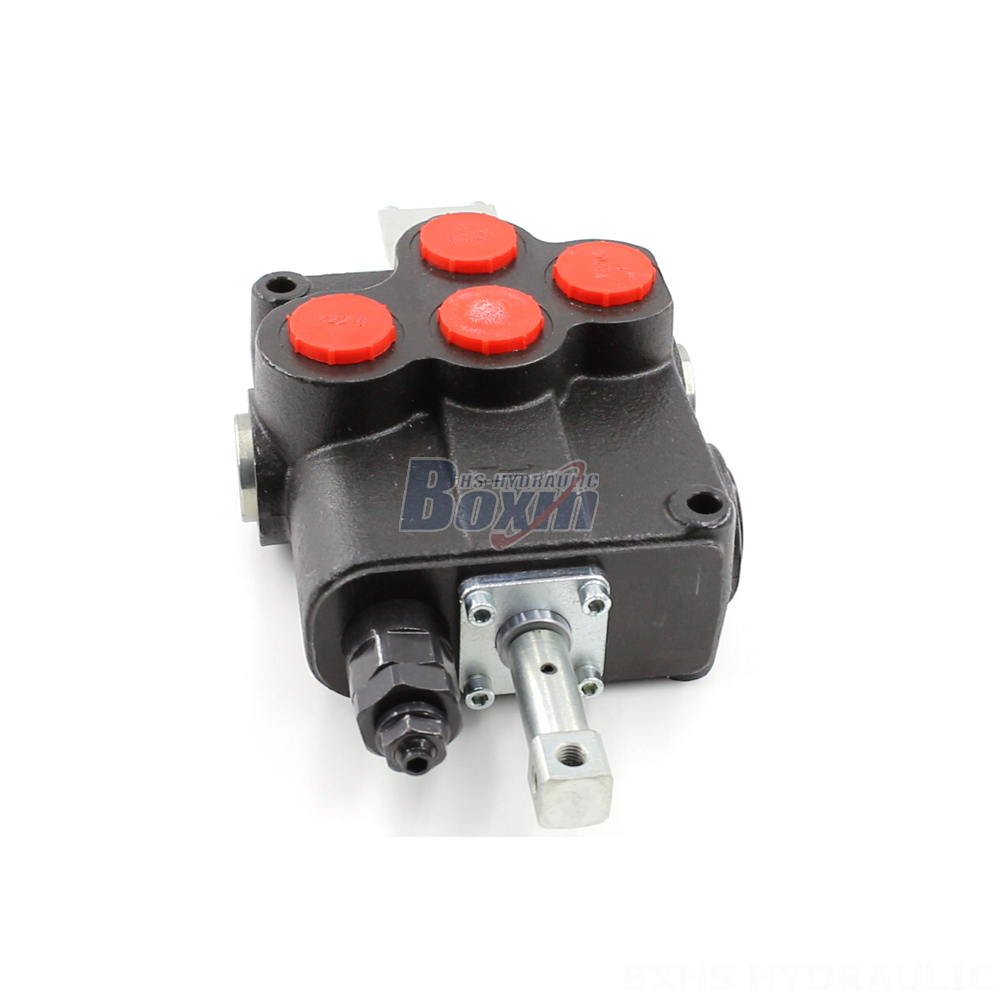

Introducing the SD18 Directional Control Valve, a high-performance hydraulic valve designed for demanding applications in various industries. With its advanced features, including manual control, a flow rate of 120 L/min, and a maximum pressure of 315 bar, this valve delivers exceptional precision, durability, and efficiency.
| SD18系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 160 L/min (42.2 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G1/2接口, G1接口, SAE 16接头 |
| 出油口 | G1接口, SAE 16接头 |
| 接口尺寸 | G1接口, SAE 16接头 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
**SD18 Directional Control Valve: Trusted by Industries Worldwide**
**Key Features:**
- Manual control for precise operation
- Flow rate of 120 L/min (31.7 US gpm)
- Maximum pressure of 315 bar (4600 psi)
- Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
- Monoblock valve construction for increased durability
- Single spool design for simplified control
- Suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles
- Compatible with various equipment models such as telehandlers, forklifts, all terrain cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters
