Hydraulic Direction Control Valves Pneumatic Valve | SD18 Model | Factory Direct & Customizable

控制方式:气控

路数:1 联

额定流量:160 L/min (42.2 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD18系列 单块式方向阀

Packagingsize:27*44*16

Grossweight:16.00 kg

库存: 有货

732 次查看了此产品

Hydraulic Direction Control Valves Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Hydraulic Direction Control Valves Pneumatic Valve | SD18 Model | Factory Direct & Customizable

Hydraulic Direction Control Valves Pneumatic Valve | SD18 Model | Factory Direct & Customizable drawing image

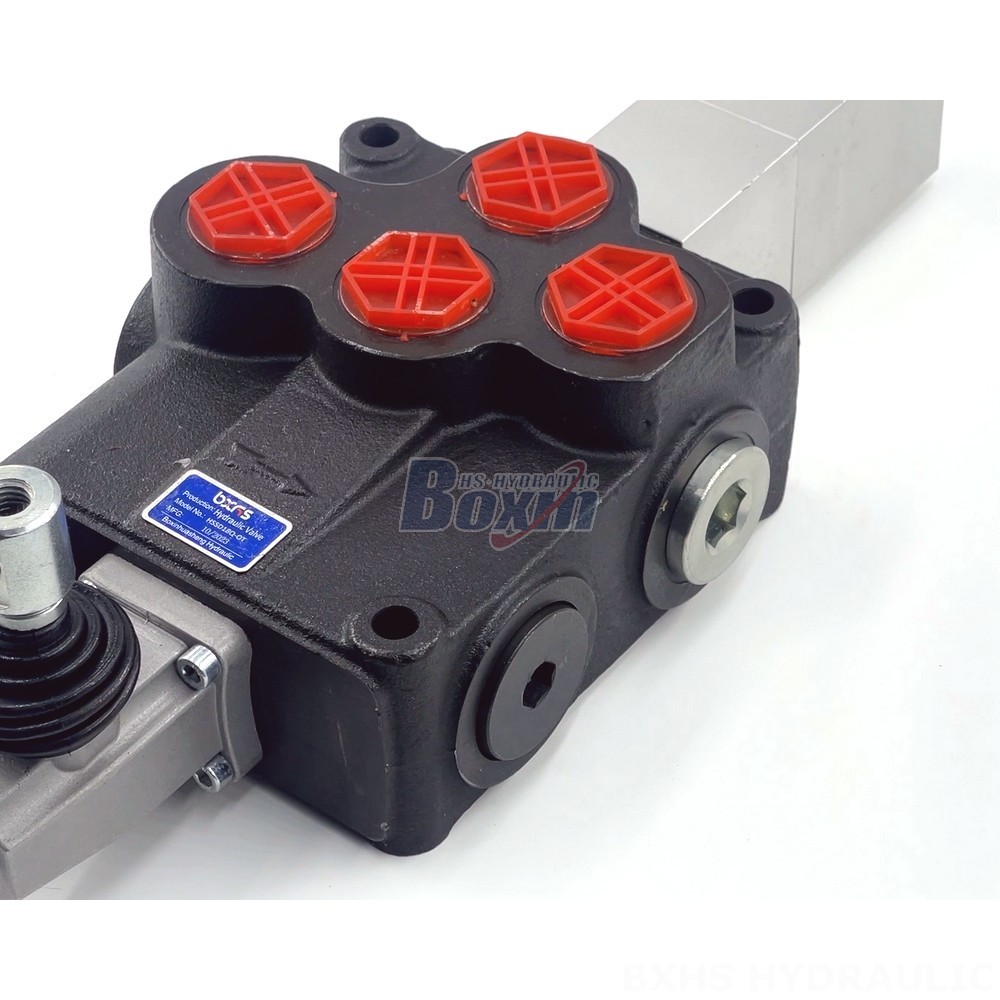

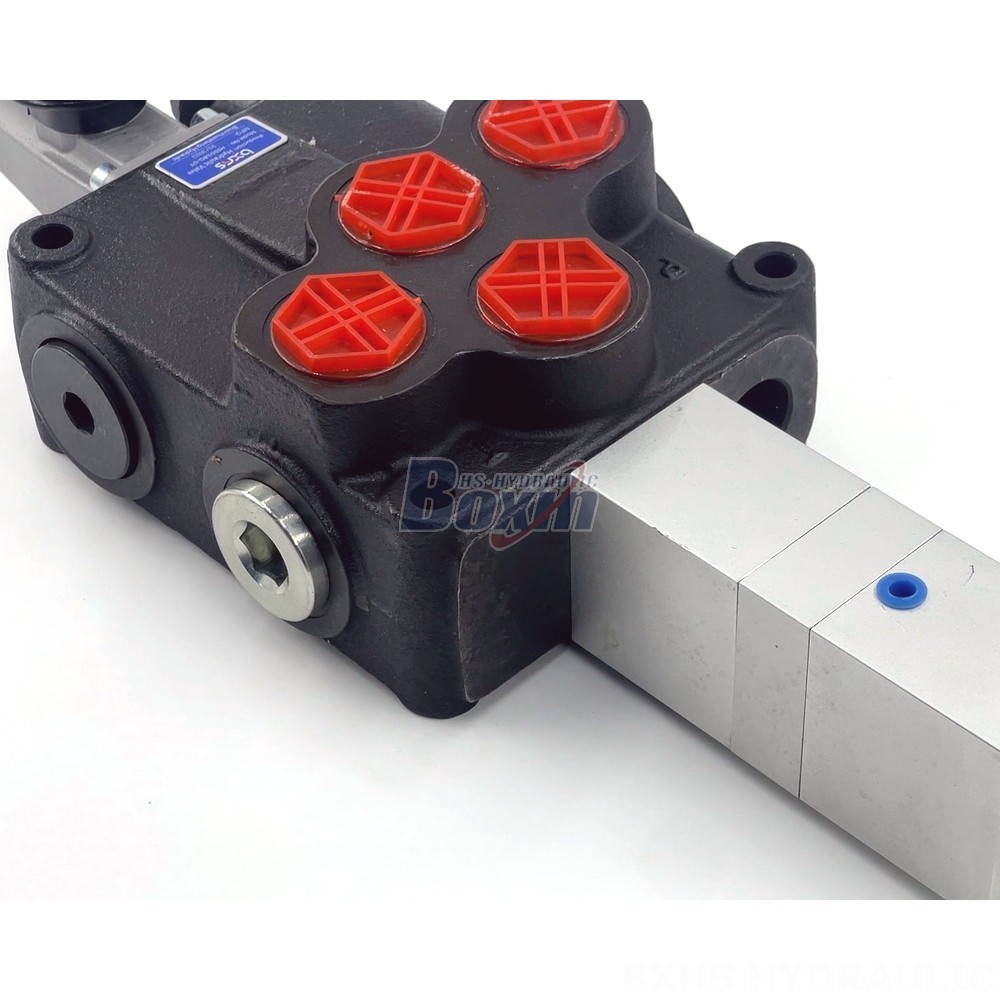

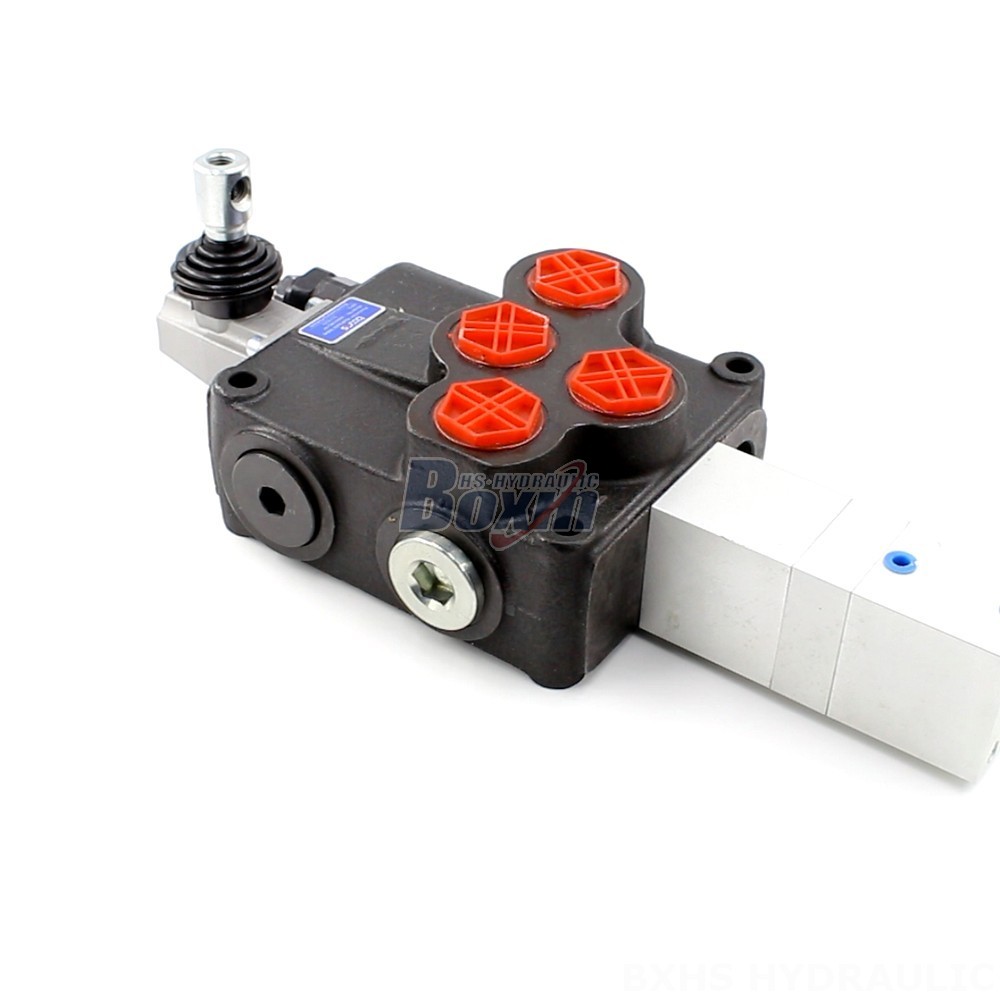

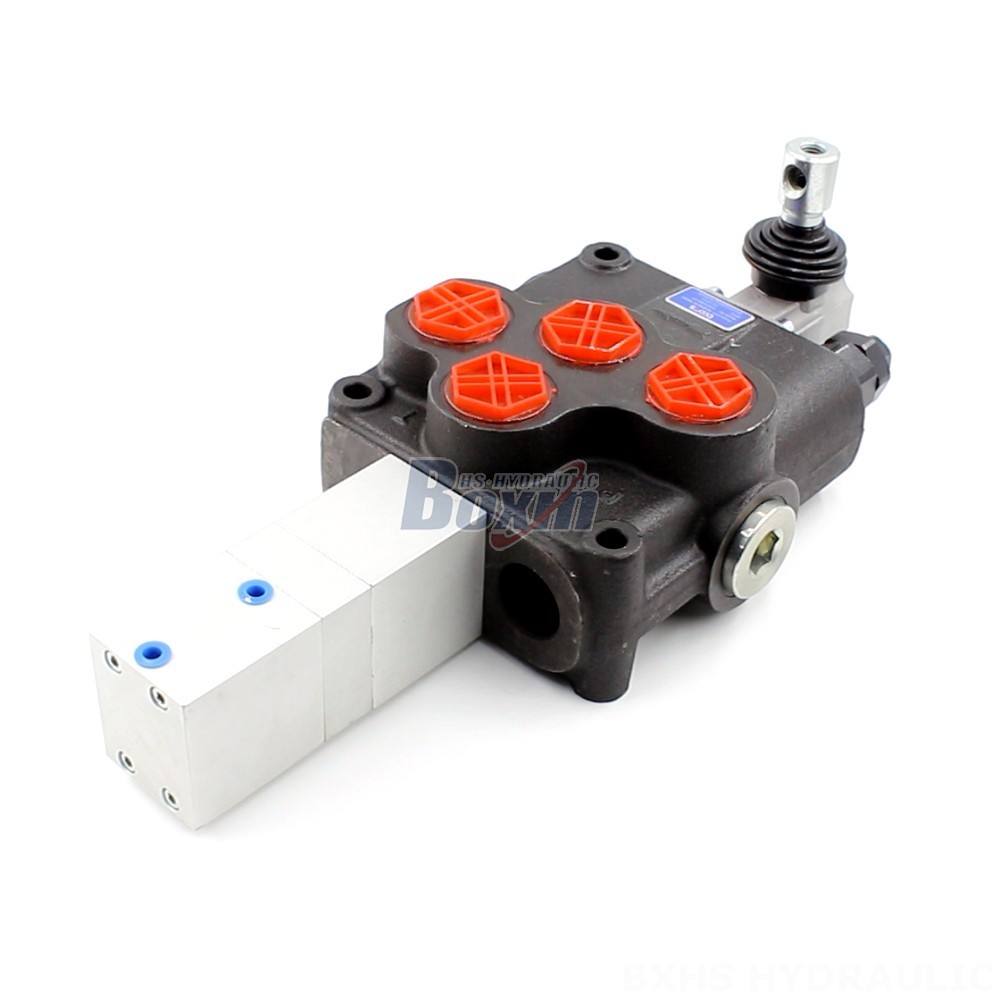

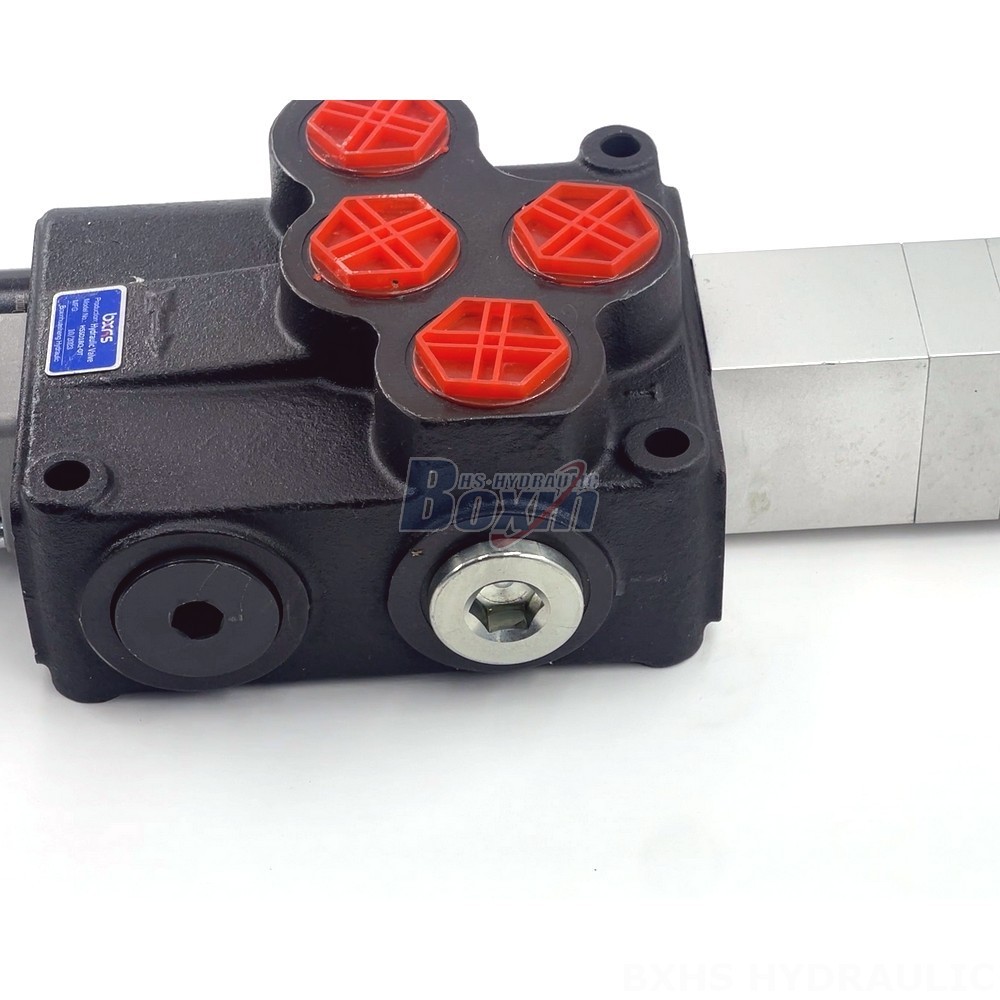

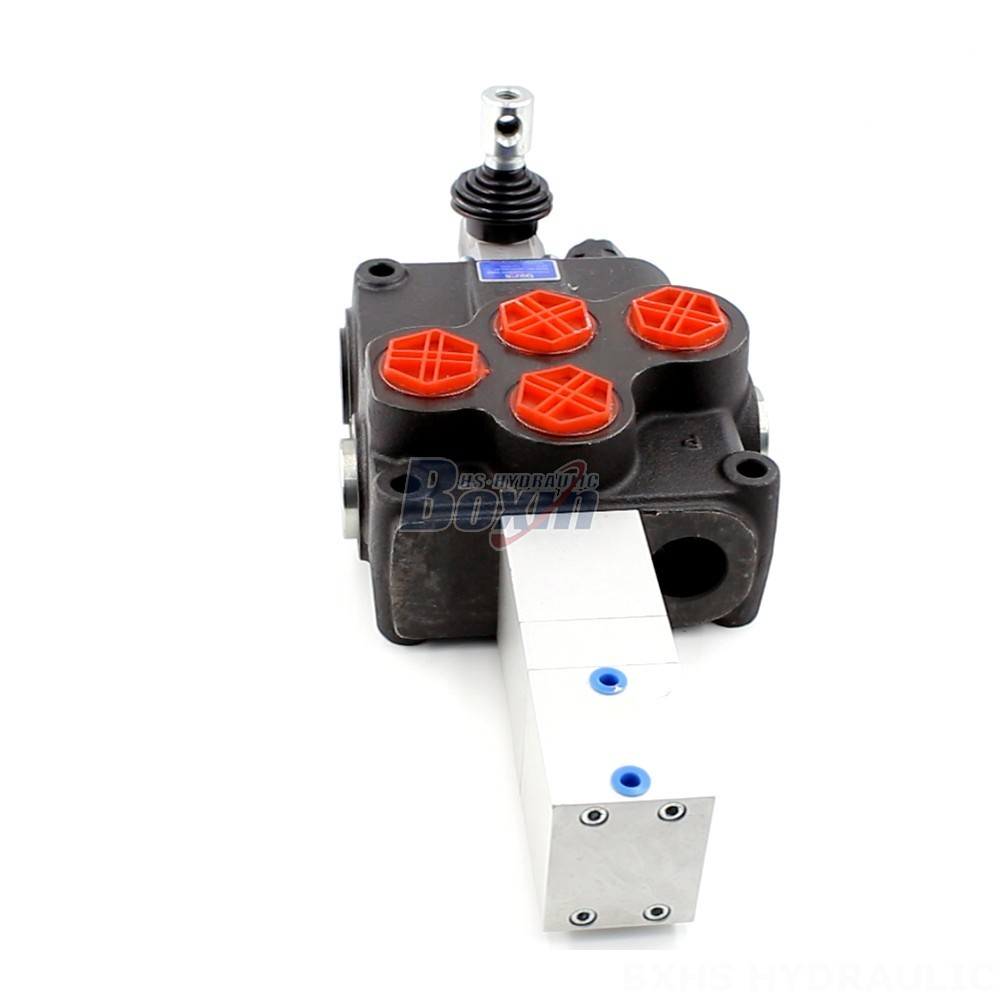

The SD18 Series Hydraulic Direction Control Valve is a pneumatic, monoblock valve designed for a variety of applications including material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers a rated flow of 120 L/min and a maximum pressure of 315 bar.

SD18系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制
路数 1 联, 2 联, 3 联, 4 联
额定流量 160 L/min (42.2 US gpm)
最大压力 305 bar (4400 psi)
进油口 G1/2接口, G1接口, SAE 16接头
出油口 G1接口, SAE 16接头
接口尺寸 G1接口, SAE 16接头
联数 1联, 2联, 3联, 4联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)

This SD18 Series Hydraulic Direction Control Valve is a robust and reliable solution for controlling hydraulic systems. Its pneumatic control method provides precise and responsive operation. The monoblock valve construction ensures durability and minimizes leakage. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this valve is suitable for various applications in material handling, construction, agriculture, and industrial vehicles. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve features a wide operating viscosity range and can withstand a wide range of ambient temperatures.
