极速交货
30天极速交货
液压驱动世界 华盛智造未来
675 次查看了此产品

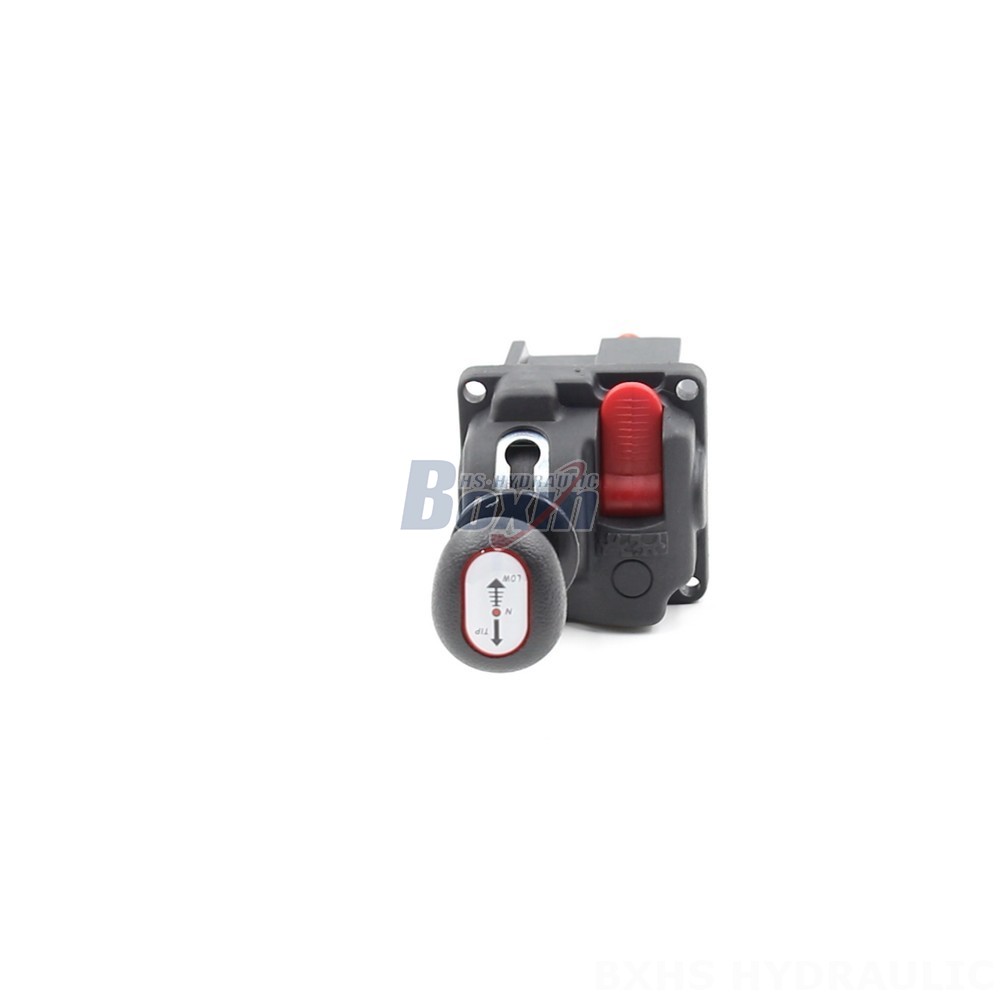

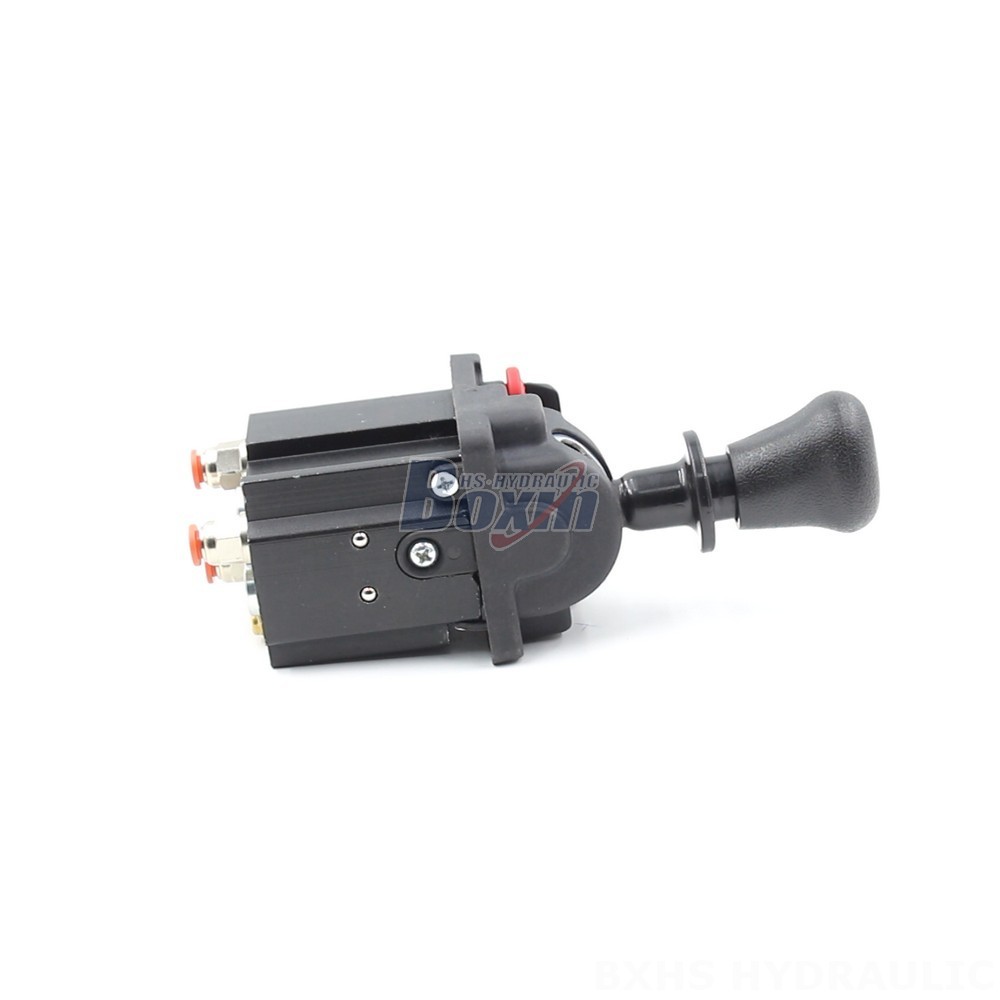

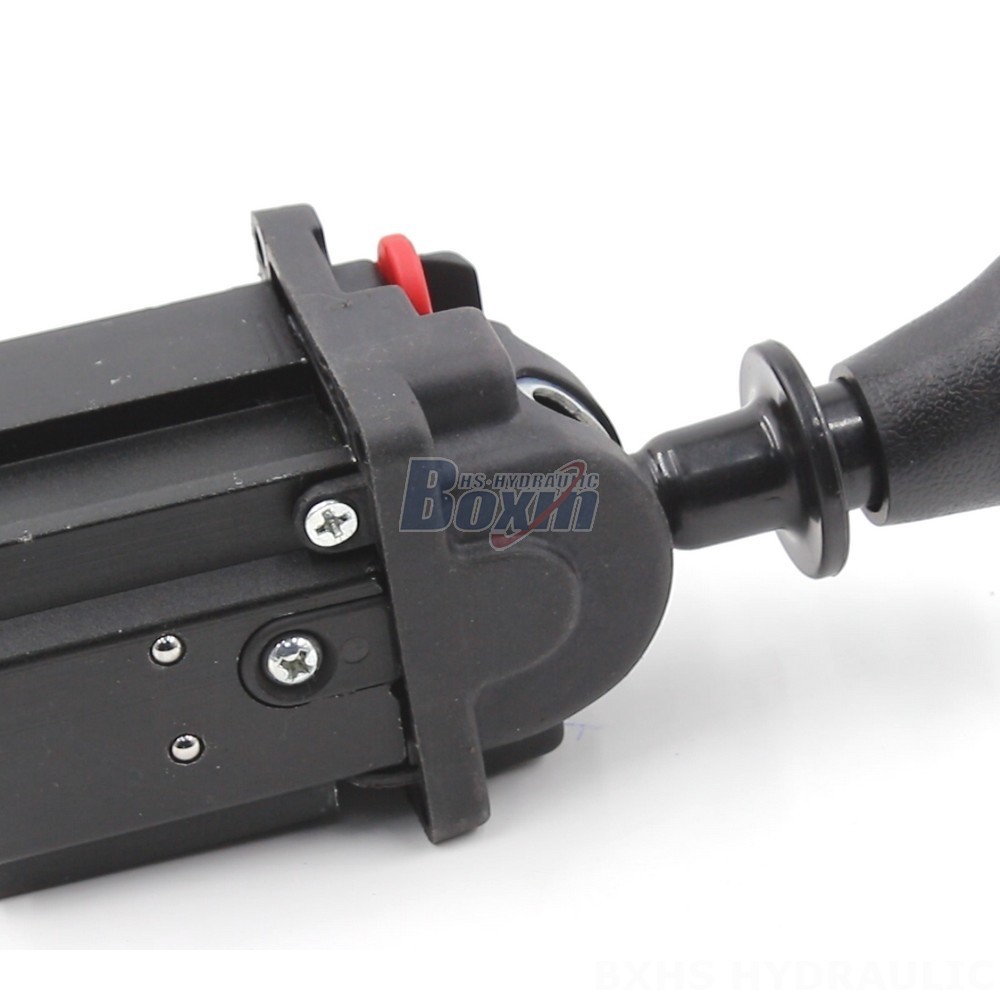

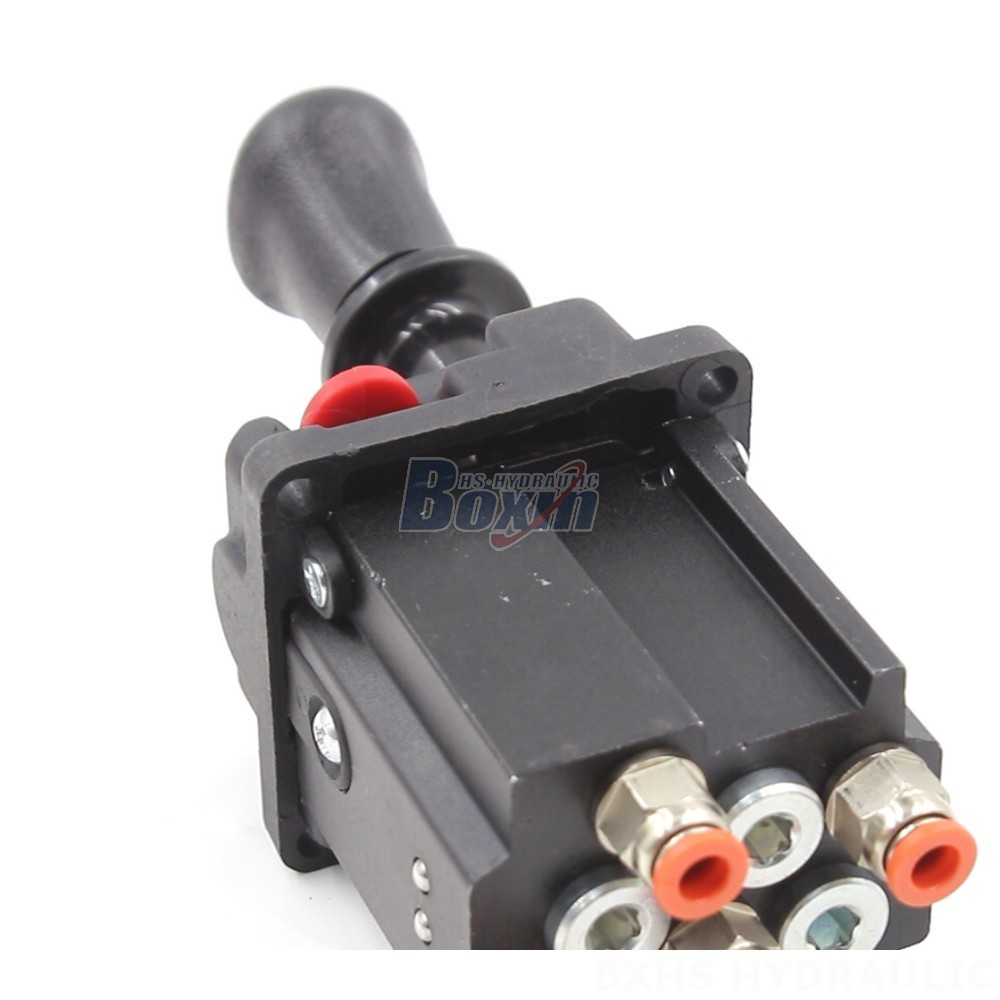

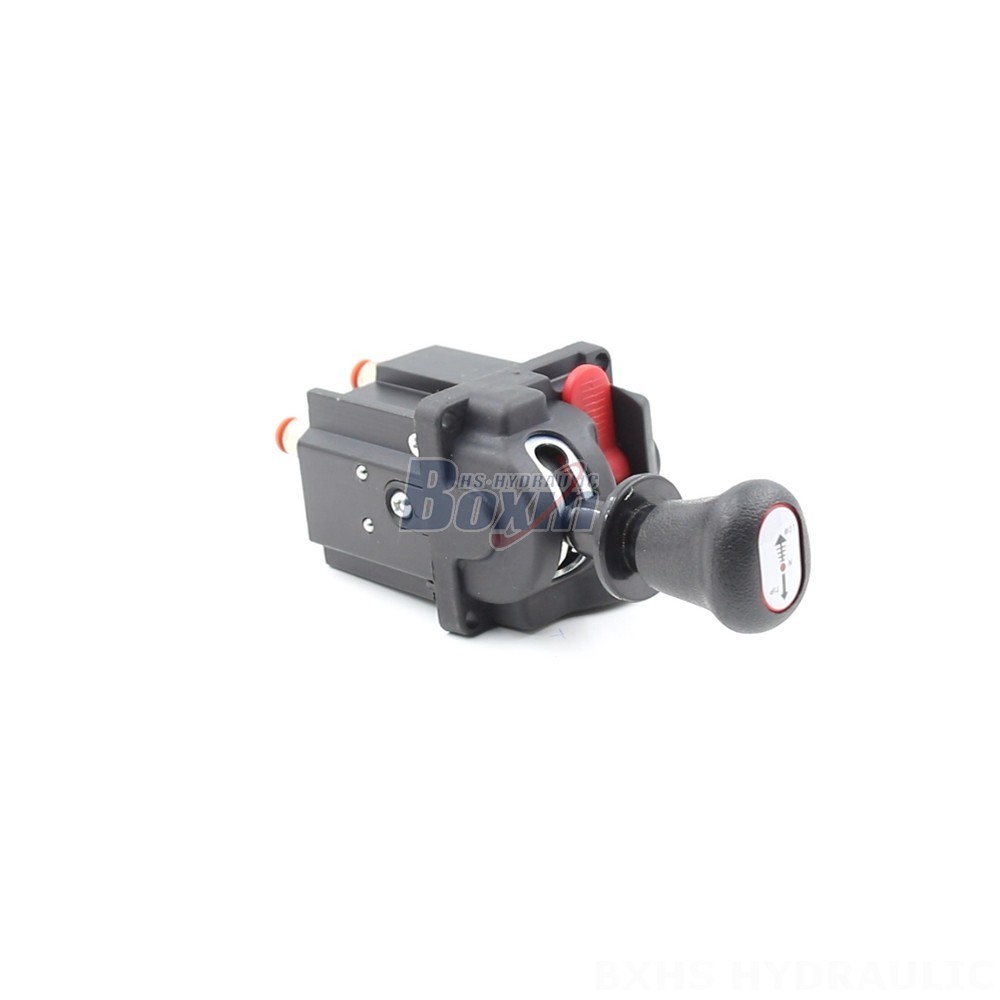

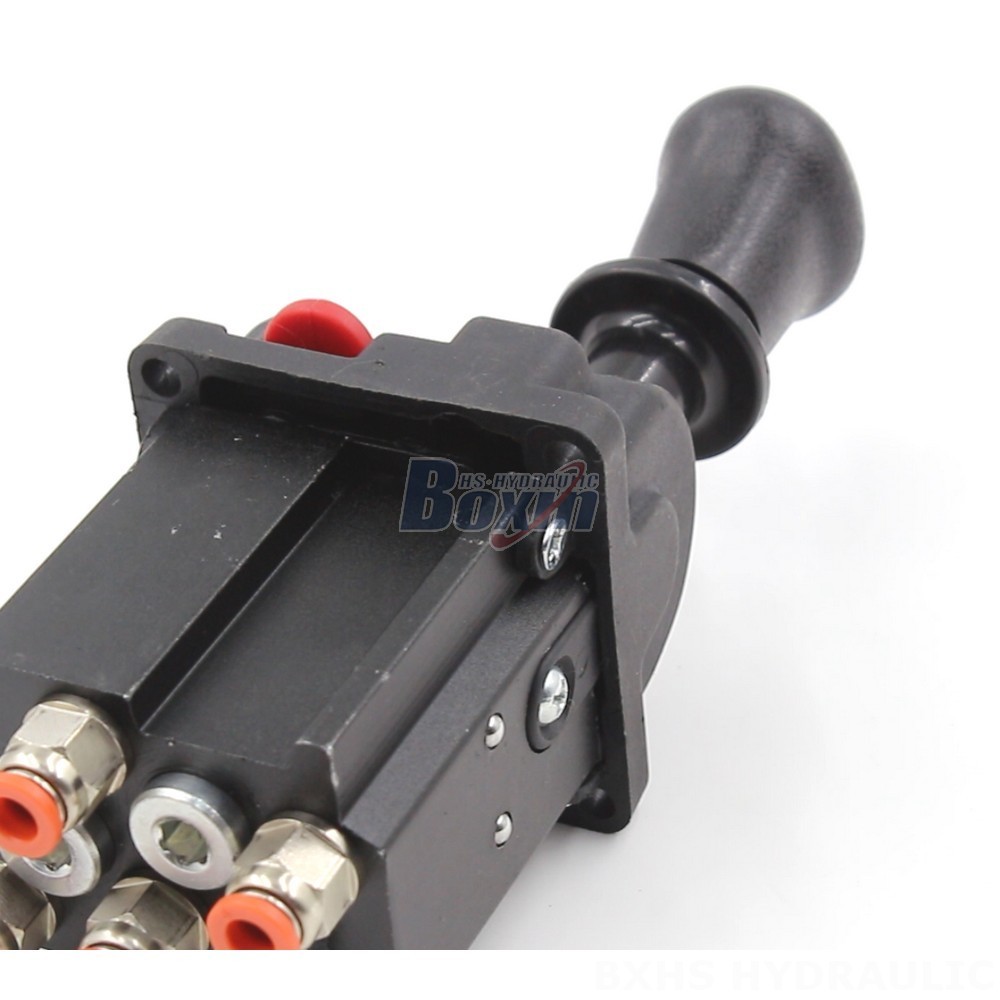

This 3-way electric hydraulic diverter valve with pneumatic control is a reliable and versatile solution for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles.
| BKQF34系列 气动控制阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 1 MPa (145 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
This BKQF34 series 3-way electric hydraulic diverter valve with pneumatic control features a monoblock valve construction with a single spool. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 1 MPa (145 psi). The operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for applications in construction equipment such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
