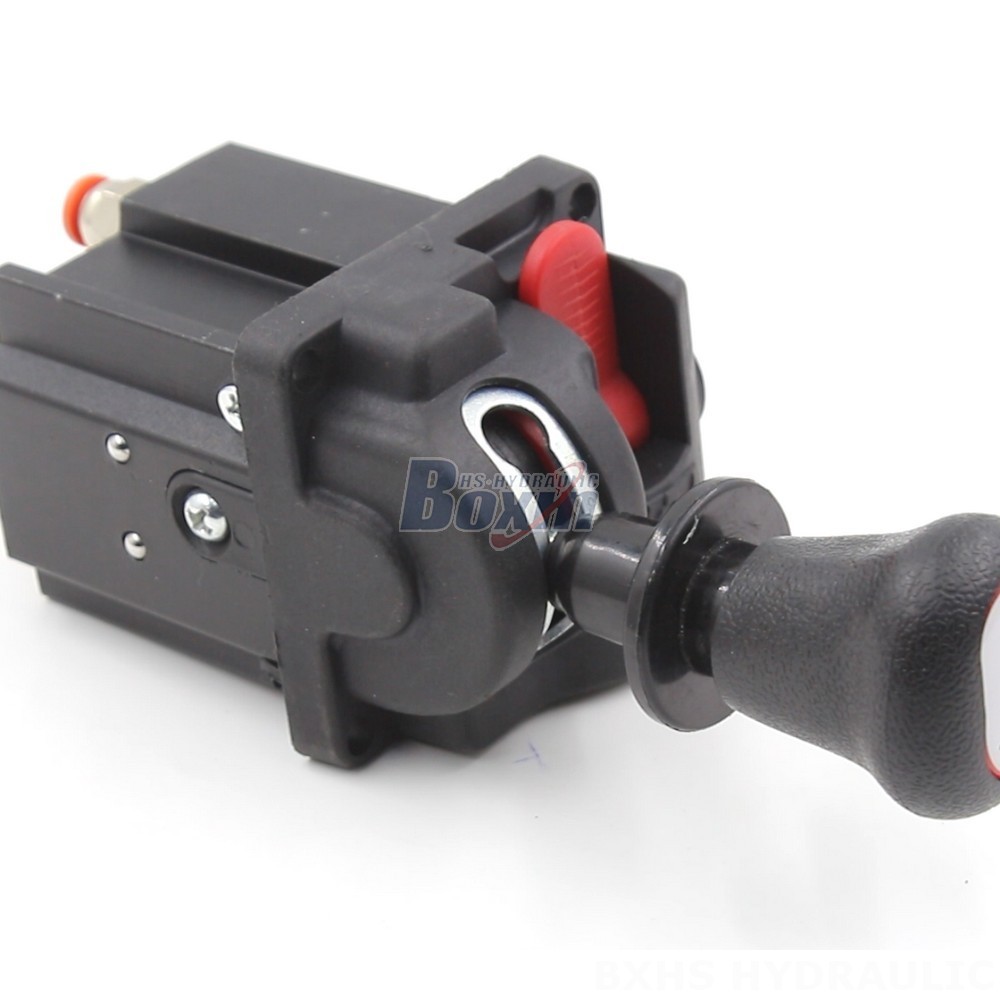

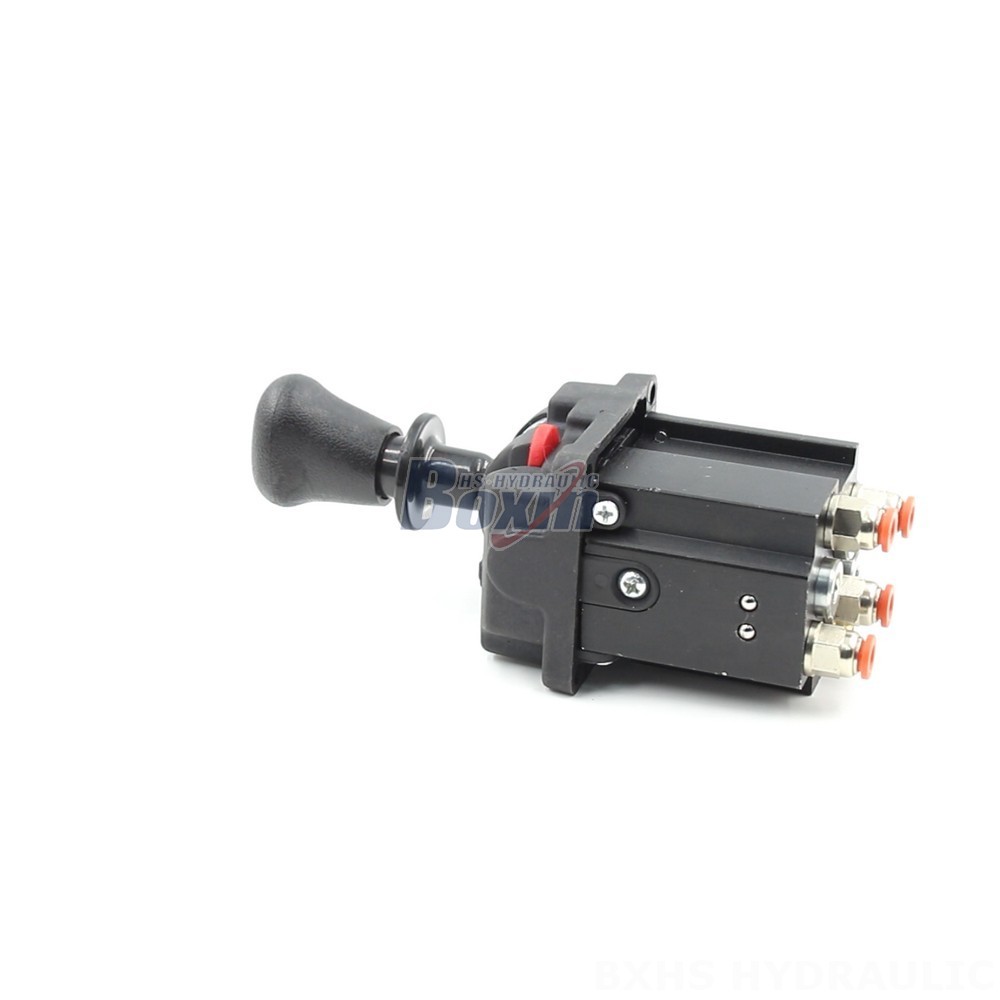

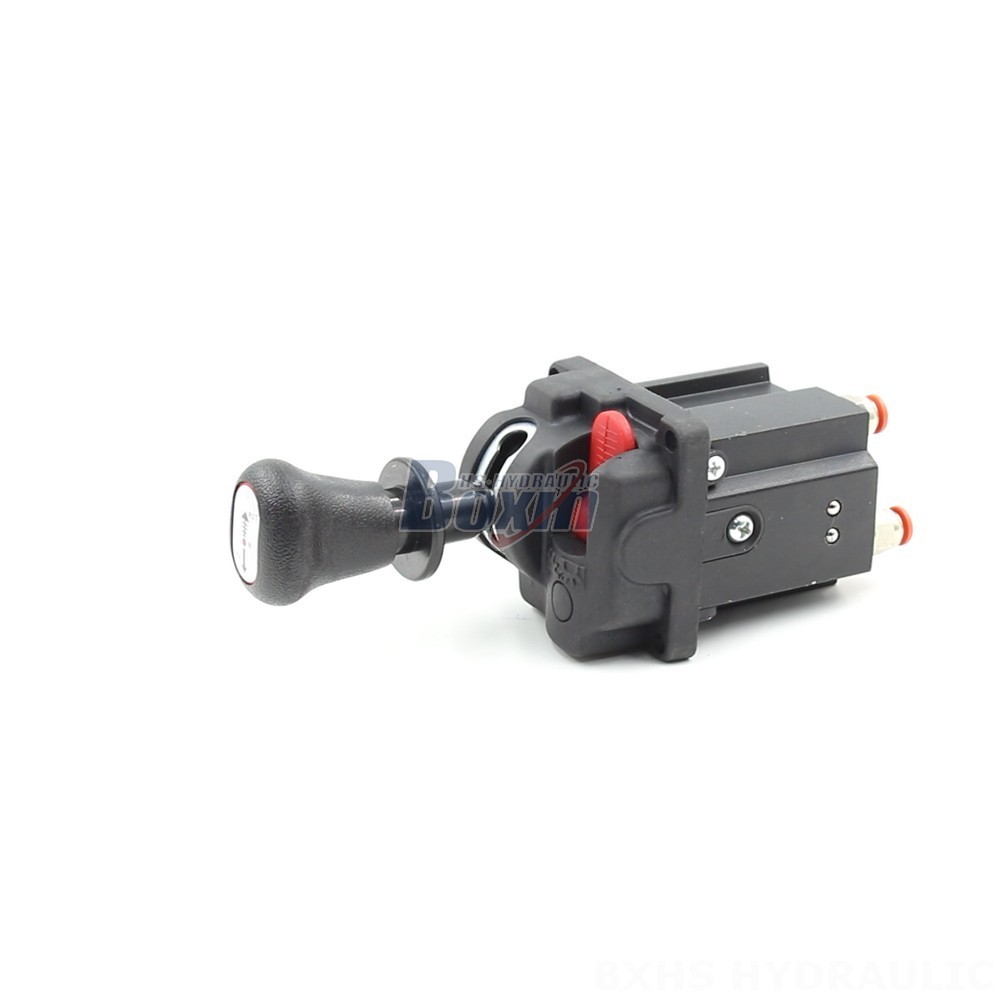

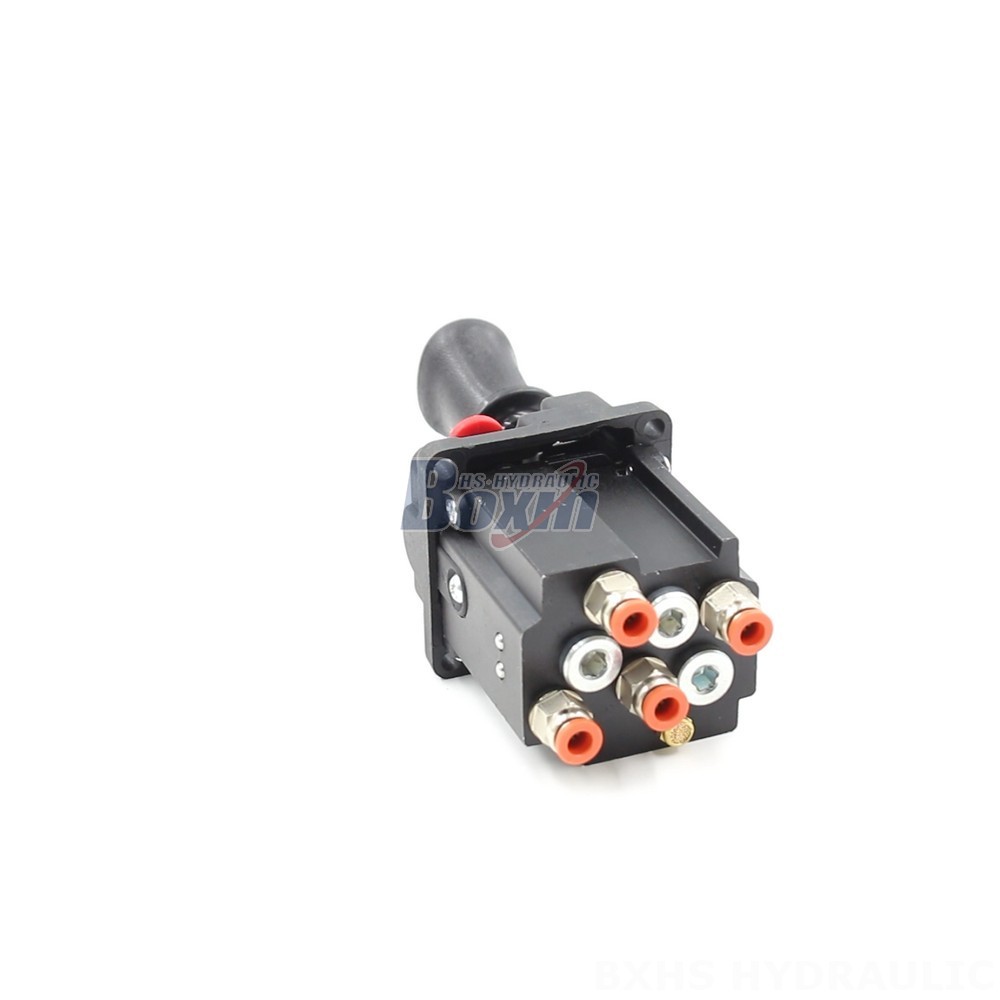

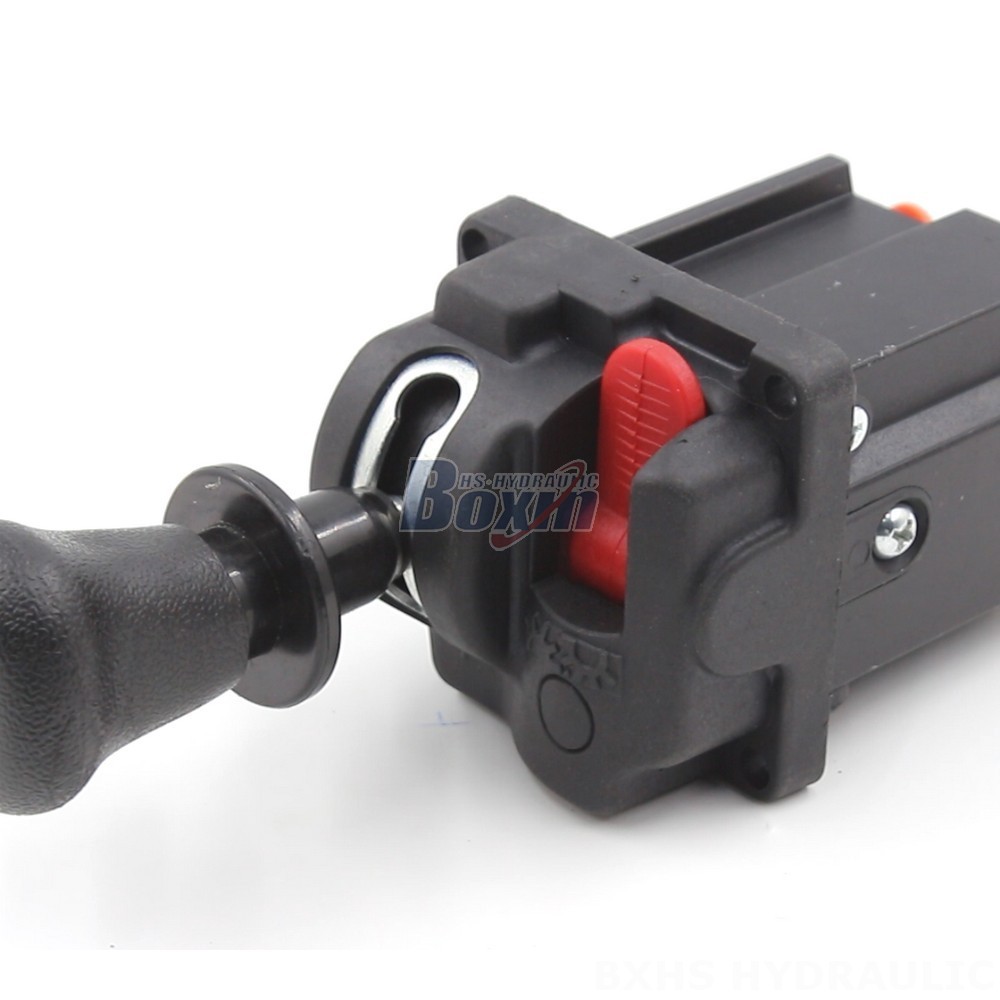

Our BKQF34 Series Hydraulic Proportional Valve is a 12V, 1-spool, pneumatic controlled valve designed for use in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min, a maximum pressure of 1 MPa, and an operating viscosity range of 12-400 mm²/s. We provide OEM and ODM services, allowing you to customize this valve for your specific application needs.
| BKQF34系列 气动控制阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 1 MPa (145 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
This 12V, 1-spool Hydraulic Proportional Valve utilizes pneumatic control for precise and reliable operation. Featuring a monoblock design, it boasts a rated flow of 40 L/min and a maximum pressure of 1 MPa. Its operating viscosity range is 12-400 mm²/s, suitable for a wide range of hydraulic fluids. This versatile valve is ideal for use in construction and earth moving, material handling, agriculture, and industrial vehicles. We offer a range of customization options and are happy to discuss your specific requirements. Whether you need OEM or ODM services, our team is ready to help you create a valve that meets your exact needs.
