3 2 Directional Control Valve Working P81 Log Splitter Valve: Quality, Performance, Reliability

控制方式:手控

路数:1 联

额定流量:80 L/min (21.2 US gpm)

最大压力:19 MPa (145 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:伐木机多路阀

产品系列:P81系列 伐木机多路阀

Packagingsize:27*16*12

Grossweight:4.80 kg

库存: 有货

1602 次查看了此产品

3 2 Directional Control Valve Working P81 Log Splitter Valve: Quality, Performance, Reliability

3 2 Directional Control Valve Working P81 Log Splitter Valve: Quality, Performance, Reliability

3 2 Directional Control Valve Working P81 Log Splitter Valve: Quality, Performance, Reliability drawing image

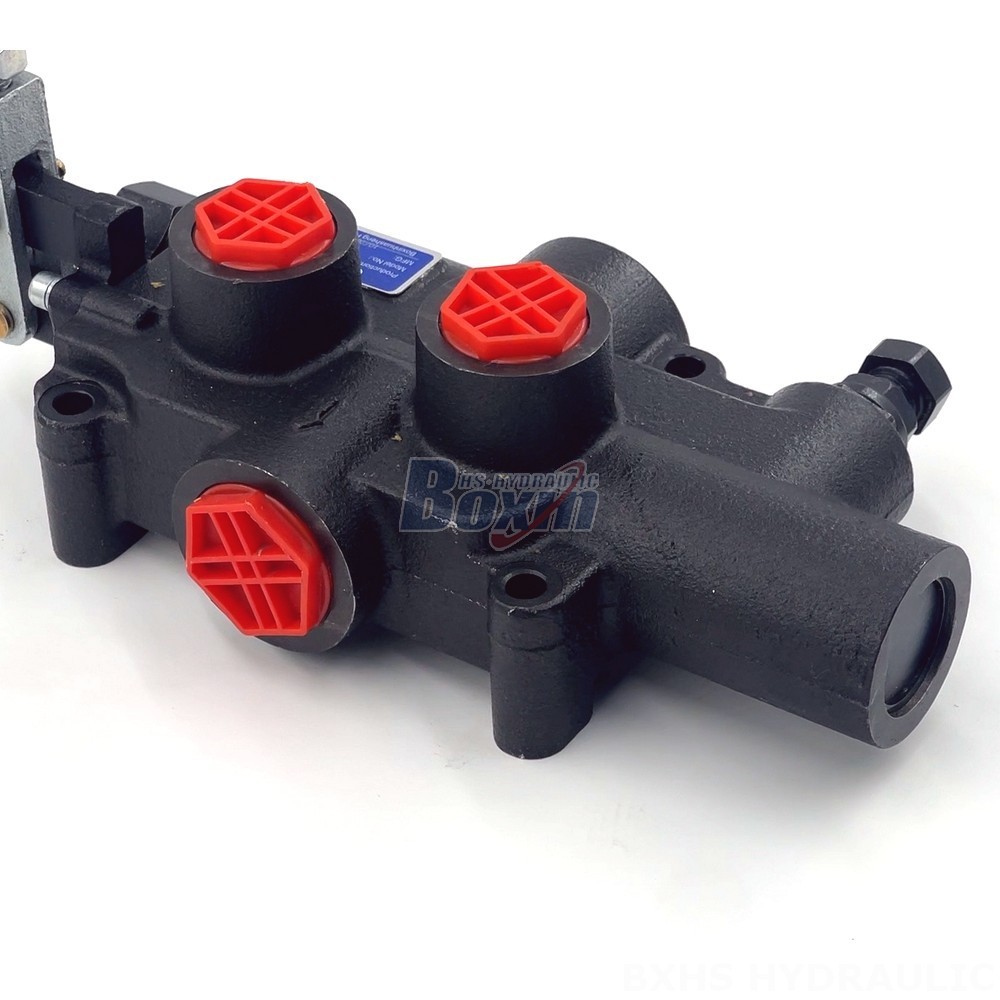

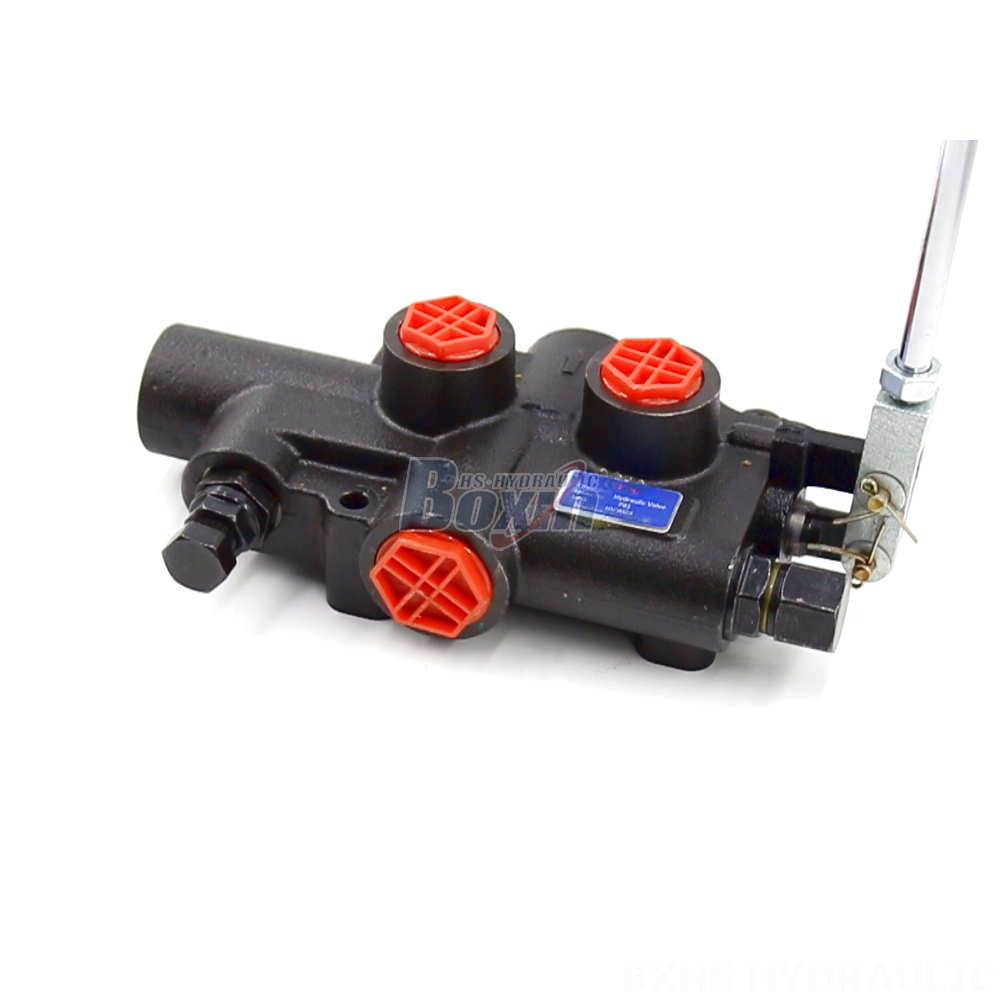

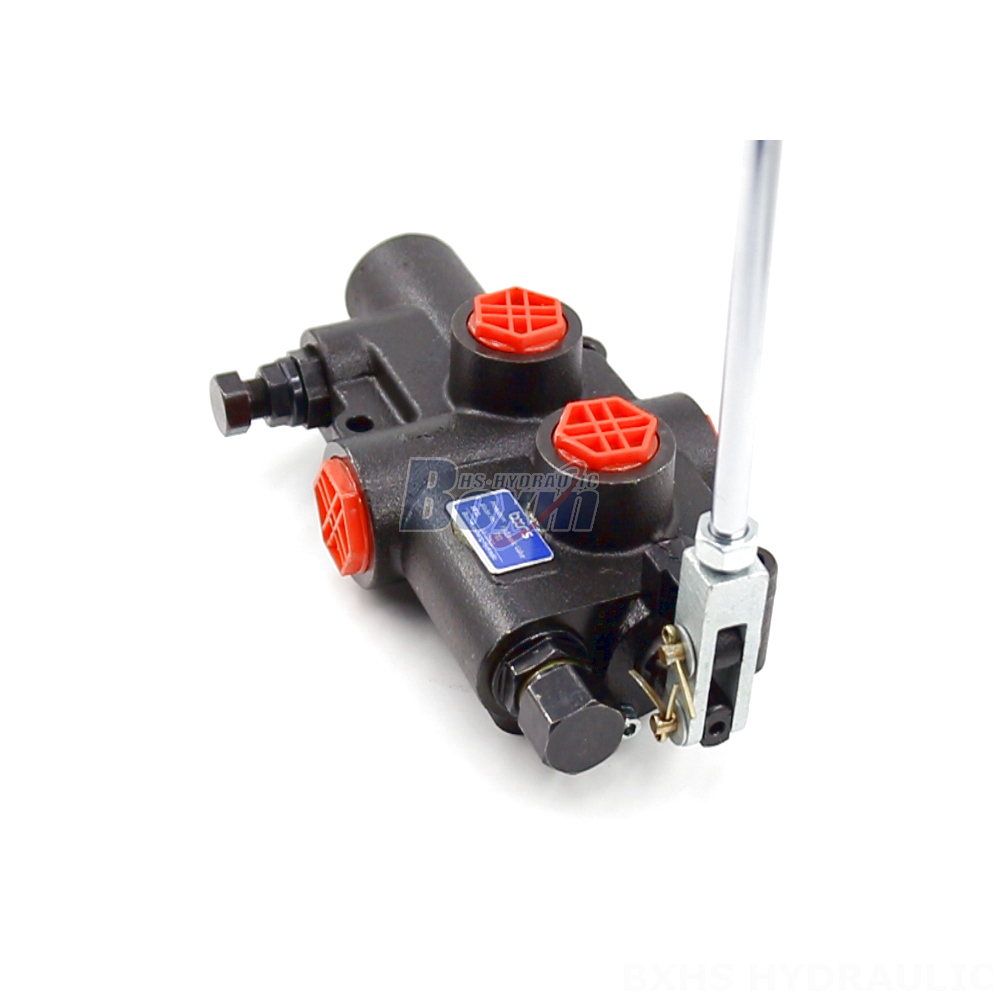

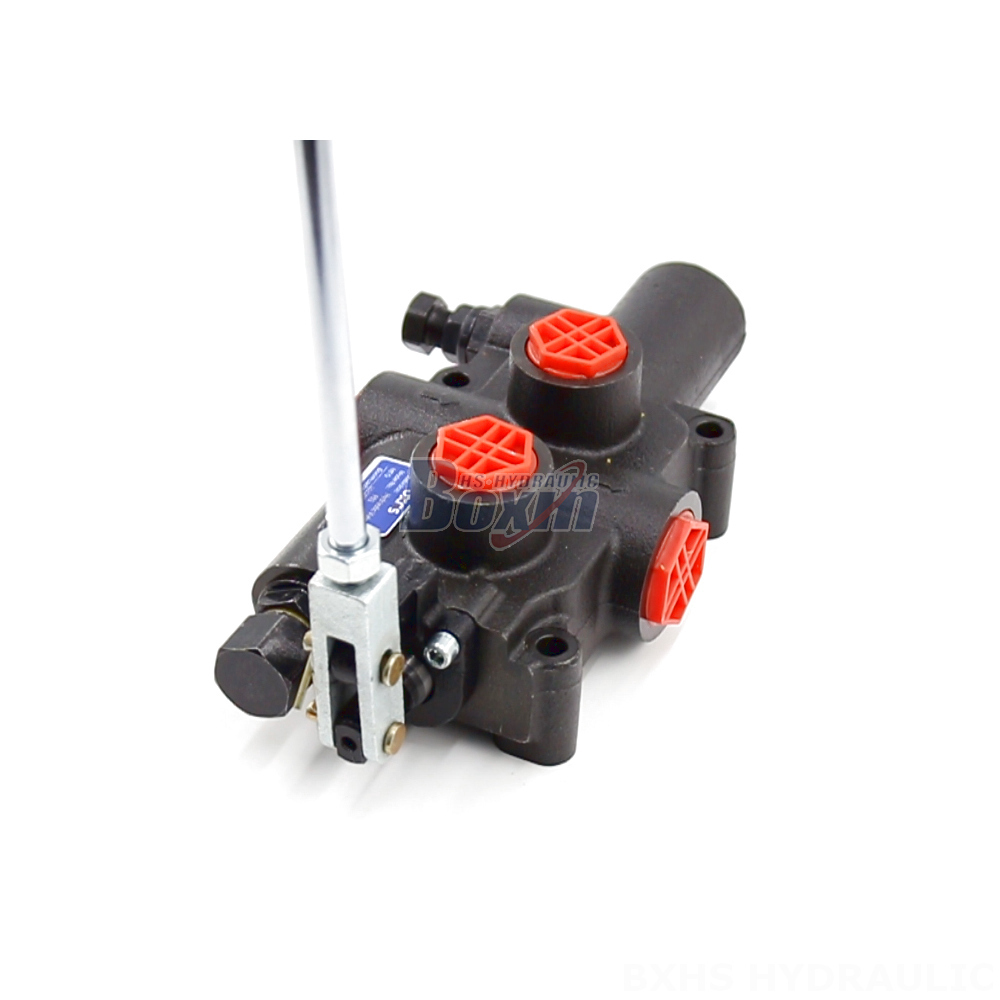

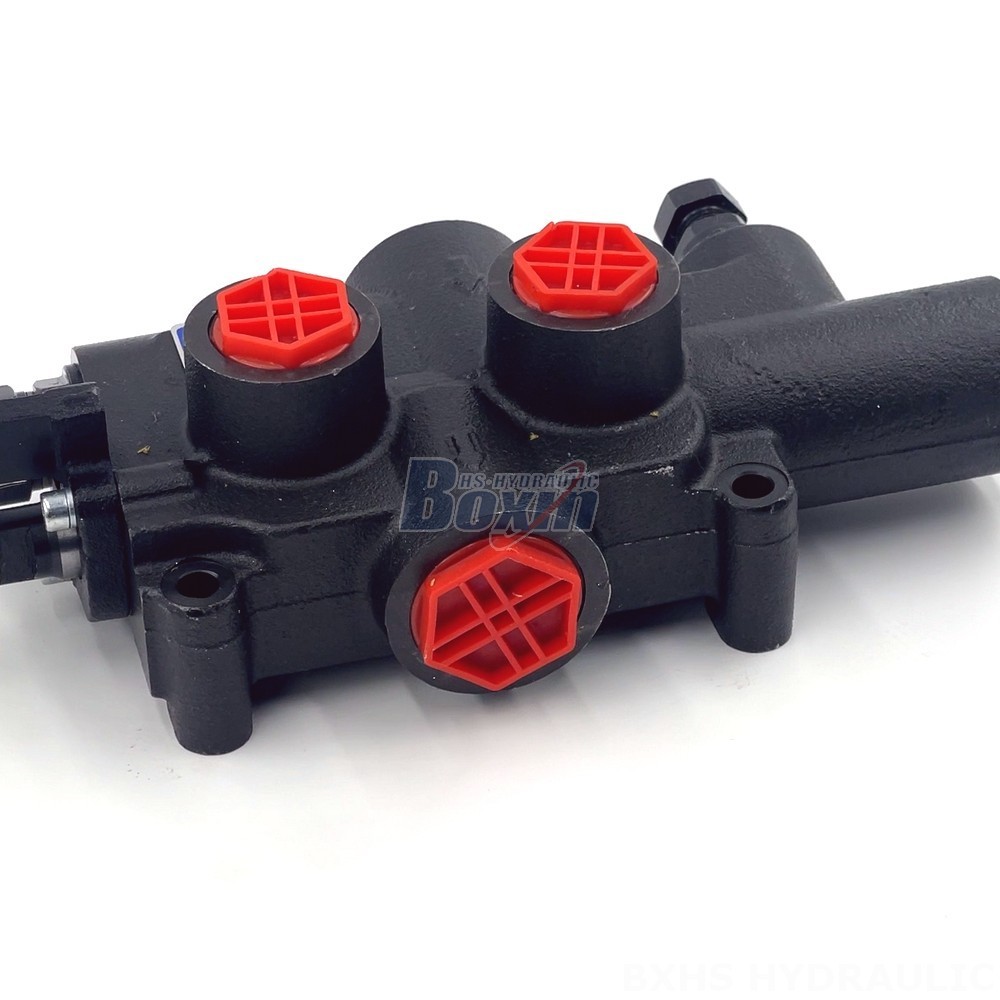

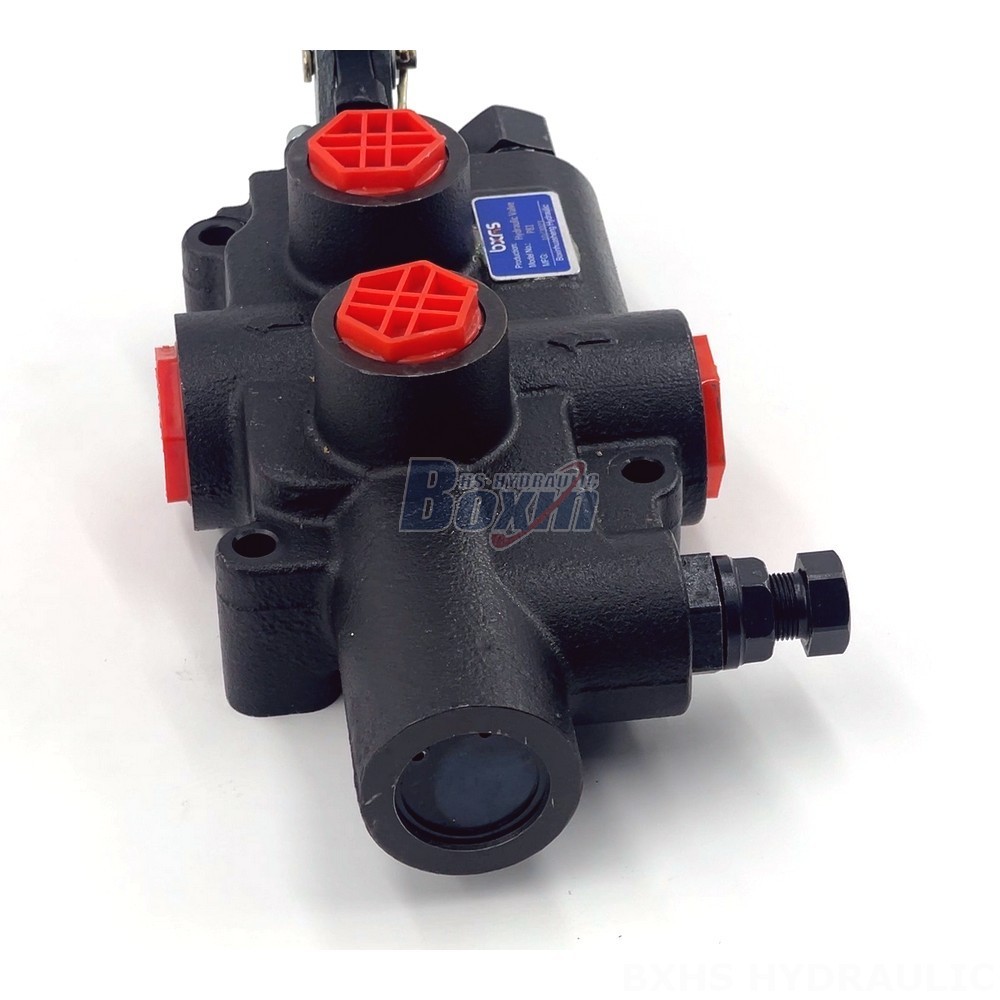

The P81 Series 3/2 Directional Control Valve is a high-performance, reliable hydraulic valve specifically designed for wood splitters. This manual control monoblock valve features a rated flow of 80 L/min, a maximum pressure of 250 bar, and a kick-out setting pressure of 70~140 bar, making it ideal for demanding industrial applications.

P81系列 伐木机多路阀 参数
控制方式 手控
路数 1 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm), 95 L/min (25.1 US gpm)
最大压力 19 MPa (145 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G3/4接口

The P81 Series 3/2 Directional Control Valve is a robust and reliable hydraulic valve designed for use in wood splitters. This manual control monoblock valve features a single spool and a rated flow of 80 L/min, making it capable of handling demanding hydraulic systems. Its maximum pressure rating of 250 bar ensures durability and performance in demanding applications. The kick-out setting pressure of 70~140 bar provides adjustable protection for the system and its components. This valve is designed for industrial vehicles and is built to withstand harsh operating conditions. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This valve is an excellent choice for anyone looking for a high-quality, reliable, and high-performance hydraulic valve for their wood splitter.
