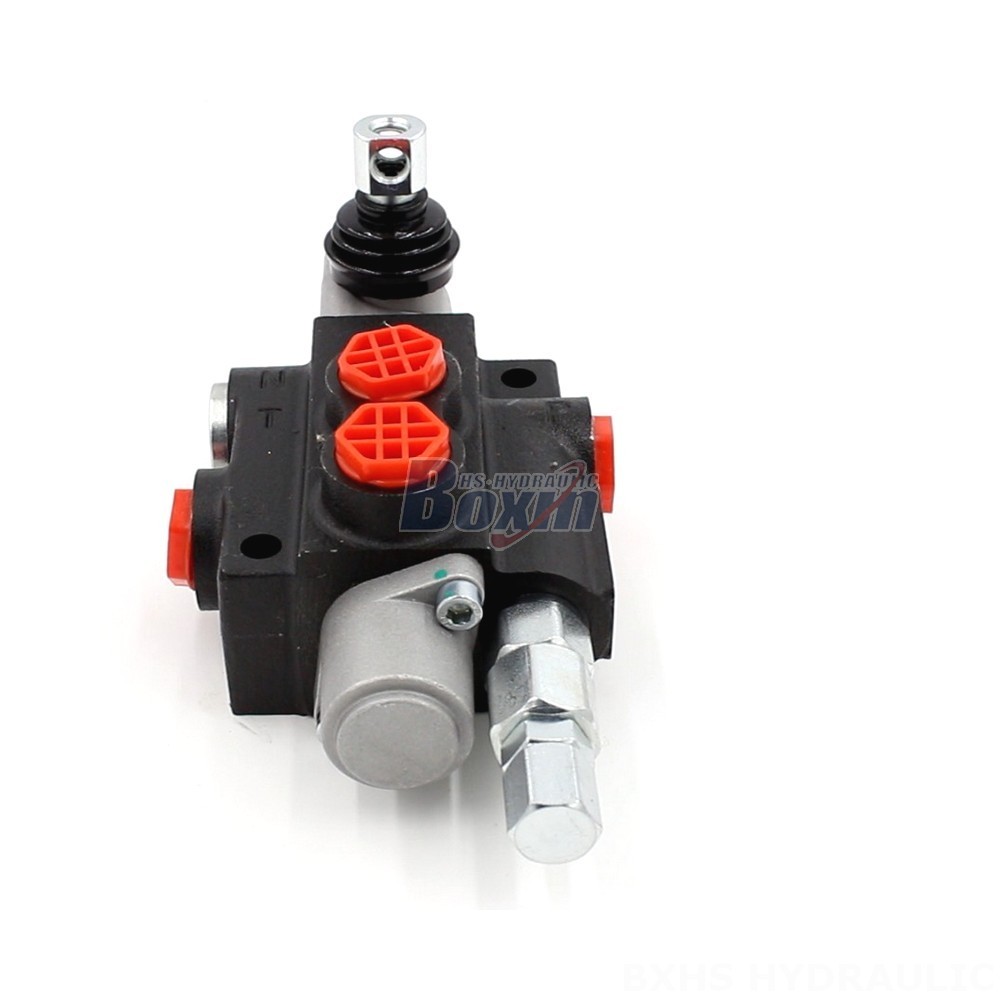

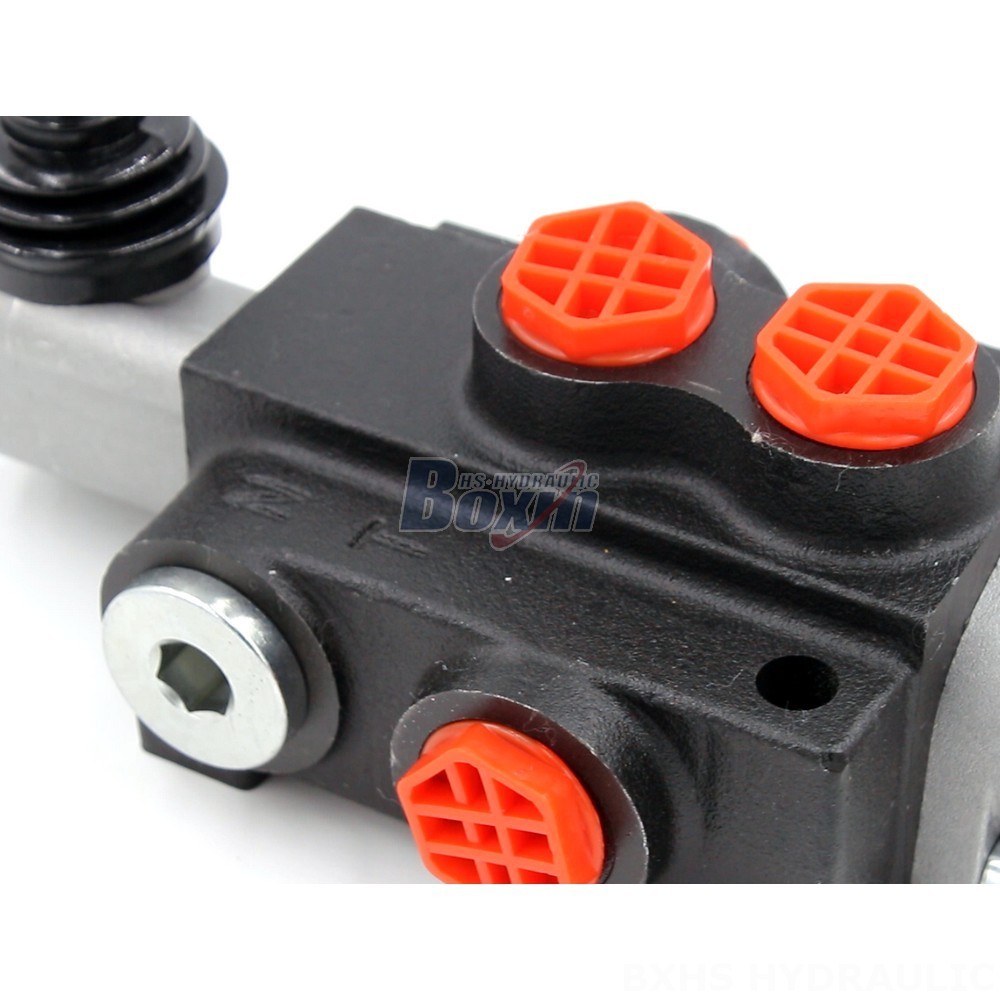

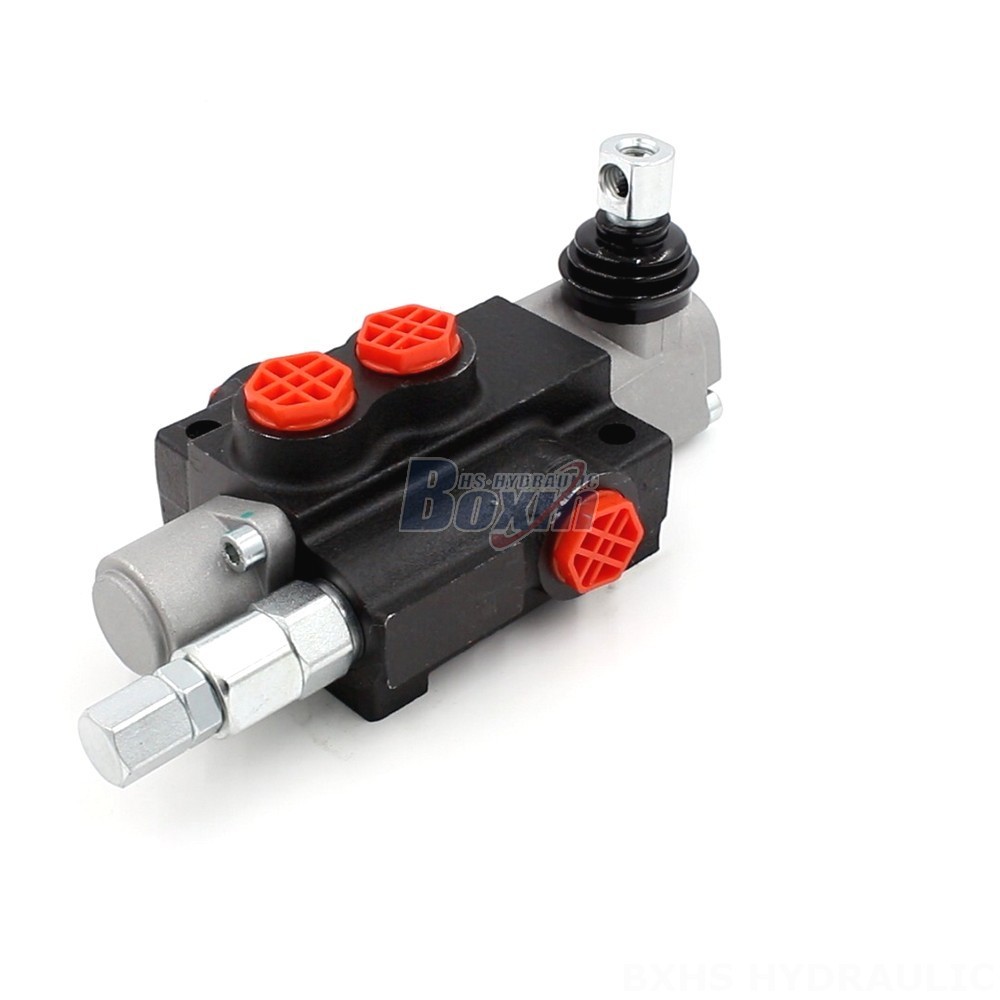

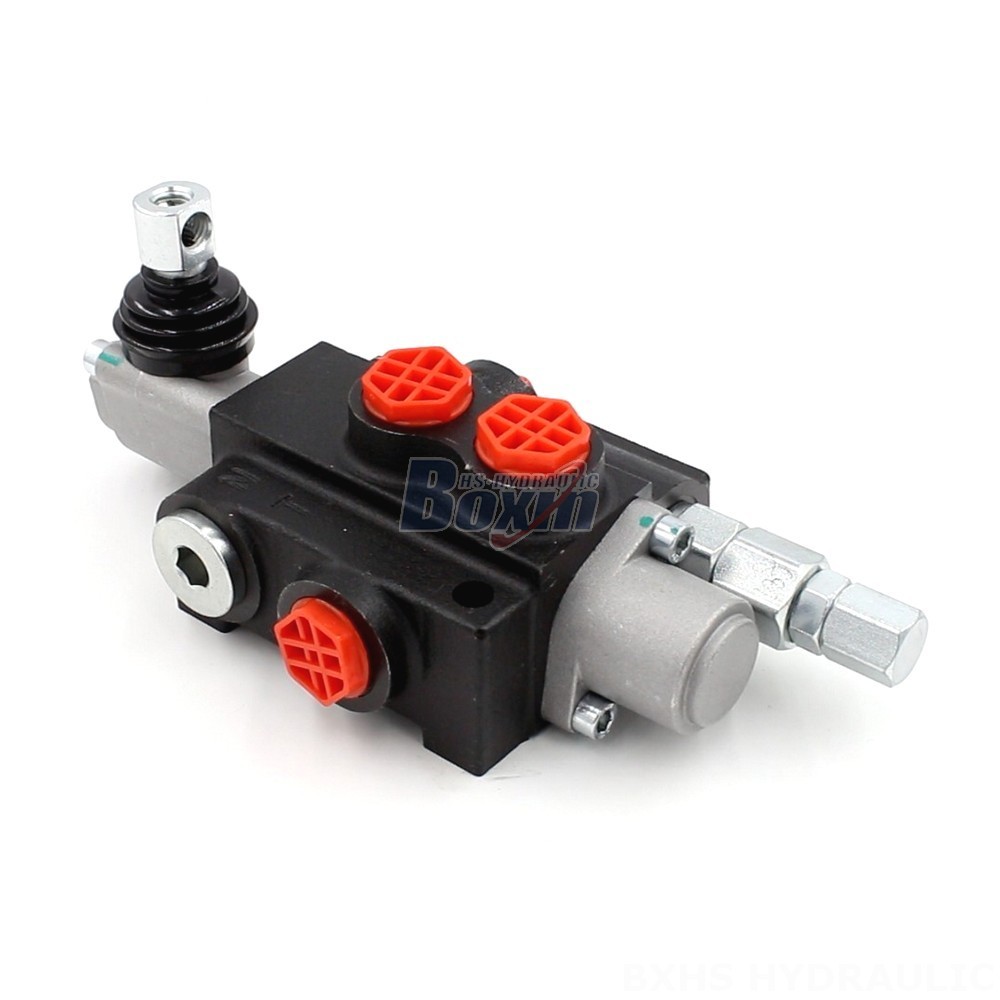

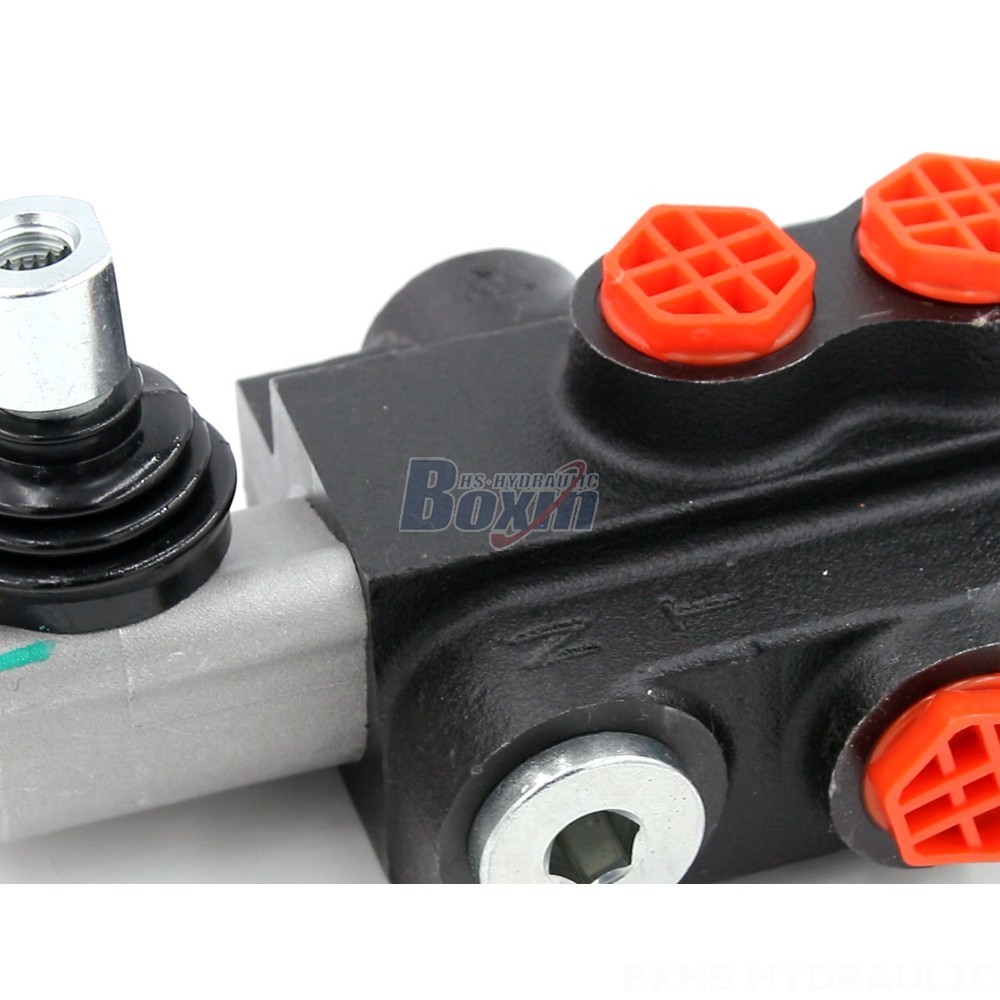

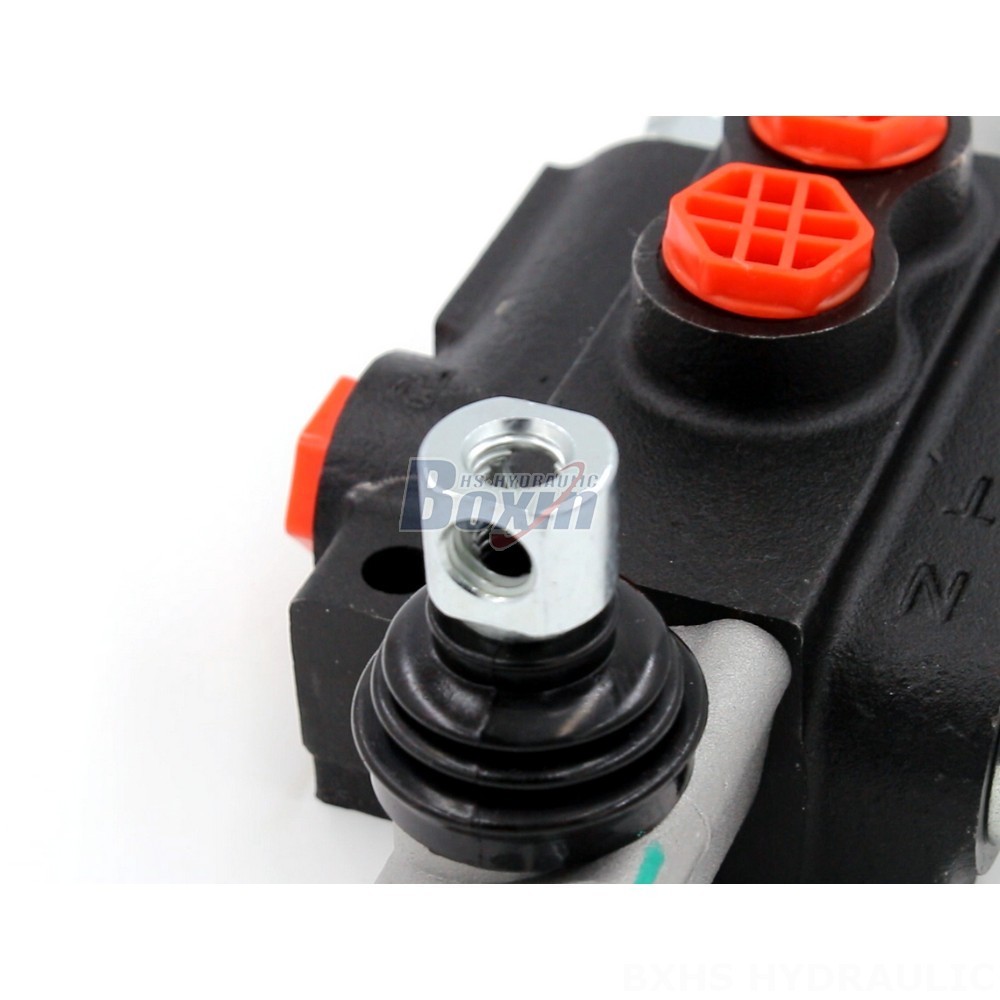

The P40-G38 Valve is a highly customizable hydraulic valve designed to meet the specific requirements of various applications. With its manual control, monoblock structure, and tailored hydraulic solutions, this valve offers exceptional performance and reliability.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G38 Valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its single spool design provides precise flow control, making it suitable for a wide range of applications. As a leading manufacturer of hydraulic products, we offer OEM, ODM, and private label services. Our team of experts can work closely with you to design and manufacture hydraulic solutions that meet your exact specifications. Whether you require customized components or complete systems, we have the expertise and capabilities to deliver tailored hydraulic solutions that exceed your expectations.
