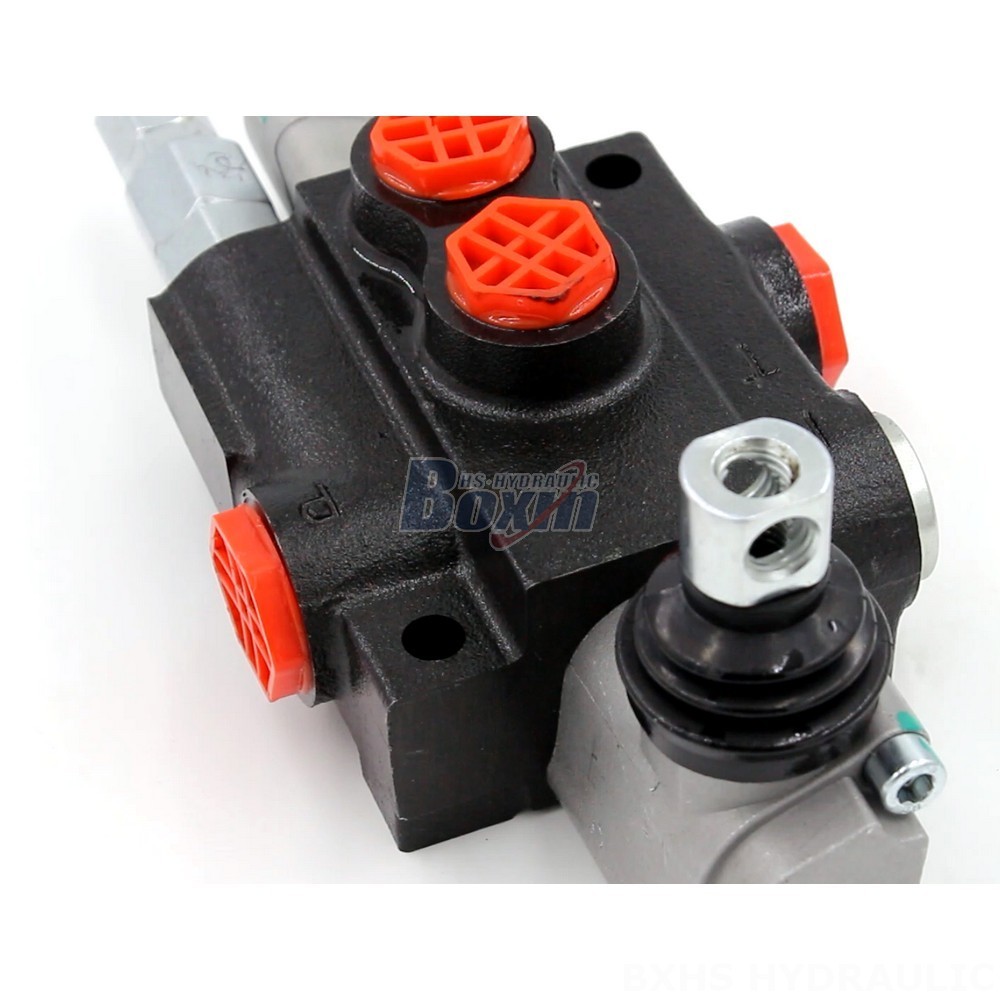

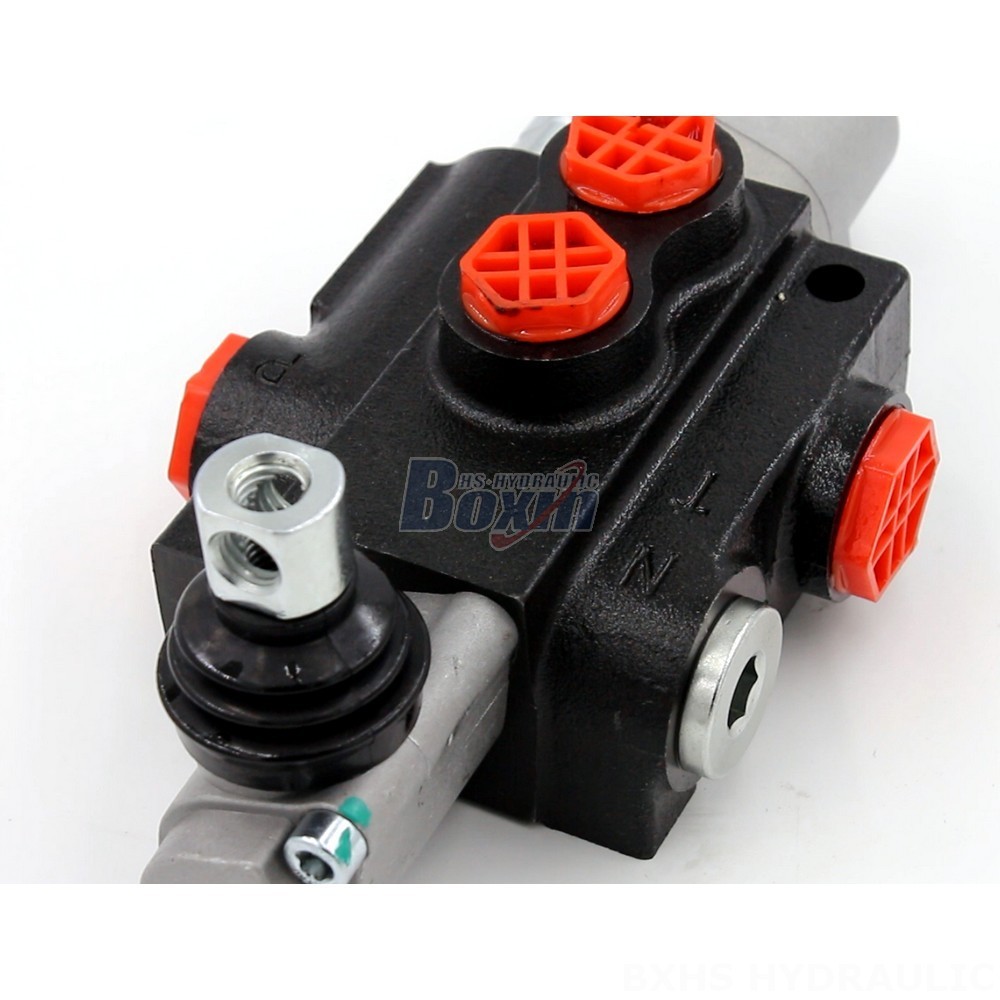

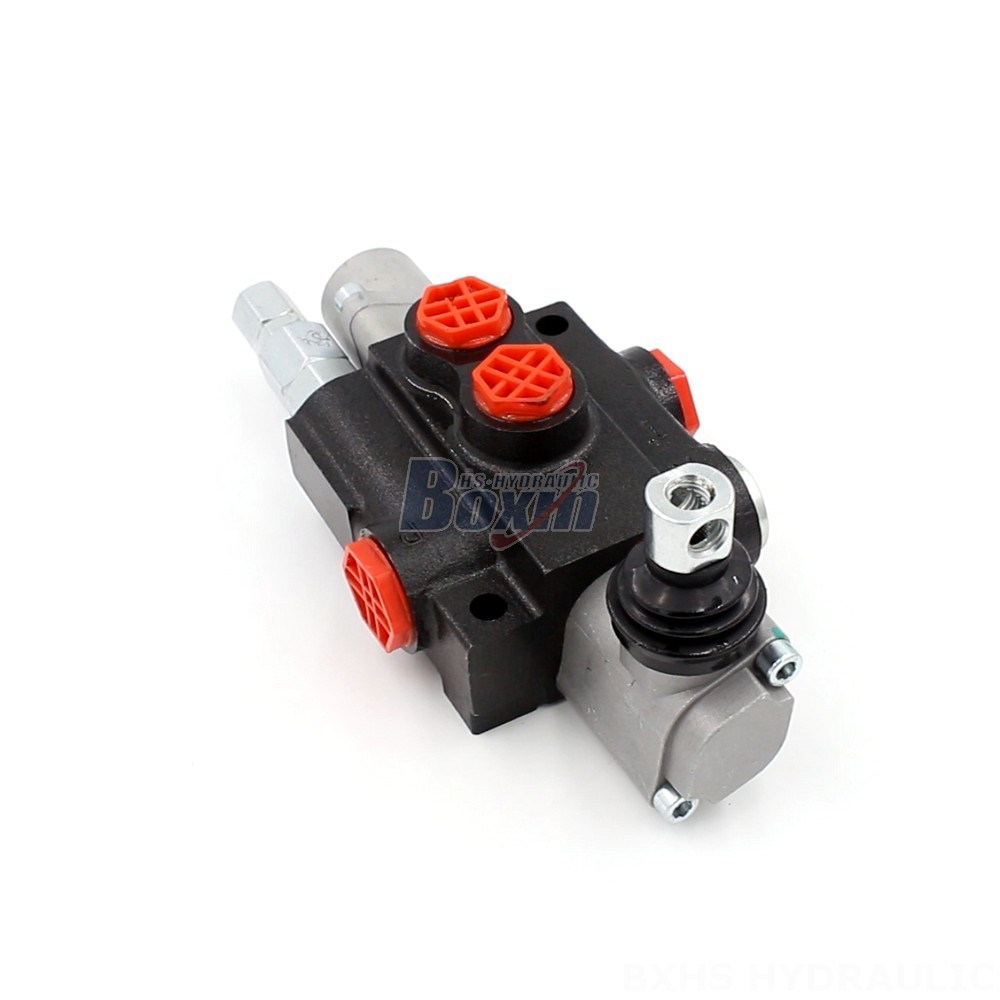

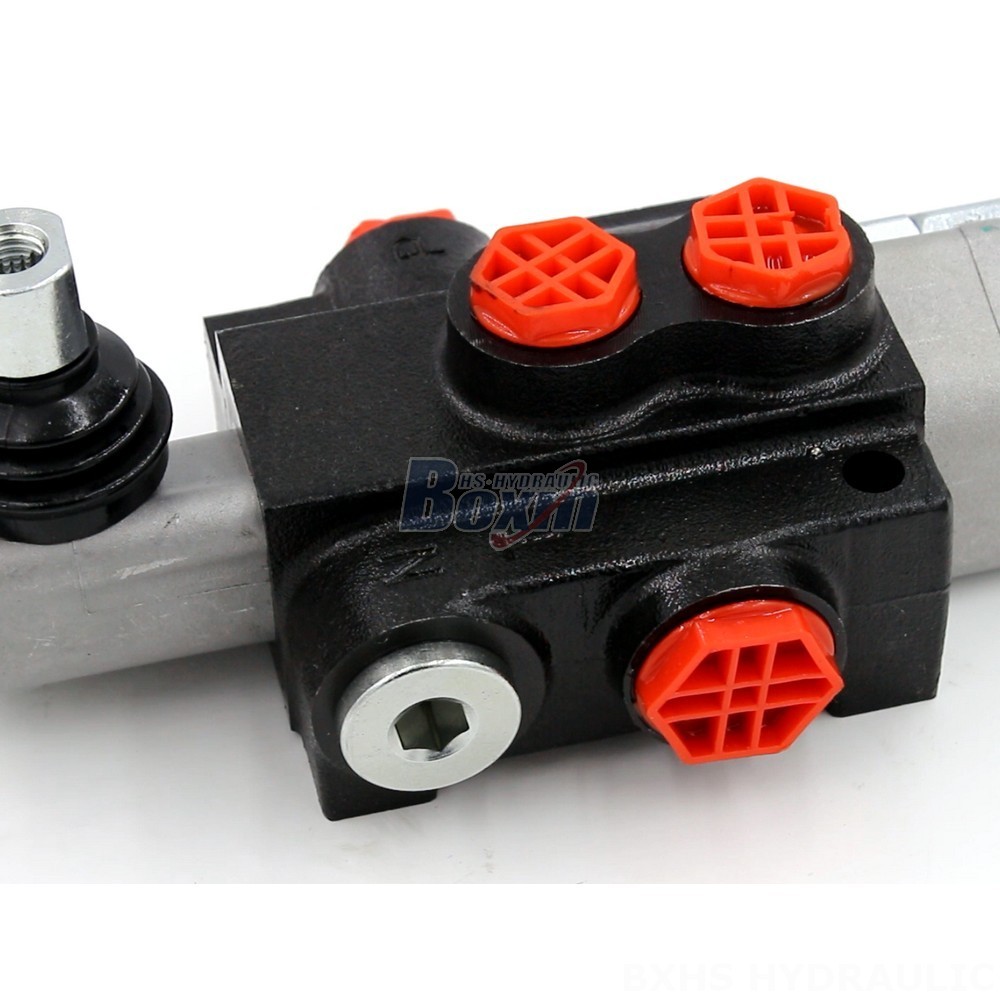

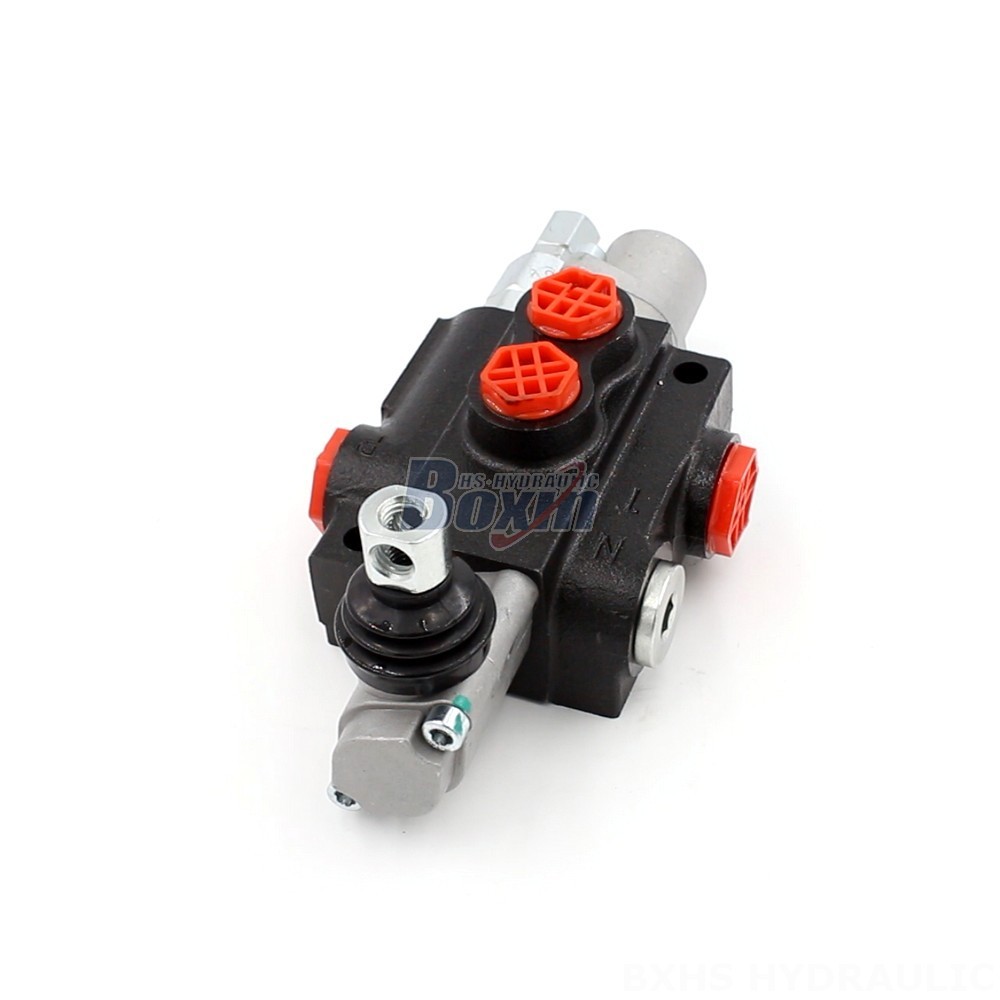

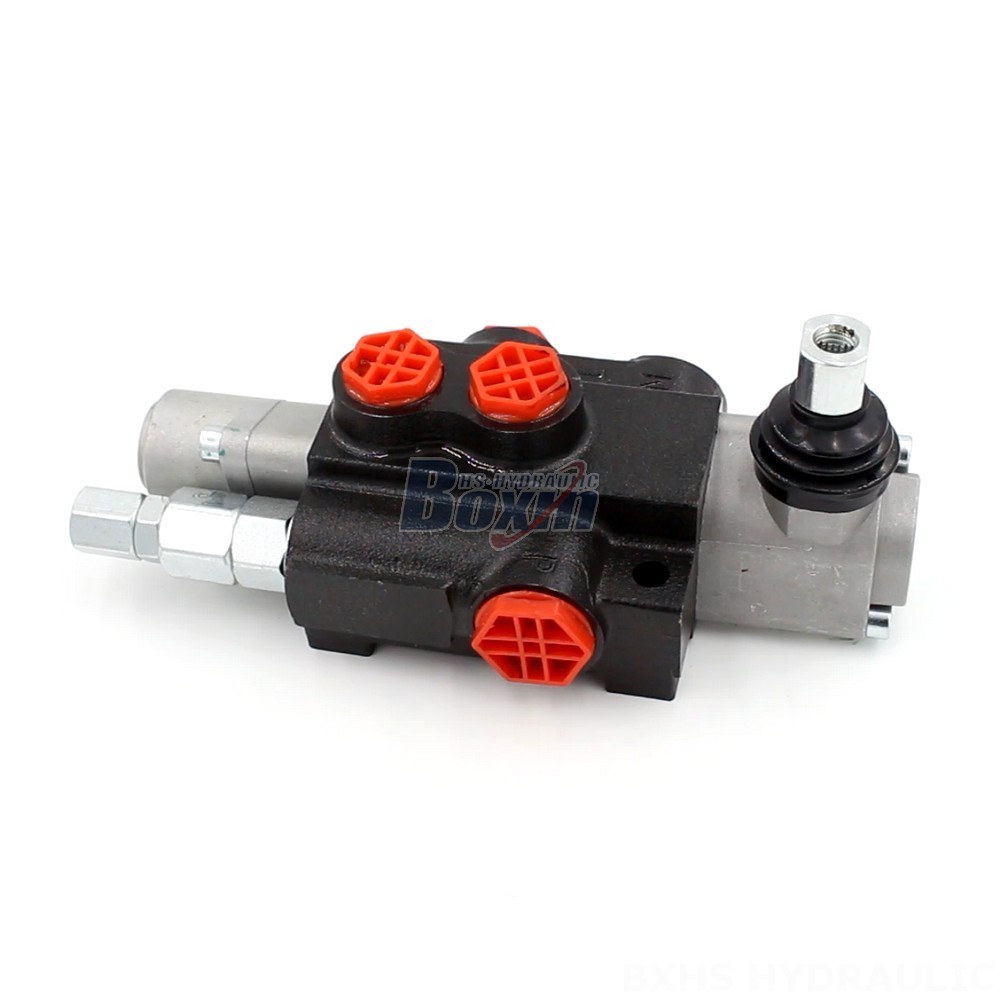

The P40-G38-OT is a manually operated, monoblock directional valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It features a flow rate of 40 L/min, a maximum pressure of 250 bar, and a temperature range of -40°C to +80°C.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G38-OT is a versatile directional valve that offers precise control and reliability in demanding hydraulic systems. Its key features include:
* **Manual Operation:** Allows for direct and intuitive control of fluid flow.
* **Monoblock Construction:** Provides a compact and robust design, ensuring durability and leak-free performance.
* **High Flow Rate:** Delivers up to 40 L/min of flow, suitable for a variety of applications.
* **High Pressure Rating:** Withstands pressures up to 250 bar, making it ideal for heavy-duty applications.
* **Wide Temperature Range:** Operates effectively in temperatures ranging from -40°C to +80°C, ensuring performance in diverse environments.
* **Single Spool Design:** Offers simple and efficient flow control with a single spool.
* **Versatile Applications:** Suitable for a range of industrial applications, including construction, material handling, agriculture, and industrial vehicles.
