3 2 Way Directional Control Valve P40-G12-G38 Directional Valve | Distributorship Opportunities

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:24*21*13

Grossweight:7.00 kg

库存: 有货

769 次查看了此产品

3 2 Way Directional Control Valve P40-G12-G38 Directional Valve | Distributorship Opportunities

3 2 Way Directional Control Valve P40-G12-G38 Directional Valve | Distributorship Opportunities

3 2 Way Directional Control Valve P40-G12-G38 Directional Valve | Distributorship Opportunities drawing image

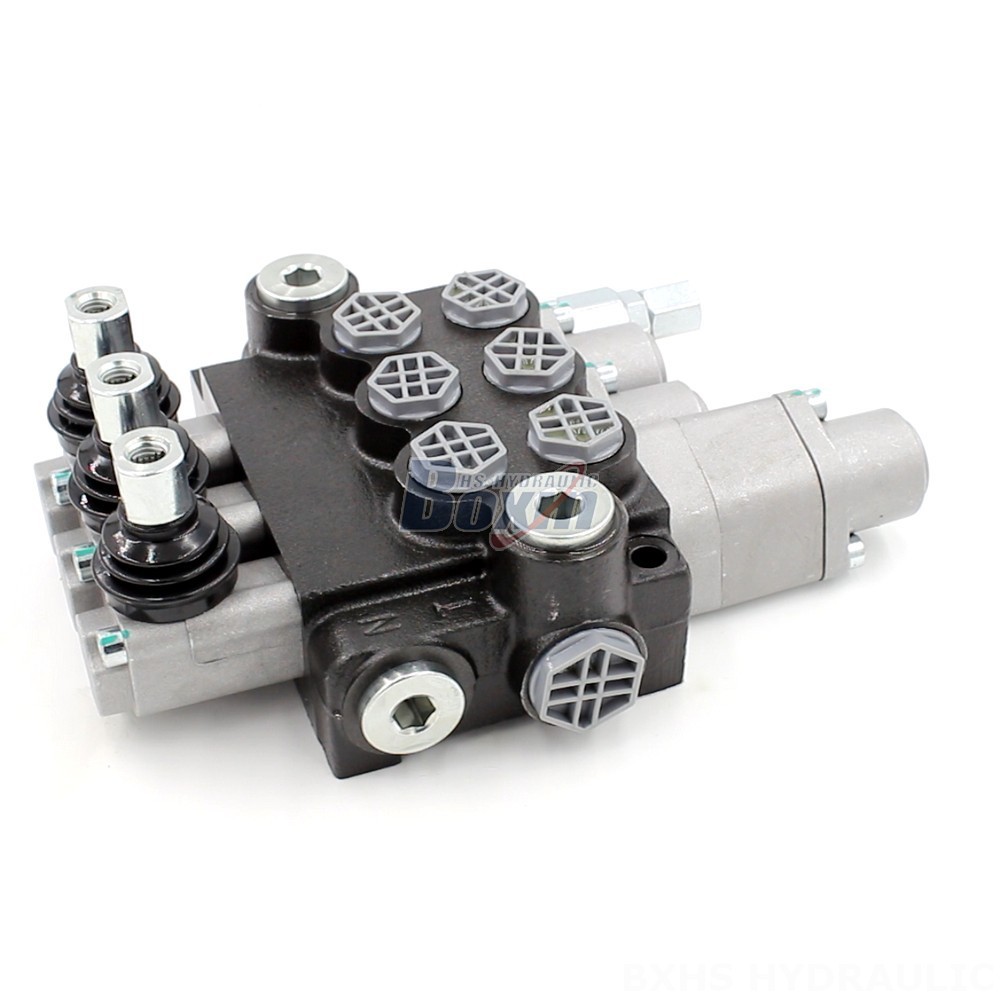

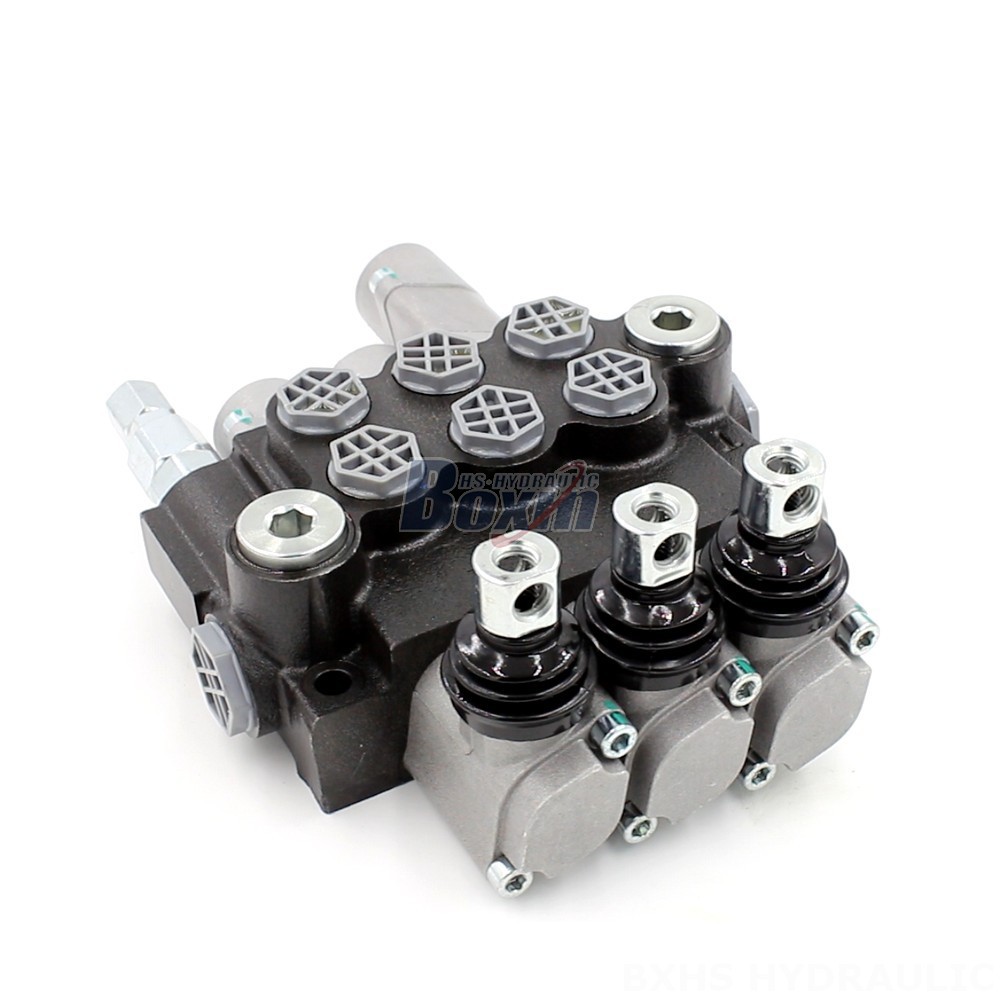

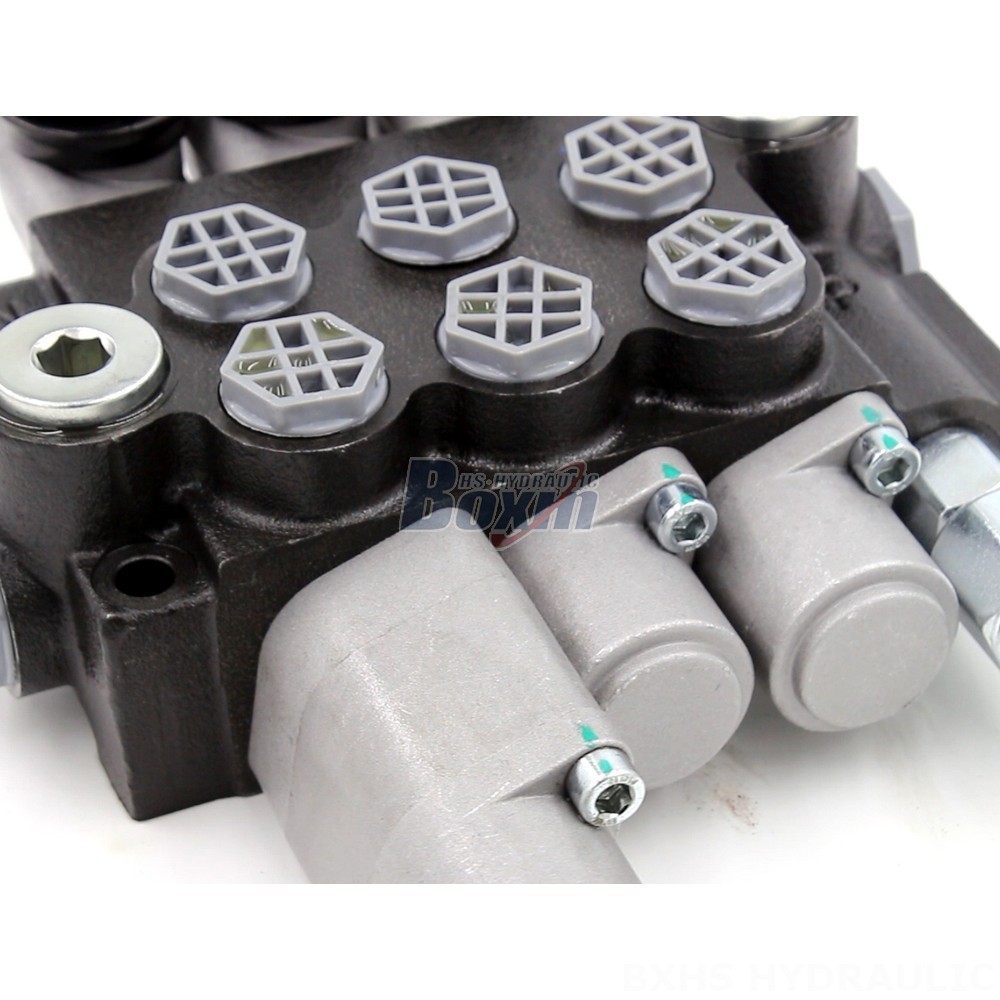

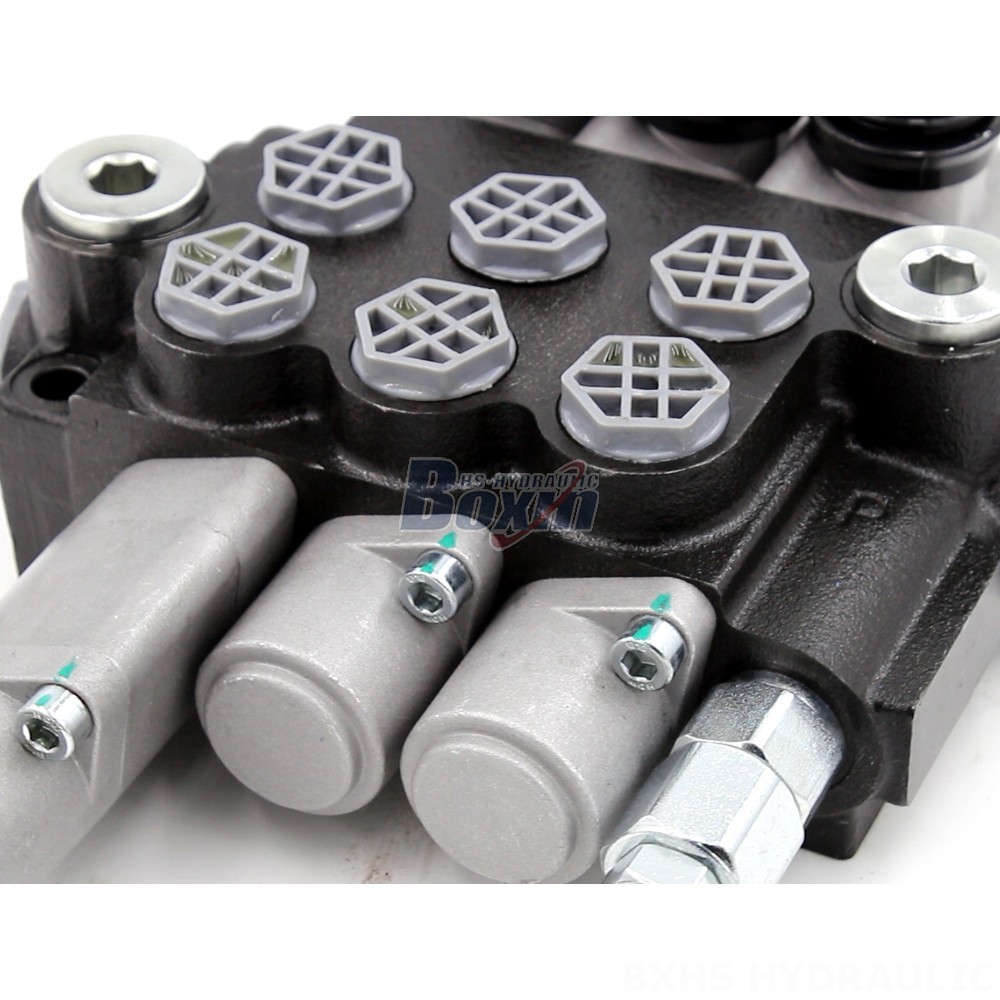

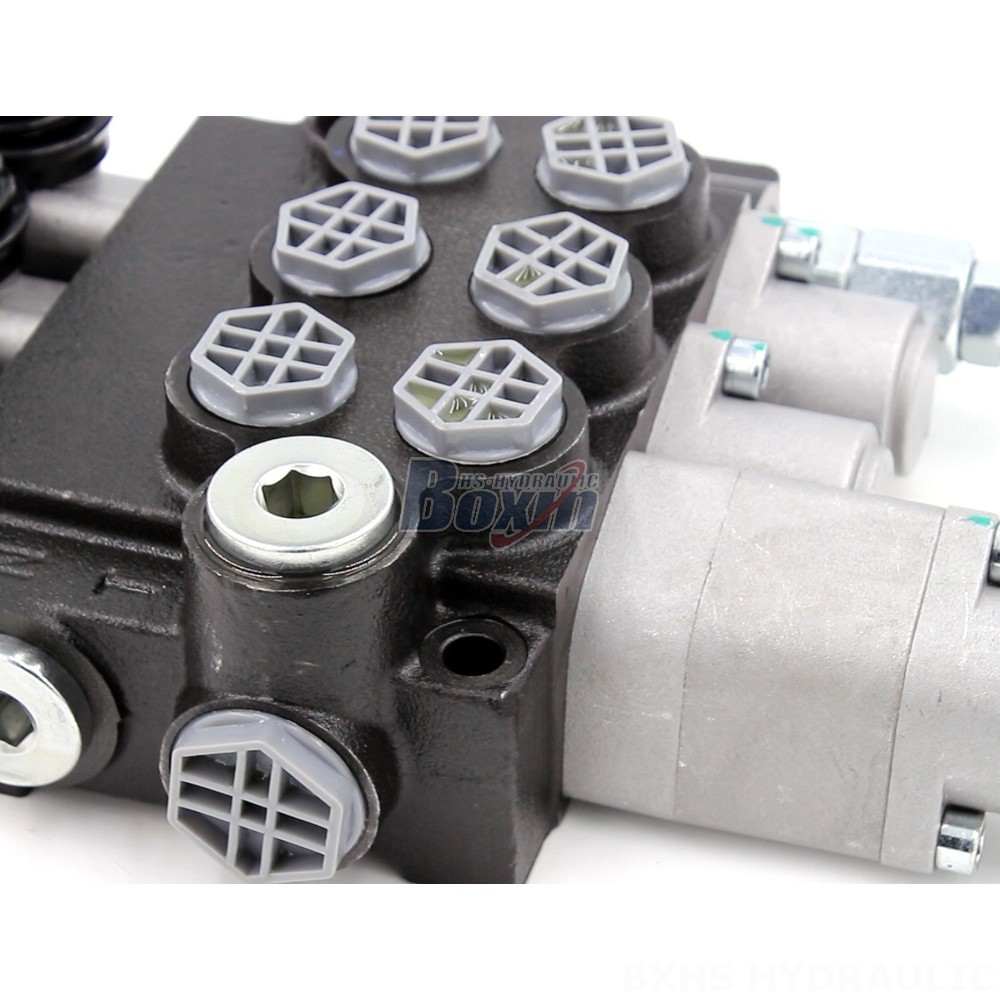

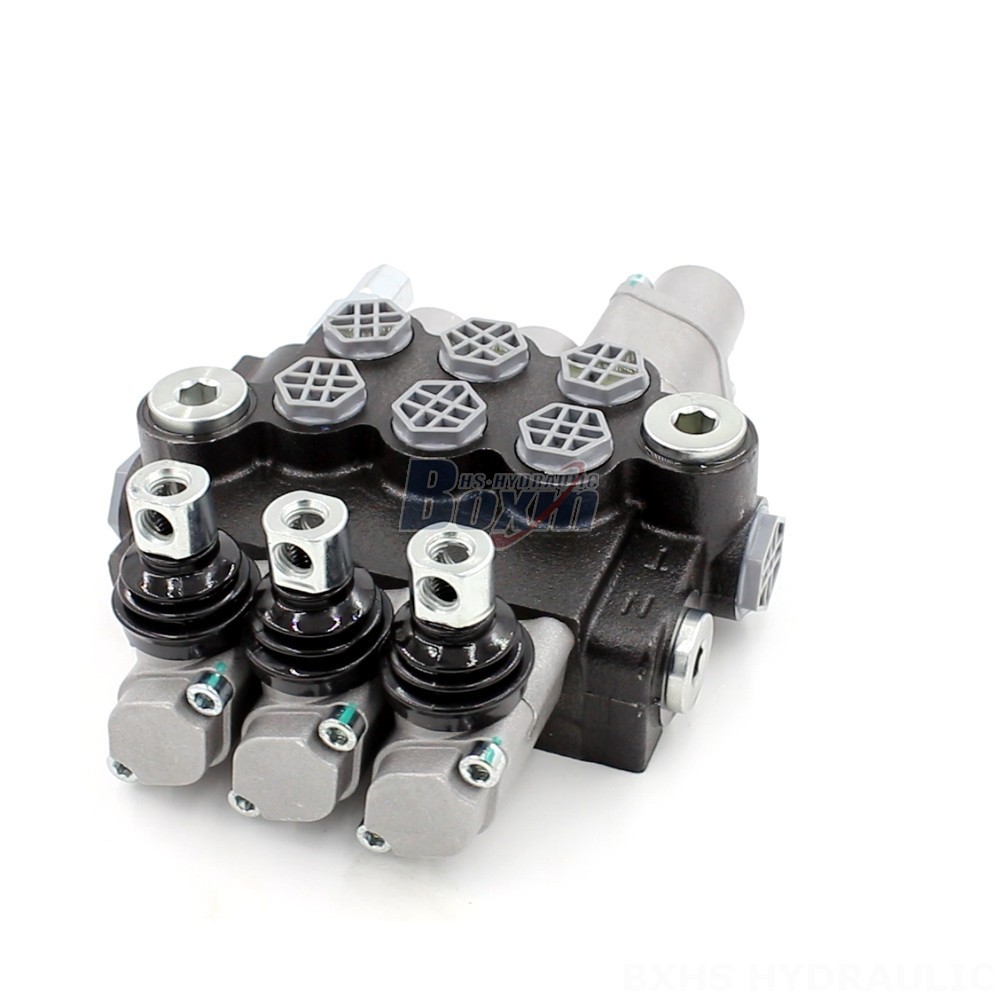

The P40-G12-G38 3 Way Directional Control Valve is a reliable and versatile hydraulic valve designed for use in a wide range of construction, industrial and agricultural applications. This monoblock valve features a manual control method and a rated flow of 40 L/min, making it ideal for operating various equipment like telehandlers, forklifts, cranes, and excavators.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40-G12-G38 3 Way Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features a 3-section, monoblock design with a manual control method. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosity ranges of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P40 series valve is ideal for use in construction equipment, material handling applications, industrial vehicles, and agriculture. Its robust design and reliable performance make it suitable for various heavy-duty applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
