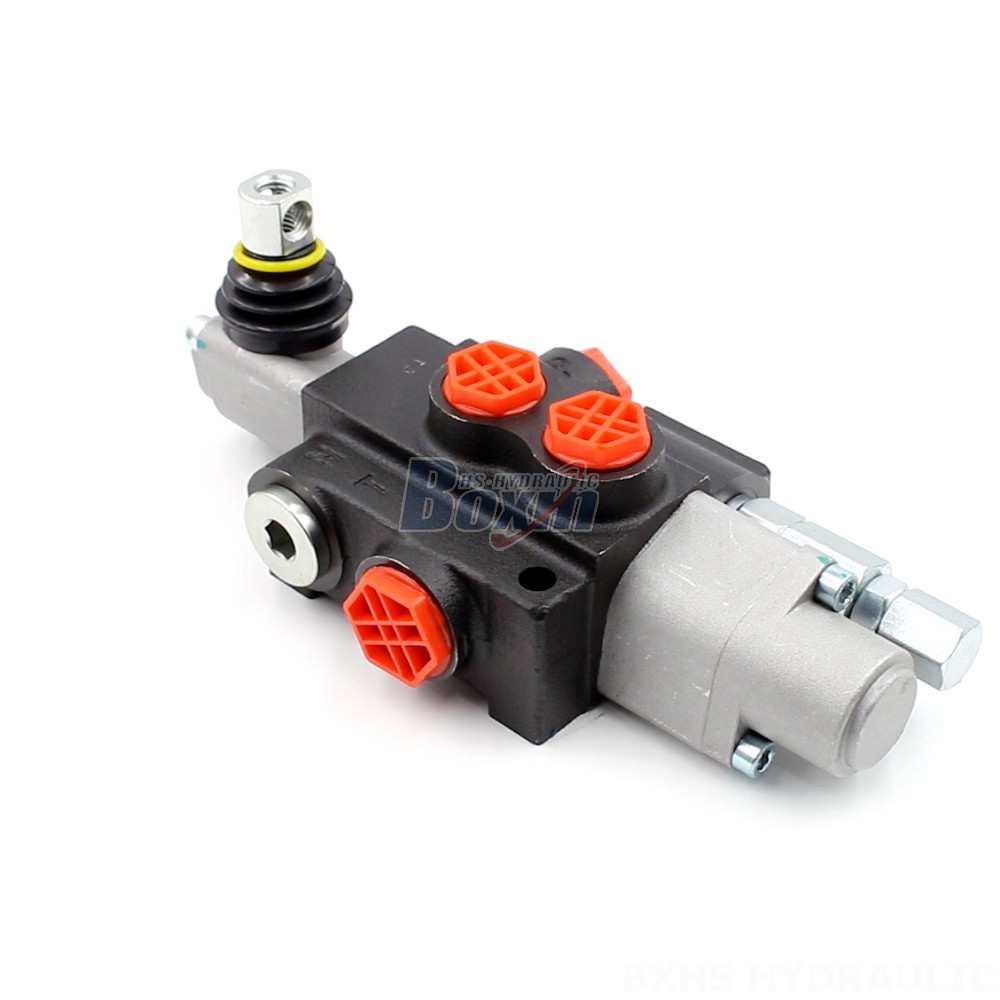

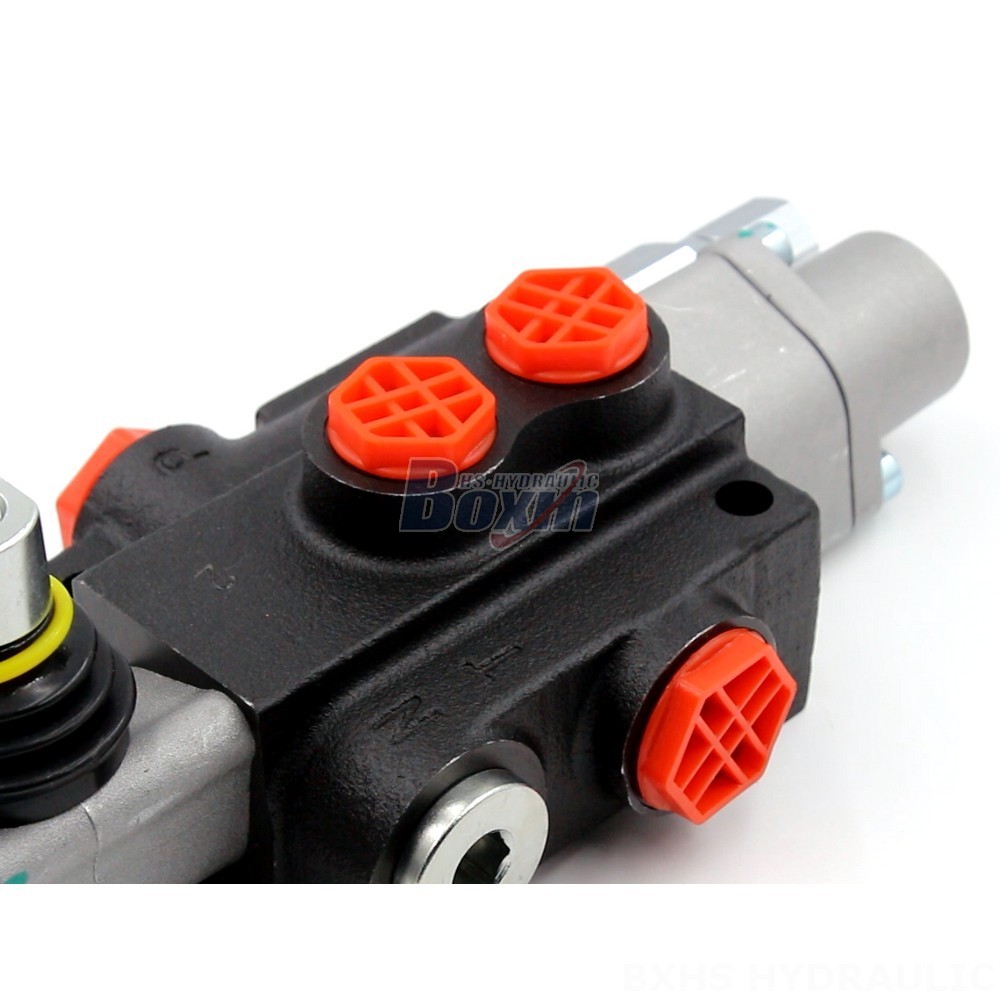

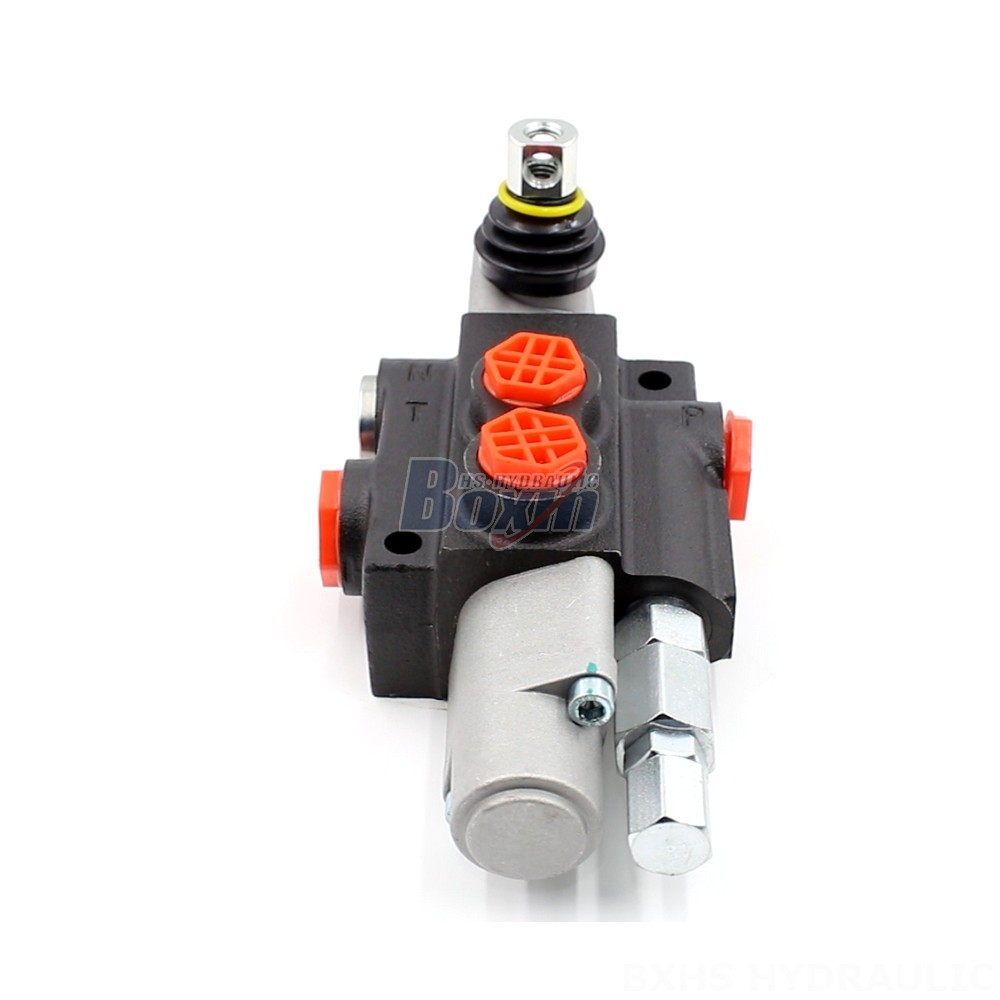

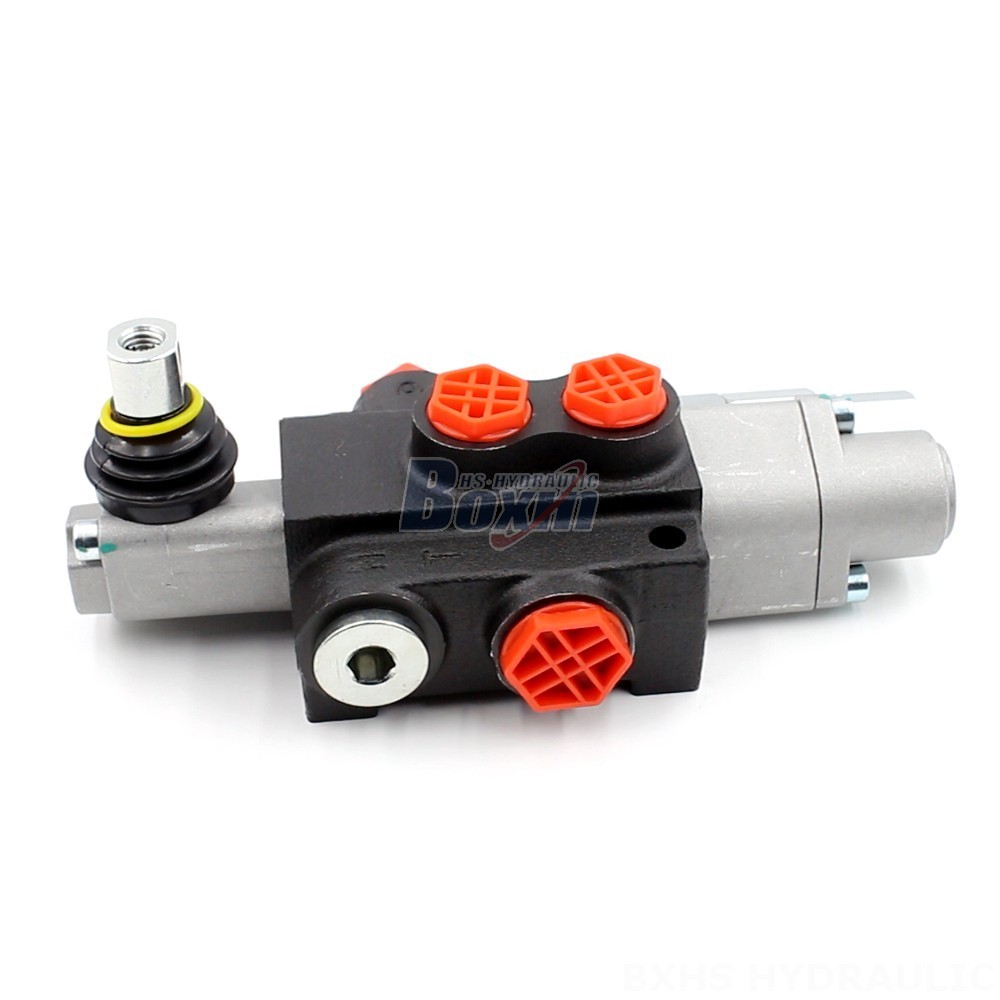

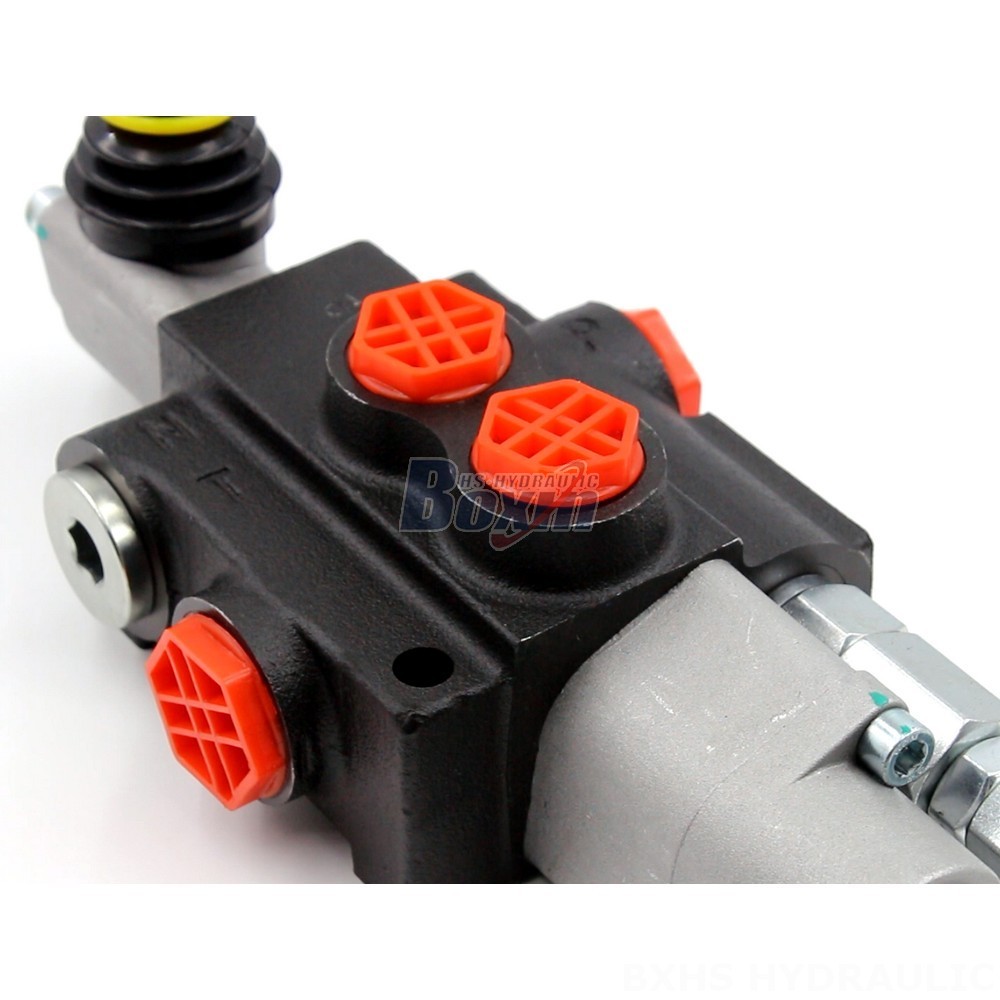

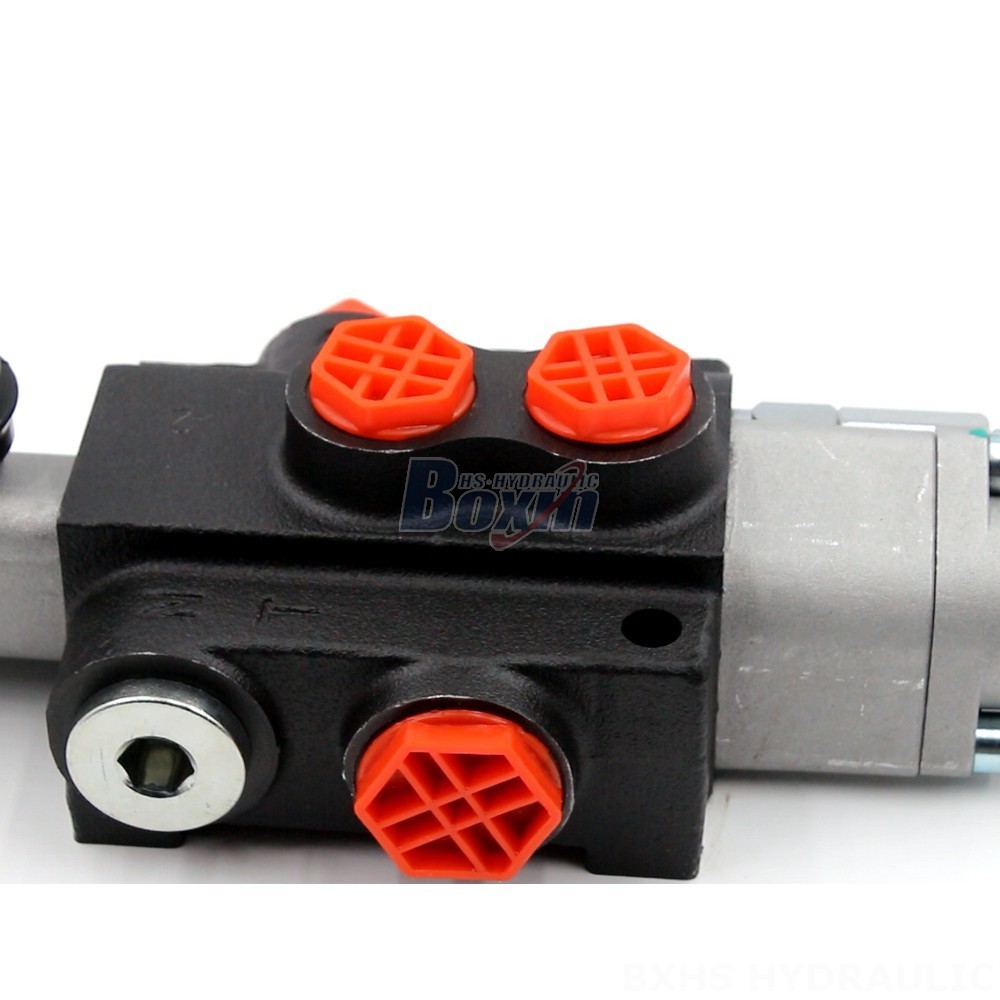

The Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a high-performance, durable valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar. Available for customization, this valve is perfect for a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a manual control, 1-section, monoblock valve. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve can handle demanding applications. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt) and it operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms. This valve is available for customization and is factory direct.
