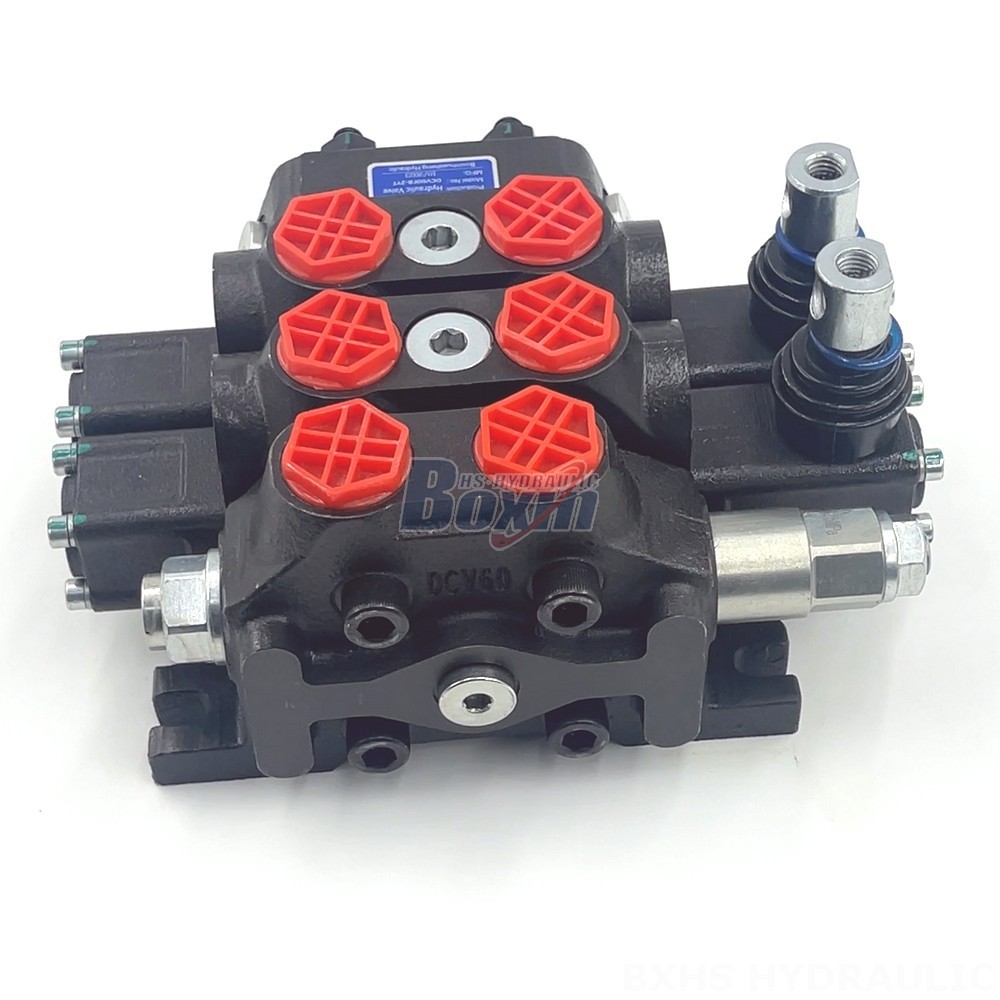

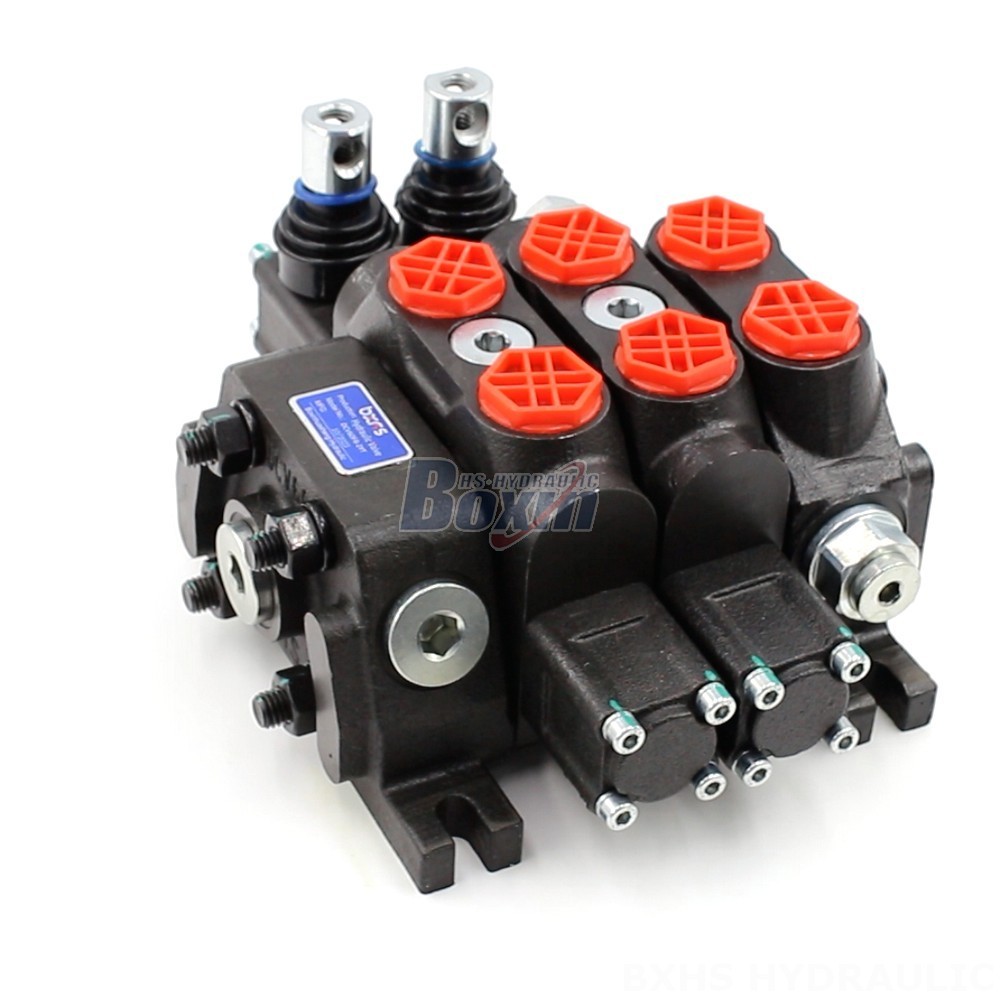

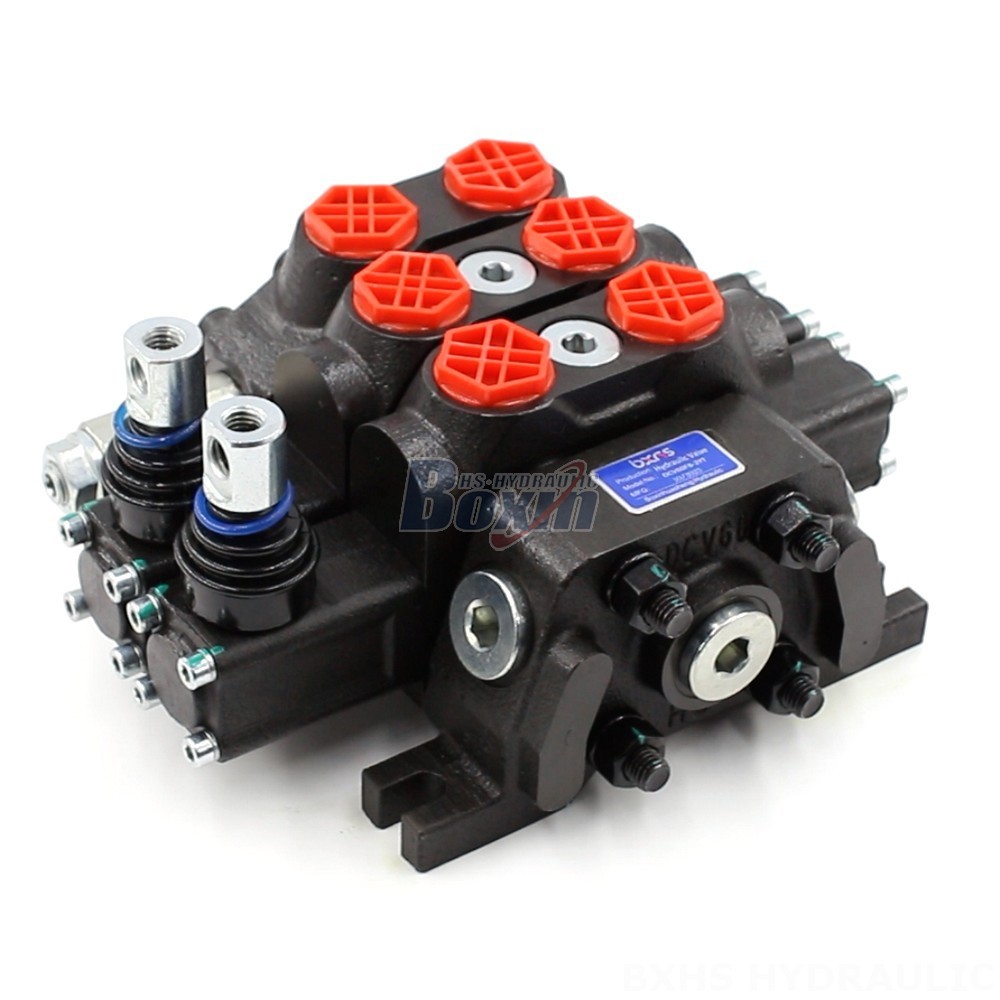

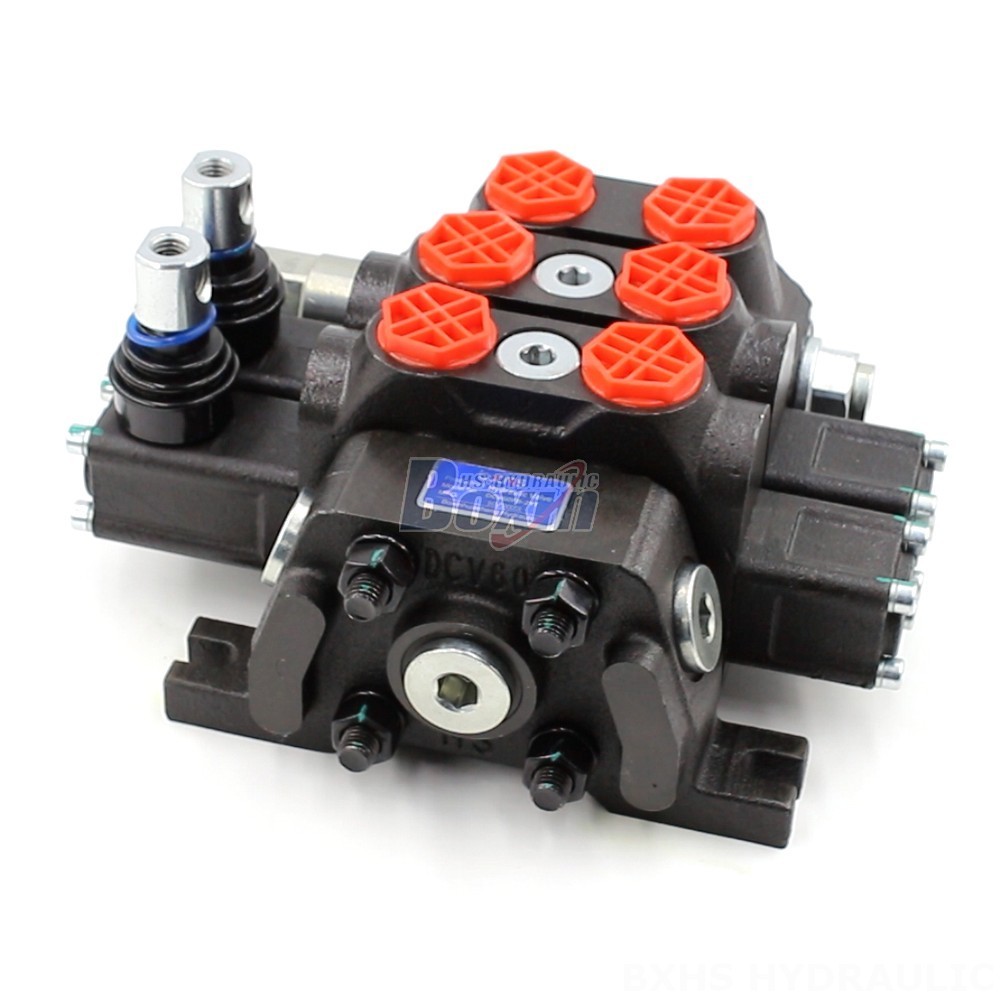

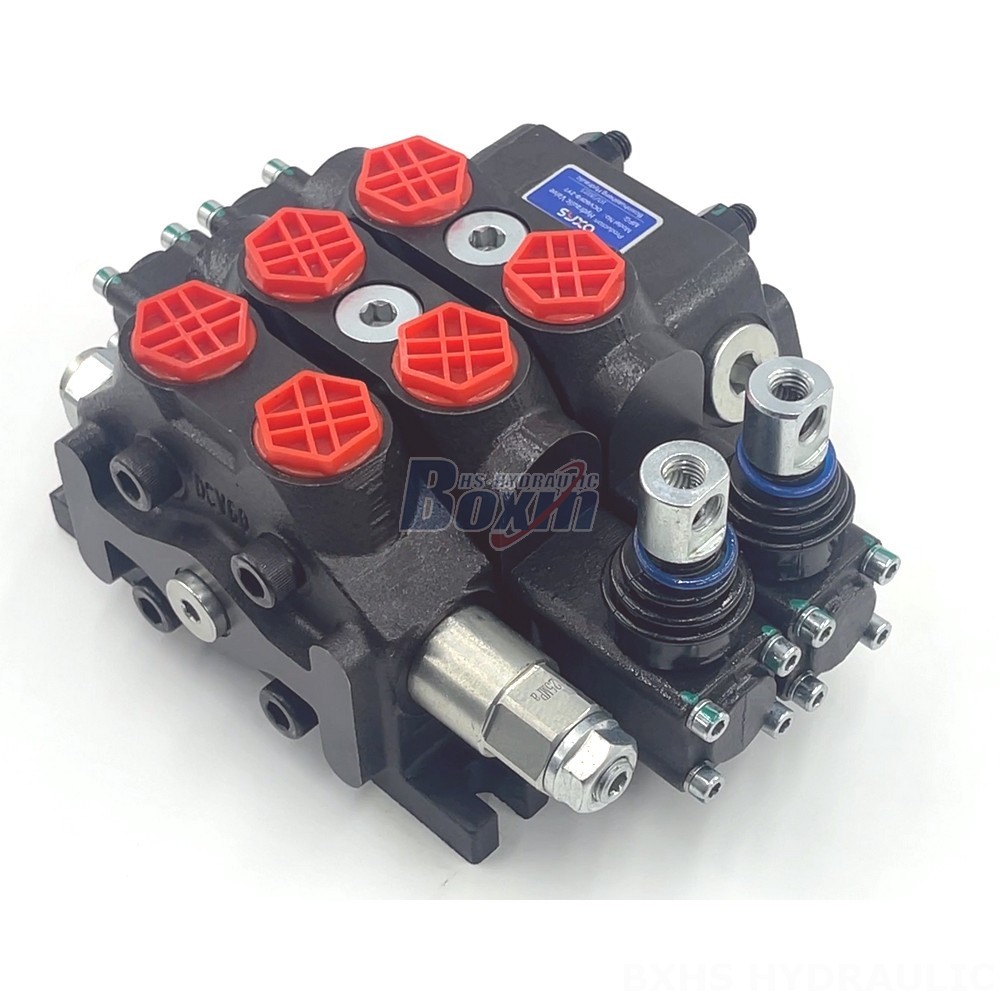

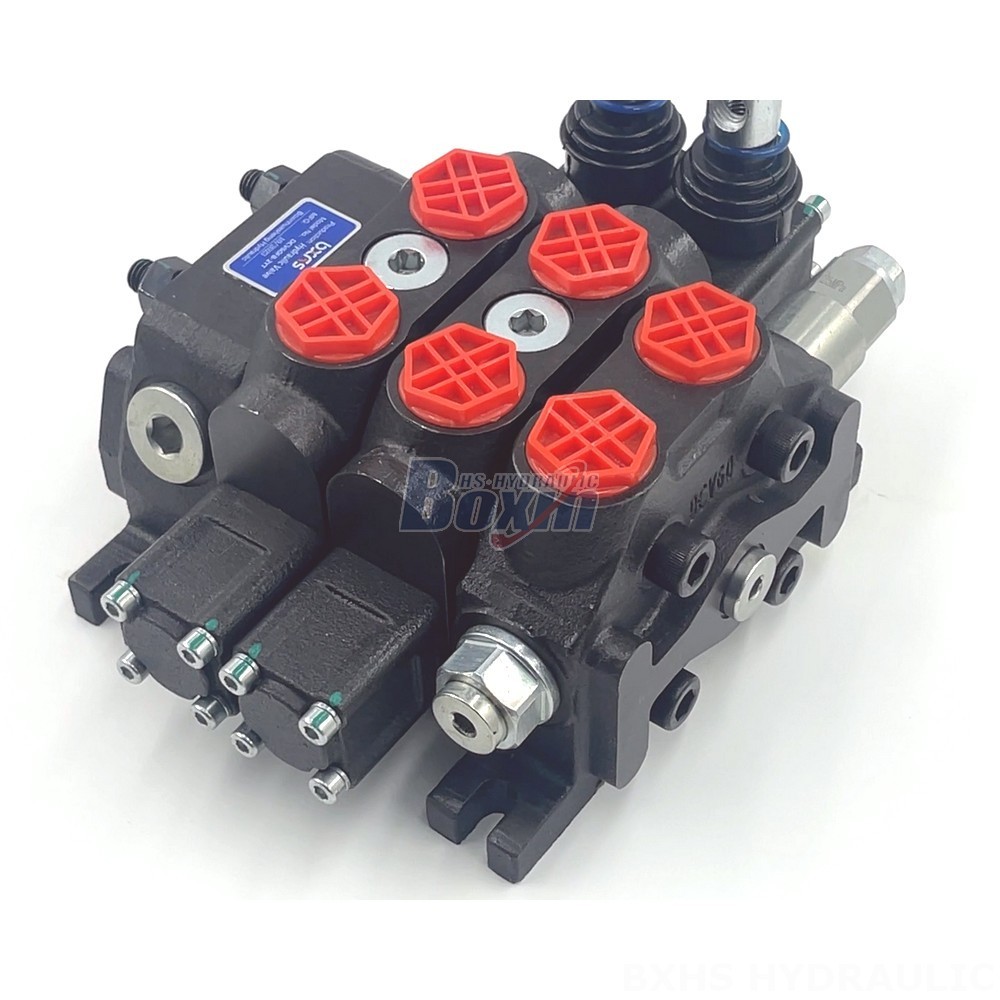

The DCV60 Series Hydraulic Multi-way Valve is a manual, monoblock directional valve designed for heavy-duty applications in construction, agriculture, and industrial vehicles. This 2-section valve offers a rated flow of 60 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of equipment.
| DCV60系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 电磁+一控二, 手控+一控二, 电动马达 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The DCV60 Series Hydraulic Multi-way Valve is a manually operated, monoblock directional valve designed for demanding applications in various industries. It features a 2-section design with a rated flow of 60 L/min and a maximum pressure of 350 bar. This valve is ideal for use in construction equipment such as telehandlers, forklifts, cranes, and excavators, as well as agricultural machinery and industrial vehicles. The DCV60 Series offers excellent durability, reliability, and performance, making it a trusted choice for operators seeking high-quality hydraulic control solutions.
