Valve Hydraulic Directional Control Hydraulic Solenoid Valve - P40-DKL Series | Wholesale & OEM

控制方式:电磁

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40-DKL系列 单块式方向阀

Packagingsize:31*18*17

Grossweight:6.50 kg

库存: 有货

782 次查看了此产品

Valve Hydraulic Directional Control Hydraulic Solenoid Valve - P40-DKL Series | Wholesale & OEM

Valve Hydraulic Directional Control Hydraulic Solenoid Valve - P40-DKL Series | Wholesale & OEM

Valve Hydraulic Directional Control Hydraulic Solenoid Valve - P40-DKL Series | Wholesale & OEM drawing image

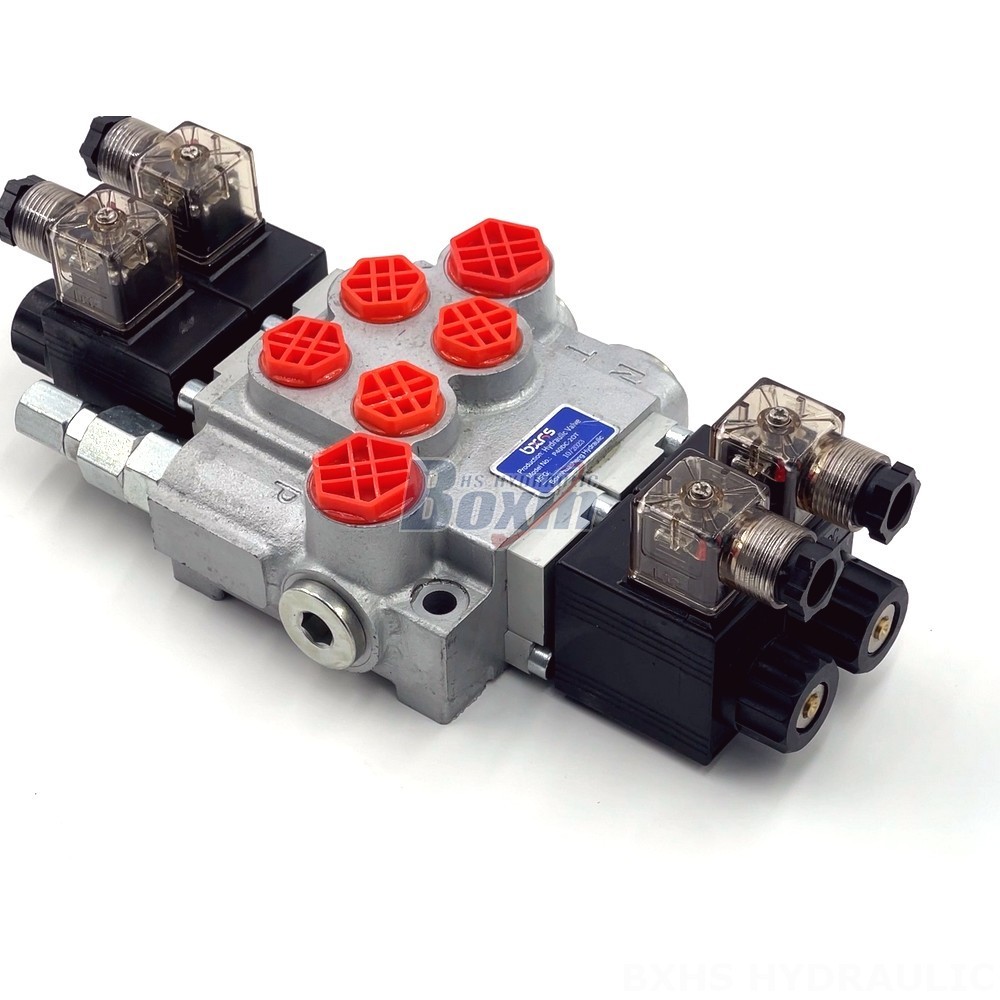

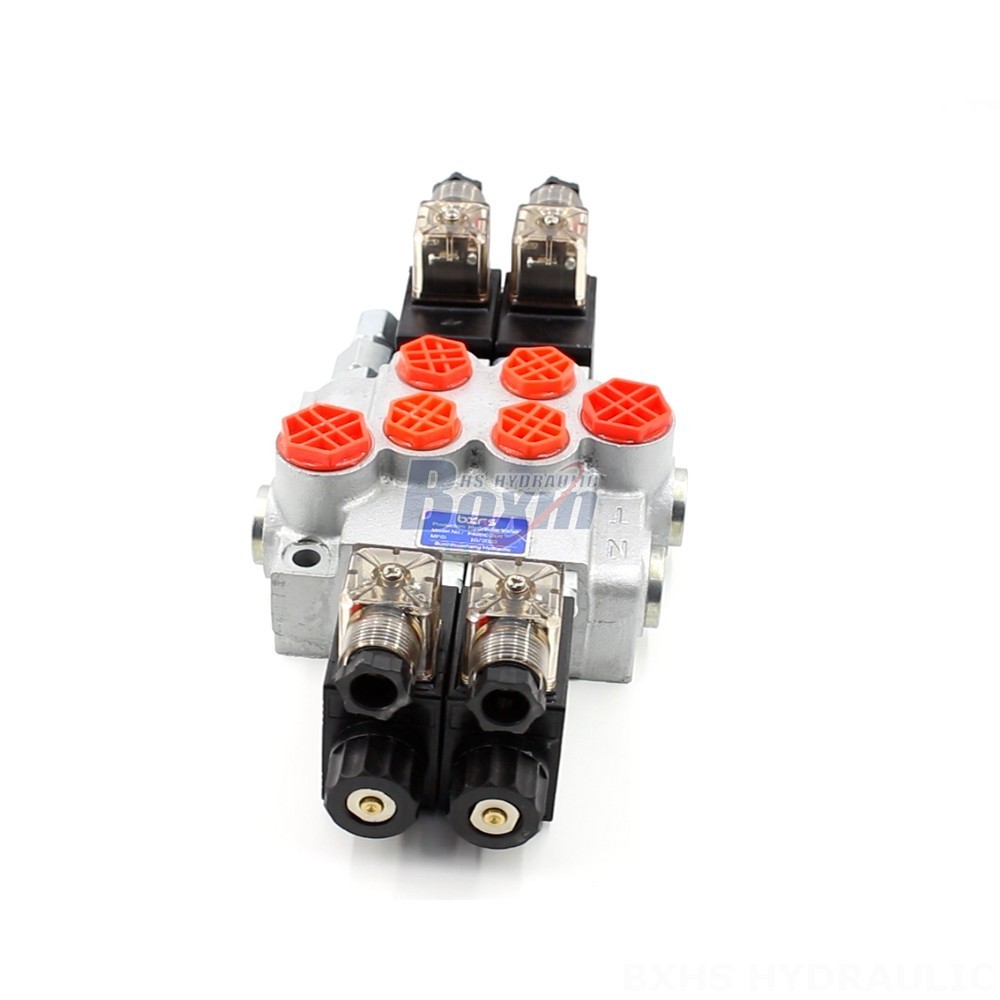

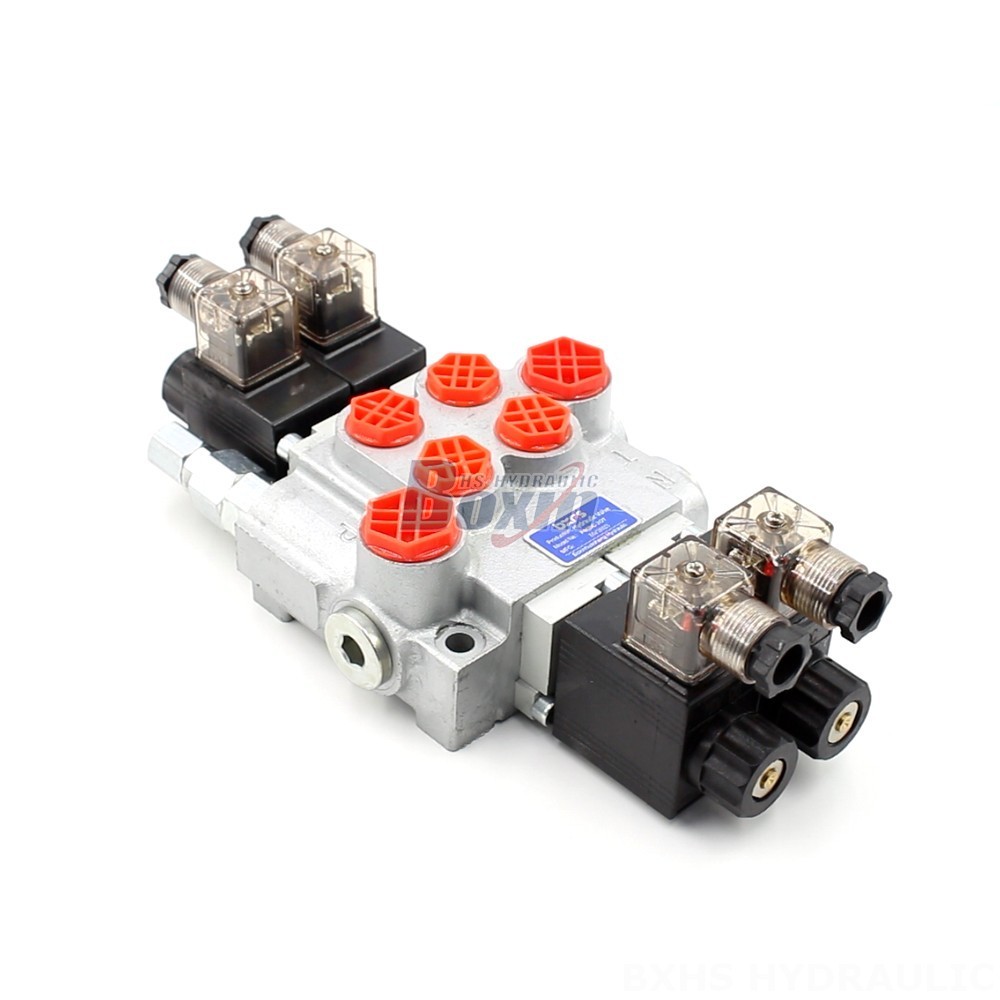

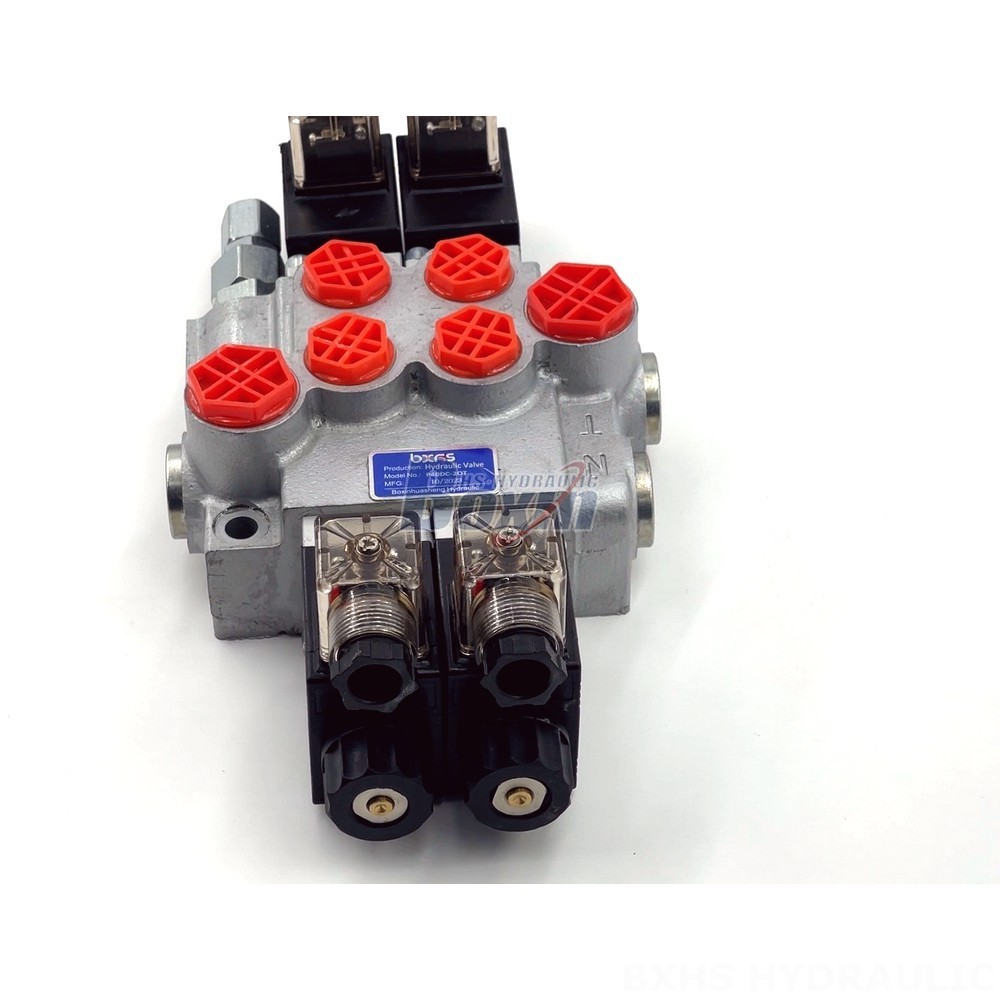

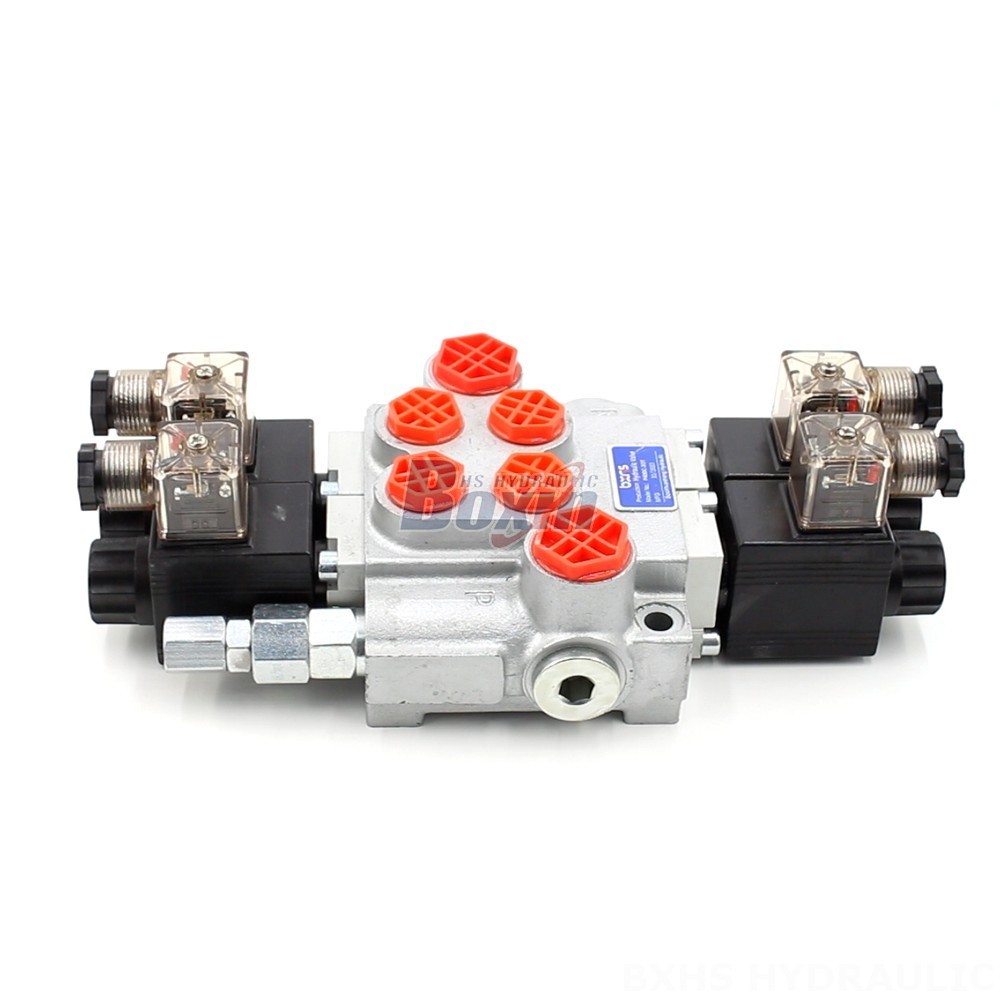

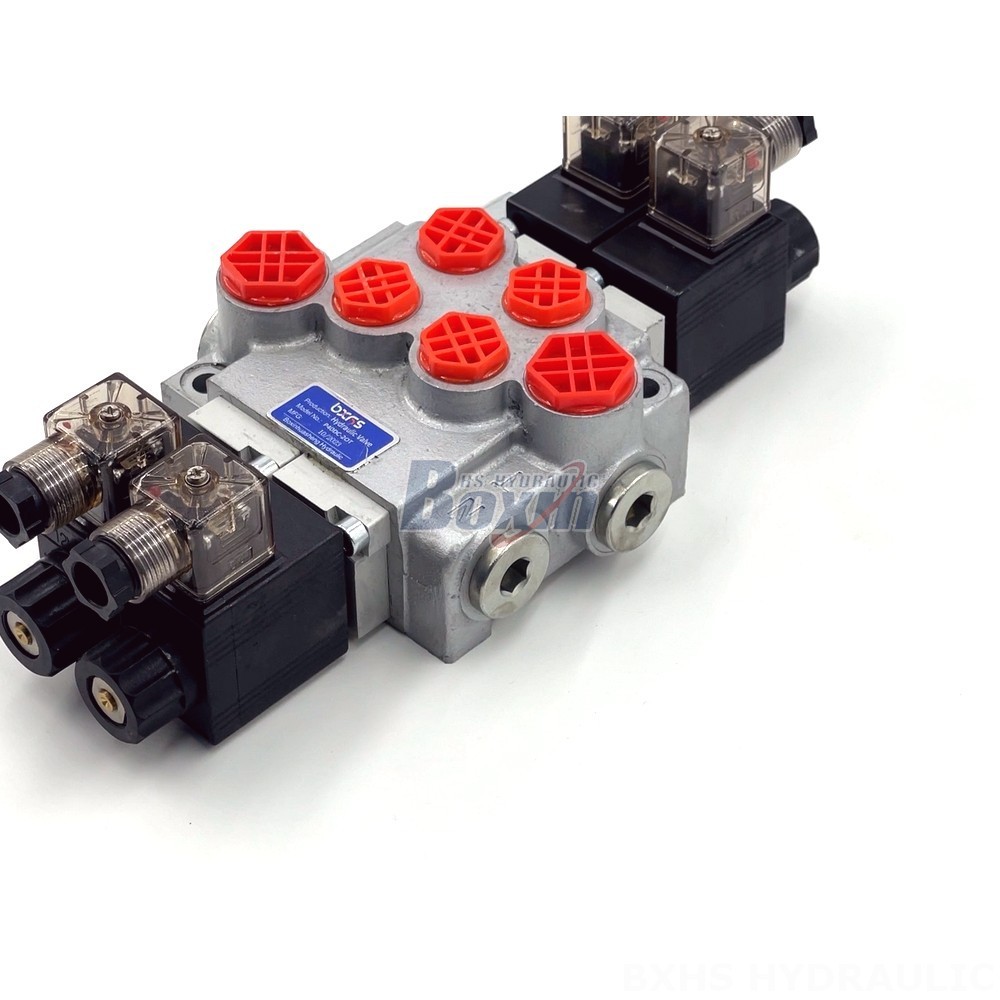

The P40-DKL Series is a high-performance, 2-section, monoblock hydraulic directional control valve with solenoid actuation. It features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications in construction equipment, material handling, agriculture, and industrial vehicles.

P40-DKL系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-DKL Series hydraulic directional control valve is a reliable and efficient solution for controlling hydraulic fluid flow in various applications. It is a 2-section, monoblock valve with solenoid actuation, providing precise and responsive control. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is designed to handle demanding operating conditions. Its compact size and durable construction make it ideal for use in tight spaces and harsh environments. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Available in both wholesale and OEM options, the P40-DKL Series offers flexibility and customization to meet your specific needs.
